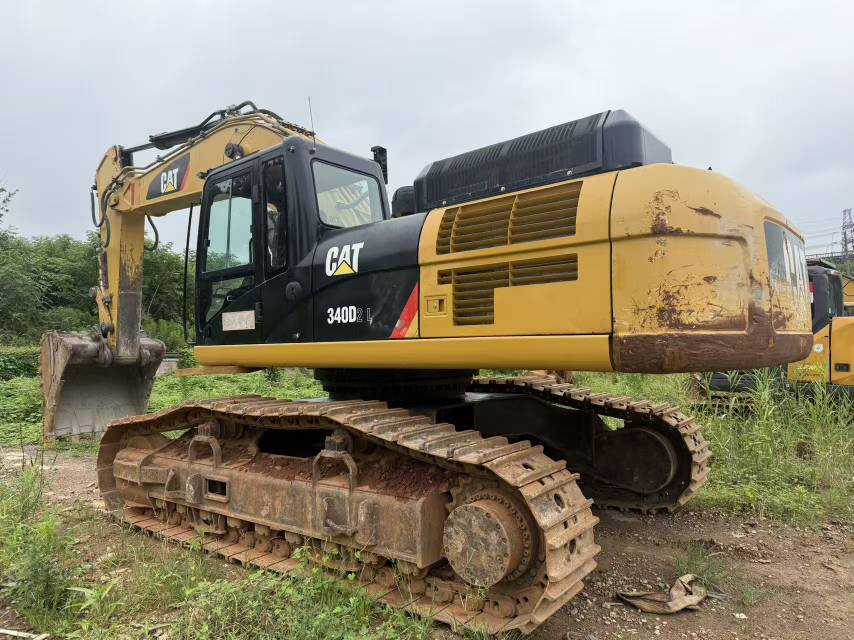

2018 Caterpillar 340D
Product Description
This 2018 Caterpillar 340D excavator represents a solid investment for mining and heavy construction operations. Built to Caterpillar's mining specifications, this machine delivers the durability and performance required for demanding applications in quarries, mines, and large-scale earthmoving projects.
Currently located in Guangdong, China, this unit is available for inspection and ready for deployment. The 340D series is recognized for its robust hydraulic system, fuel efficiency, and operator comfort, making it suitable for extended production cycles.
- Year: 2018
- Make: Caterpillar
- Model: 340D
- Configuration: Mining specification
- Location: Guangdong Province, China
For detailed specifications, current condition assessment, and pricing information, please contact our sales team. Shipping and export documentation assistance available.
| Specifications | Value |
|---|---|
| No. | 1138685 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

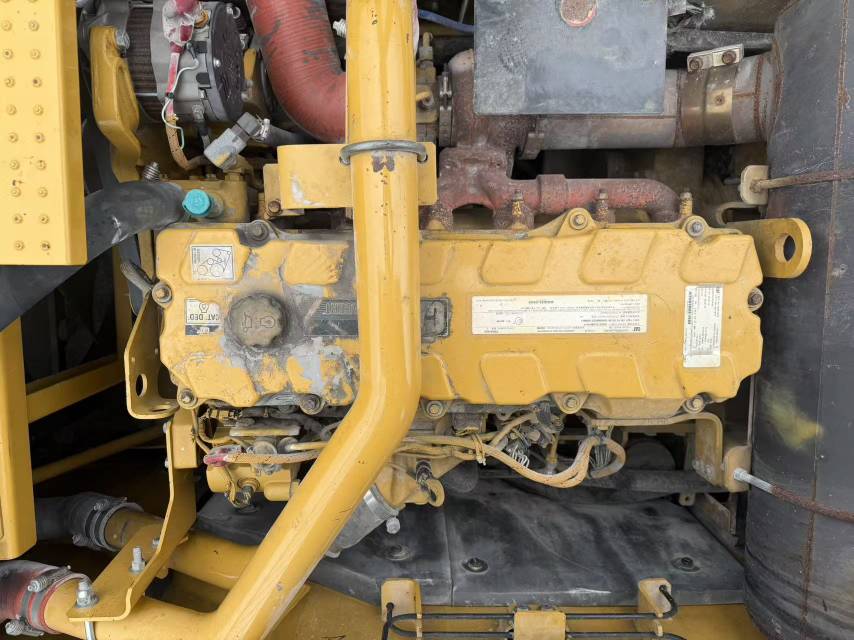

| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
Overview
No.1138685
Brand Name：
CaterpillarModel Number：
340D
Year：
2018
Location：
Guangdong China
Pub Date：
