2017 Caterpillar 340D2L
Product Description
Secure exceptional value with this 2017 Caterpillar 340D2L excavator, currently available in Shaoxing, Zhejiang. Operating in the 40-ton class with a working weight of 38,900-41,500 kg, this machine delivers serious productivity at a fraction of new equipment costs. Powered by the proven Cat C9 engine generating 208 kW, it combines a 1.9 m³ bucket capacity with impressive digging forces of 210 kN (bucket) and 185 kN (arm) to tackle demanding applications efficiently.
- Maximum Reach: 10,830 mm excavation radius ensures extensive job site coverage
- Digging Depth: 7,190 mm maximum depth for versatile operations
- Hydraulic Performance: 281 L/min main pump flow at 35 MPa for responsive control
- Proven Reliability: Joint venture/import quality with Cat's renowned durability
- Cost Advantage: Obtain premium 40-ton performance without the new equipment premium
Equipped with a 6,500 mm boom and 2,800 mm arm configuration, this 340D2L represents a strategic acquisition for contractors seeking maximum return on capital investment. Smart buyers recognize quality used equipment as the path to profitabili
| Specifications | Value |
|---|---|
| No. | 1028035 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

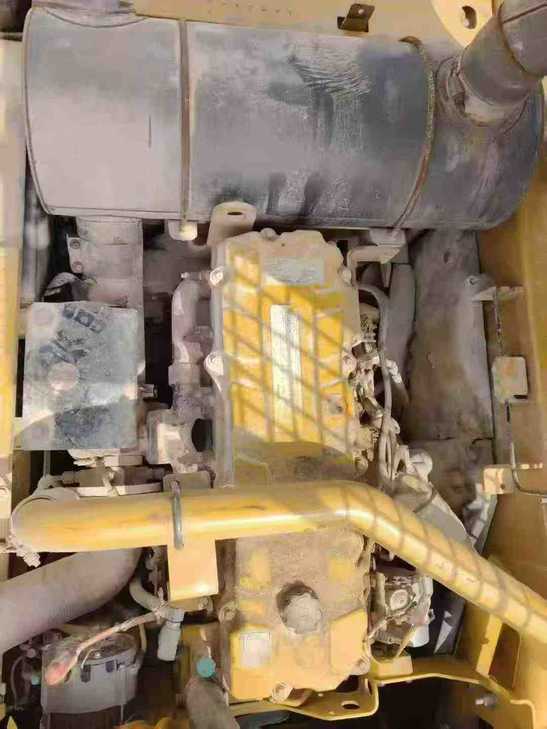

| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
