2016 Caterpillar 390DL
Product Description
Ready to deploy from 福建莆田 (Fujian Putian), this 2016 Caterpillar 390DL excavator eliminates factory wait times and gets your operation moving immediately. Powered by a robust Caterpillar C18 ACERT engine delivering 390 kW, this 90-ton machine combines massive digging force with the reliability expected from joint-venture manufacturing standards.
Equipped with a 4.6 m³ backhoe bucket, 8400 mm boom, and 4400 mm stick, this hydraulic excavator tackles demanding earthmoving and mining applications with authority. Maximum digging depth reaches 9660 mm, while the 14690 mm excavation radius covers extensive work areas. With 363 kN bucket digging force and 276 kN stick force, hard-packed materials pose no challenge.
- Working Weight: 90,390 kg

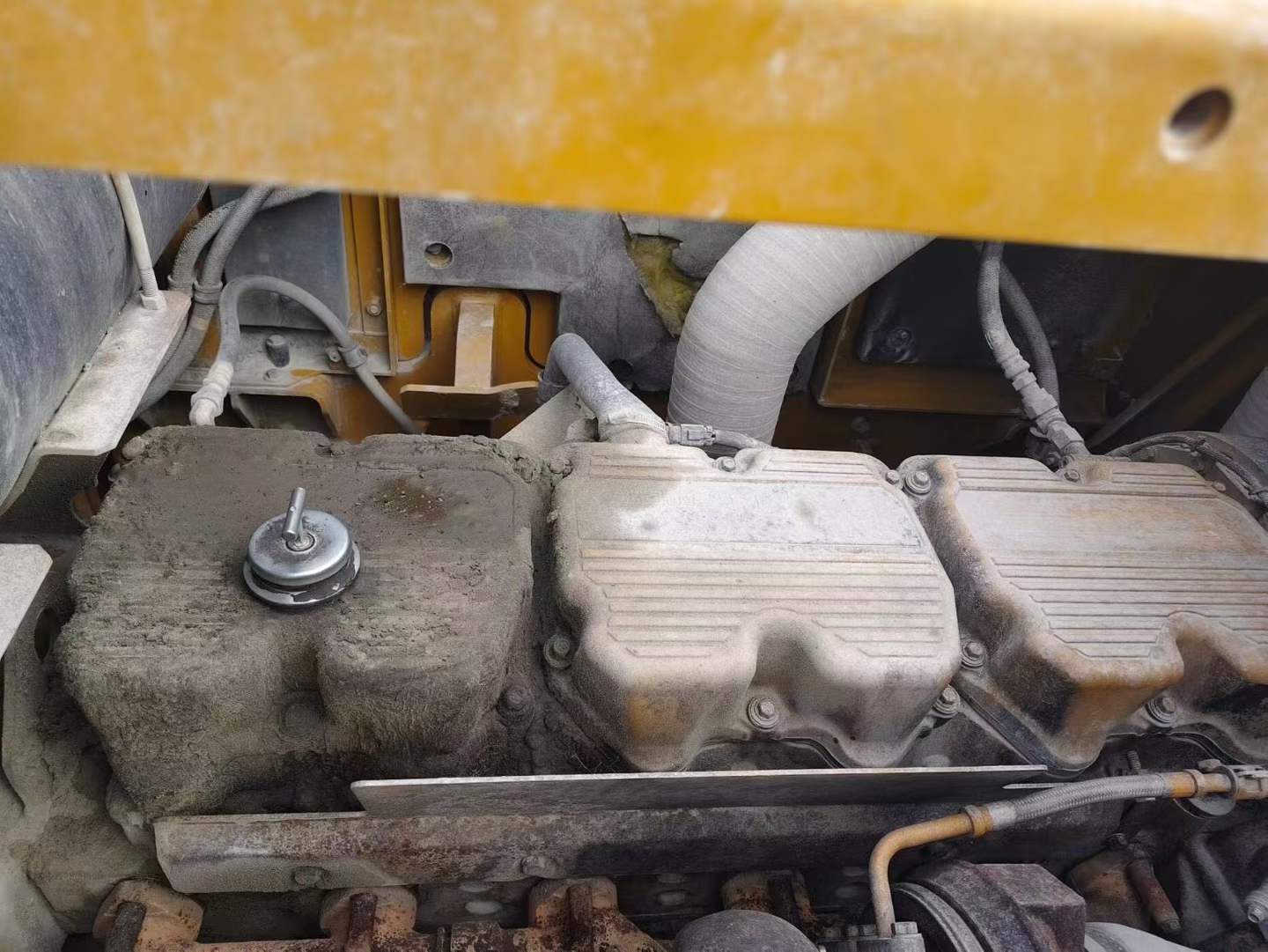

- Engine: Cat C18 ACERT, 18.1L displacement, water-cooled
- Hydraulic System: 995L capacity, 35 MPa main pressure
- Travel Speed: 4.5 km/h with dual hydraulic motors
- Fuel Capacity: 1240L for extended shifts
- Available Now: Fast shipping from 福建莆田
Skip months of lead time. Secure this proven performer and mobilize to your site without delay.
| Specifications | Value |
|---|---|
| No. | 1024178 |
| Tonnage (tons) | 90 |
| Working weight (kg) | 90390 |
| Bucket capacity (m³) | 4.6 |
| Boom length (mm) | 8400 |
| Rod length (mm) | 4400 |
| Country of origin | America |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C18 ACERT(ATAAC) |
| Rated power (kw/rpm) | 390 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 145 x 171 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 18.1 |
| Ground specific pressure (Kpa) | 88.3-122.4 |
| Rotation speed (rpm) | 5.9 |
| Bucket digging force (kN) | 363 |
| Rod digging force (kN) | 276 |
| Maximum tractive force (kN) | 590 |
| Travel speed (km/h) | 4.5 |
| Turning torque (kN/m) | 260 |
| Main overflow set pressure (Mpa) | 35 |
| Type of walking hydraulic motor | 980 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 35 |
| Control Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 90 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-210 x 2262 |
| Fuel Tank (L) | 1240 |
| Engine Oil changes (L) | 65 |
| Coolant (L) | 101 |
| Hydraulic System (L) | 995(including fuel tank) |
| Total transport length (mm) | 14700 |
| Total transport width (mm) | 4260 |
| Total transport height (mm) | 5290 |
| Full cab height (mm) | 3760 |
| Minimum ground clearance (mm) | 900 |
| Back end turning radius (mm) | 4680 |
| Total track length (mm) | Standard 5840/ Extended 6360 |
| Track gauge (mm) | 3510 |
| Track plate width (mm) | 650/750/900 |
| Total track width (mm) | 4260 |
| Maximum digging depth (mm) | 9660 |
| Maximum unloading height (mm) | 9270 |
| Maximum vertical digging depth (mm) | 6850 |
| Maximum excavation radius of stop surface (mm) | 14690 |
| Maximum effective digging depth (mm) | 9550 |
Overview
No.1024178
Brand Name：
CaterpillarModel Number：
390DLYear：
2016
Location：
Fujian China
Pub Date：
