2023 Caterpillar CAT352










Product Description

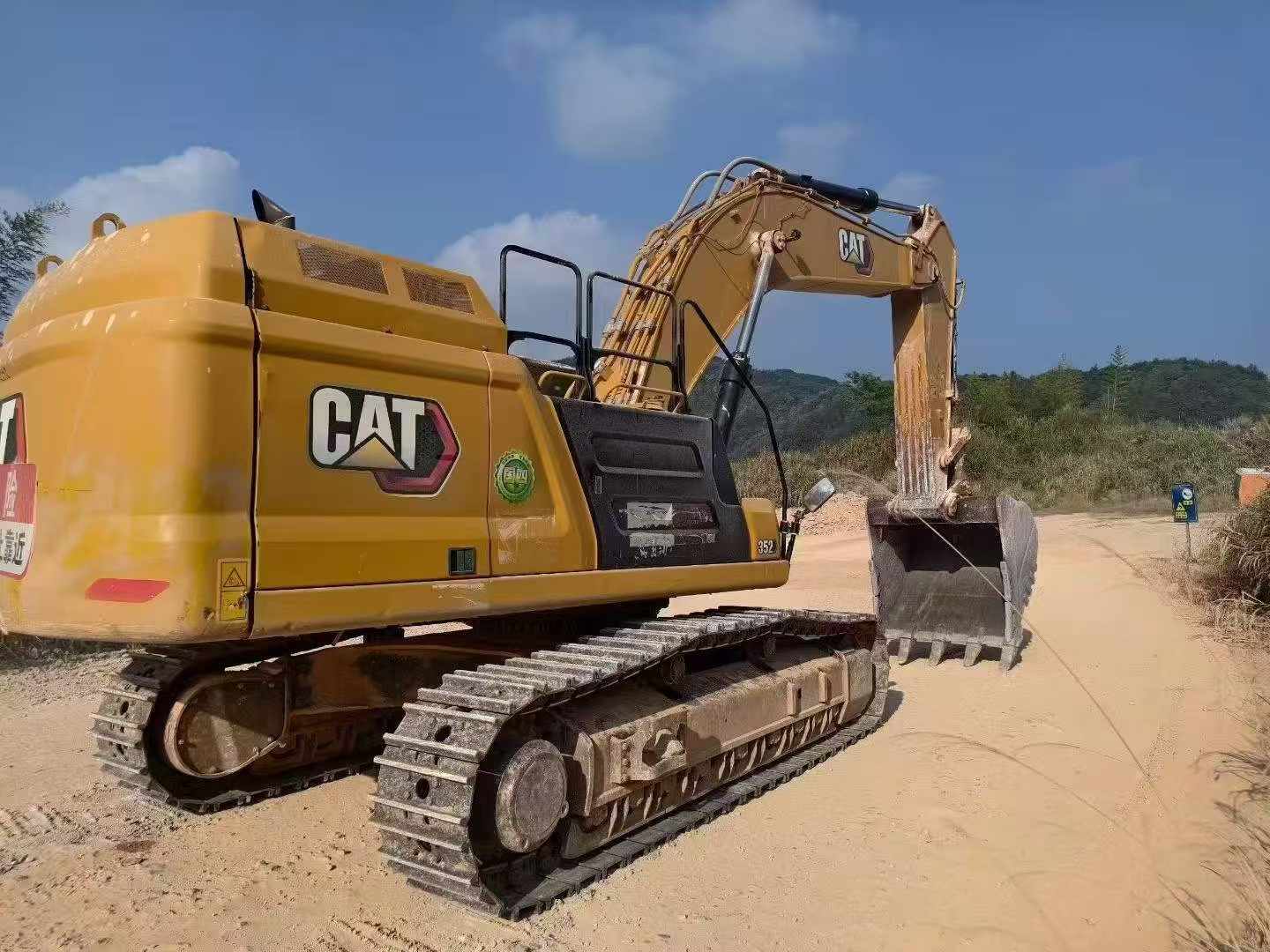

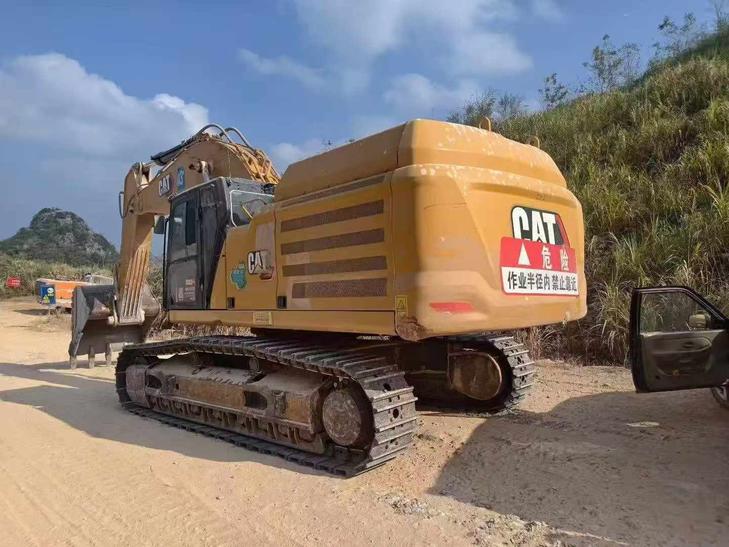

Available for sale: 2023 Caterpillar 352 hydraulic excavator currently located in Hunan, China. This late-model machine represents an opportunity to acquire recent CAT technology with minimal operational history. The CAT 352 is engineered for demanding earthmoving, site development, and heavy construction applications where performance and fuel efficiency are critical.
Key highlights:
- Model year: 2023
- Manufacturer: Caterpillar
- Model: CAT 352
- Current location: Hunan Province, China
- Pricing negotiable for serious inquiries
This unit offers the reliability and support network associated with the Caterpillar brand. Ideal for contractors and operators seeking proven hydraulic excavator capability with contemporary emissions and control systems. Contact us to discuss specifications, inspection arrangements, and pricing details. Serious buyers are encouraged to schedule an evaluation.
| Specifications | Value |
|---|---|
| No. | 1157431 |
| Tonnage (tons) | 52 |
| Working weight (kg) | 50600 |
| Bucket capacity (m³) | 3.2 (Rock Bucket) |
| Boom length (mm) | 6550 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C13B |
| Rated power (kw/rpm) | 332/1700 |
| Cylinder diameter × stroke (mm) | 130*157 |
| Displacement (L) | 12.5 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 8.3 |
| Bucket digging force (kN) | 293 |
| Rod digging force (kN) | 212 |
| Turning torque (Nm) | 189k |
| Maximum flow of main pump (l/min) | 779 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 715 |
| Hydraulic Tank (L) | 217 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 550 |
| Total transport length (mm) | 11580 |
| Total transport width (mm) | 3539 |
| Total transport height (mm) | 4040 |
| Counterweight ground clearance (mm) | 1280 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 3760 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Center distance of support wheel (mm) | 4360 |
| Maximum digging radius (mm) | 11240 |
| Maximum digging depth (mm) | 7270 |
| Maximum excavation height (mm) | 10290 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 4540 |
| Maximum excavation radius of stop surface (mm) | 11240 |
Overview
No.1157431
Brand Name:
CaterpillarModel Number:
CAT352
Year:
2023
Location:
Hunan China
Pub Date:
