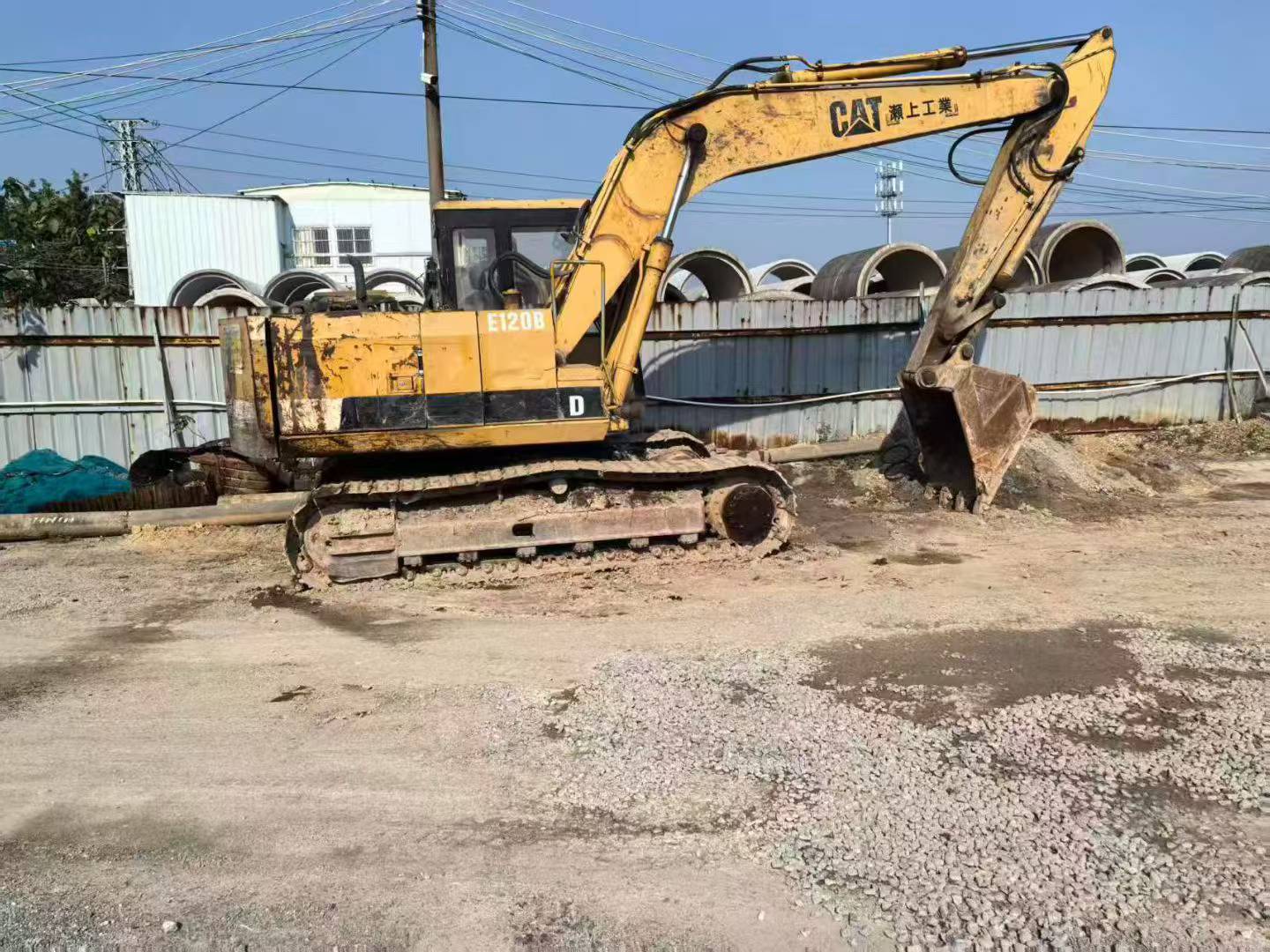

2016 Caterpillar E120B

Engineered with Caterpillar's proven 3114 diesel engine delivering 62.6 kW of rated power through a 4.4L displacement, this 2016 E120B excavator represents joint-venture manufacturing excellence. Operating at a 12-ton working weight of 12,800 kg, the machine combines a robust 165L hydraulic system with precise ground pressure distribution of 41.2 kPa, ensuring optimal stability across varied terrain conditions.

Performance specifications demonstrate superior reach capabilities:

• Maximum digging depth: 5,150 mm with 7,925 mm excavation radius
• Maximum excavation height: 8,215 mm for elevated loading operations
• Vertical digging depth: 4,515 mm for precision trenching
• 500 mm track plates across 2,780 mm ground contact length

Operational efficiency is supported by a 250L fuel tank and 5 km/h travel speed, while the 2,490 mm transport width facilitates straightforward relocation. Currently located in Hunan, this backhoe-equipped excavator delivers the technical reliability Caterpillar's E-series is recognized for in demanding construction and excavation environments.
