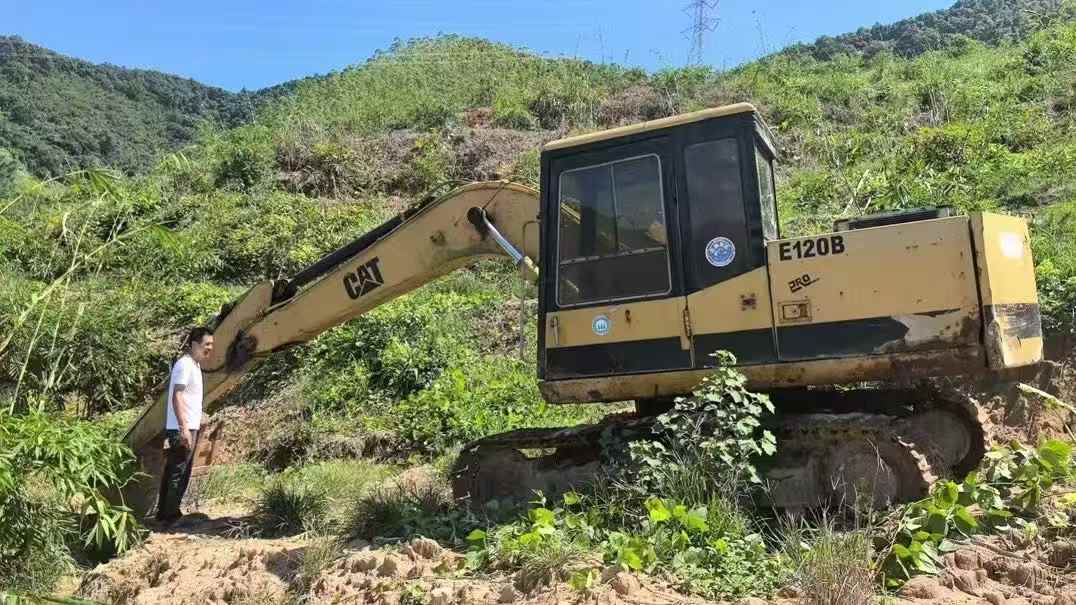

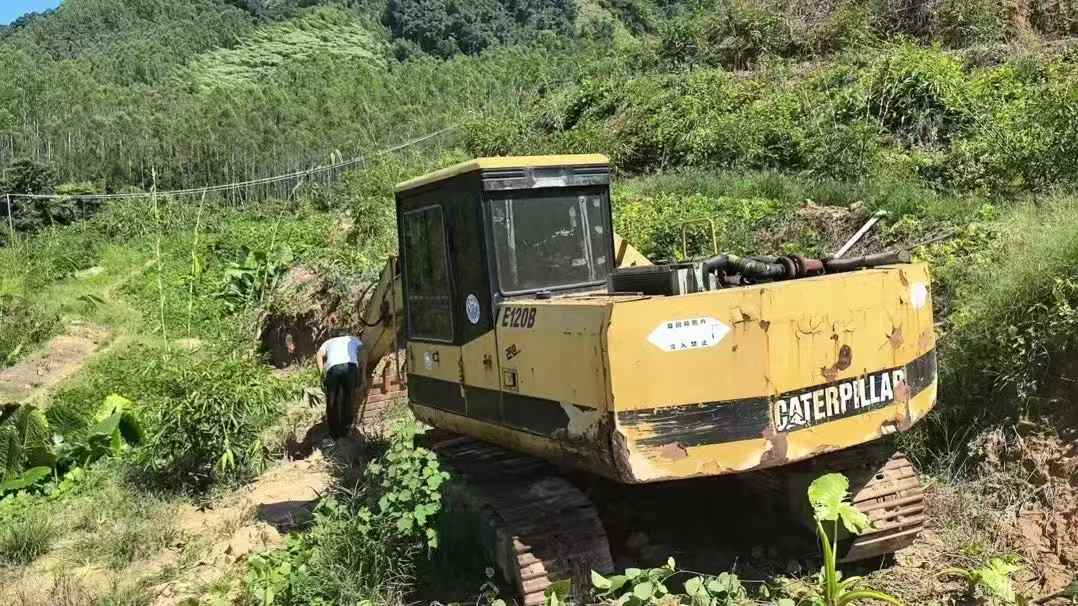

2016 Caterpillar E120B

Engineered with Caterpillar's proven 3114 engine delivering 62.6 kW of rated power through a 4.4L displacement, this 2016 E120B excavator represents joint-venture manufacturing excellence. Operating at a 12-ton weight class with 12,800 kg working mass, the machine combines precision hydraulics (165L system capacity) with substantial fuel autonomy (250L tank) for extended operational cycles.

Technical specifications demonstrate superior reach capabilities:

• Maximum excavation radius: 7,925 mm for extensive working envelope
• Maximum digging depth: 5,150 mm with 4,515 mm vertical capacity
• Maximum excavation height: 8,215 mm enabling elevated loading operations

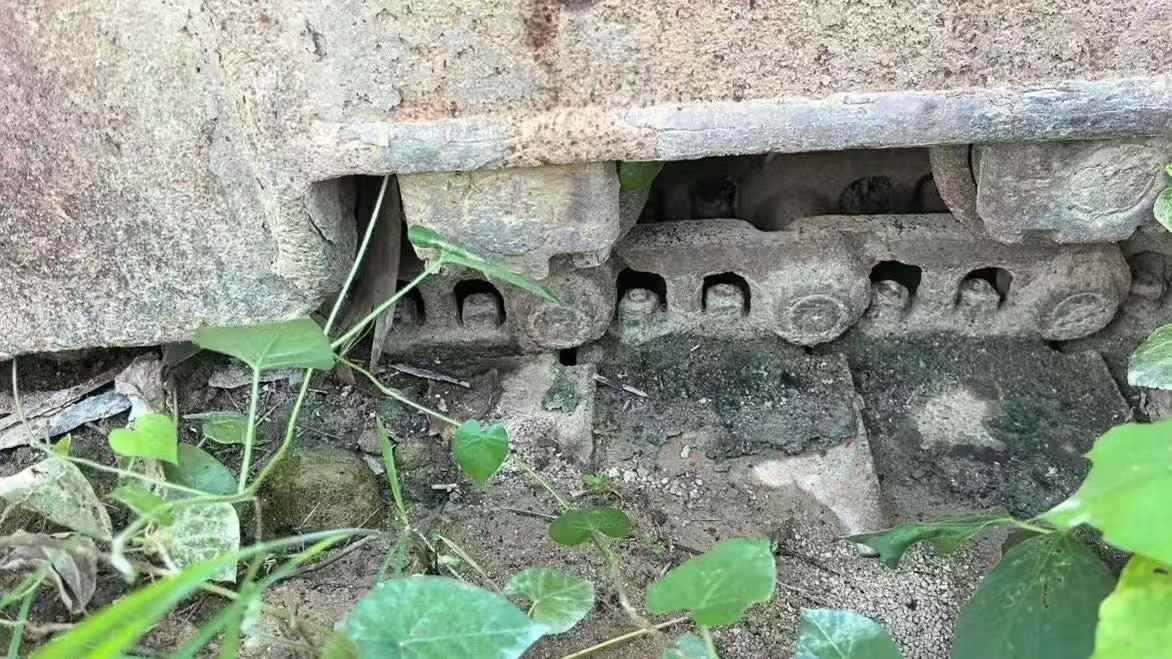

• Ground-specific pressure: 41.2 kPa minimizing surface impact across 2,780 mm track ground length

Compact transport dimensions (2,490 mm width, 2,700 mm cab height) facilitate site mobility while maintaining 920 mm counterweight clearance. The 2,115 mm rear turning radius and 500 mm track plates ensure maneuverability in confined spaces. Currently located in Fujian Sanming, this traditional-powered excavator offers proven reliability for demanding earthmoving applications.
