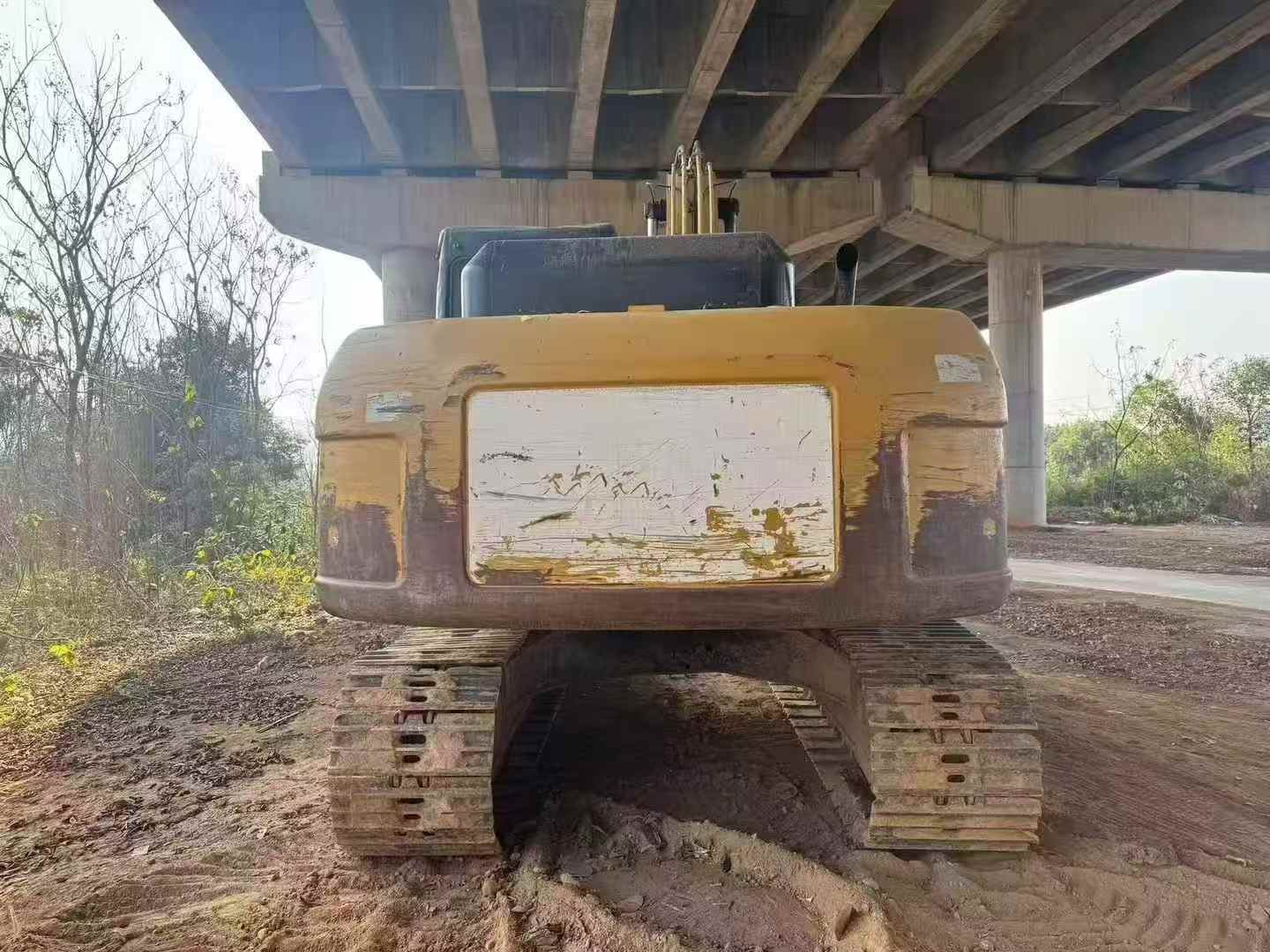

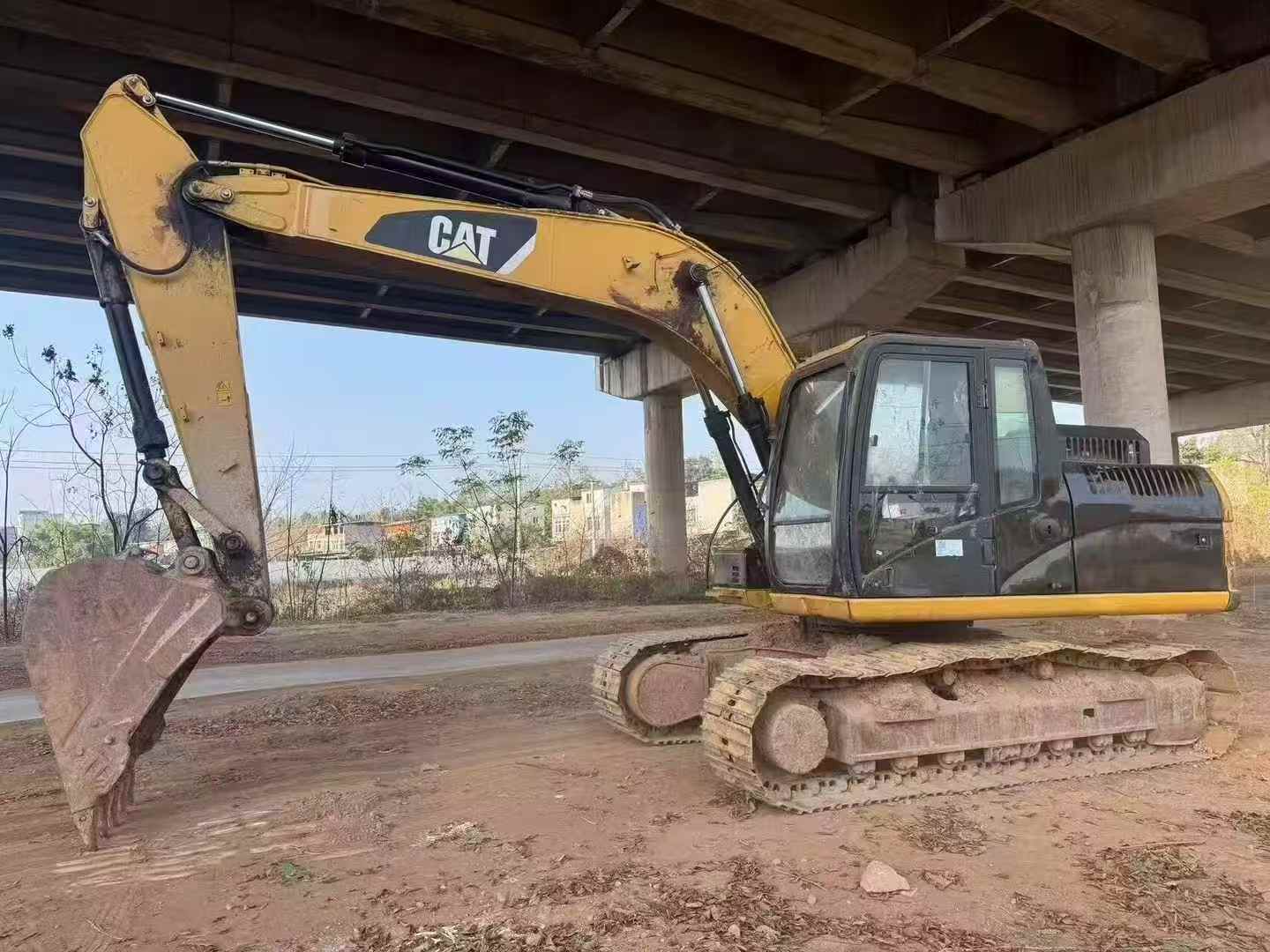

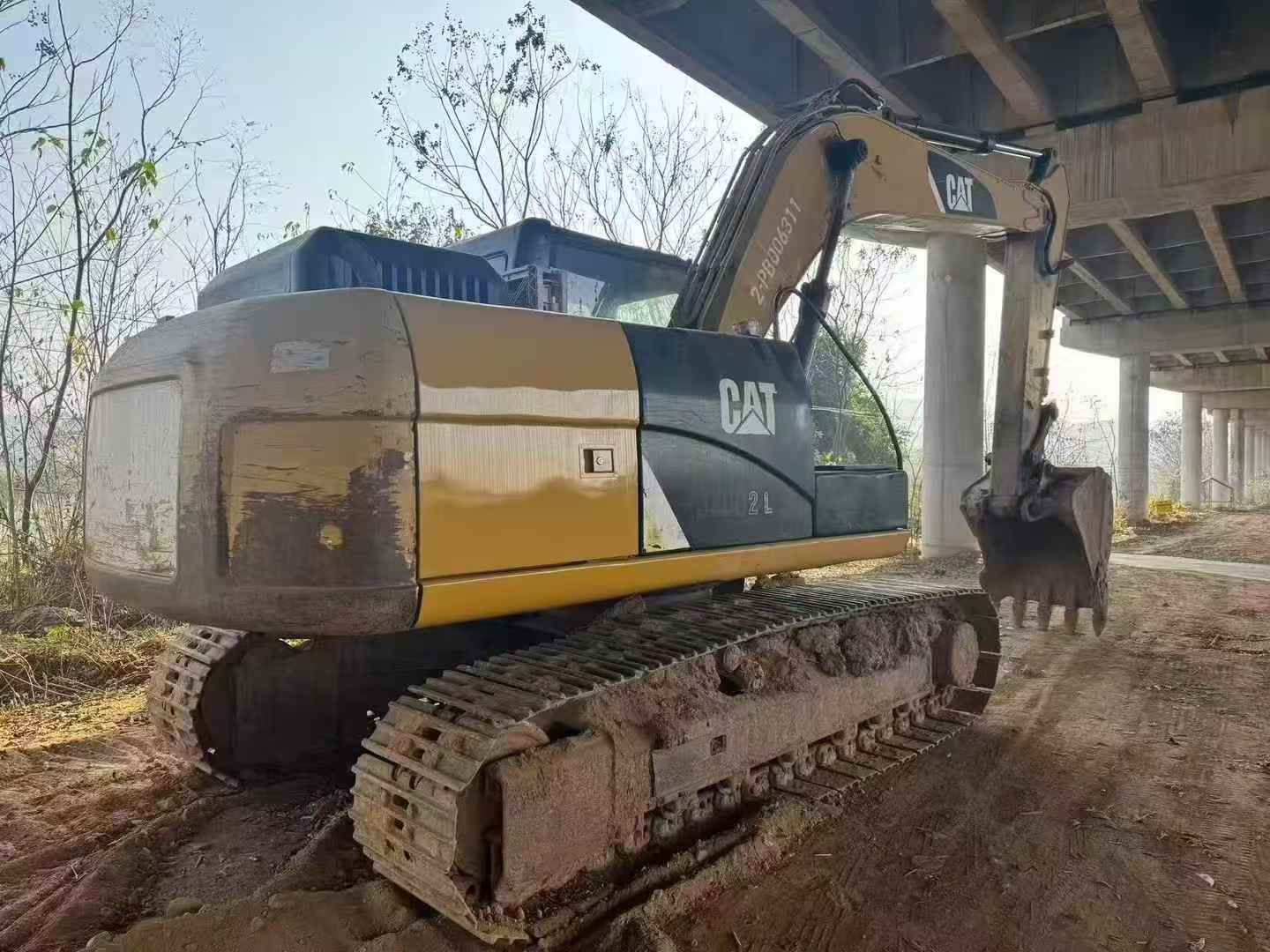

2013 Caterpillar M318
Product Description
With a working weight of 19,500 kg and a tonnage of 18 tons, this 2013 Caterpillar M318, located in 贵州, ensures robust performance for your construction needs. Equipped with a CATERPILLAR 3116T engine, it delivers a rated power of 104.4 kW, providing the necessary muscle for demanding tasks.
- Featuring a full cab height of 3,100 mm, operators benefit from excellent visibility, enhancing safety and efficiency on the job site.
- The wheelbase of 2,750 mm and counterweight ground clearance of 1,280 mm contribute to superior stability and handling, even in challenging terrains.
- Maximum excavation radius of 8,490 mm and digging depth of 5,090 mm allow for versatile and effective operation across various applications.
Designed with the operator in mind, this machine offers a comfortable and reliable experience, making it an ideal choice for your heavy equipment fleet.
| Specifications | Value |
|---|---|
| No. | 1020291 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 19500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | CATERPILLAR 3116T |
| Rated power (kw/rpm) | 104.4 |
| Total displacement (L) | 6.6 |
| Forward speed (Km/h) | 34 |
| Main overflow set pressure (Mpa) | 33 |
| Fuel Tank (L) | 370 |
| Hydraulic System (L) | 300 |
| Total transport width (mm) | 2950 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1280 |
| Wheelbase (mm) | 2750 |
| Total tire outside width (mm) | 2950 |
| Minimum ground clearance (mm) | 375 |
| Maximum excavation radius (mm) | 8490 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8530 |
| Maximum unloading height (mm) | 6080 |
| Maximum vertical digging depth (mm) | 2930 |
see more
Overview
No.1020291
Brand Name：
CaterpillarModel Number：
M318Year：
2013
Location：
Guizhou China
