Product Description

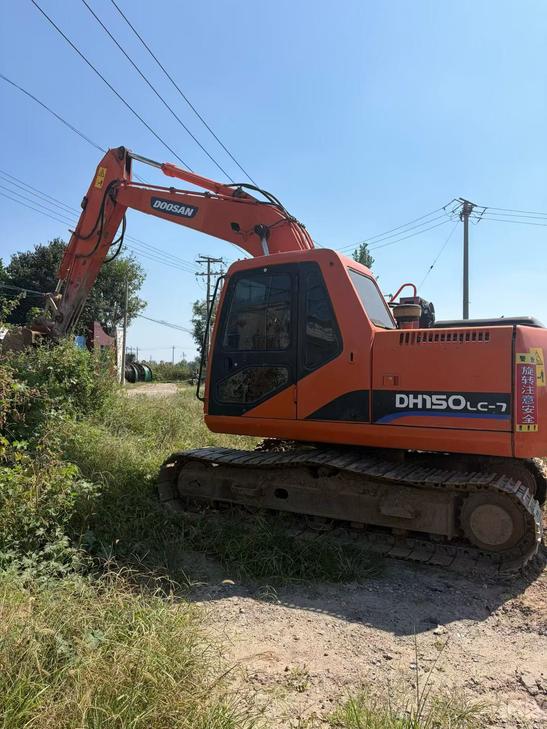

Doosan 150W-7 excavator available from Hebei, China. This 2020 model comes from single-owner operation with careful maintenance history. Equipped with a reliable 50-class power unit featuring intercooler technology for enhanced performance and fuel efficiency in demanding applications.
Key features include:
- Year: 2020
- Model: Doosan 150W-7
- Single owner, well-maintained
- Intercooled engine for optimal thermal management
- Proven performance in field conditions
- Competitively priced for quick sale
This machine demonstrates solid operational capability suitable for construction, excavation, and earthmoving projects. Located in Hebei province with documentation available. Contact for detailed specifications, service records, and current availability.
| Specifications | Value |
|---|---|
| No. | 1140012 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 12900 |
| Bucket capacity (m³) | 0.57 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2100/2500 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 96/2200 |
| Cooling mode | Air cooling |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 10-37 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 94.1 |
| Rod digging force (kN) | 68.6 |
| Minimum turning radius (m) | 77 |
| Maximum tractive force (kN) | 62 |
| Driving form | Hydraulic drive |
| Maximum flow of main pump (l/min) | 2 x 162 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Boom cylinder - Cylinder diameter × stroke (mm) | 2-110 x 1030 |
| Bucket rod cylinder - Cylinder diameter × stroke (mm) | 1-110 x 1085 |
| Bucket cylinder - Cylinder diameter × stroke (mm) | 1-95 x 885 |
| Main pump type | Variable axial plunger pump |
| Working Hydraulic Circuit (Mpa) | Standard 22.7/ Supercharged 34.3 |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 95 |
| Total transport length (mm) | 7250 |
| Total transport width (mm) | 2495 |
| Total transport height (mm) | 3125(to top of cab) |
| Full cab height (mm) | 3116 |
| Counterweight ground clearance (mm) | 1241 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 582 |
| Total tire outside width (mm) | 2496 |
| Wheel base (mm) | 1914 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 2210 |
| Maximum digging radius (mm) | 7530 |
| Maximum excavation radius (mm) | 7295/7728 |
| Maximum digging depth (mm) | 4615 |
| Maximum excavation height (mm) | 8015 |
| Maximum unloading height (mm) | 5630 |
| Maximum vertical digging depth (mm) | 4086/4675 |
| Minimum turning radius (mm) | 2210 |
