Product Description
Built for productivity, this 2015 Sany SY215C-8 excavator delivers 21 tons of digging power with a Mitsubishi 6D34-TL engine rated at 114kW. Currently located in Wenzhou, Zhejiang Province, this machine comes equipped with a 0.93m³ backhoe bucket and is ready for immediate deployment on your next project.
Engineered for demanding applications, the SY215C-8 offers a maximum digging depth of 6,630mm and a reach extending to 9,885mm—ideal for deep foundation work, trenching, and large-scale excavation. With 138kN of bucket digging force and dual 210 l/min hydraulic pumps, this excavator handles grading, demolition, and material loading with consistent performance.
- Operating weight: 20,900kg with proven water-cooled reliability
- Travel speeds: 3.2/5.5 km/h for efficient site maneuverability
- Climbing capability: 70% grade (35°) for challenging terrain
- Transport dimensions: 9,397mm × 2,980mm × 2,956mm

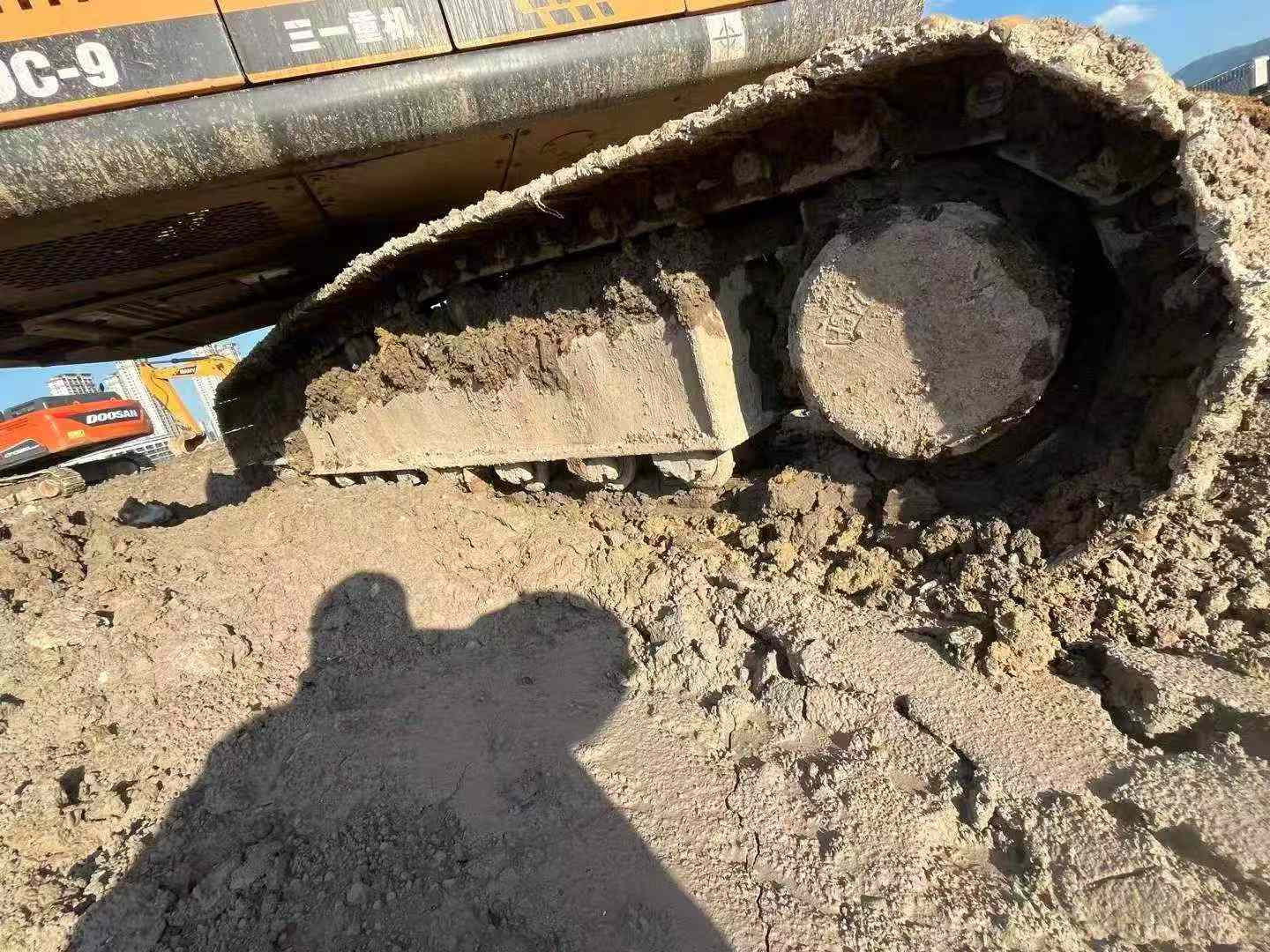

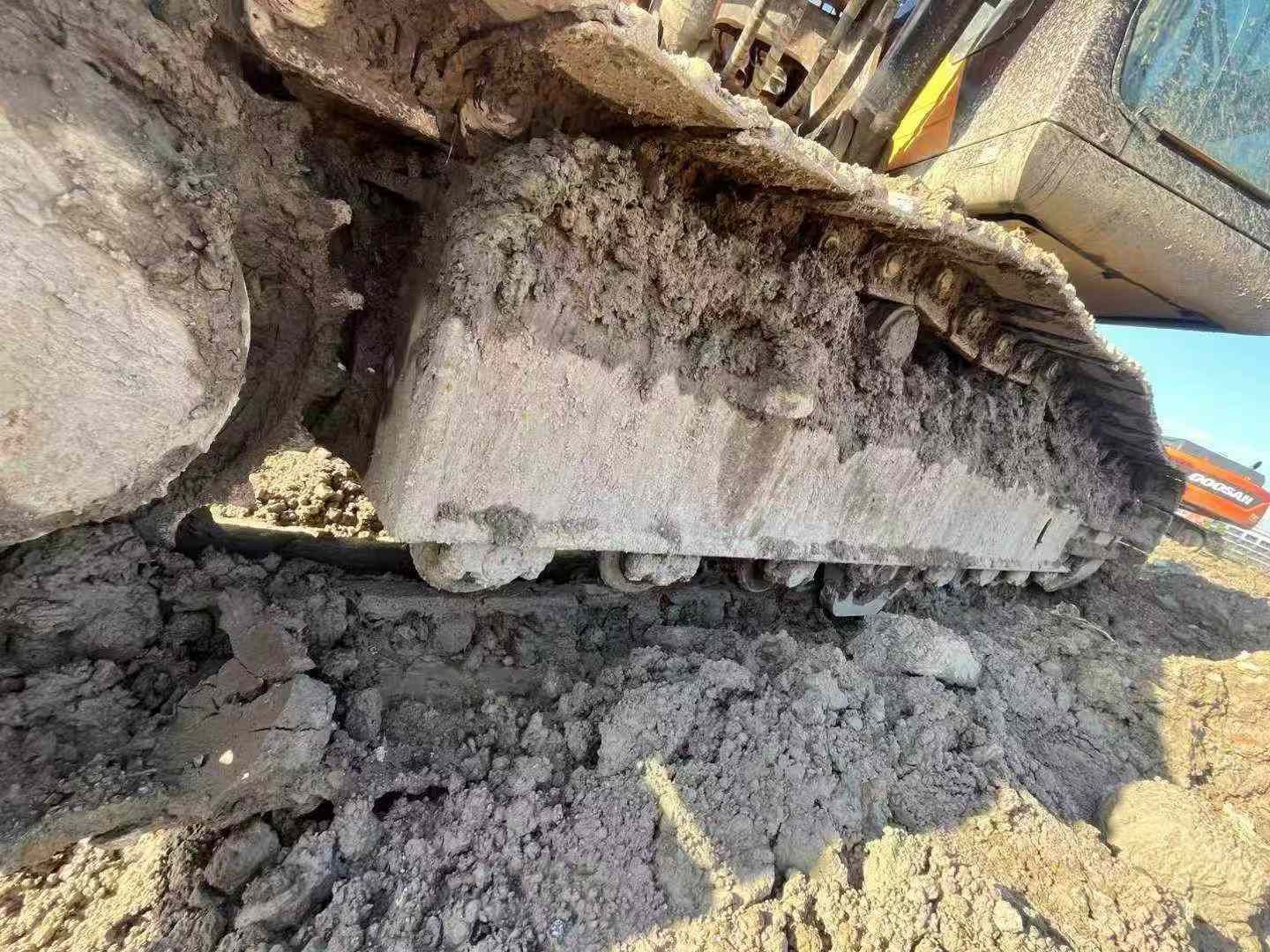

- 600mm track plates with 2,380mm gauge for superior stability
Factory-made in Kunshan, Jiangsu Province, this machine combines Japanese engine technology with Chinese manufacturing value. Site-ready condition—put it to work on excavation, grading, or demolition tasks with
| Specifications | Value |
|---|---|
| No. | 1048780 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

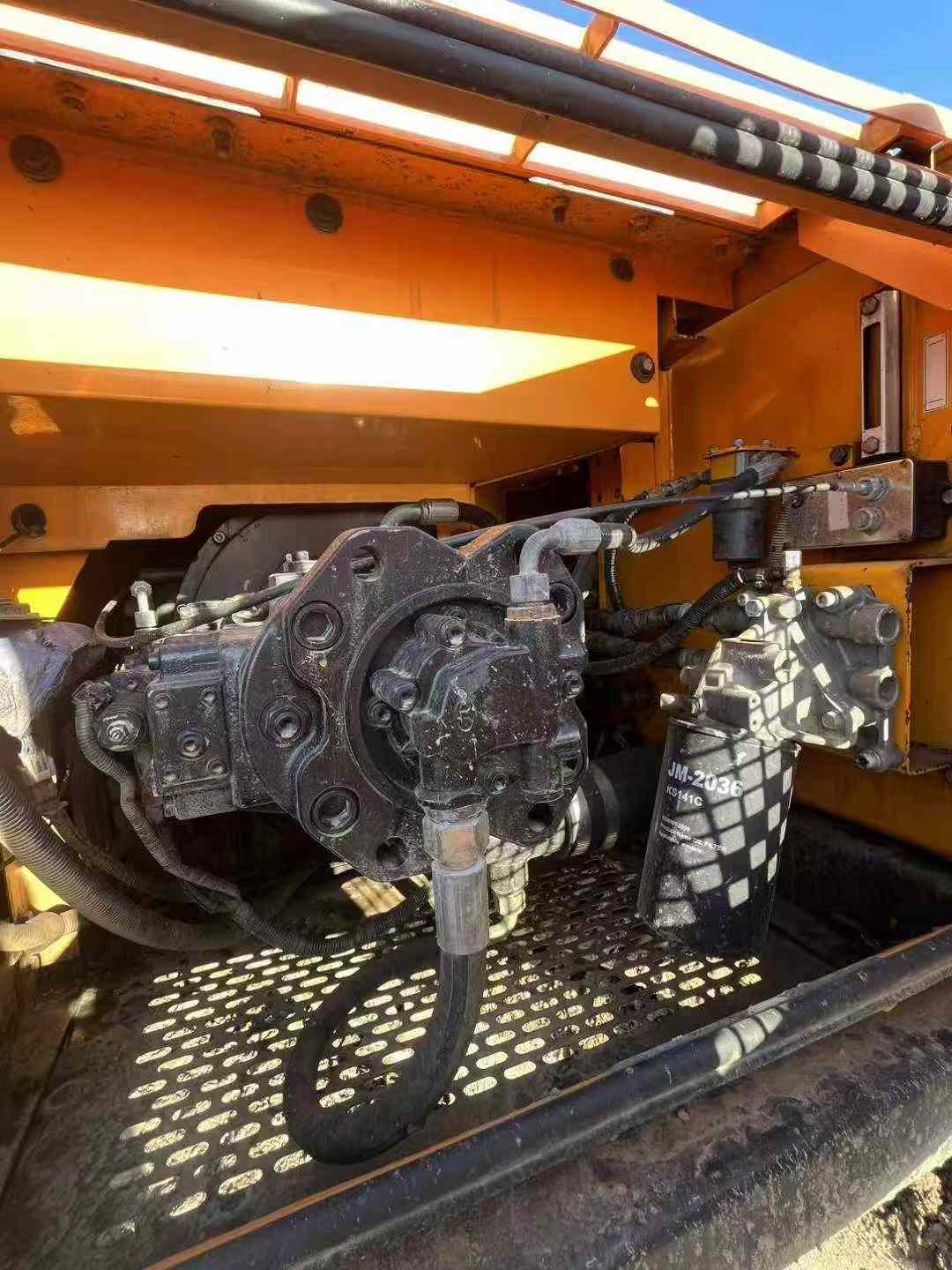

| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
