Product Description

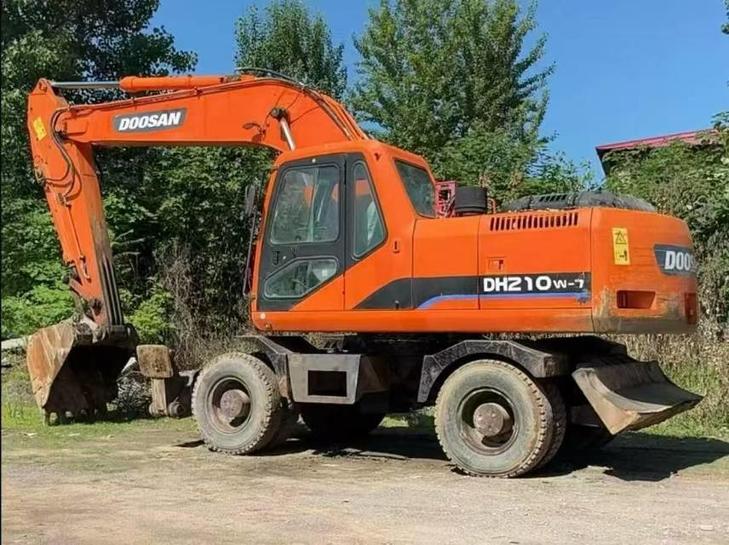

This 2012 Doosan DH210W-7 wheeled excavator offers versatile mobility and reliable performance for industrial applications. Originating from China, this machine features the original Doosan specifications with well-maintained condition throughout its operational life. The wheeled configuration provides enhanced road mobility compared to tracked models, making it ideal for urban construction, municipal projects, and sites requiring frequent relocation.
Key features include:
- Doosan DH210W-7 wheeled excavator platform
- 2012 model year with original factory finish
- Standard operating weight class for medium-duty applications
- Four-wheel drive system for improved site maneuverability
- Hydraulic stabilizers for operational stability
- Currently located in Beijing, China
This unit has been maintained in excellent working condition, retaining its original paint and components. Suitable for contractors seeking dependable wheeled excavator equipment for infrastructure development, utility work, and material handling operations.
| Specifications | Value |
|---|---|
| No. | 1170199 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900/2400 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 115 / 2200 |
| Total displacement (L) | 5.785 |
| remark | Four-stroke, water-cooled, direct spray |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Maximum torque (N.m) | 60 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 35 / 9.3 |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 59.6% (30.8°) persisted |
| Bucket digging force (kN) | 148 |
| Rod digging force (kN) | 104 |
| Minimum turning radius (m) | 3.6 |
| Driving form | Hydraulic drive |
| Maximum flow of main pump (l/min) | 2 x 239 |
| Traveling Hydraulic Circuit (Mpa) | 33.6 |
| Rotary Hydraulic Circuit (Mpa) | 27 |
| Main pump type | Variable axial plunger pump |
| Working Hydraulic Circuit (Mpa) | Standard 30.8/ Supercharged 33.6 |
| Pilot pump flow (L/min) | 22.1 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 118 |
| Total transport length (mm) | 9524 |
| Total transport width (mm) | 2470 |
| Total transport height (mm) | 3608(to top of arm) |
| Full cab height (mm) | 3111 |
| Counterweight ground clearance (mm) | 1254 |
| Wheelbase (mm) | 2850 |
| Single tire width (mm) | 596 |
| Total tire outside width (mm) | 2470 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 340 |
| Back end turning radius (mm) | 2750 |
| Maximum digging radius (mm) | 9896 |
| Maximum excavation radius (mm) | 9694/9363 |
| Maximum digging depth (mm) | 6558 |
| Maximum excavation height (mm) | 9673 |
| Maximum unloading height (mm) | 6823 |
| Maximum vertical digging depth (mm) | 5865 |
| Minimum turning radius (mm) | 2750 |
