2012 Doosan DH210W-7

1/9
Buy Doosan DH210W-7 Used Excavator / 1

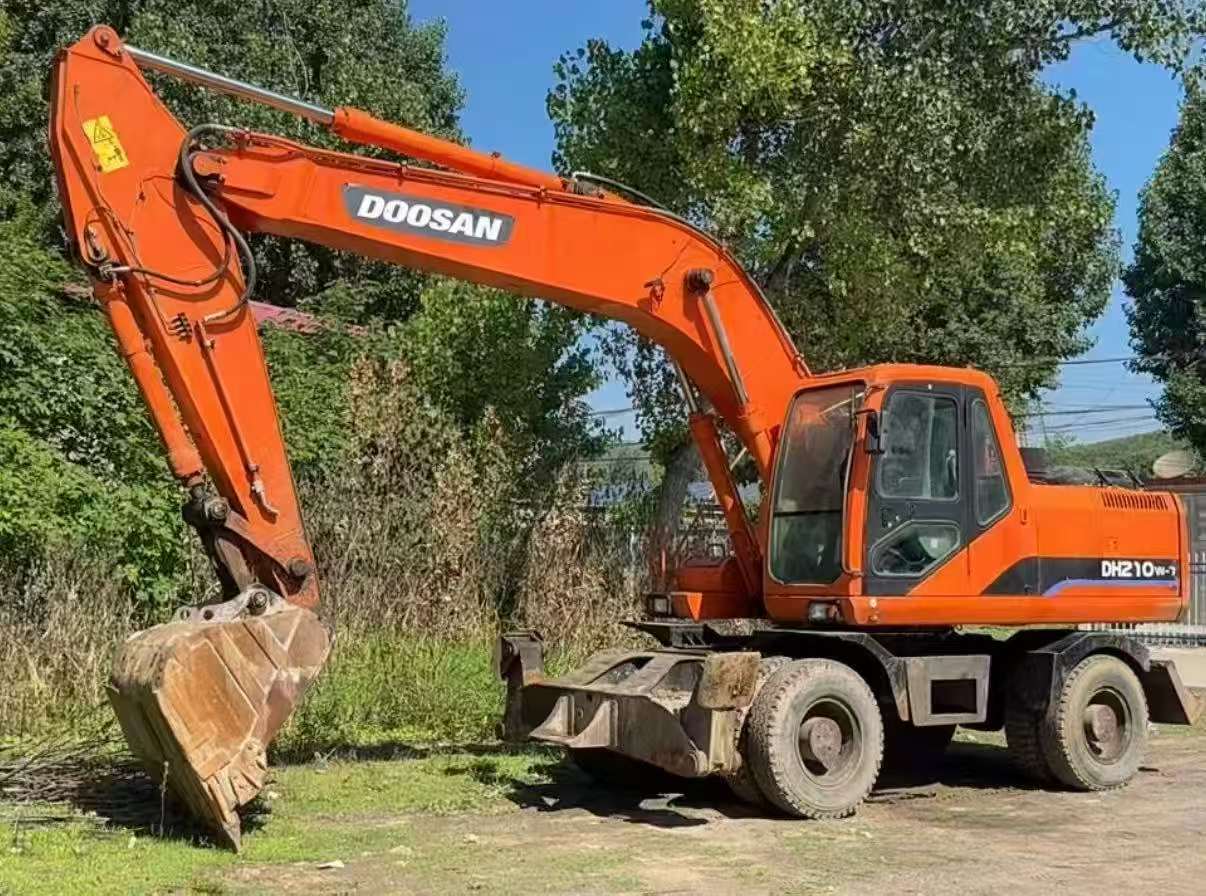

Buy Doosan DH210W-7 Used Excavator / 2

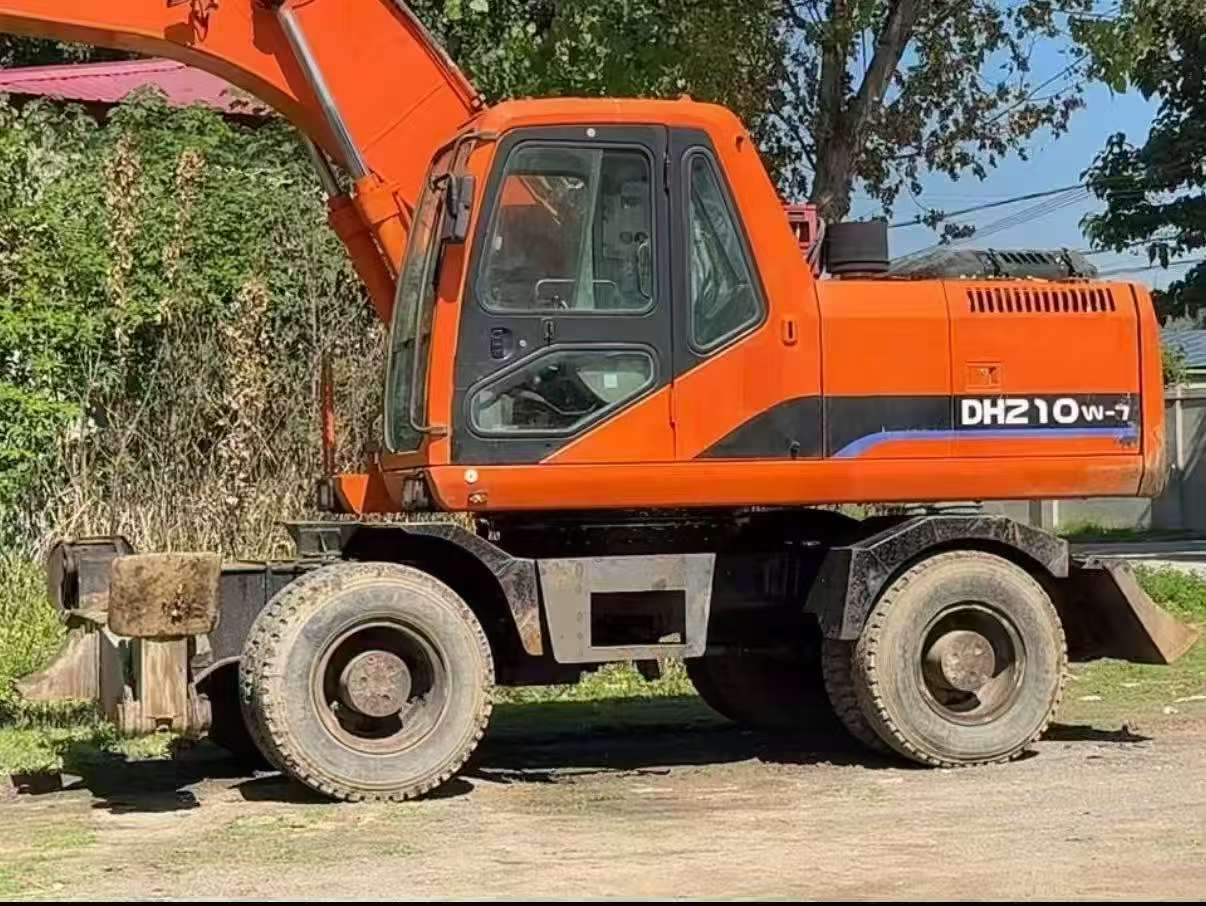

Buy Doosan DH210W-7 Used Excavator / 3

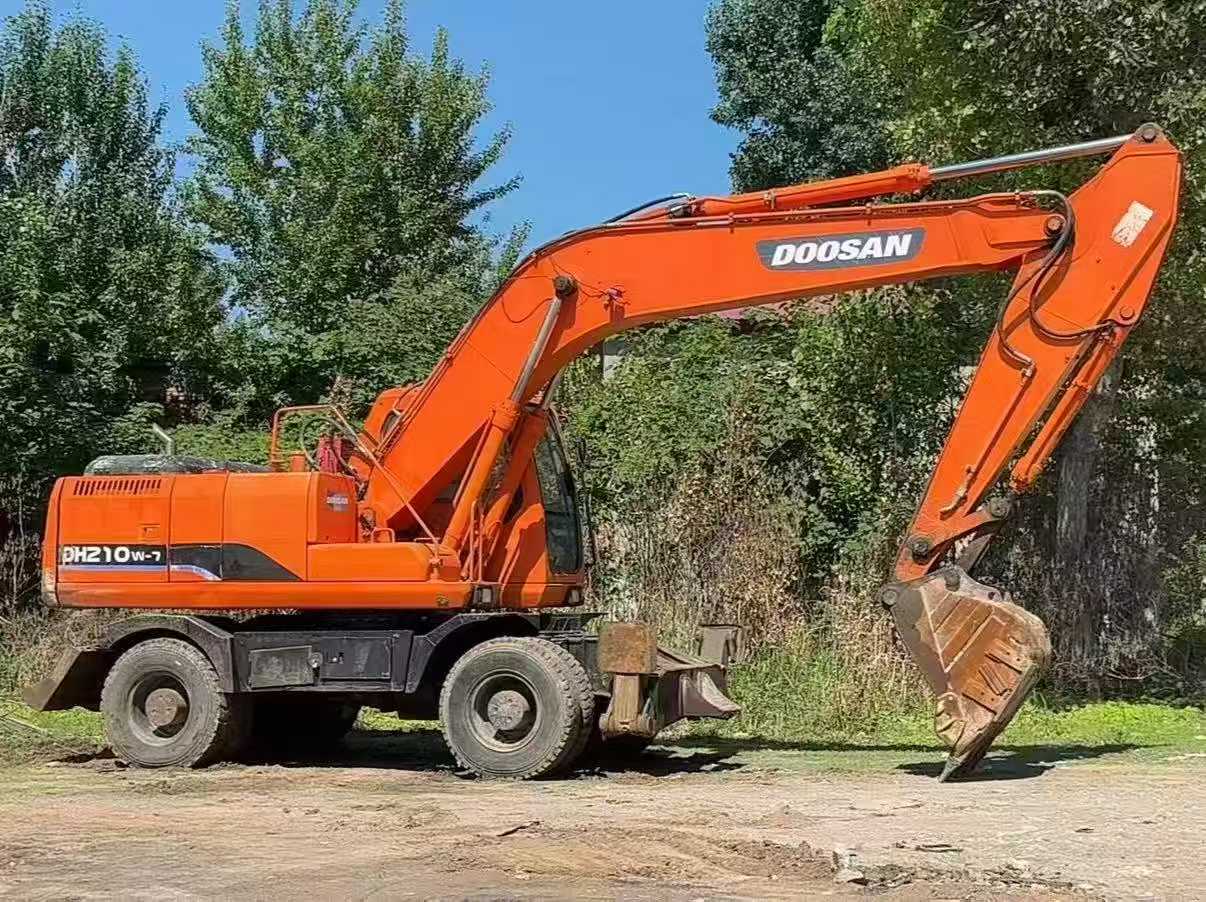

Buy Doosan DH210W-7 Used Excavator / 4

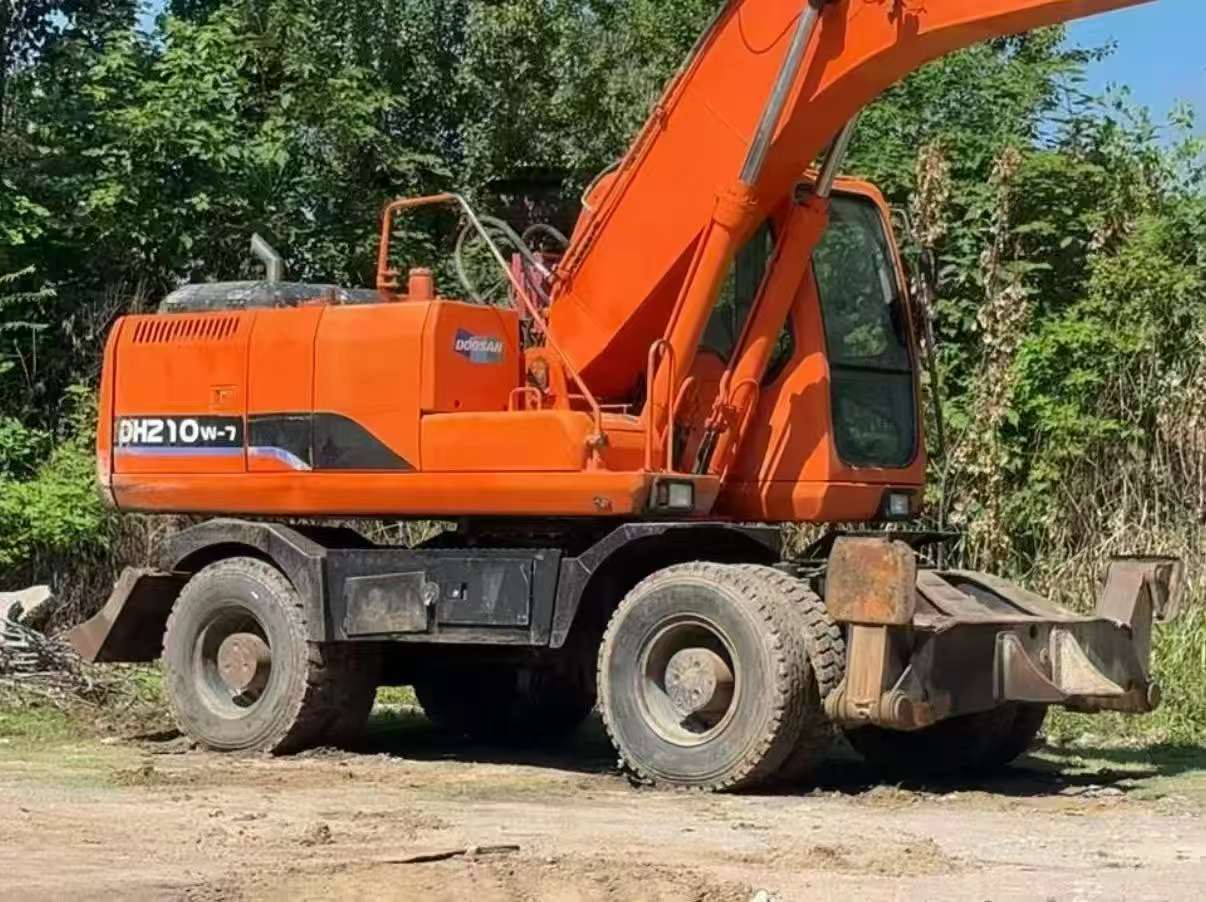

Buy Doosan DH210W-7 Used Excavator / 5

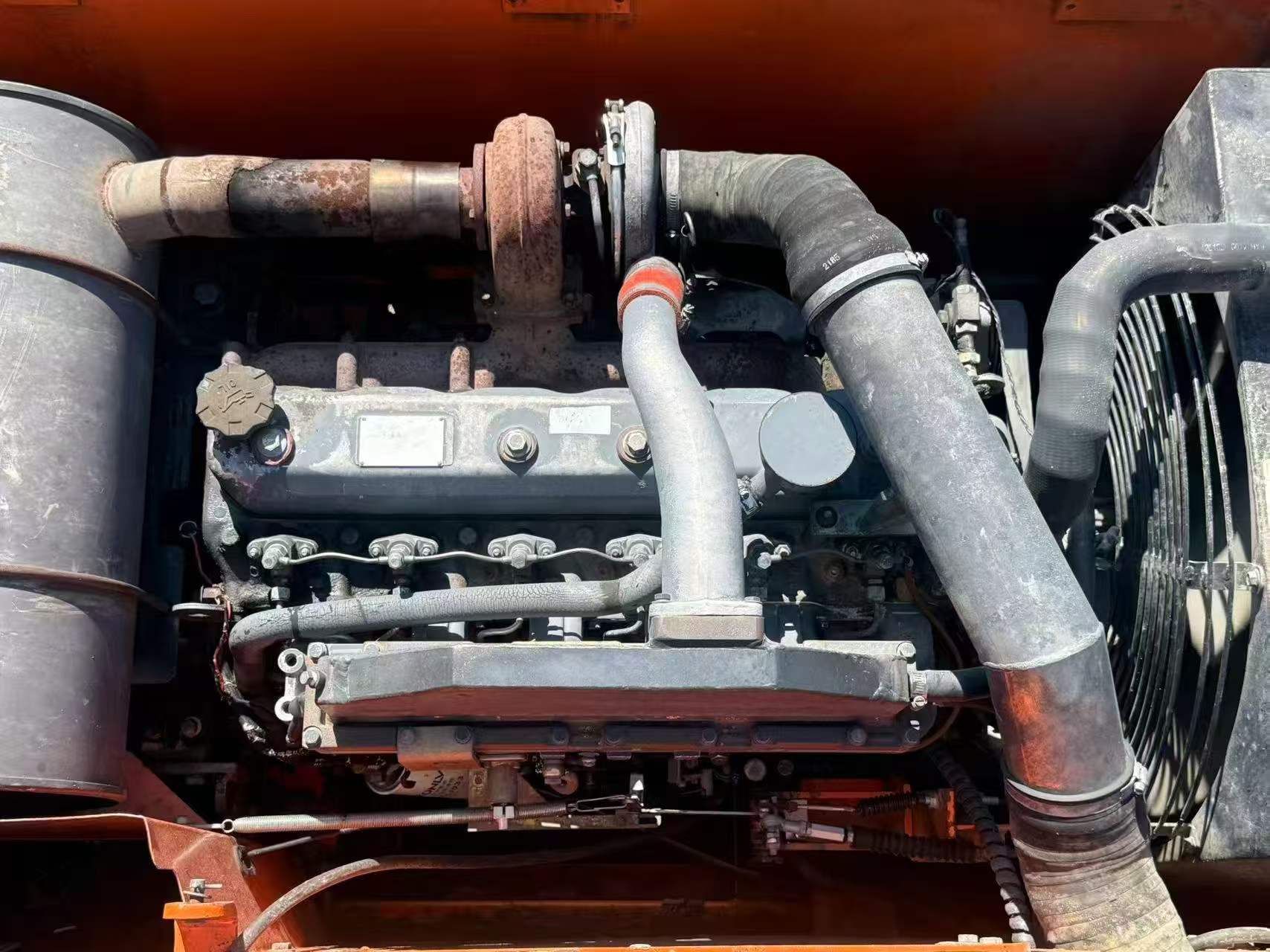

Buy Doosan DH210W-7 Used Excavator / 6

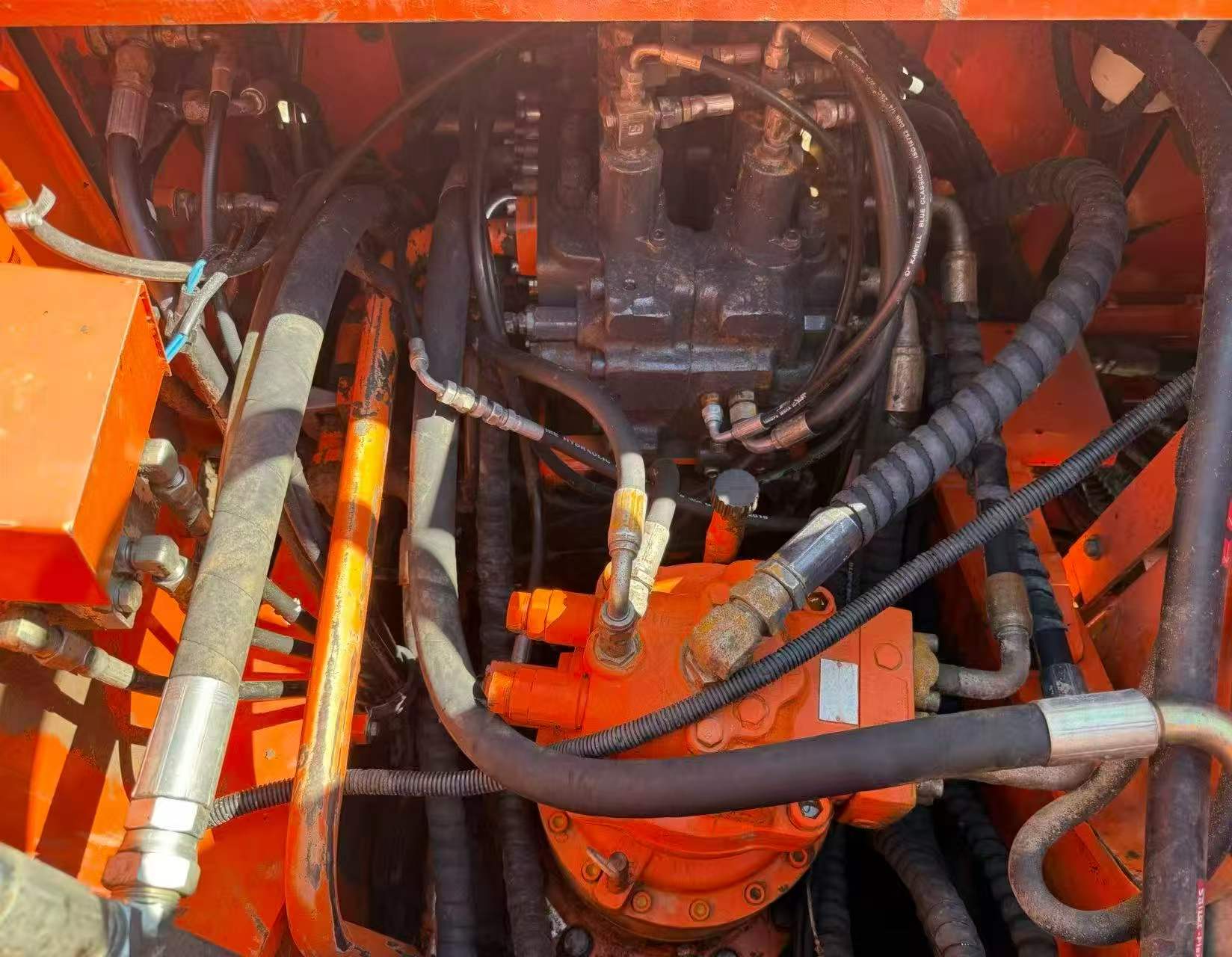

Buy Doosan DH210W-7 Used Excavator / 7

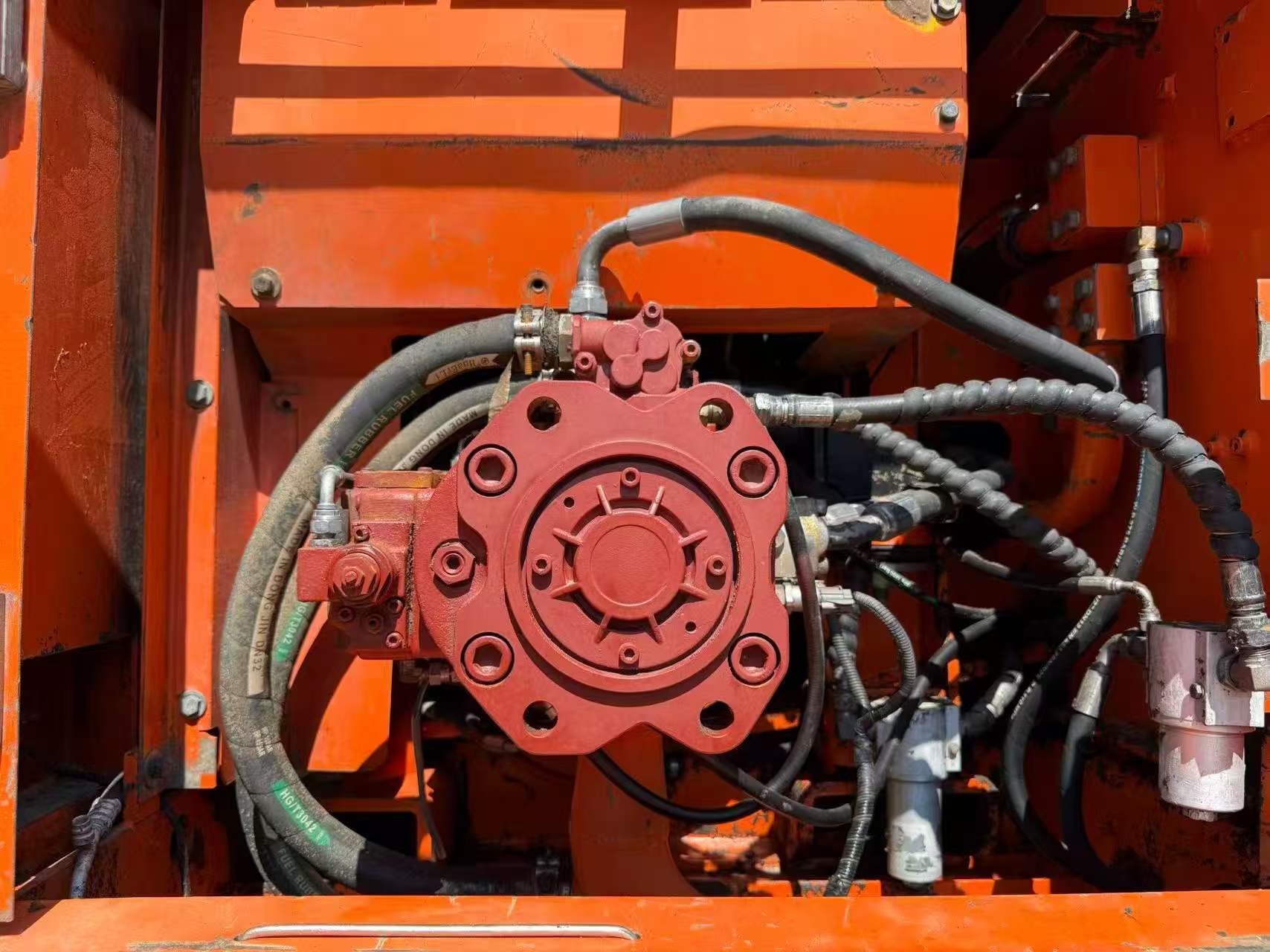

Buy Doosan DH210W-7 Used Excavator / 8

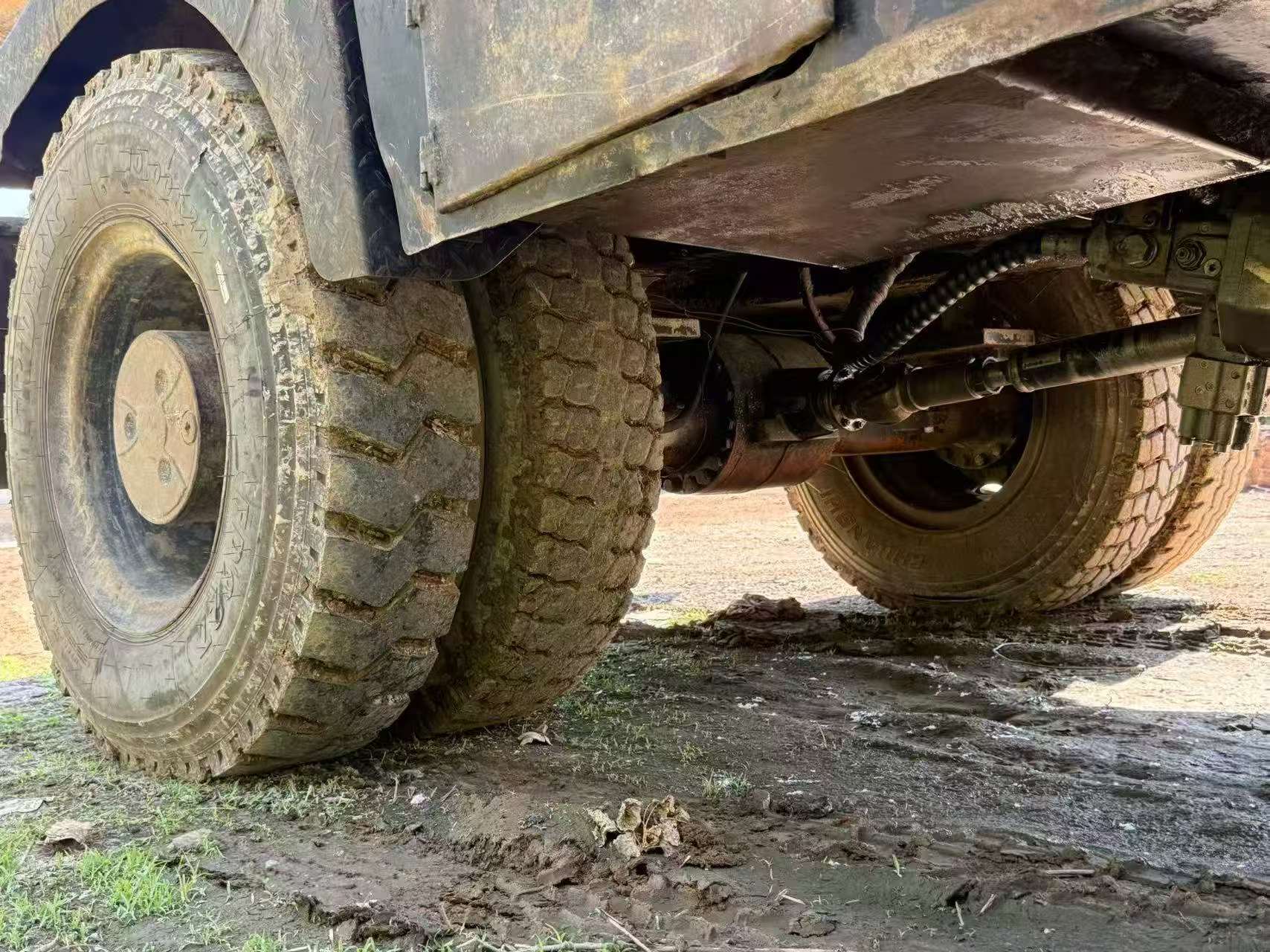

Buy Doosan DH210W-7 Used Excavator / 9

Product Description

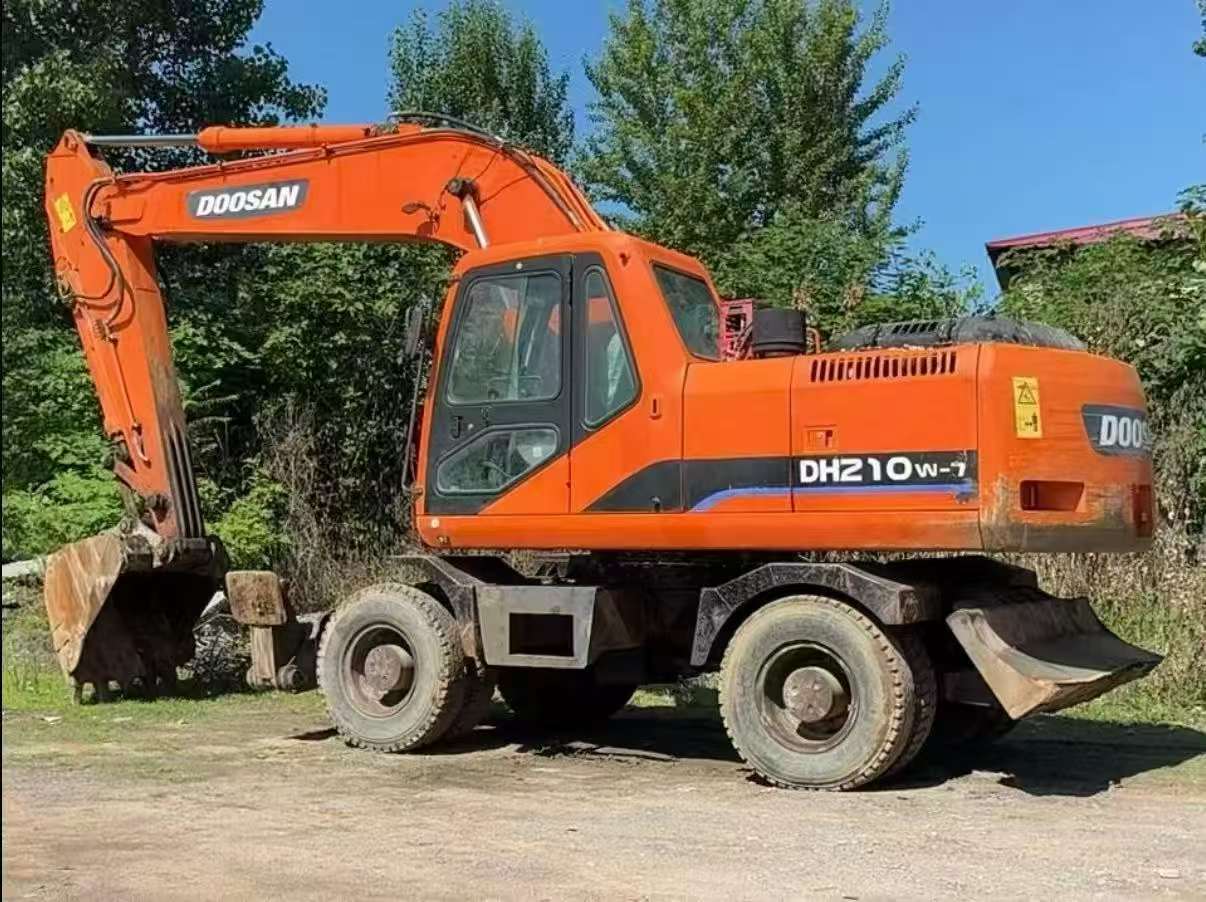

This 2012 Doosan DH210W-7 wheeled excavator is now available for inspection in Beijing, China. The DH210W-7 combines road mobility with jobsite performance, offering operators the flexibility to move between sites without transport logistics. This original machine represents Doosan's proven Series 7 platform, engineered for durability in diverse applications.

Key features of the DH210W-7 include:

  • Wheeled undercarriage for enhanced mobility and road travel capability
  • 21-ton operating class suitable for utility work, urban construction, and material handling
  • Series 7 hydraulic system designed for precise control and fuel efficiency
  • Spacious operator cabin with ergonomic controls
  • Located in Beijing, China—available for on-site inspection

This machine is offered in original condition. Interested buyers are welcome to arrange viewing appointments to assess its current operational status and suitability for their specific requirements.

SpecificationsValue
No.1171239
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)0.86
Boom length (mm)5700
Rod length (mm)2900/2400
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDB58TIS
Rated power (kw/rpm)115 / 2200
Total displacement (L)5.785
remarkFour-stroke, water-cooled, direct spray
Cylinder diameter × stroke (mm)102 x 118
Maximum torque (N.m)60
Number of cylinders (PCS)6
Forward speed (Km/h)35 / 9.3
Rotation speed (rpm)12.2
Climbing ability (%)59.6% (30.8°) persisted
Bucket digging force (kN)148
Rod digging force (kN)104
Minimum turning radius (m)3.6
Driving formHydraulic drive
Maximum flow of main pump (l/min)2 x 239
Traveling Hydraulic Circuit (Mpa)33.6
Rotary Hydraulic Circuit (Mpa)27
Main pump typeVariable axial plunger pump
Working Hydraulic Circuit (Mpa)Standard 30.8/ Supercharged 33.6
Pilot pump flow (L/min)22.1
Fuel Tank (L)350
Hydraulic Tank (L)118
Total transport length (mm)9524
Total transport width (mm)2470
Total transport height (mm)3608(to top of arm)
Full cab height (mm)3111
Counterweight ground clearance (mm)1254
Wheelbase (mm)2850
Single tire width (mm)596
Total tire outside width (mm)2470
Wheel base (mm)1874
Minimum ground clearance (mm)340
Back end turning radius (mm)2750
Maximum digging radius (mm)9896
Maximum excavation radius (mm)9694/9363
Maximum digging depth (mm)6558
Maximum excavation height (mm)9673
Maximum unloading height (mm)6823
Maximum vertical digging depth (mm)5865
Minimum turning radius (mm)2750
see more

Overview

No.1171239

Brand Name:

Doosan

Model Number:

DH210W-7

Year:

2012

Location:

Peking China

Pub Date:
