Product Description

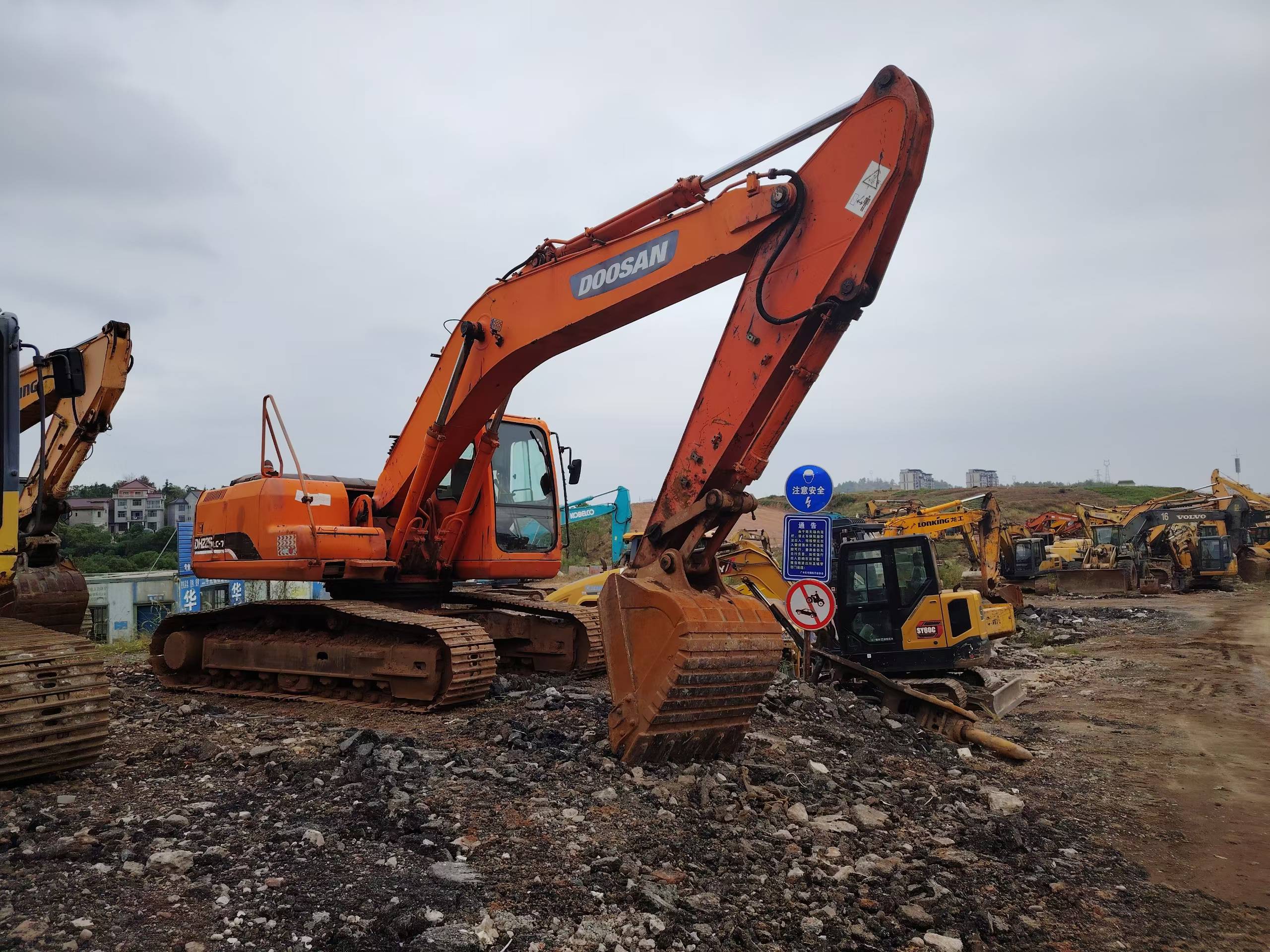

The Doosan DH215-7 is a 21.5-tonne class crawler excavator from the DH-7 generation, powered by a Doosan DE08TIS six-cylinder diesel engine. This unit is a 2011 machine — listed in our yard as 11年斗山215-7 — and is currently held in Jiangxi Province, China, where it can be inspected in person or surveyed by a third party before purchase.
- Year: 2011
- Brand and model: Doosan DH215-7
- Operating weight class: approximately 21.5 t

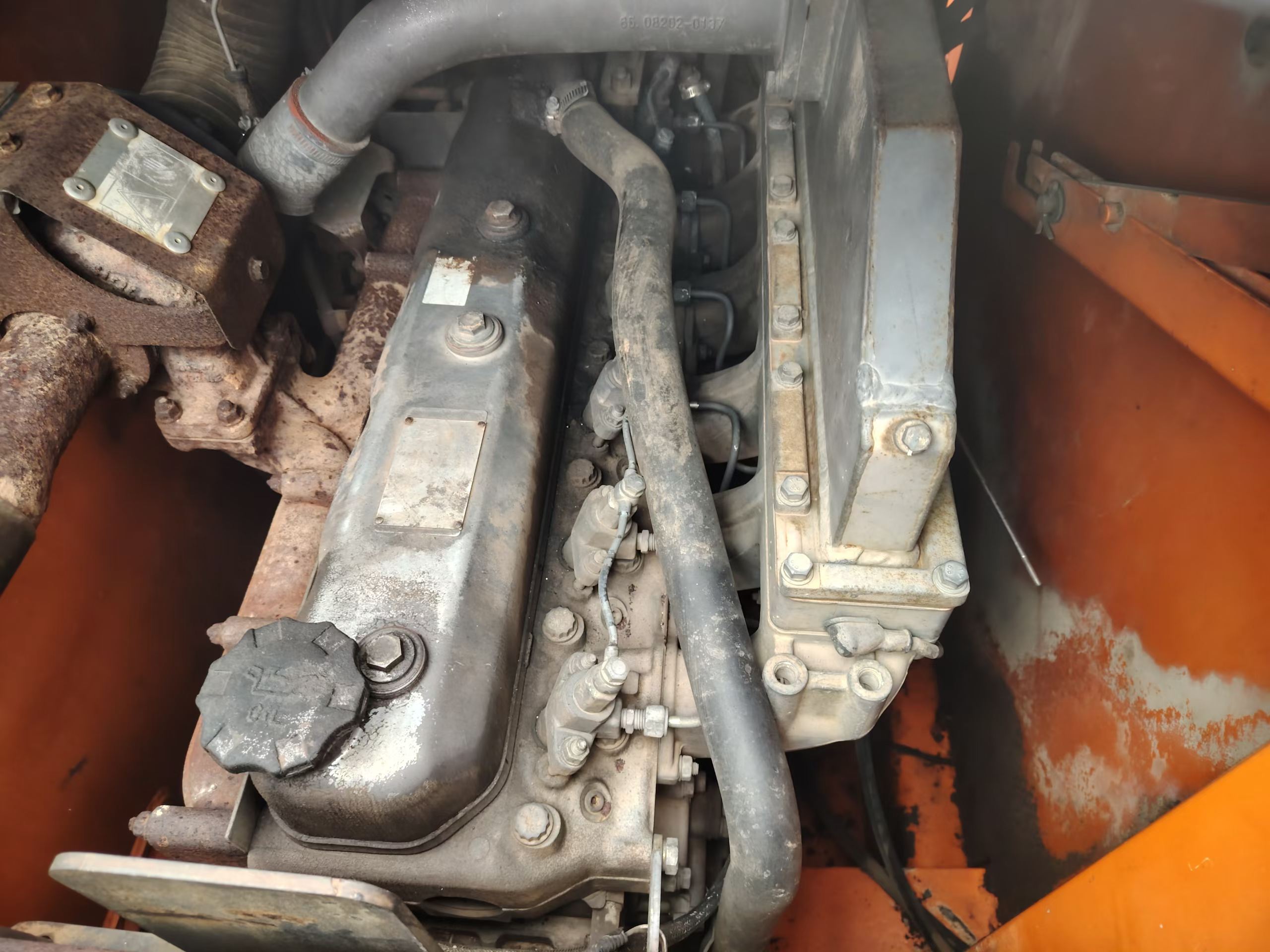

- Engine: Doosan DE08TIS diesel
- Location: Jiangxi, China
Hour meter readings, undercarriage measurements and working condition are verified on site rather than quoted from listing notes. Buyers are welcome to send their own inspector or appoint a surveyor at their cost; we will provide access, start-up and function testing during the visit.
We can arrange loading, export documentation and flat-rack or container shipment from ports in eastern China. Serious export enquiries only — send your destination port and preferred payment terms for a current quotation.
| Specifications | Value |
|---|---|
| No. | 1157617 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
