Product Description

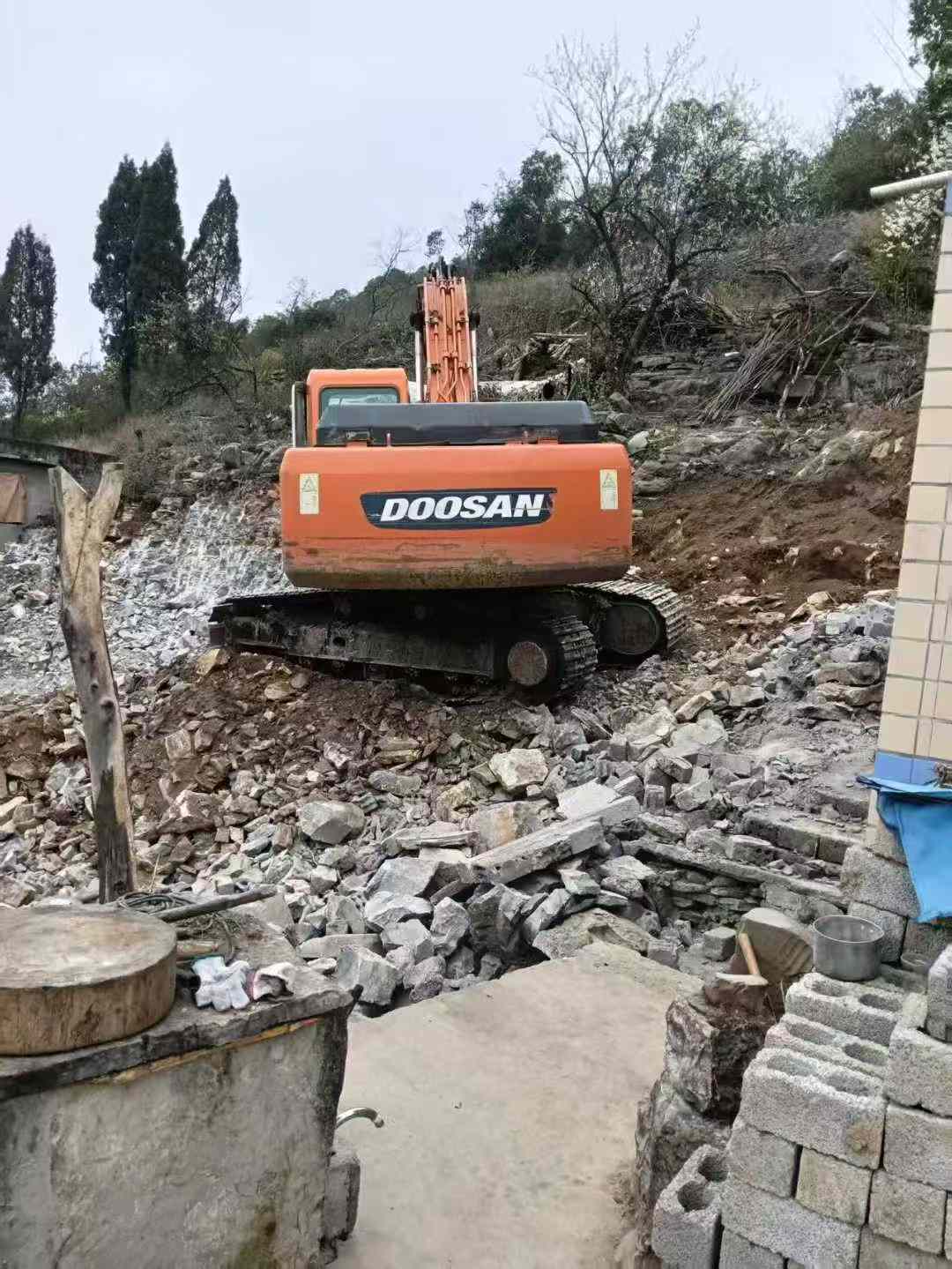

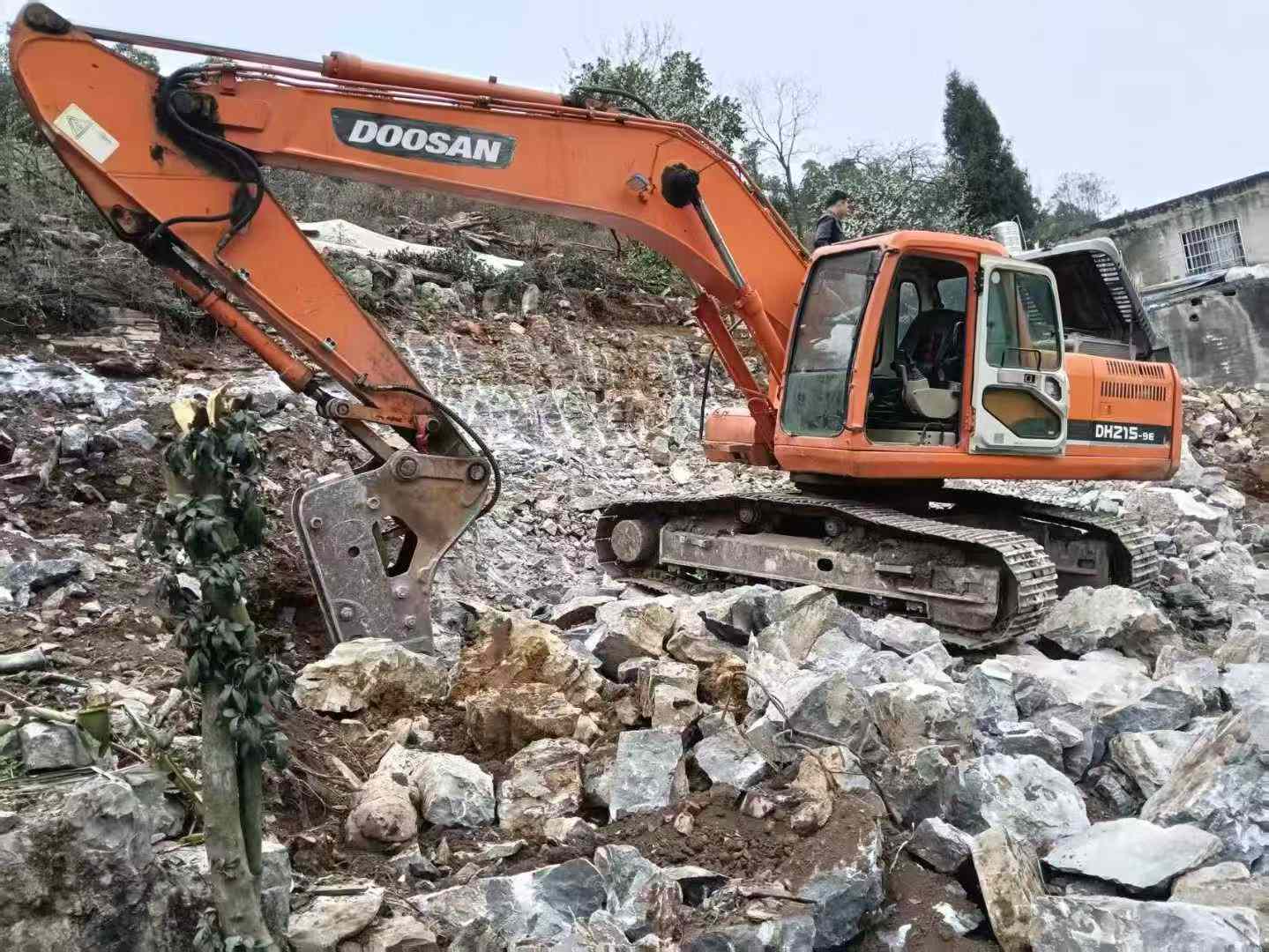

With a working weight of 20,600 kg and a bucket capacity of 0.86 m³, the 2014 Doosan DH215-7 is an ideal addition to any contractor's fleet. Located in Jiangsu, this excavator offers reliable performance and robust construction, making it a perfect backup or primary unit for high-demand projects.
- Powered by a Doosan DB58T1 engine with 147 kW at 2000 rpm, ensuring consistent power delivery.
- Equipped with a backhoe bucket, providing a digging force of 136.2/144.1 kN, and a rod digging force of 100/104.9 kN.
- Travel speed ranges from 3.1 to 5.4 km/h, enhancing mobility on various terrains.
- Maximum digging depth of 6660 mm and maximum excavation height of 9660 mm, suitable for a wide range of tasks.
- Fuel tank capacity of 350 L, minimizing downtime and maximizing operational efficiency.
| Specifications | Value |
|---|---|
| No. | 1028776 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

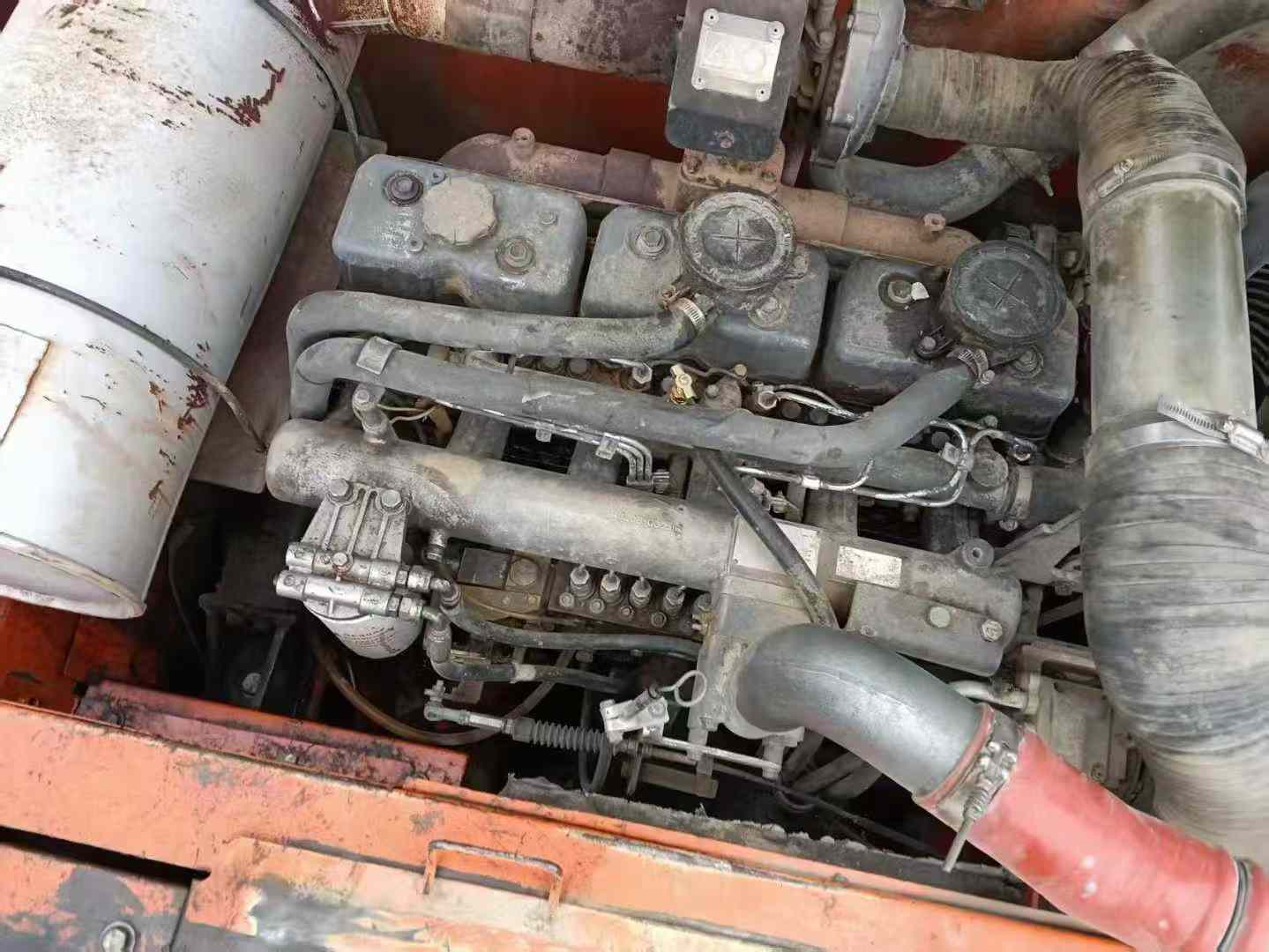

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
