Product Description

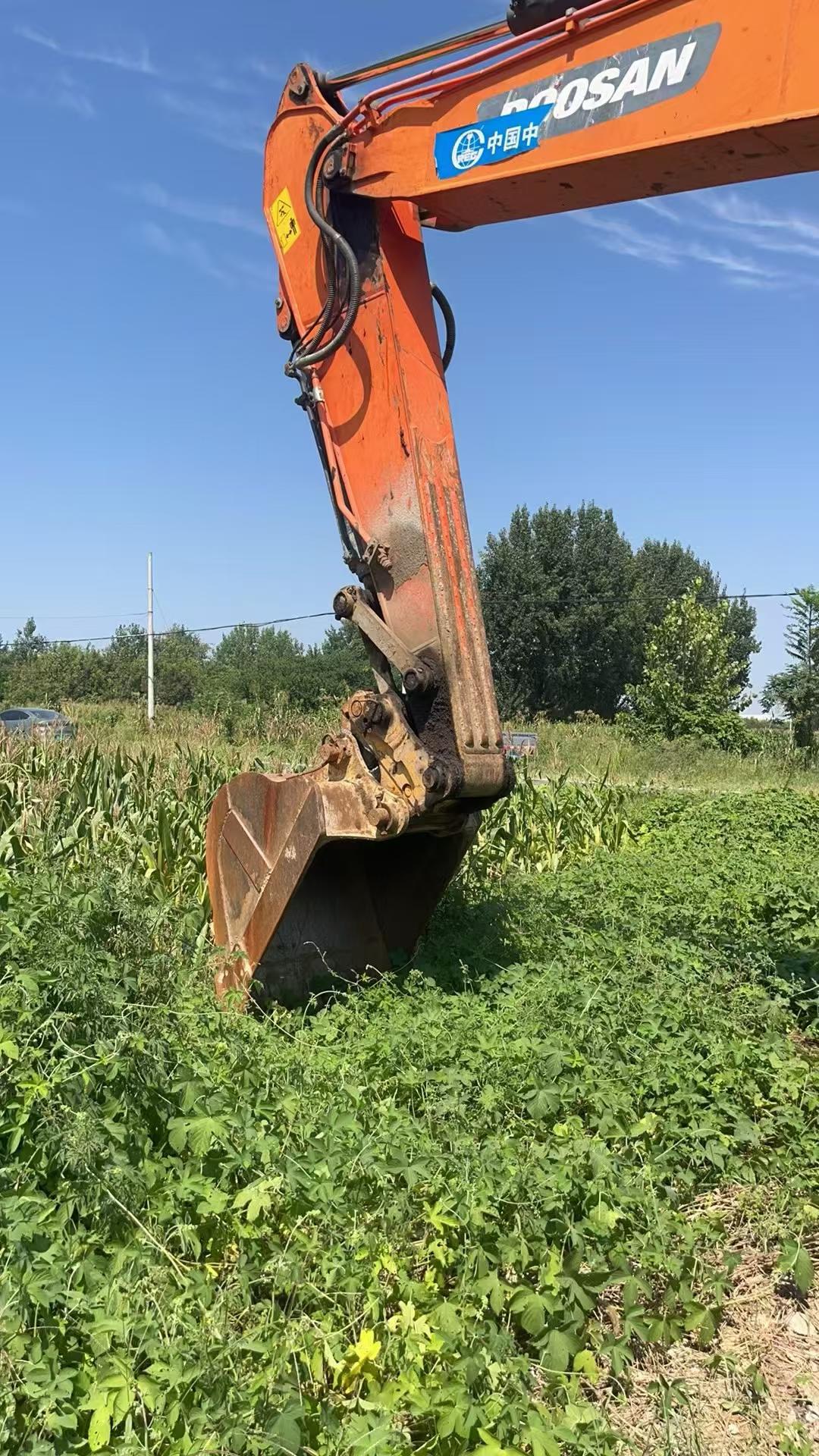

This 2018 Doosan DH215-7 crawler excavator is currently available from our Fujian, China location. This medium-class hydraulic excavator comes equipped with a hydraulic breaker attachment, making it suitable for demolition, rock breaking, and general excavation applications. The DH215-7 features Doosan's proven hydraulic system and durable undercarriage designed for demanding jobsite conditions.
Key features of this unit include:
- Operating weight approximately 21.5 tons with standard configuration
- Factory-installed hydraulic breaker system ready for immediate deployment
- Fuel-efficient Doosan engine meeting emission standards

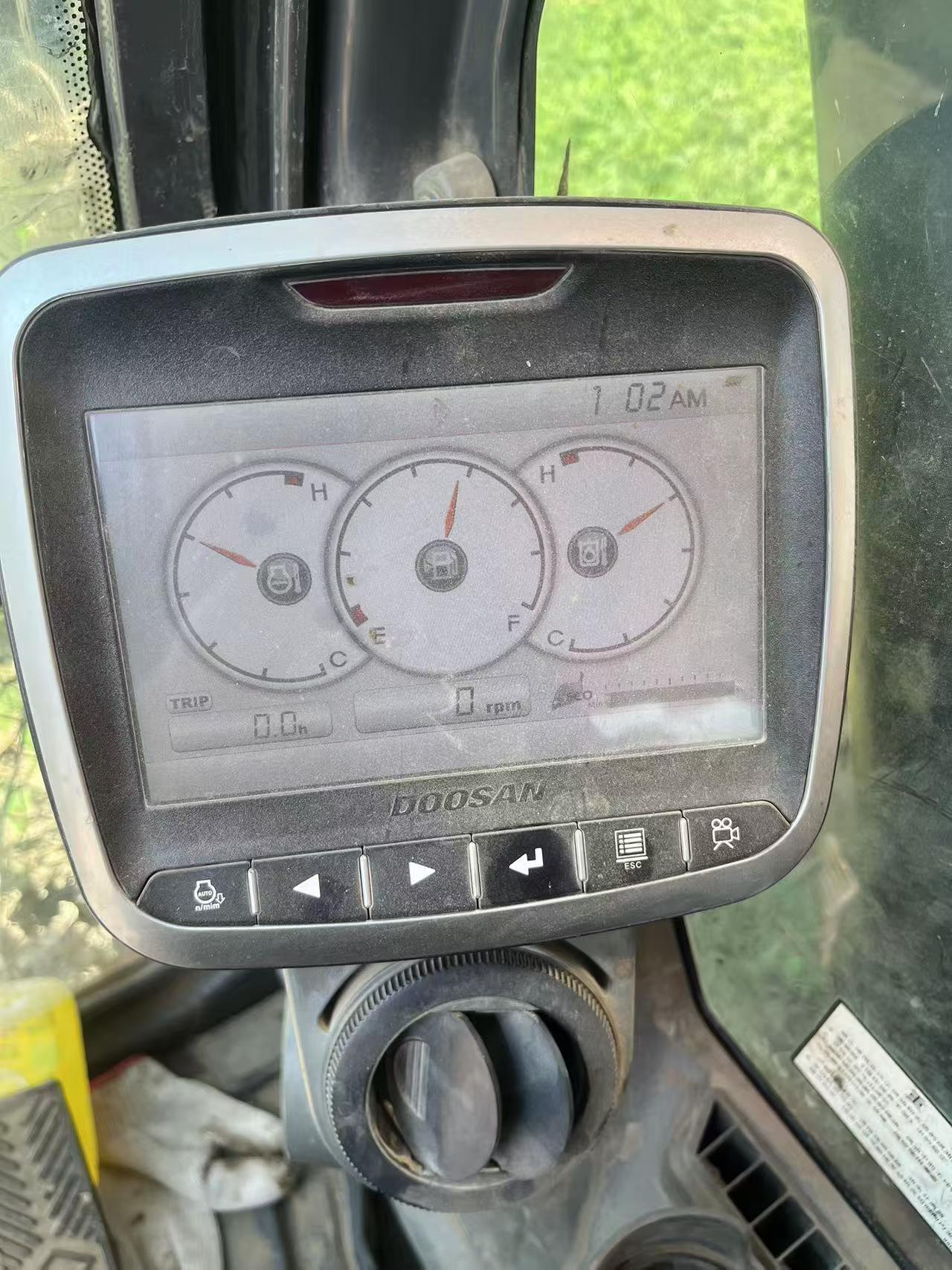

- Spacious operator cab with ergonomic controls
- Comprehensive documentation and video inspection available upon request
- Well-maintained unit from controlled Chinese market
This excavator represents a cost-effective solution for contractors requiring reliable performance in construction, quarrying, or infrastructure projects. Contact our sales team for detailed specifications, current condition reports, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1147749 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
