Product Description

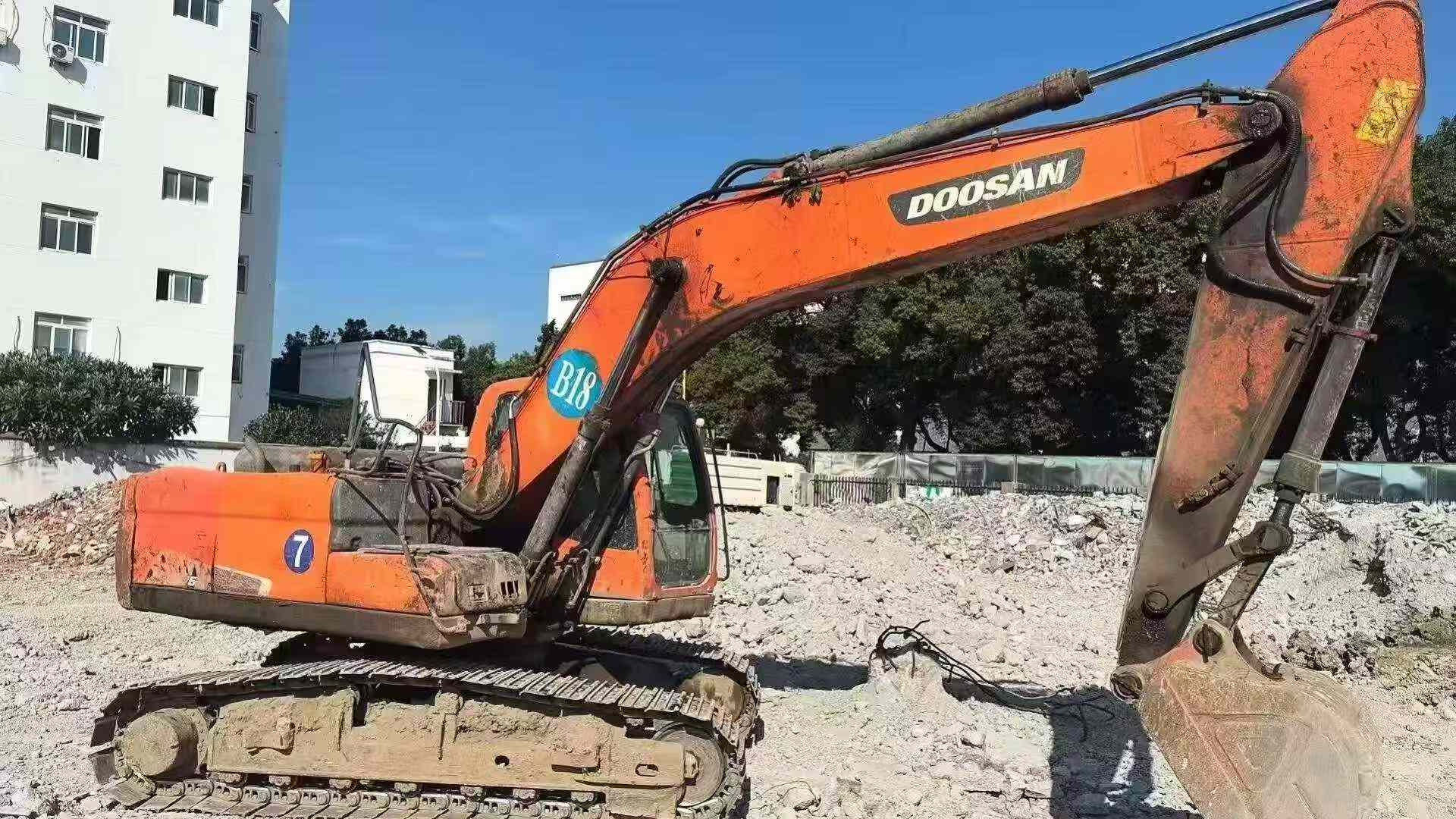

This 2018 Doosan DH215-7 crawler excavator represents a solid mid-range option for contractors seeking proven reliability in earthmoving operations. Currently located in Sichuan, China, this machine comes from Doosan's well-regarded DH-7 series, known for fuel efficiency and robust hydraulic performance in the 21-ton class.
The DH215-7 features a Doosan diesel engine designed to meet emissions standards while delivering consistent power for digging, loading, and grading applications. With approximately five years of service, this unit offers a balance between modern features and competitive pricing for budget-conscious operations.
- Year of Manufacture: 2018
- Model: Doosan DH215-7
- Location: Sichuan Province, China
- Category: Medium hydraulic excavator
- Condition: Used
Inspection reports and additional operating details available upon request. Suitable for construction, infrastructure, and excavation projects requiring dependable mid-size equipment.
| Specifications | Value |
|---|---|
| No. | 1162830 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

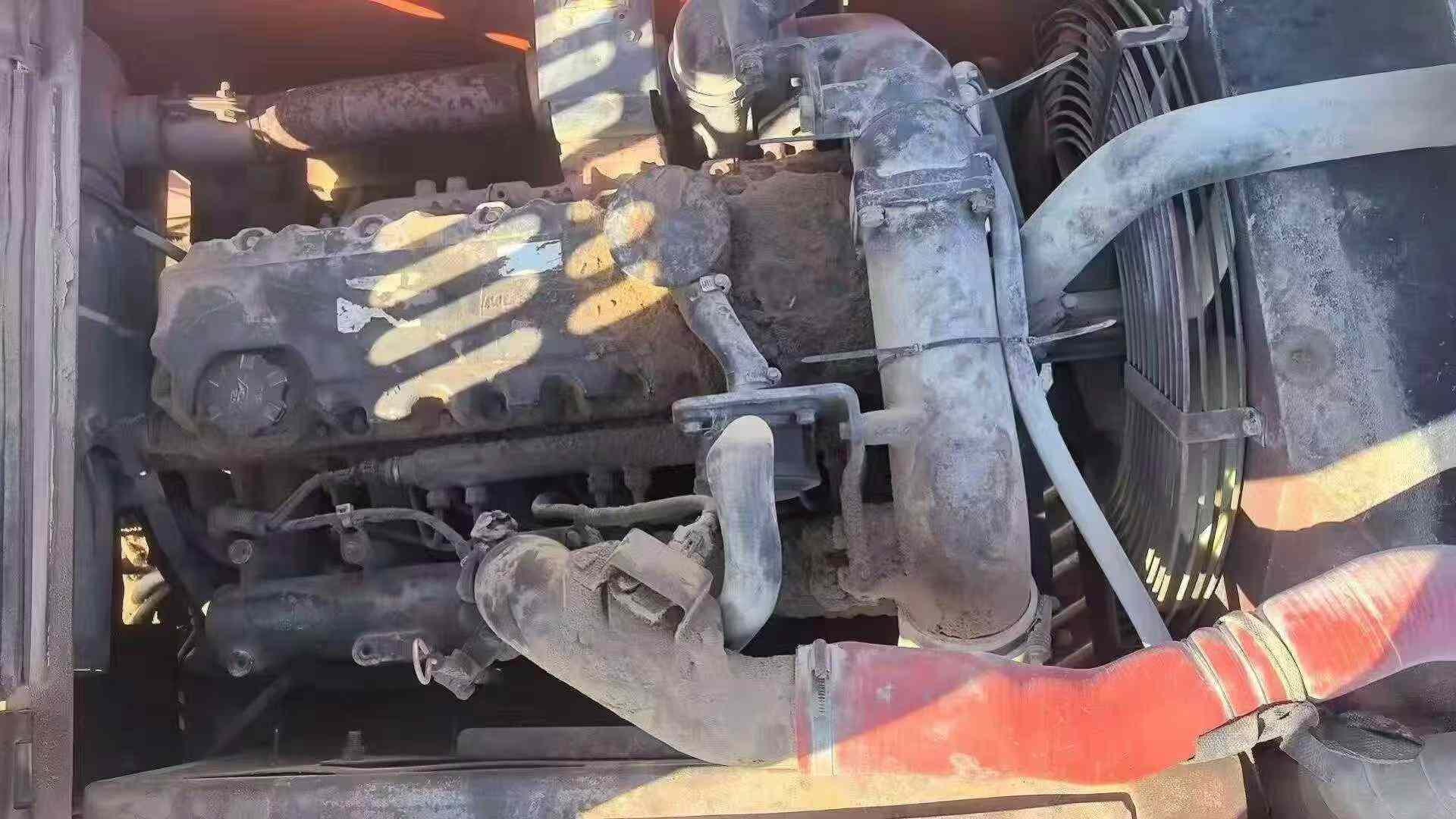

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
