Product Description

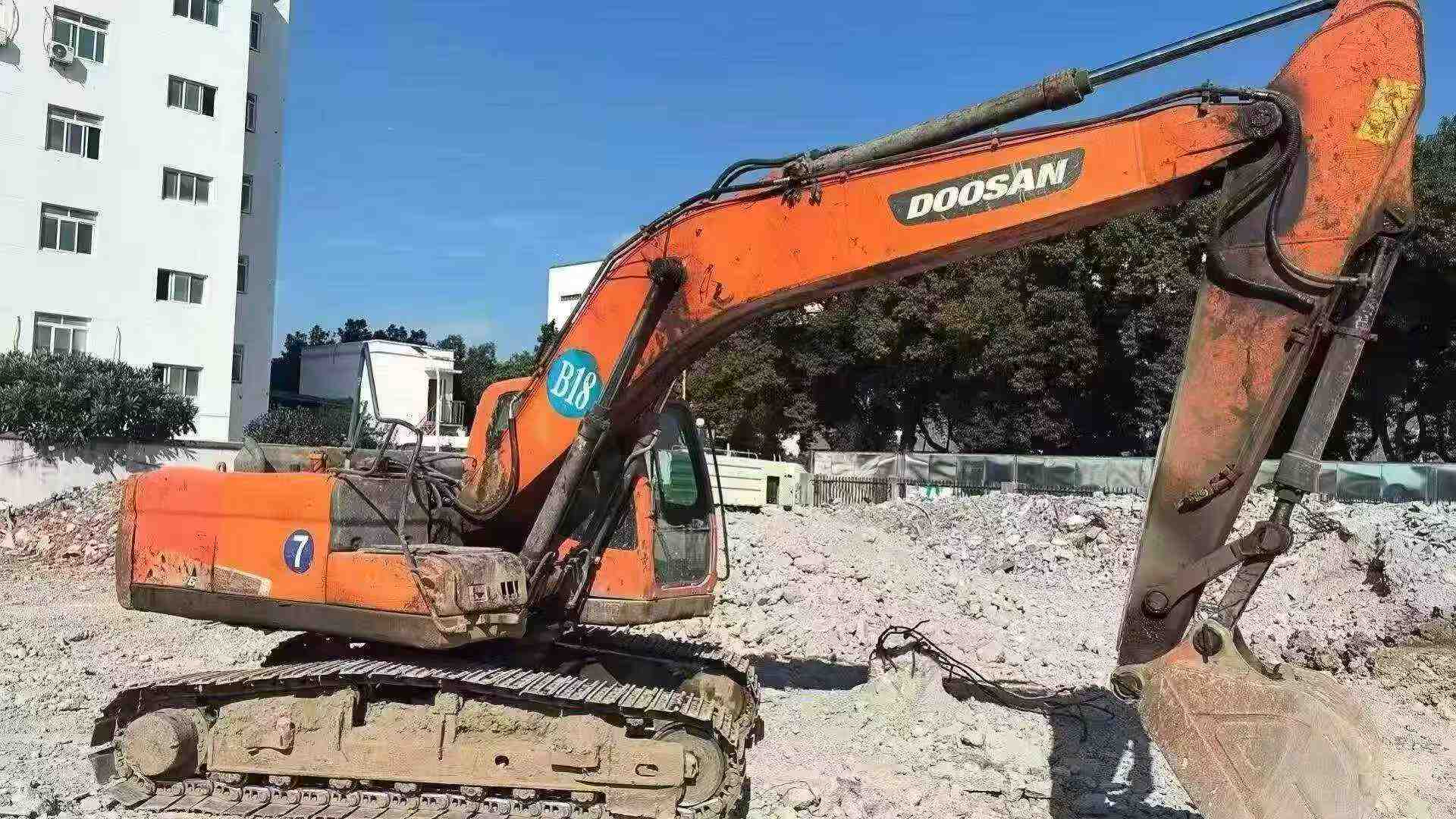

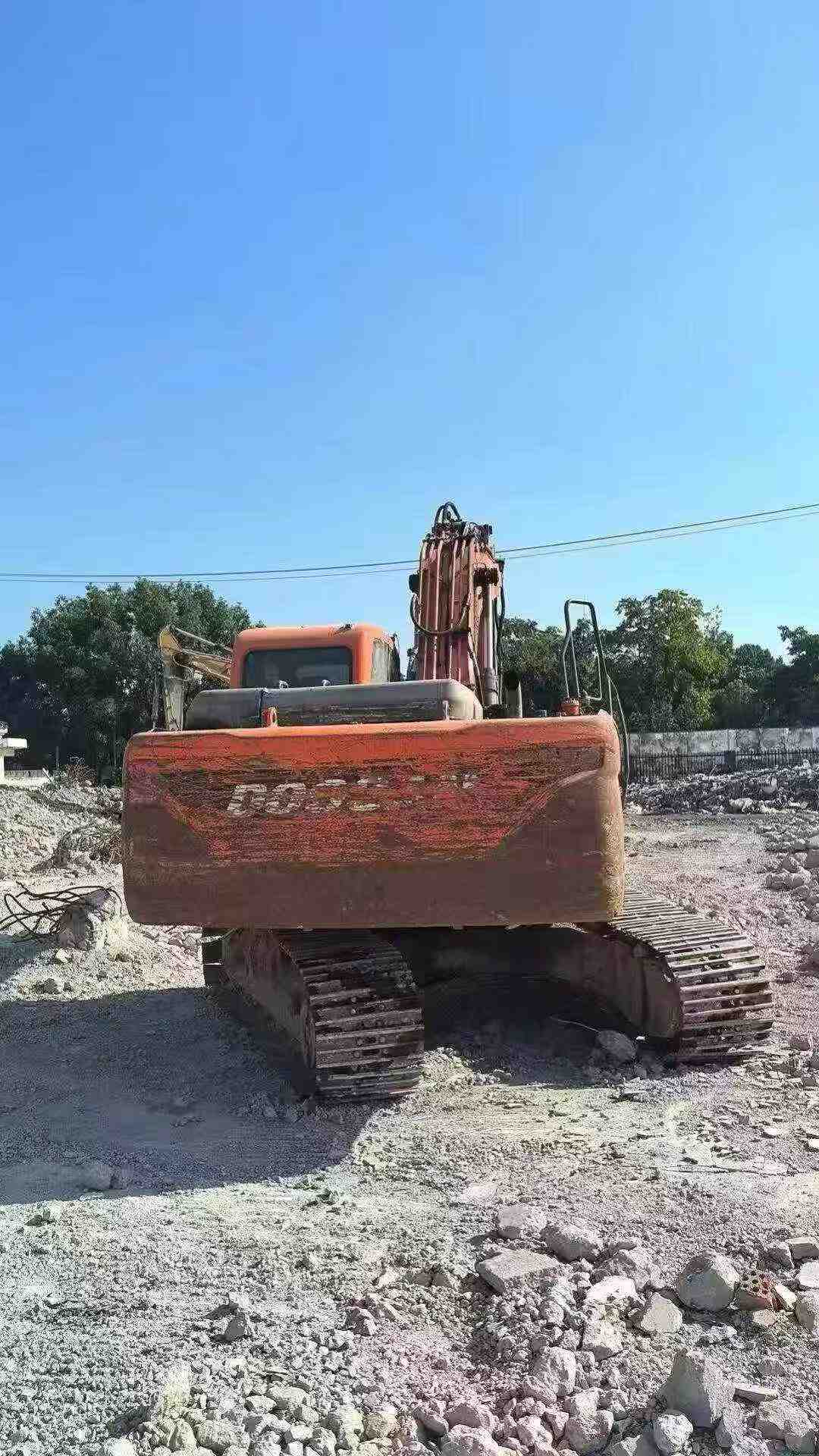

This 2018 Doosan DH215-7 crawler excavator represents solid value in the mid-size excavator segment. With approximately five years of field operation, this machine offers proven Doosan durability and performance characteristics at an accessible price point. Currently located in Sichuan, China, the unit is available for immediate inspection and purchase.
The DH215-7 series is recognized for its 21-ton operating weight class, fuel-efficient engine, and reliable hydraulic systems suitable for earthmoving, trenching, and general construction applications. This particular machine has been maintained through its operational life and is priced competitively for the used equipment market.
- Manufacturing Year: 2018
- Model: Doosan DH215-7
- Location: Sichuan Province, China
- Competitive pricing for current market conditions
- Available for on-site evaluation
| Specifications | Value |
|---|---|
| No. | 1163237 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

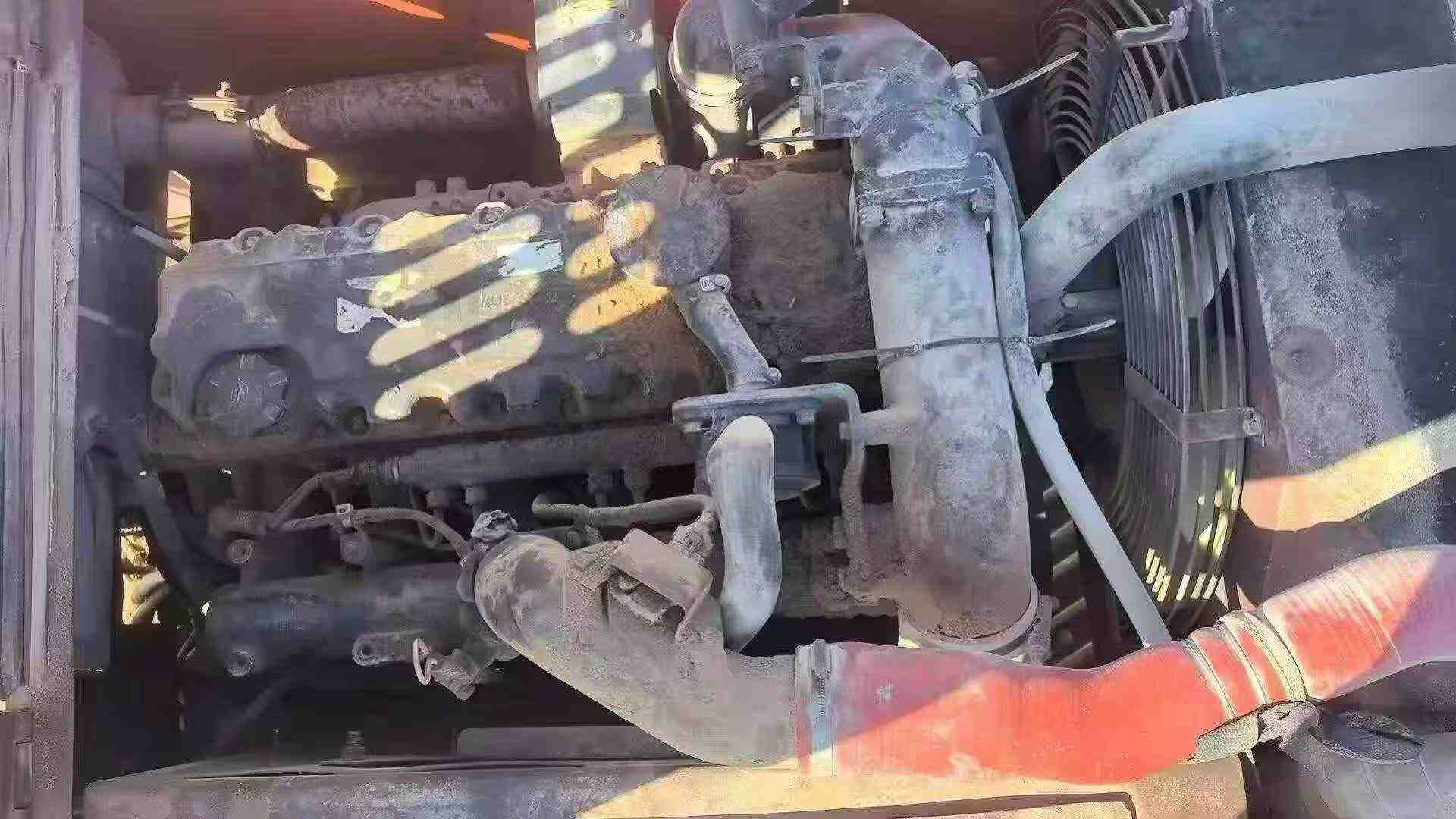

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
