Product Description

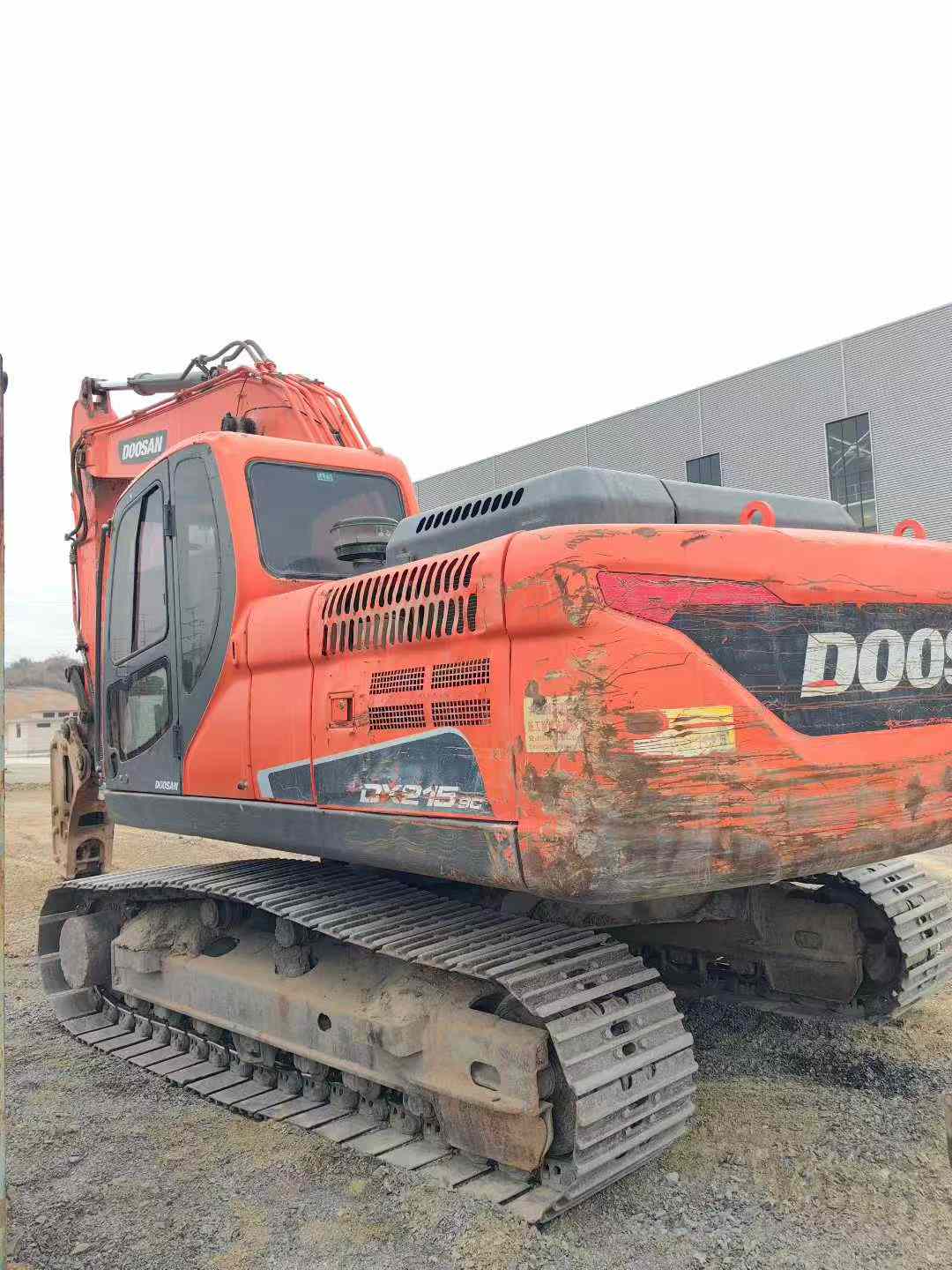

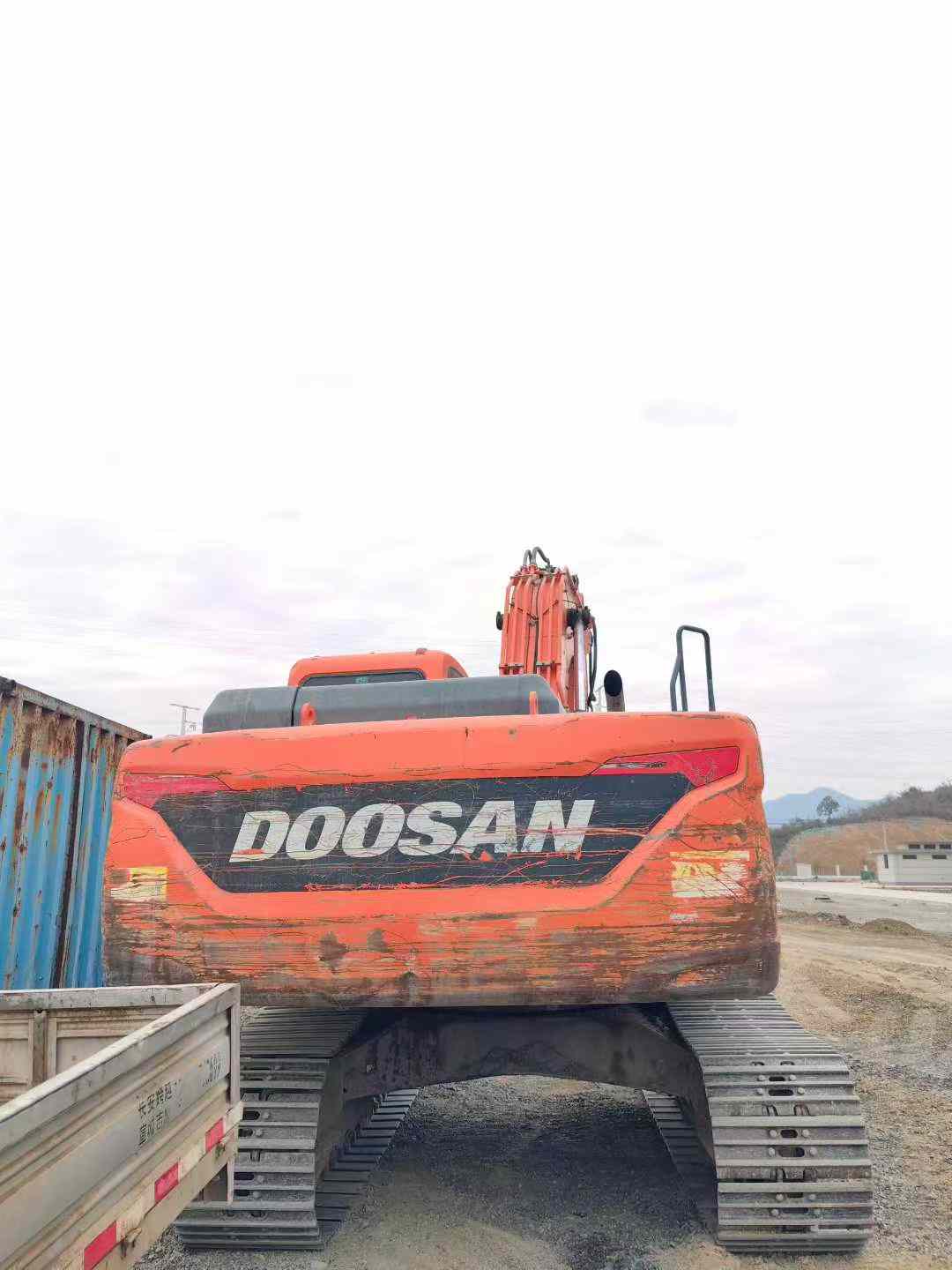

With a working weight of 20,600 kg and a bucket capacity of 0.86 m³, the 2019 Doosan DH215-7 excavator, located in Zhejiang, offers high performance at a fraction of the cost of new machinery. Powered by a Doosan DB58T1 engine with a rated power of 147 kW, this excavator delivers robust digging forces of 136.2 kN for the bucket and 100 kN for the rod. Its versatile boom and rod lengths (5700 mm, 2400/2900/3500 mm) ensure it can handle a wide range of tasks efficiently. The machine's air-cooled system and 350 L fuel tank support extended operational hours, while its compact dimensions (9550 mm x 2800 mm x 3100 mm) make it easy to transport and maneuver on site.
- Maximum digging depth: 6660 mm
- Maximum unloading height: 6810 mm
- Travel speed: 3.1-5.4 km/h
- Ground specific pressure: 52 Kpa
| Specifications | Value |
|---|---|
| No. | 1023342 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

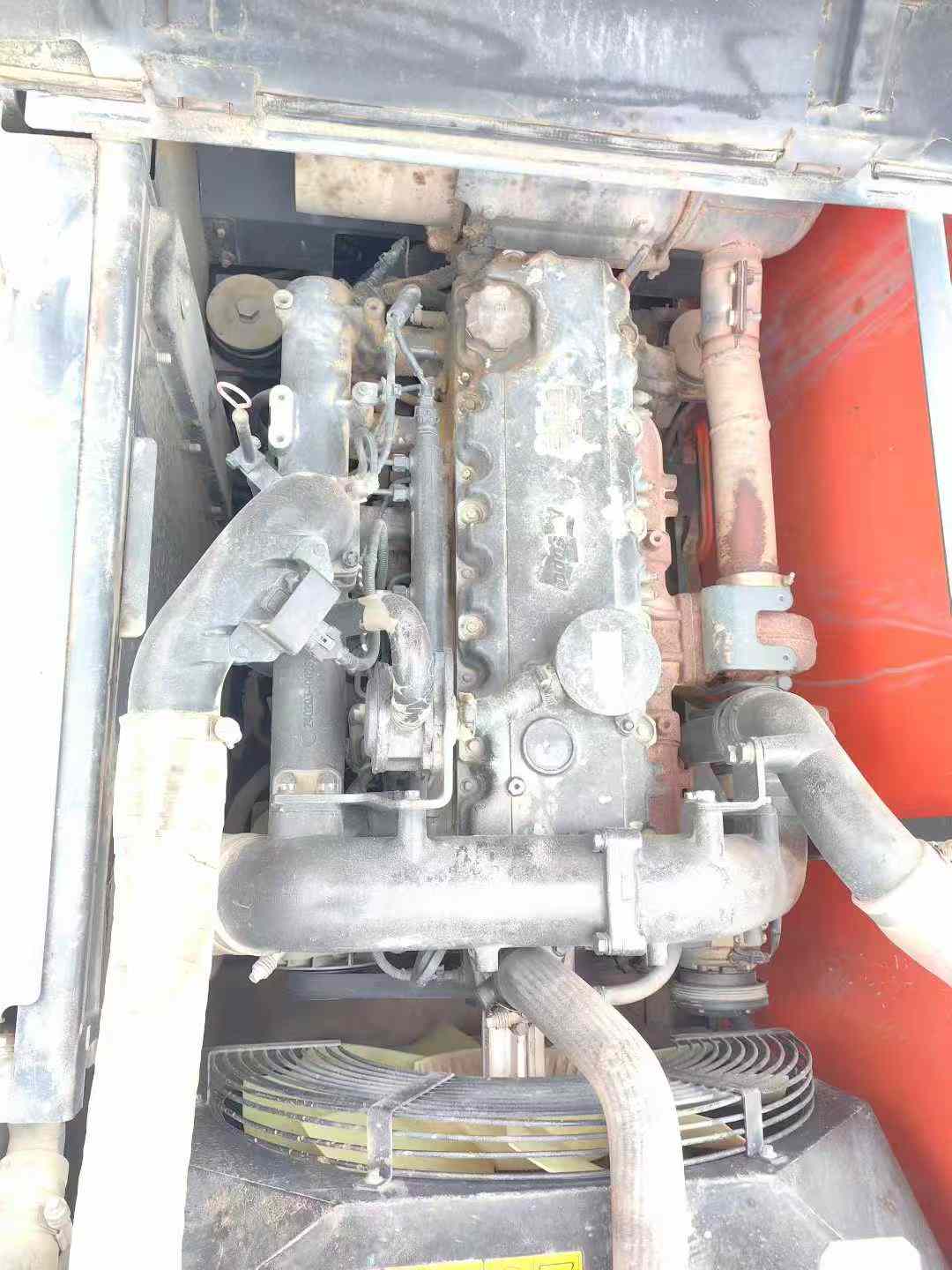

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |

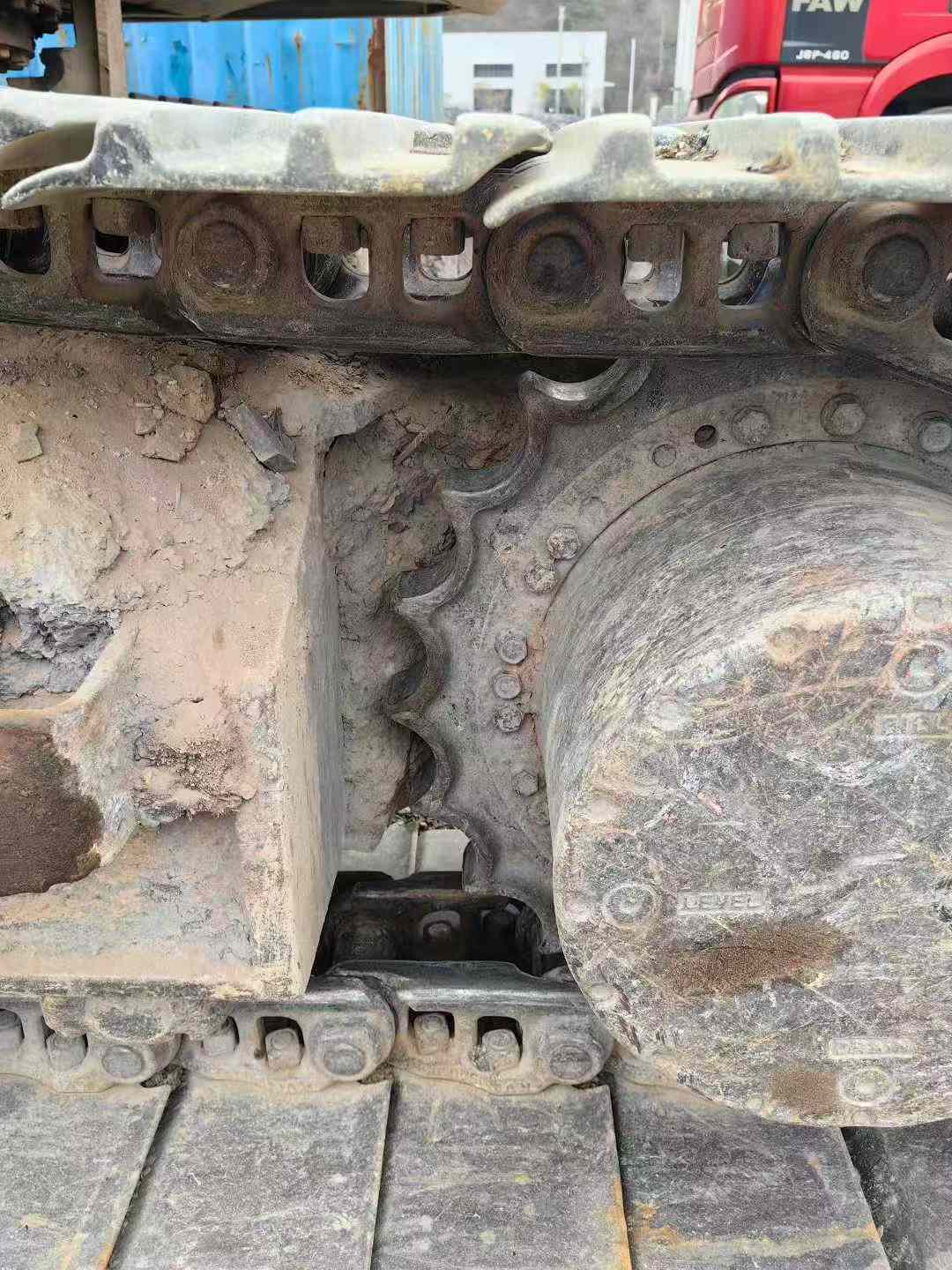

| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
