Product Description

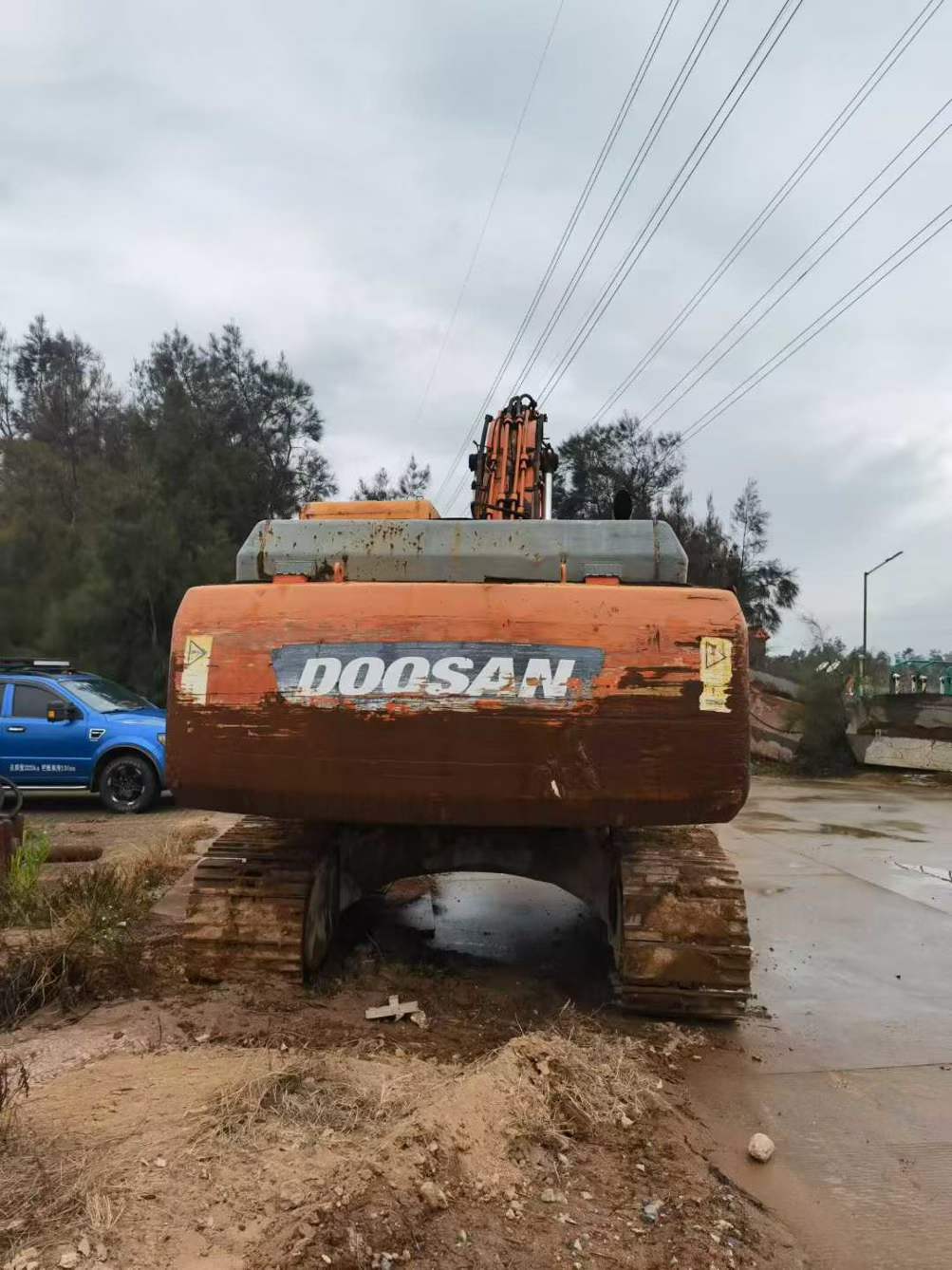

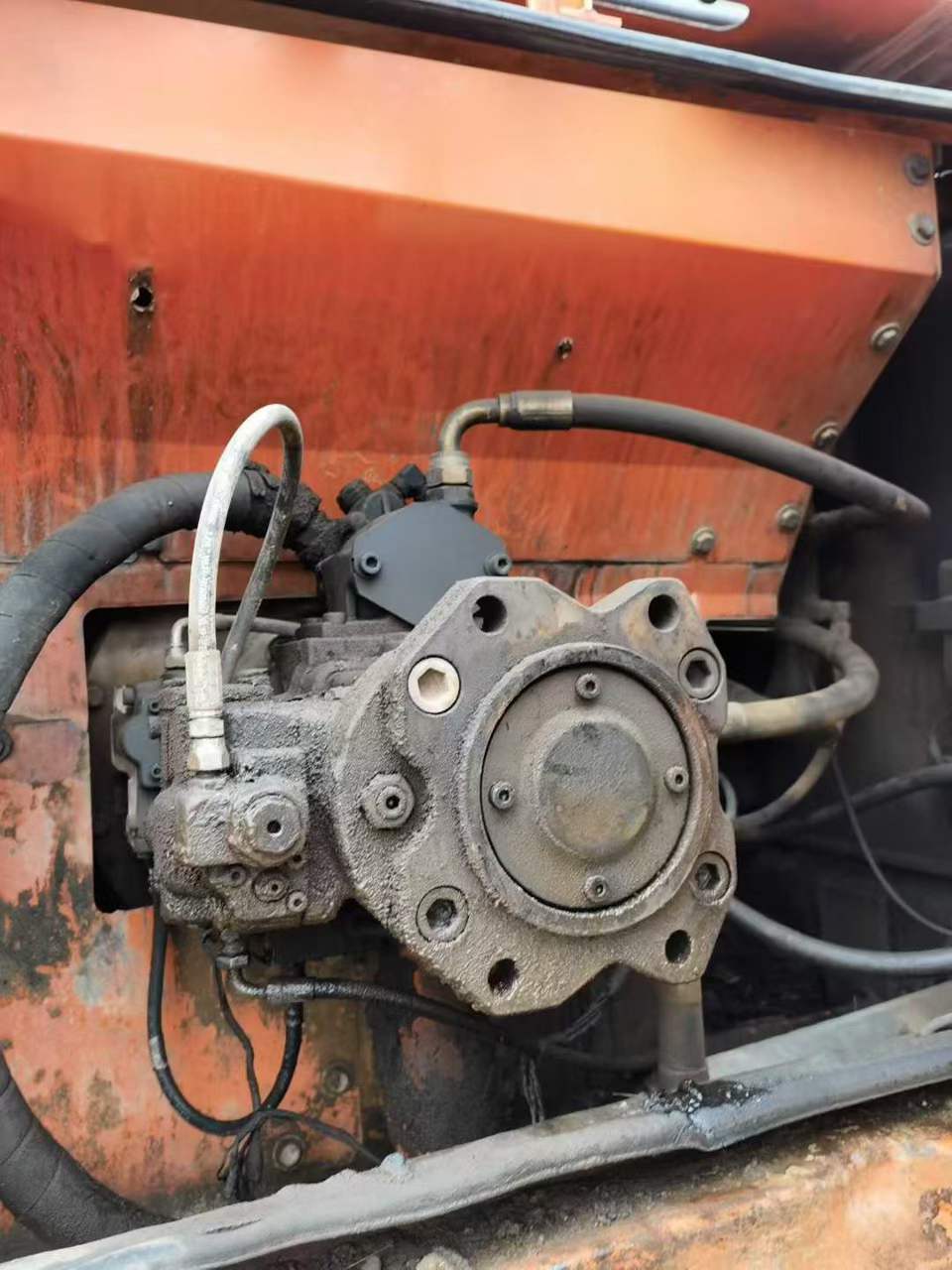

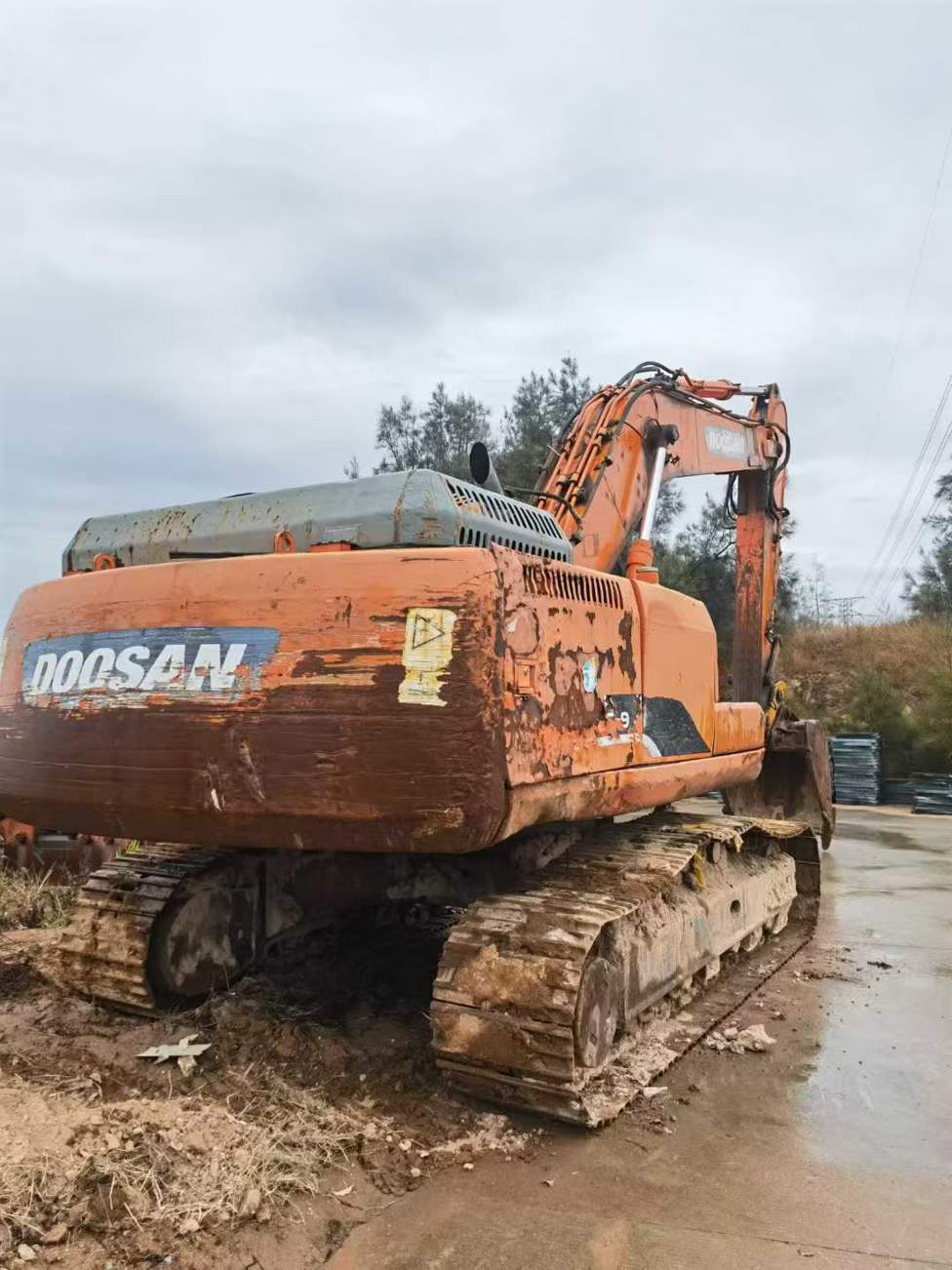

Positioned in Fujian Ningde and ready for immediate dispatch, this 2016 Doosan DH215-9 crawler excavator eliminates factory wait times and accelerates your project timeline. With a 21-ton operating weight and proven Doosan DE08TIS engine delivering 110 kW at 1950 rpm, this machine offers the hydraulic performance and reliability demanded by heavy earthmoving operations. Dual variable piston pumps provide 2×211 L/min flow capacity, while the 5700 mm boom and 2900 mm arm configuration achieve a maximum digging reach of 9970 mm and depth of 6660 mm.
- Operating weight: 21,000 kg with 0.86–1.0 m³ bucket capacity
- Water-cooled 6-cylinder direct injection engine (8.071 L displacement)
- Dual axial plunger travel motors for 5.4/3.1 km/h speed range
- Working hydraulic pressure: 32.4 MPa standard / 34.3 MPa boosted
- Compact transport dimensions: 9600×2800×2870 mm
- Location: Fujian Ningde – available for fast deployment
Skip extended lead times. Secure this field-proven excavator and mobilize to your site without delay.
| Specifications | Value |
|---|---|
| No. | 1023716 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.86/1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DE08TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.071 |
| Working form | Direct injection mechanically controlled engine |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Travel speed (km/h) | 5.4/3.1 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 211 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1245 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9600 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2870(to top of boom) |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3960 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4065 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
