Product Description

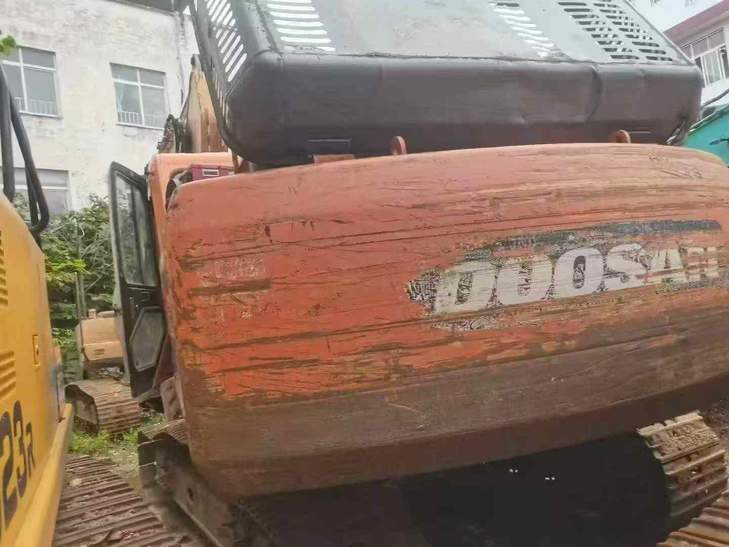

This 2020 Doosan DH215-9 crawler excavator represents a cost-effective solution for mid-range excavation and earthmoving applications. Currently located in Sichuan, China, this hydraulic excavator from Doosan's proven 9-series lineup offers reliable performance for construction, mining, and infrastructure projects.
The DH215-9 features Doosan's efficient hydraulic system and robust undercarriage designed for demanding job site conditions. With its 21-ton operating class, this machine balances digging force, reach, and fuel efficiency for versatile applications including trenching, loading, and site preparation.
- Year of Manufacture: 2020
- Model: Doosan DH215-9
- Current Location: Sichuan Province, China
- Category: Crawler Excavator
- Competitive pricing available
This used excavator offers international buyers an opportunity to acquire quality Korean-engineered equipment at an attractive price point. Suitable for export or regional deployment.
| Specifications | Value |
|---|---|
| No. | 1088350 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.86/1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DE08TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.071 |
| Working form | Direct injection mechanically controlled engine |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Travel speed (km/h) | 5.4/3.1 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 211 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1245 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9600 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2870(to top of boom) |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3960 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4065 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
