Product Description

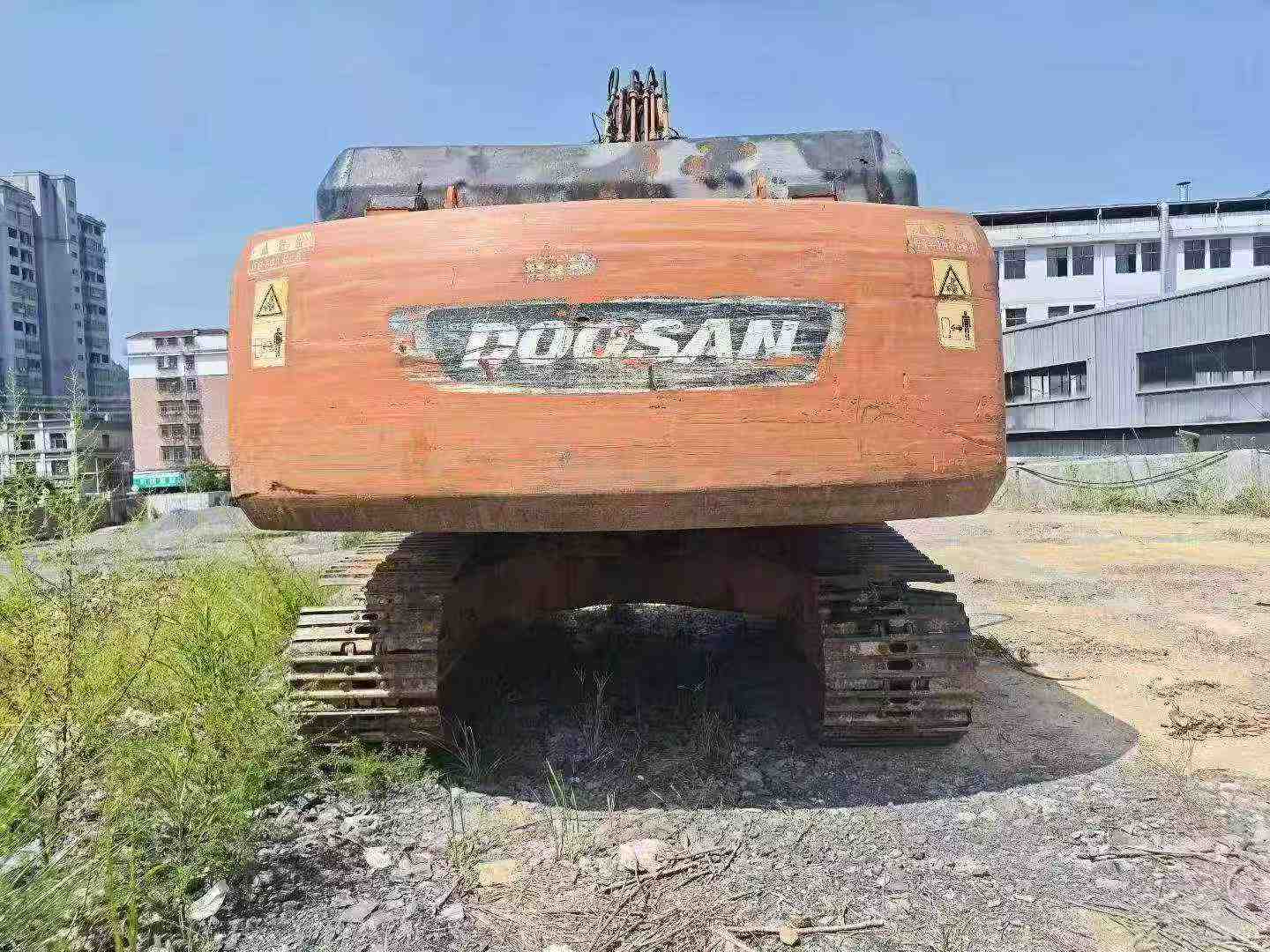

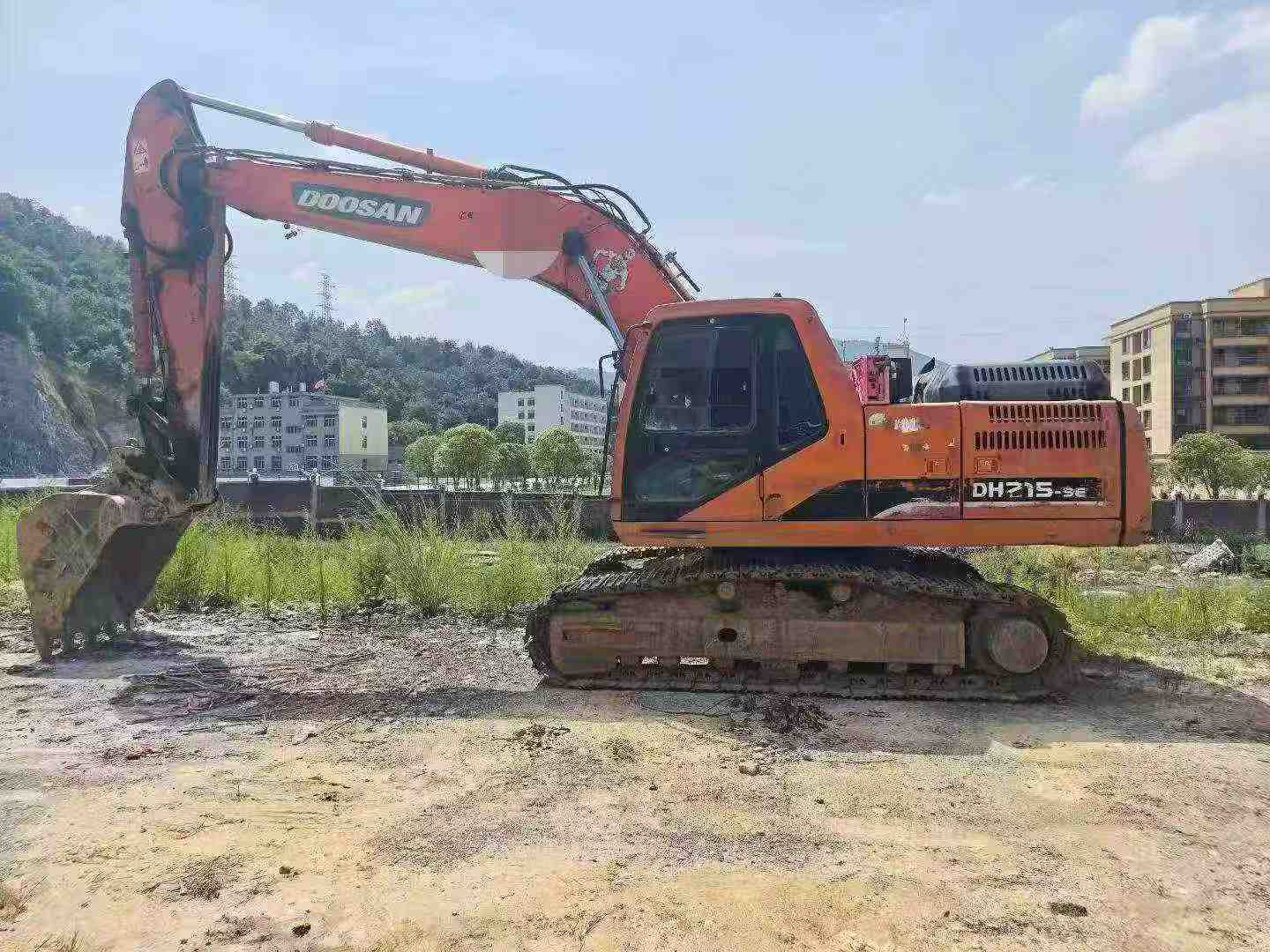

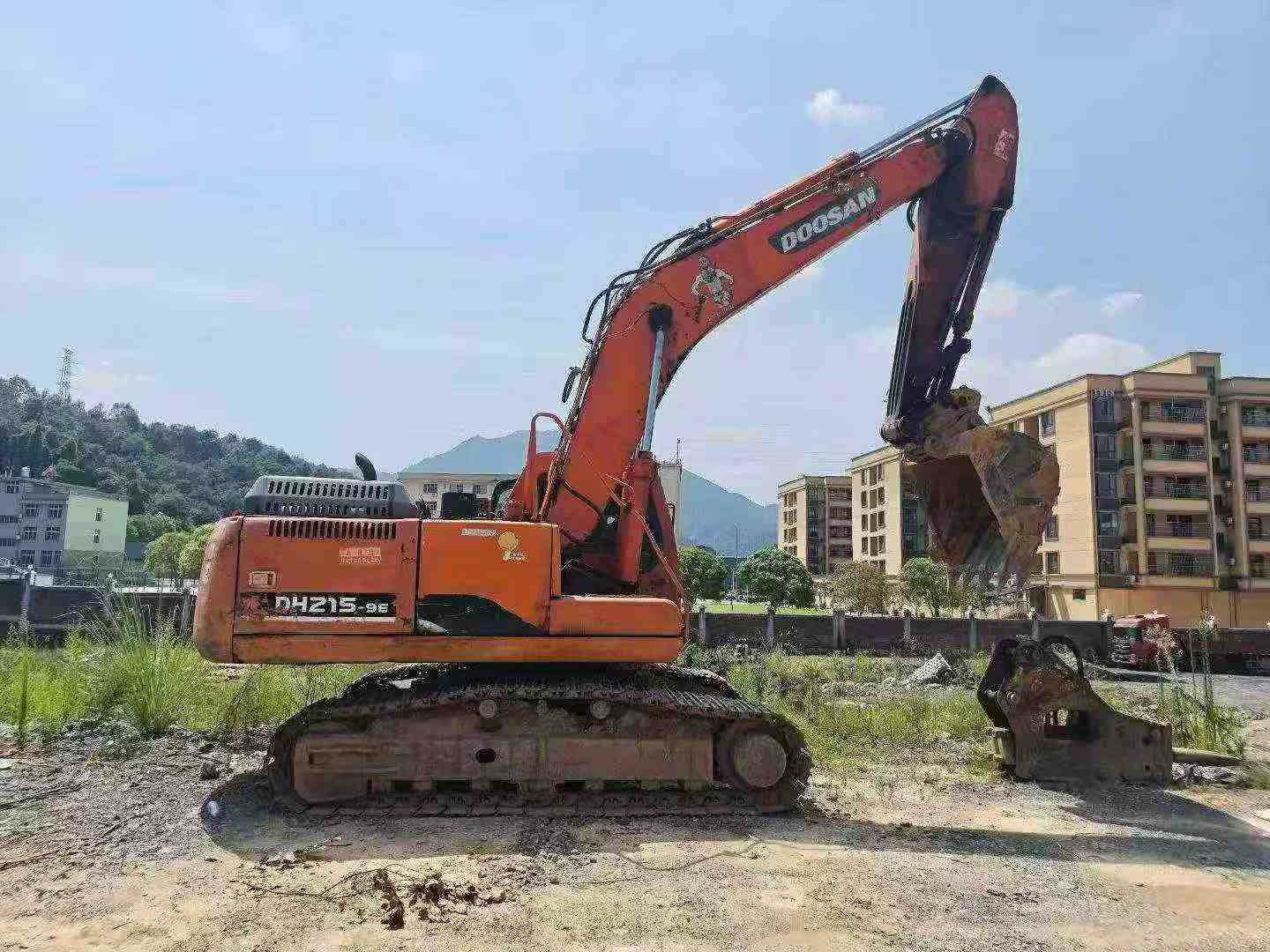

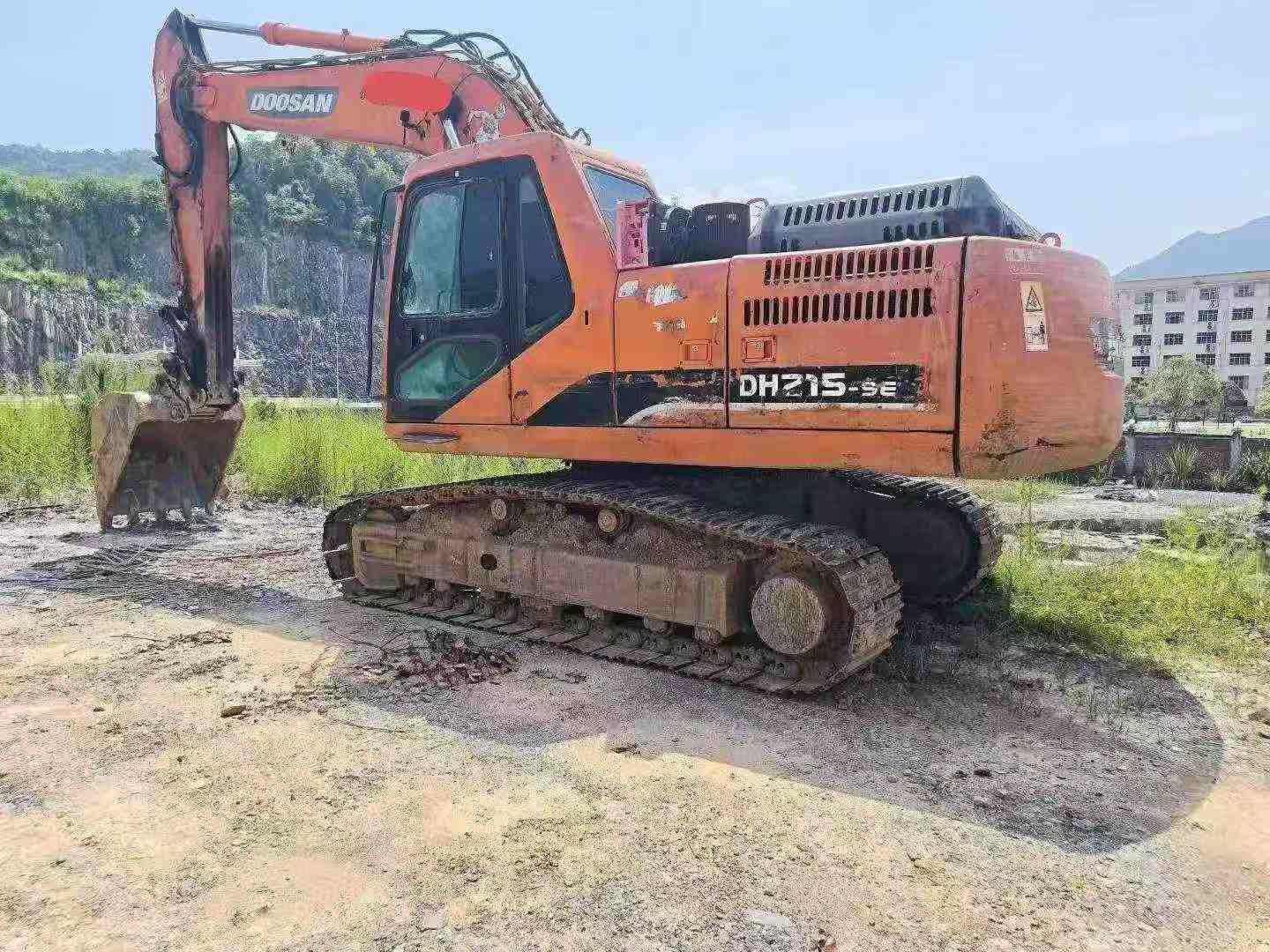

Available now: 2020 Doosan DH215-9E hydraulic excavator located in Hunan, China. This 21-ton class crawler excavator from Doosan's proven -9 series delivers reliable performance for earthmoving, demolition, and general construction applications. The machine is in good operating condition and represents solid value in the mid-size excavator segment.
Key details:
- Model year: 2020
- Operating weight class: 21 tonnes
- Current location: Hunan Province, China
- Condition: Good working order
- Ownership: First-hand unit
- Asking price: RMB 66,000
The DH215-9E offers a practical balance of digging force, reach, and fuel efficiency for contractors and rental fleets. This unit is ready for immediate deployment. Direct inquiries welcome for inspection arrangements and export documentation support.
| Specifications | Value |
|---|---|
| No. | 1138874 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

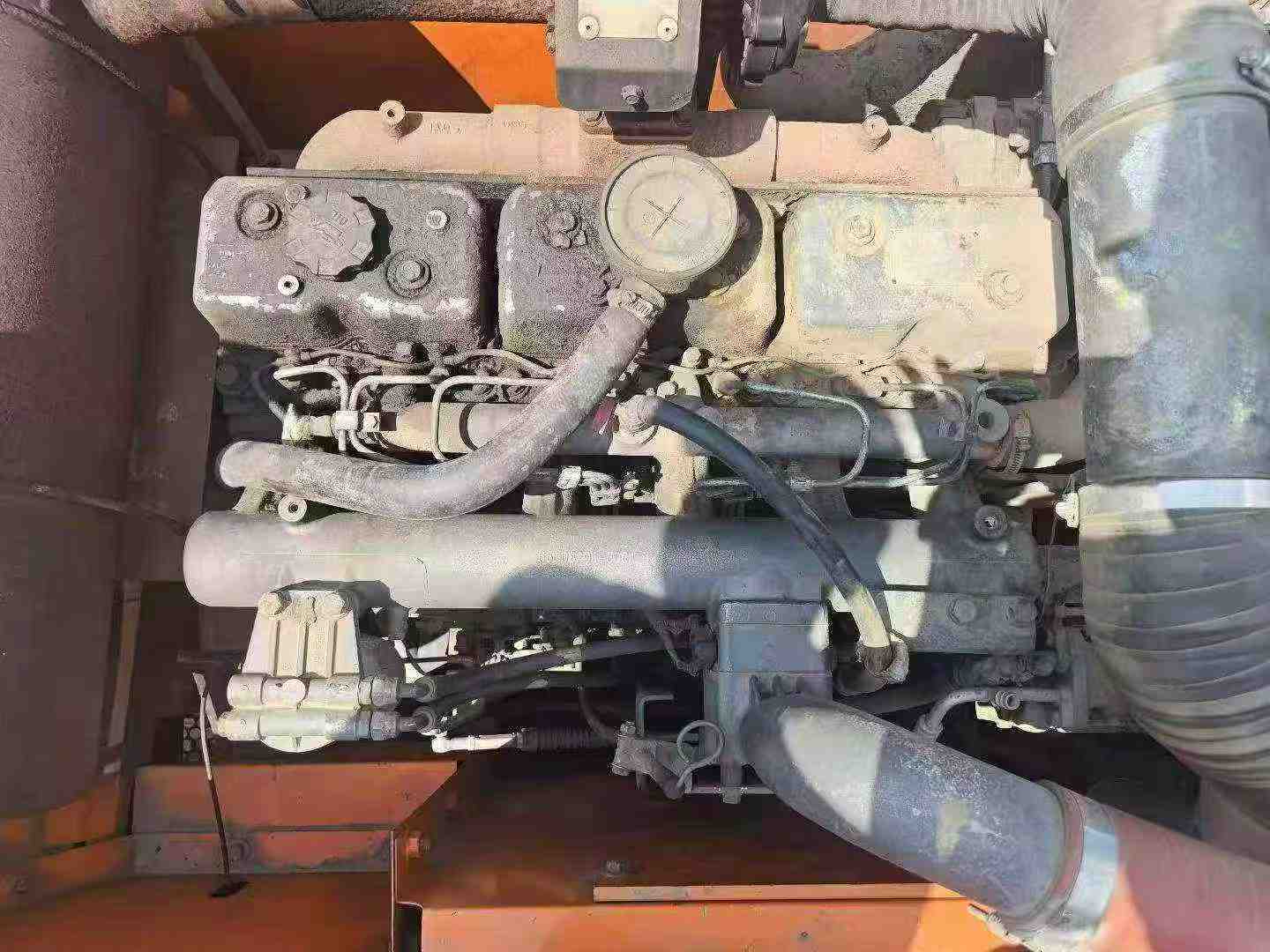

| Engine type | DE08TIS |
| Rated power (kw/rpm) | 110 / 1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | Direct injection type; Mechanically controlled engine; turbocharging |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 144.1 |
| Rod digging force (kN) | 102.9 |
| Travel speed (km/h) | 5.4 / 3.1 |
| Turning torque (Nm) | 61.5 |

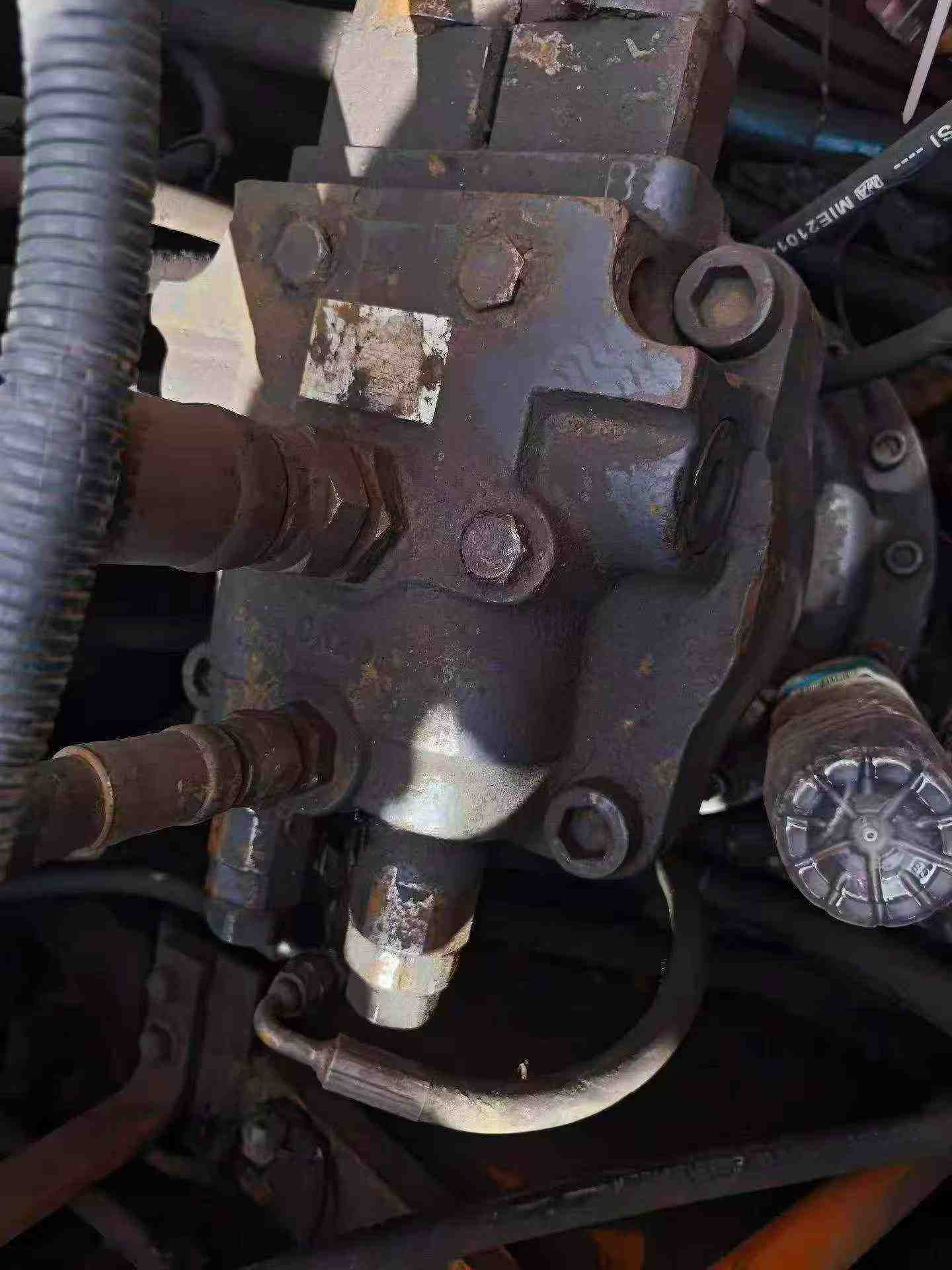

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1280 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 (to top of cab) |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4070 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6470 |
