Product Description

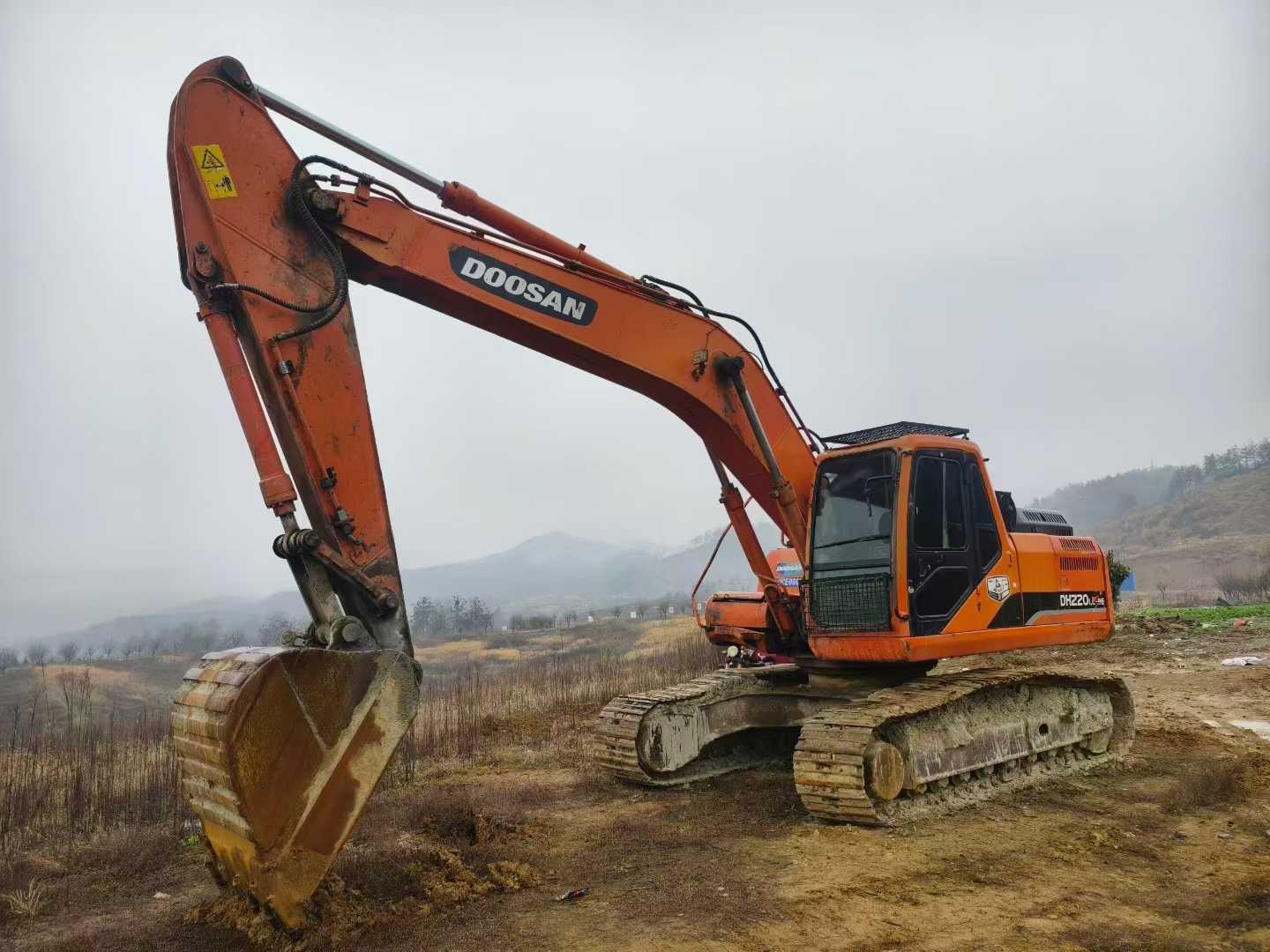

Sourced from Hubei and ready for immediate deployment, this 2012 Doosan DH220-9E excavator eliminates factory lead times and delivers proven performance exactly when your project demands it. Operating at 22 tons with a robust 0.93 m³ bucket capacity, this machine combines the efficiency of a Doosan DB58TIS engine rated at 110 kW with the reliability of battle-tested hydraulics—136.2 kN bucket digging force and a 9,965 mm maximum digging radius handle demanding earthmoving applications without hesitation.
- Available Now: Skip months of procurement delays—deploy directly from Hubei to your site
- Operational Reach: 6,655 mm maximum digging depth, 9,660 mm excavation height

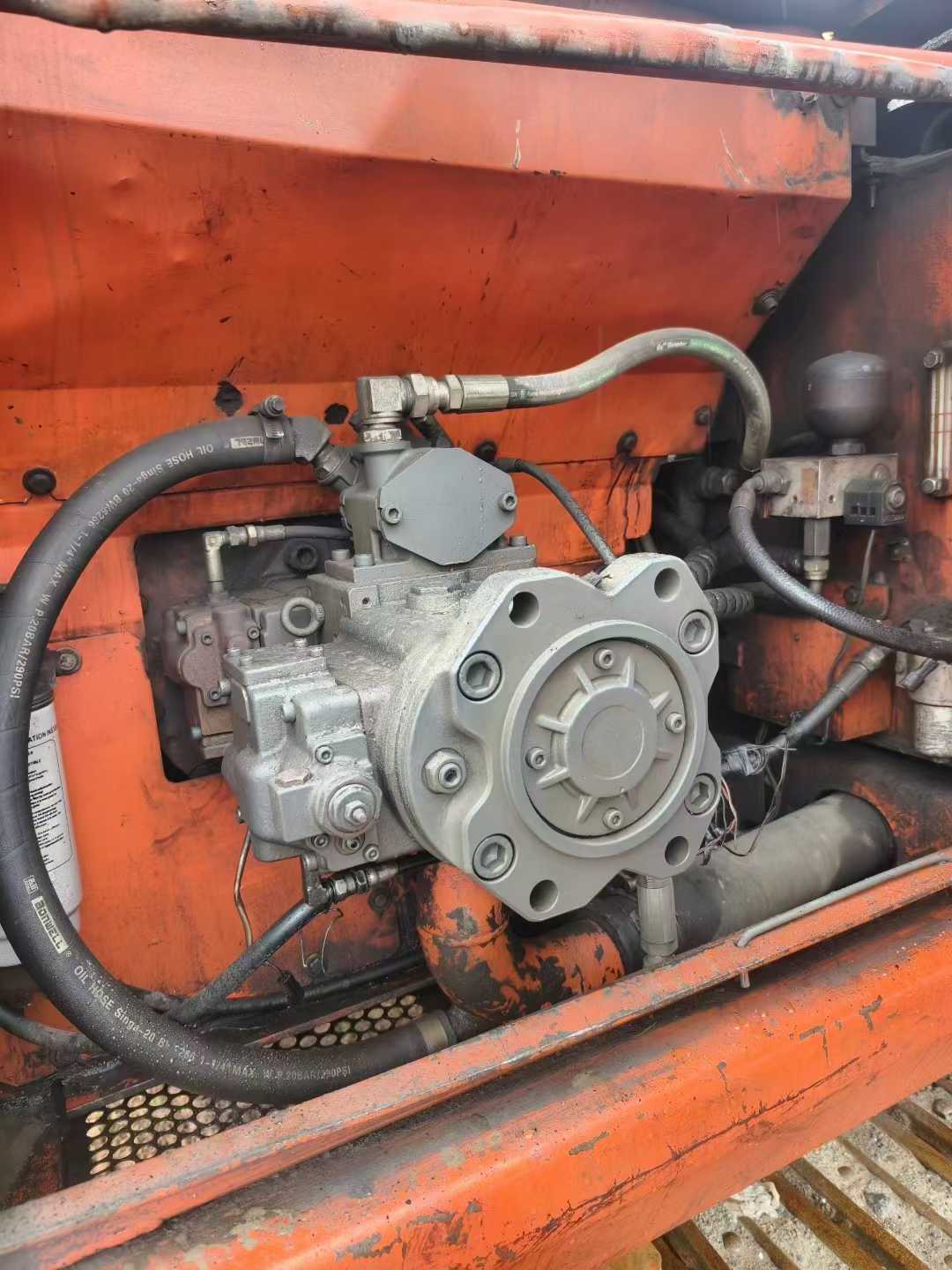

- Hydraulic Power: 32.4 MPa working circuit, dual 212 L/min pilot pumps for responsive control
- Mobility: 5.4 km/h maximum travel speed, 2,840 mm rear turning radius for confined workspaces
- Fuel Autonomy: 310-liter tank supports extended operating shifts
Backed by joint-venture manufacturing standards and equipped with traditional power architecture, this excavator offers predictable maintenance protocols and parts availabil
| Specifications | Value |
|---|---|
| No. | 1017671 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22000 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

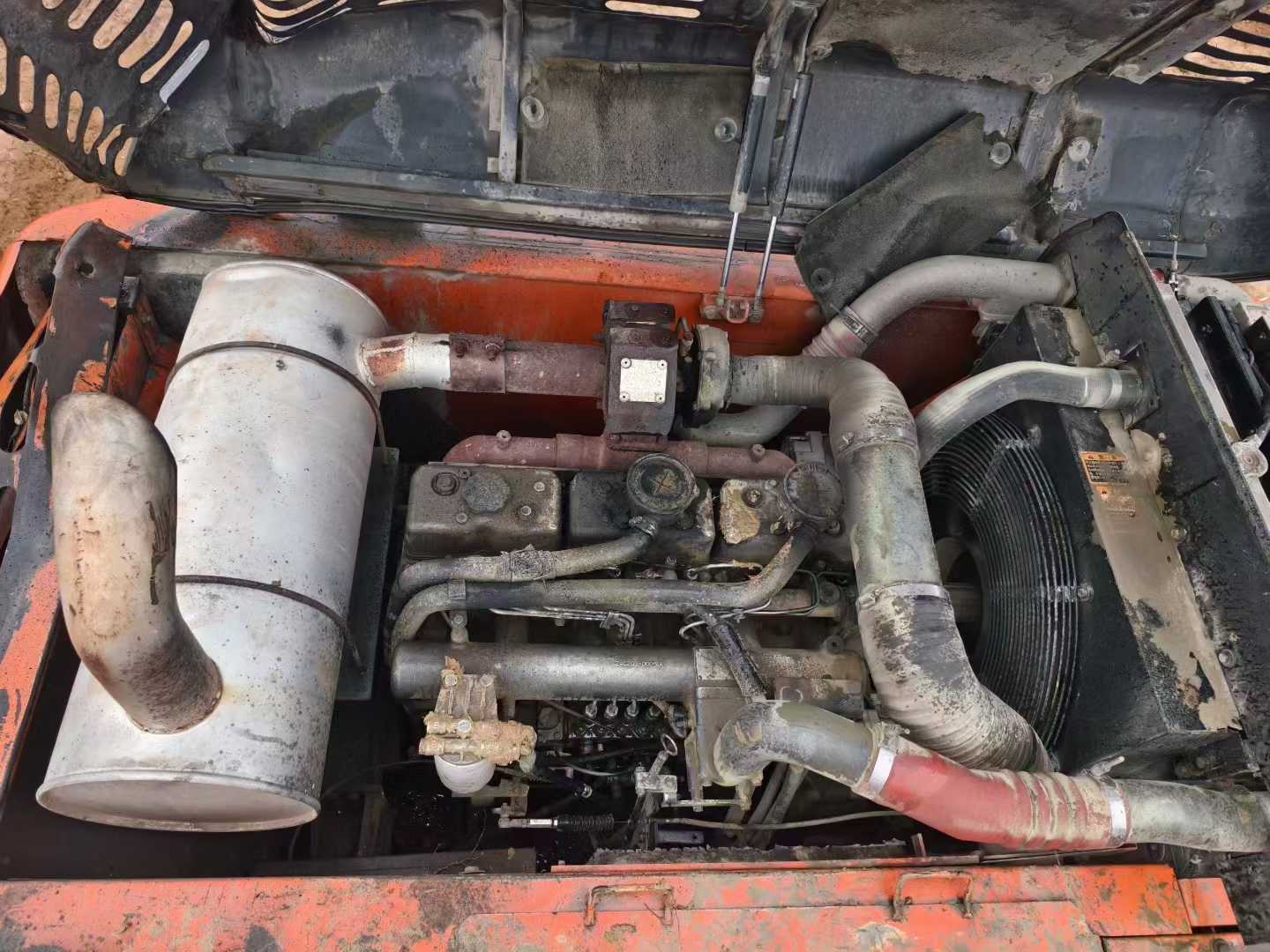

| Engine type | Doosan DB58TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot pump flow (L/min) | 2 x 212 |
| Fuel Tank (L) | 310 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Hydraulic System (L) | 135 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 |
| Full cab height (mm) | 3025 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 4440 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 5885 |
