Product Description

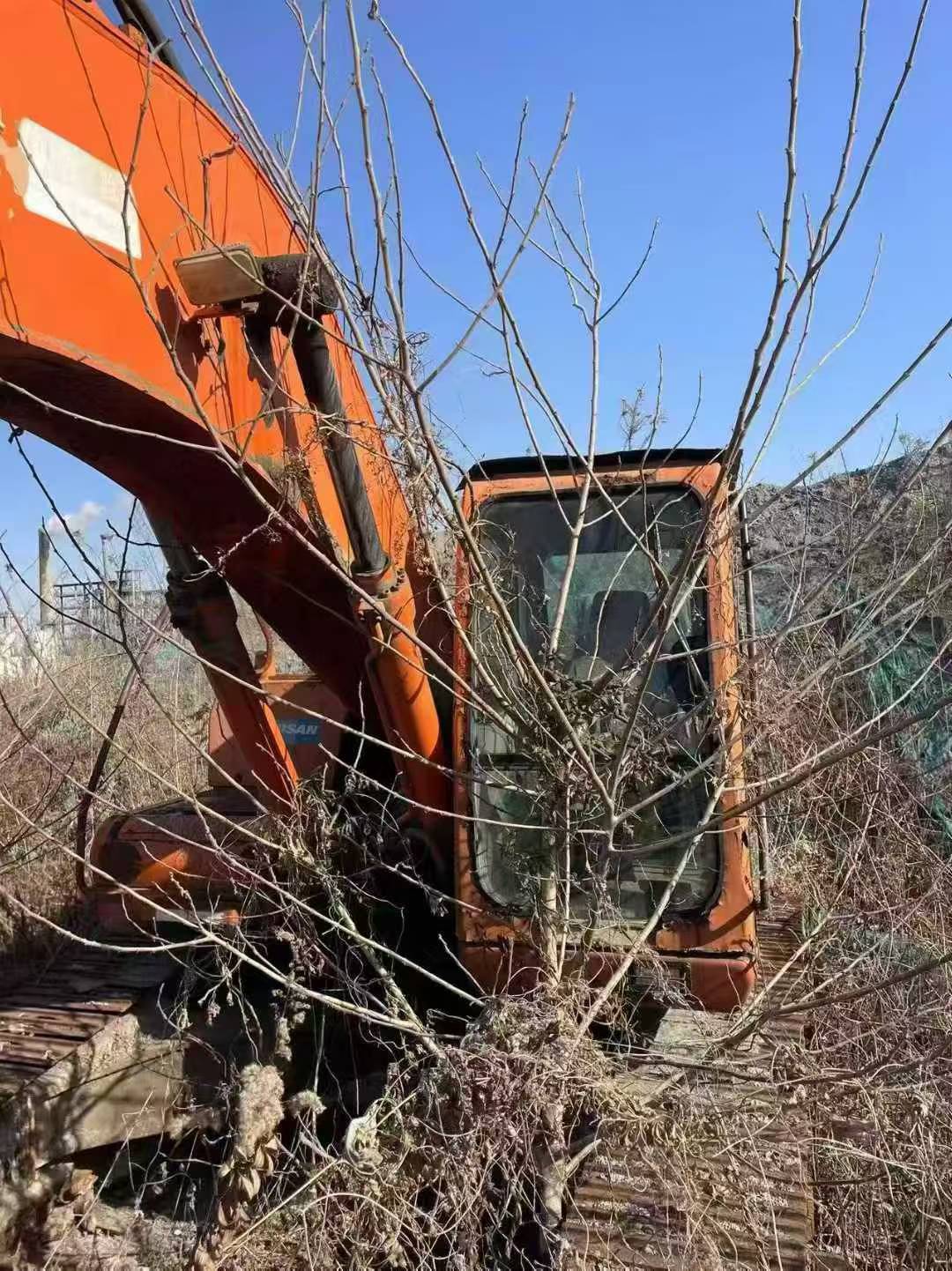

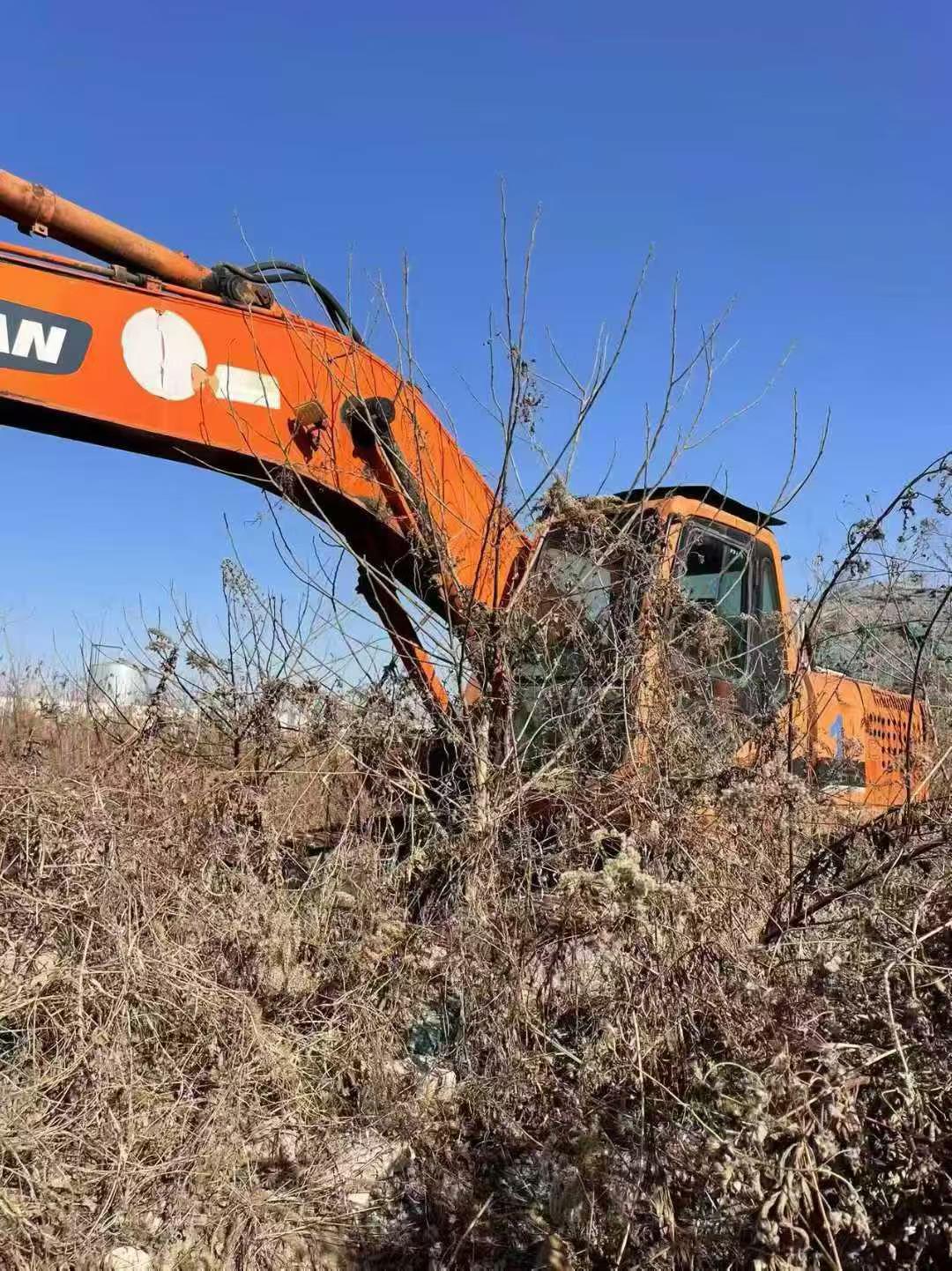

Proven performance meets exceptional value in this 2016 Doosan DH220-9E excavator, currently located in Hunan. With a robust 22-ton operating weight and 0.93m³ bucket capacity, this workhorse delivers consistent productivity across demanding applications. Powered by a reliable Doosan DB58TIS engine generating 110kW at 1950rpm, this machine combines fuel efficiency with dependable performance that operators trust.
Built to last through rigorous job site conditions, this model features impressive digging capabilities including 9965mm maximum reach and 6655mm maximum depth. The 5700mm boom and 2900mm arm configuration provide optimal working range for excavation, loading, and grading operations. With 310L fuel capacity and straightforward maintenance requirements, downtime stays minimal while productivity remains high.
- 22-ton class excavator with proven track record

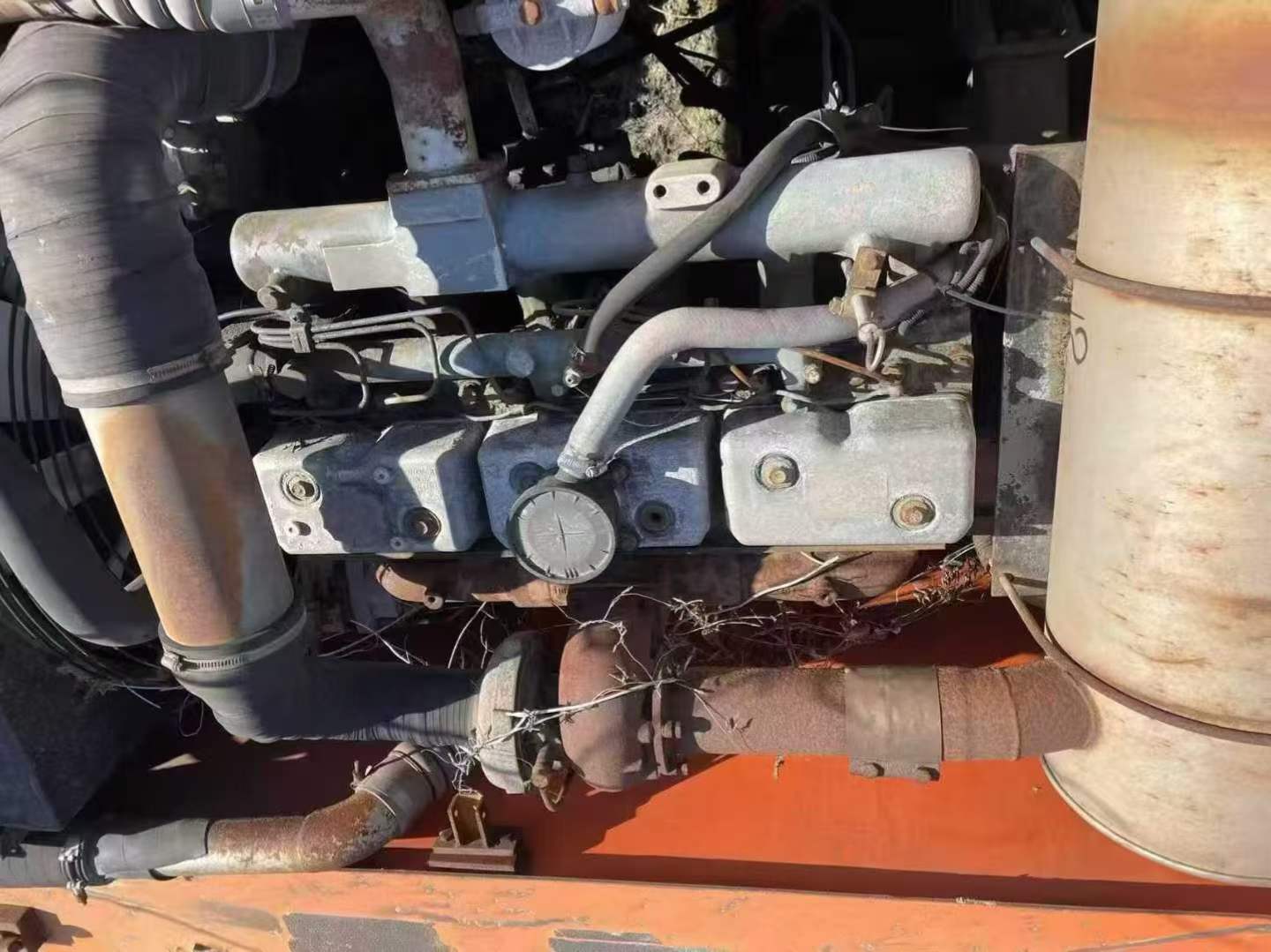

- Doosan DB58TIS 6-cylinder engine: 8.07L displacement
- Maximum digging force: 144.1kN bucket, 104.9kN arm
- Compact transport dimensions: 9645mm × 2990mm × 3025mm

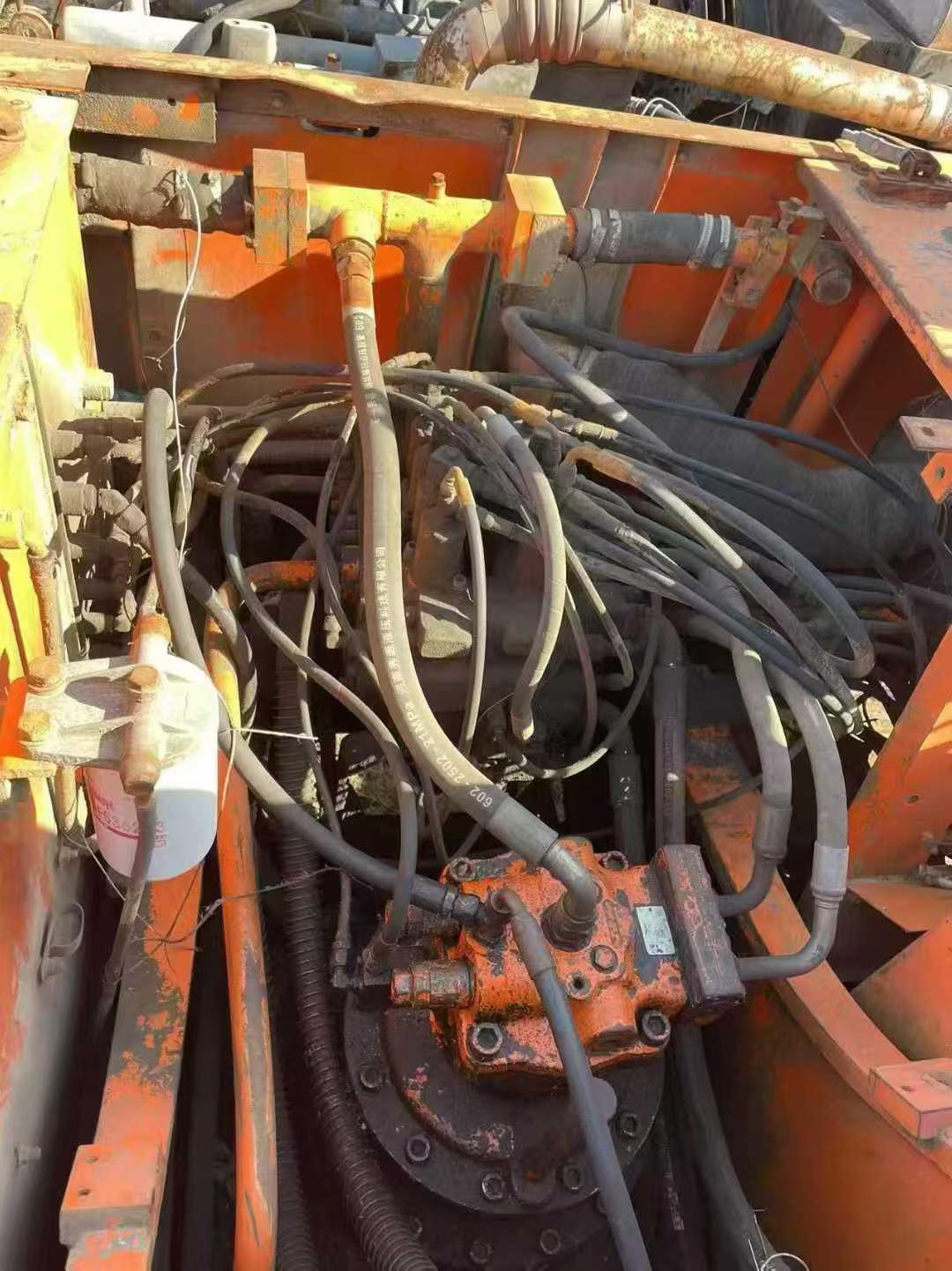

- Dual hydraulic pumps: 2 × 212 L/min flow rate
This joint venture-manufactured excavator represents solid engineering designed for long-term reli
| Specifications | Value |
|---|---|
| No. | 1024584 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22000 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot pump flow (L/min) | 2 x 212 |
| Fuel Tank (L) | 310 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Hydraulic System (L) | 135 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 |
| Full cab height (mm) | 3025 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 4440 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 5885 |
