Product Description

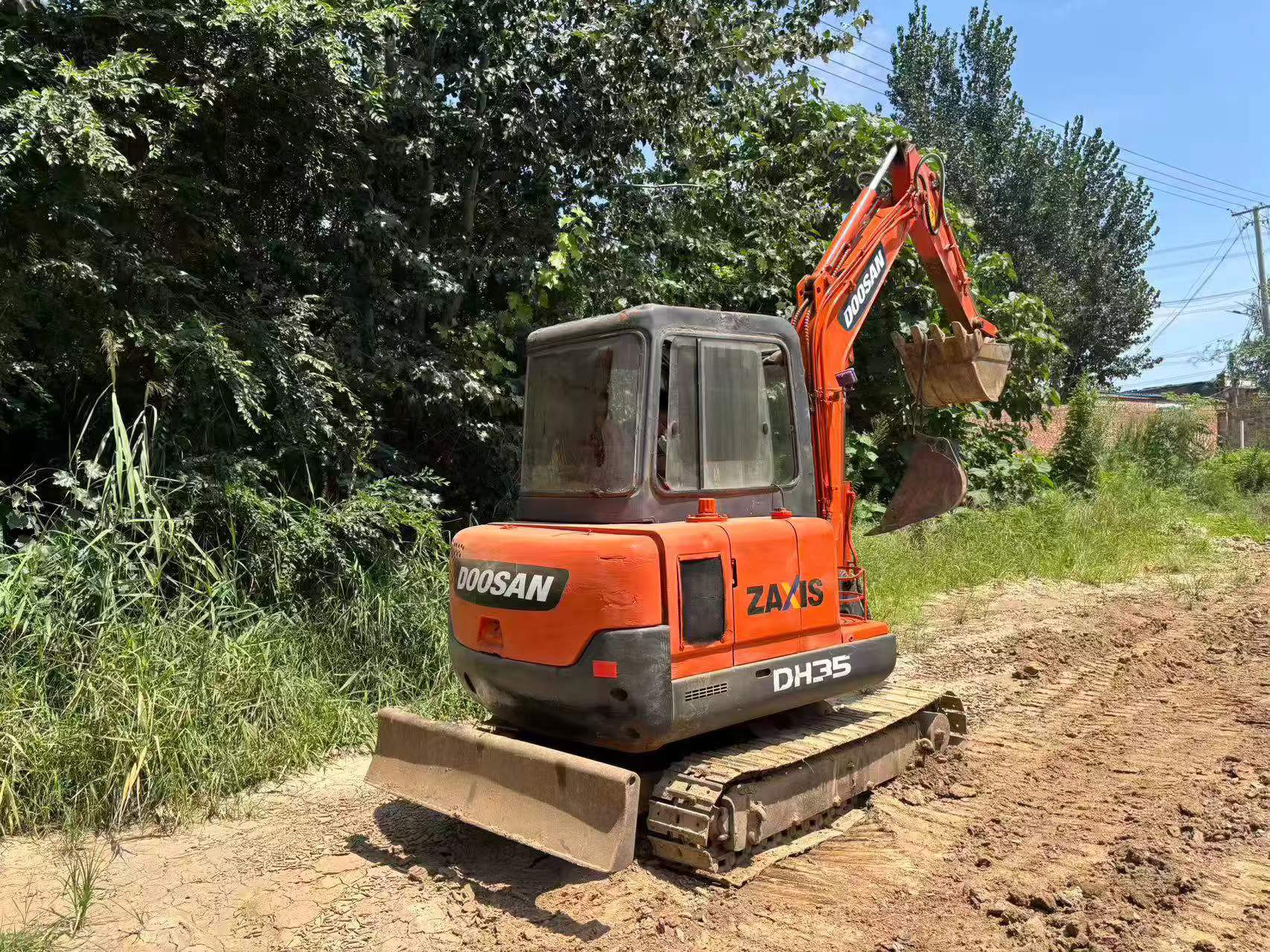

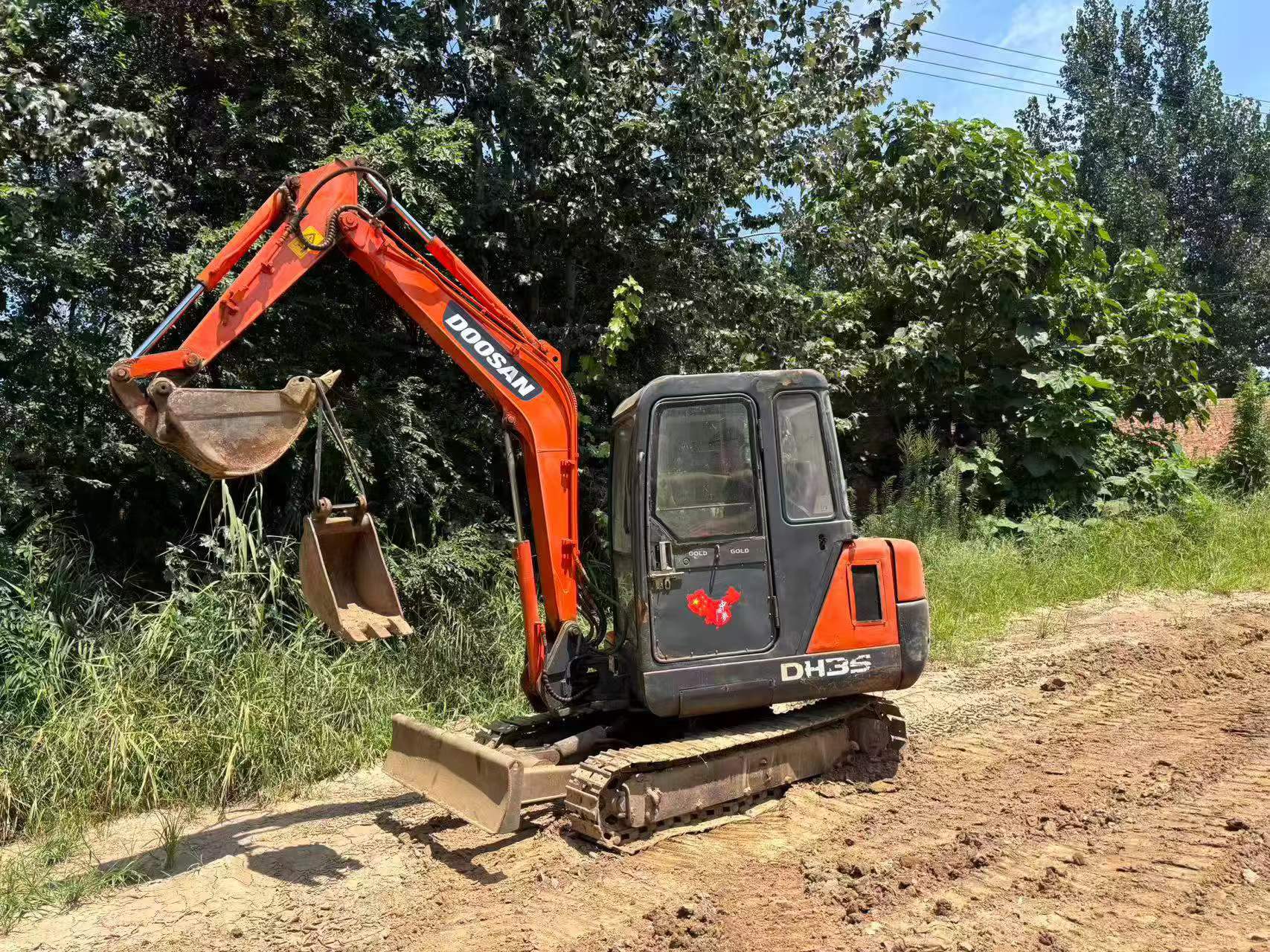

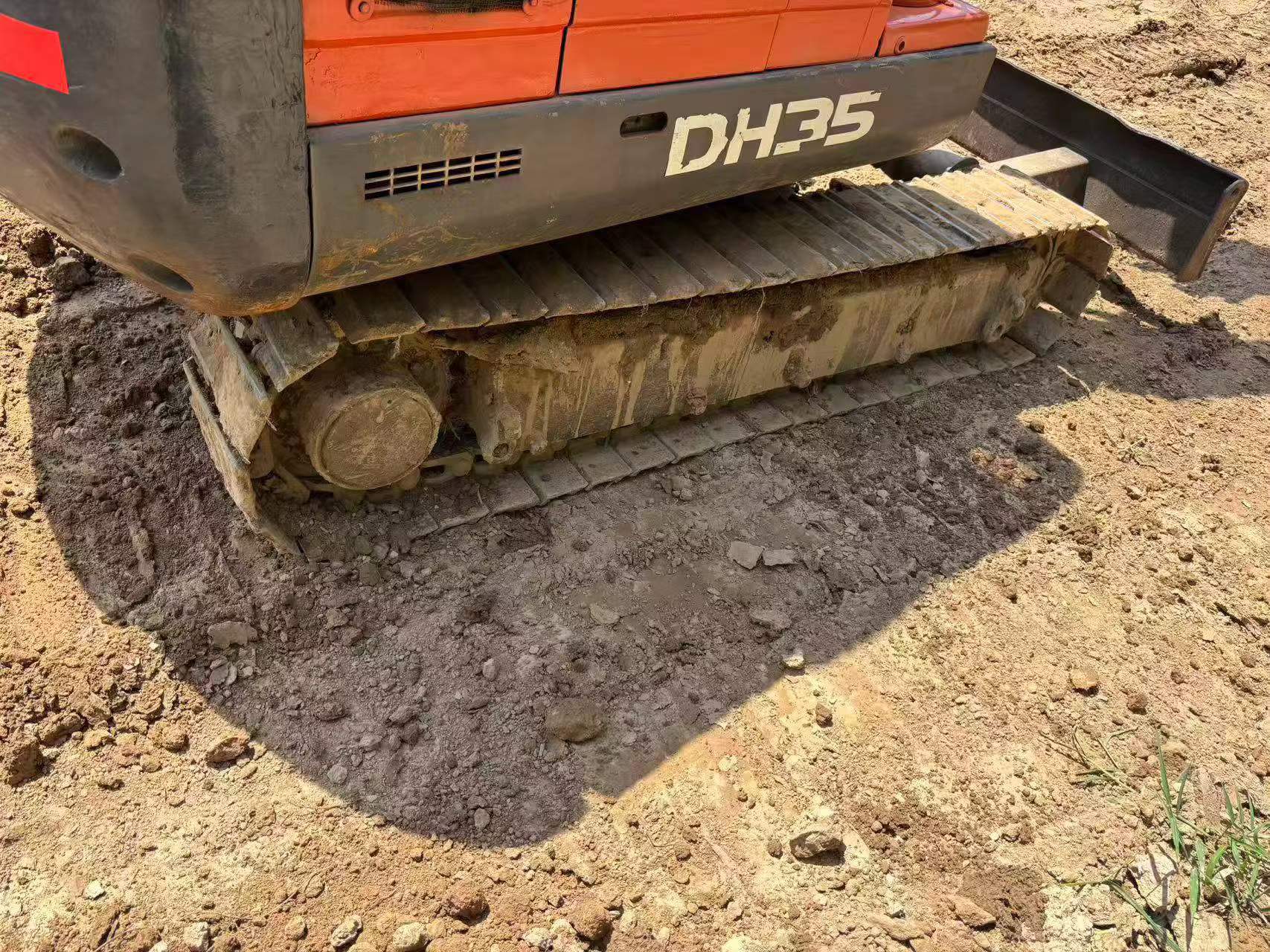

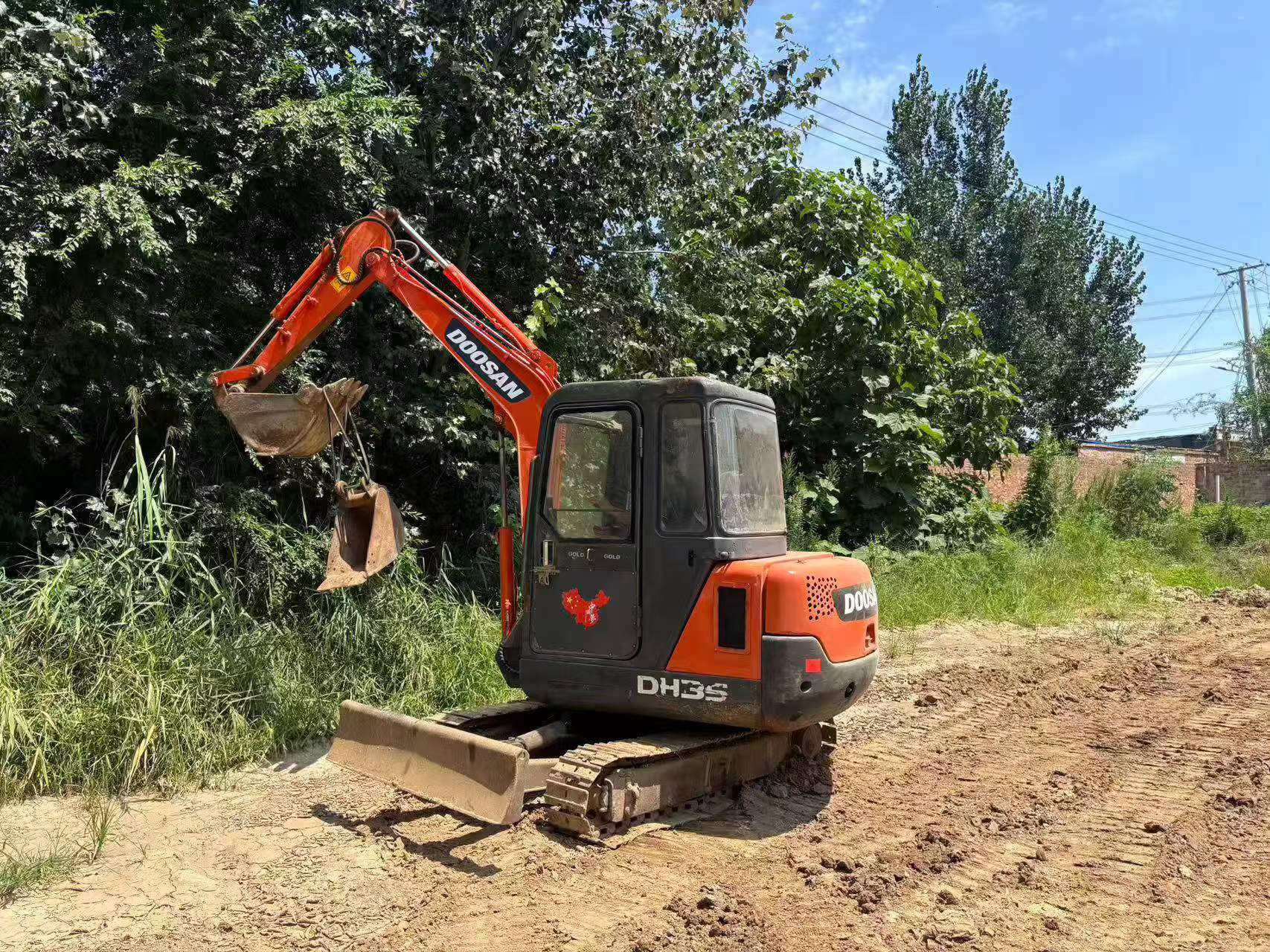

Discover the 2020 Doosan DH35, a premium compact excavator available in Hebei, China. This used machine is equipped with an original bucket and an additional larger bucket, enhancing its versatility for various applications. Powered by a reliable Yanmar engine, this model ensures efficient and robust performance. The inclusion of the original arm further adds to its functionality. Designed with a narrow undercarriage, it offers excellent maneuverability in tight spaces. Known for its speed and efficiency, the DH35 is ready to be put to work immediately. Priced affordably at just over 30,000, this is an exceptional value for a high-performing, versatile machine.
- Year: 2020
- Brand: Doosan
- Model: DH35
- Location: Hebei, China
- Features: Original and large buckets, Yanmar engine, original arm, narrow undercarriage
| Specifications | Value |
|---|---|
| No. | 1123650 |
| Tonnage (tons) | 3 |
| Working weight (kg) | 3260 |
| Bucket capacity (m³) | 0.1 |
| Boom length (mm) | 2500 |
| Rod length (mm) | 1250 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

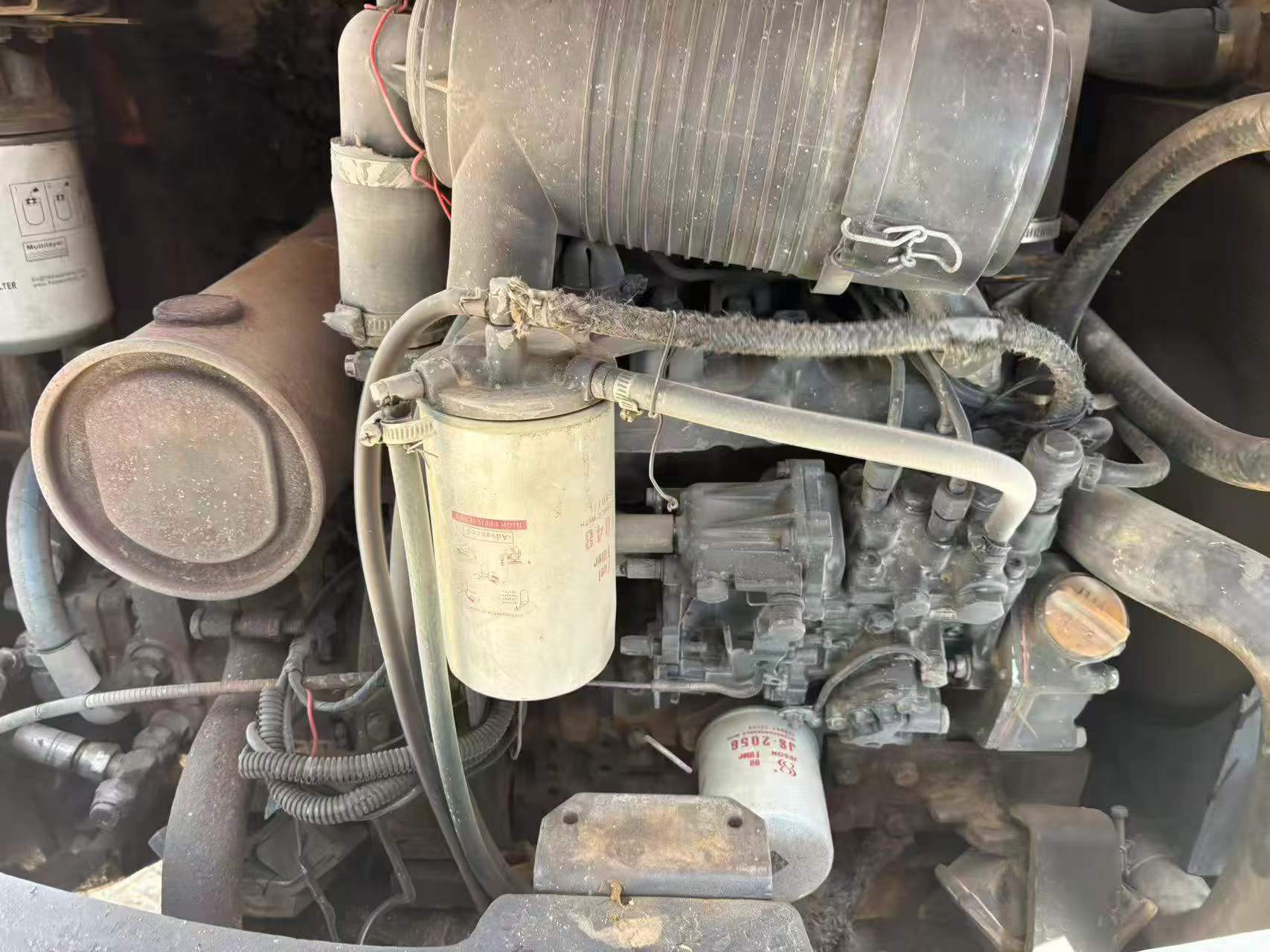

| Engine type | Yanmar |
| Rated power (kw/rpm) | 18/1950 |
| Bucket digging force (kN) | 22.6 |
| Rod digging force (kN) | 14.9 |
| Maximum flow of main pump (l/min) | 37 * 2 |
| Traveling Hydraulic Circuit (Mpa) | 20 |
| Rotary Hydraulic Circuit (Mpa) | 15.7 |
| Control Hydraulic Circuit (Mpa) | 20 |

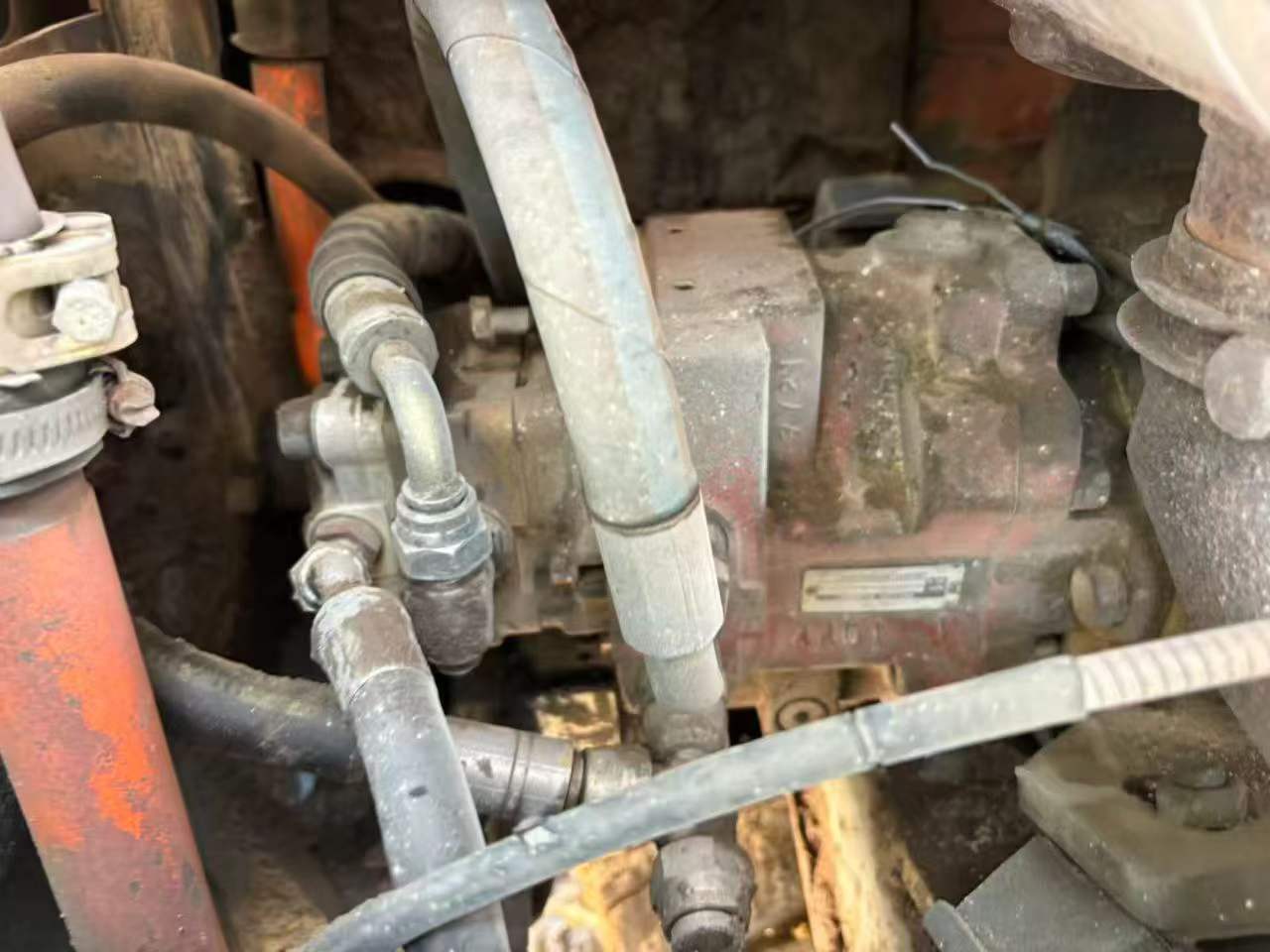

| Main pump type | Variable axial plunger pump |
| Total transport length (mm) | 5010 |
| Total transport width (mm) | 1410 |
| Total transport height (mm) | 2375 |
| Full cab height (mm) | 2340 |
| Minimum ground clearance (mm) | 290 |
| Back end turning radius (mm) | 1400 |
| Track gauge (mm) | 1200 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1650 |
| Maximum digging radius (mm) | 5120 |
| Maximum digging depth (mm) | 3125 |
| Maximum excavation height (mm) | 4950 |
| Maximum unloading height (mm) | 3465 |
| Maximum vertical digging depth (mm) | 2298 |
| Dodging plate width × height (mm) | 1525*340 |
| Maximum excavation radius of stop surface (mm) | 4945 |
