2020 Doosan DH35

1/9
Buy Doosan DH35 Used Excavator / 1
Buy Doosan DH35 Used Excavator / 2
Buy Doosan DH35 Used Excavator / 3
Buy Doosan DH35 Used Excavator / 4
Buy Doosan DH35 Used Excavator / 5
Buy Doosan DH35 Used Excavator / 6
Buy Doosan DH35 Used Excavator / 7
Buy Doosan DH35 Used Excavator / 8
Buy Doosan DH35 Used Excavator / 9

Product Description

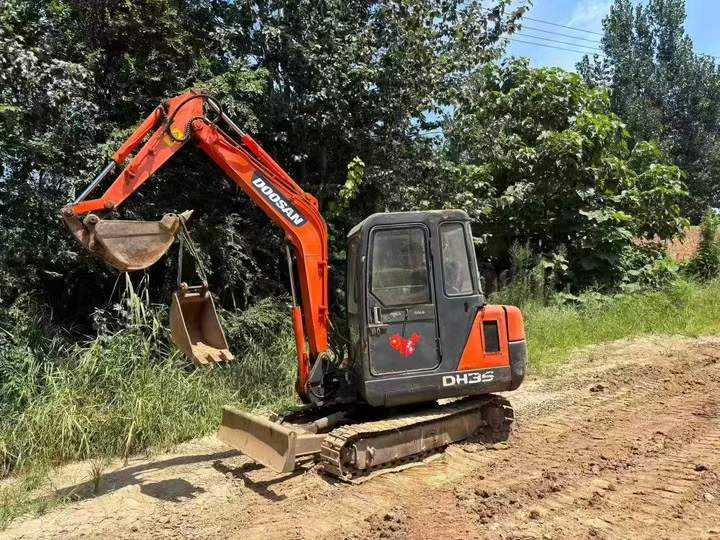

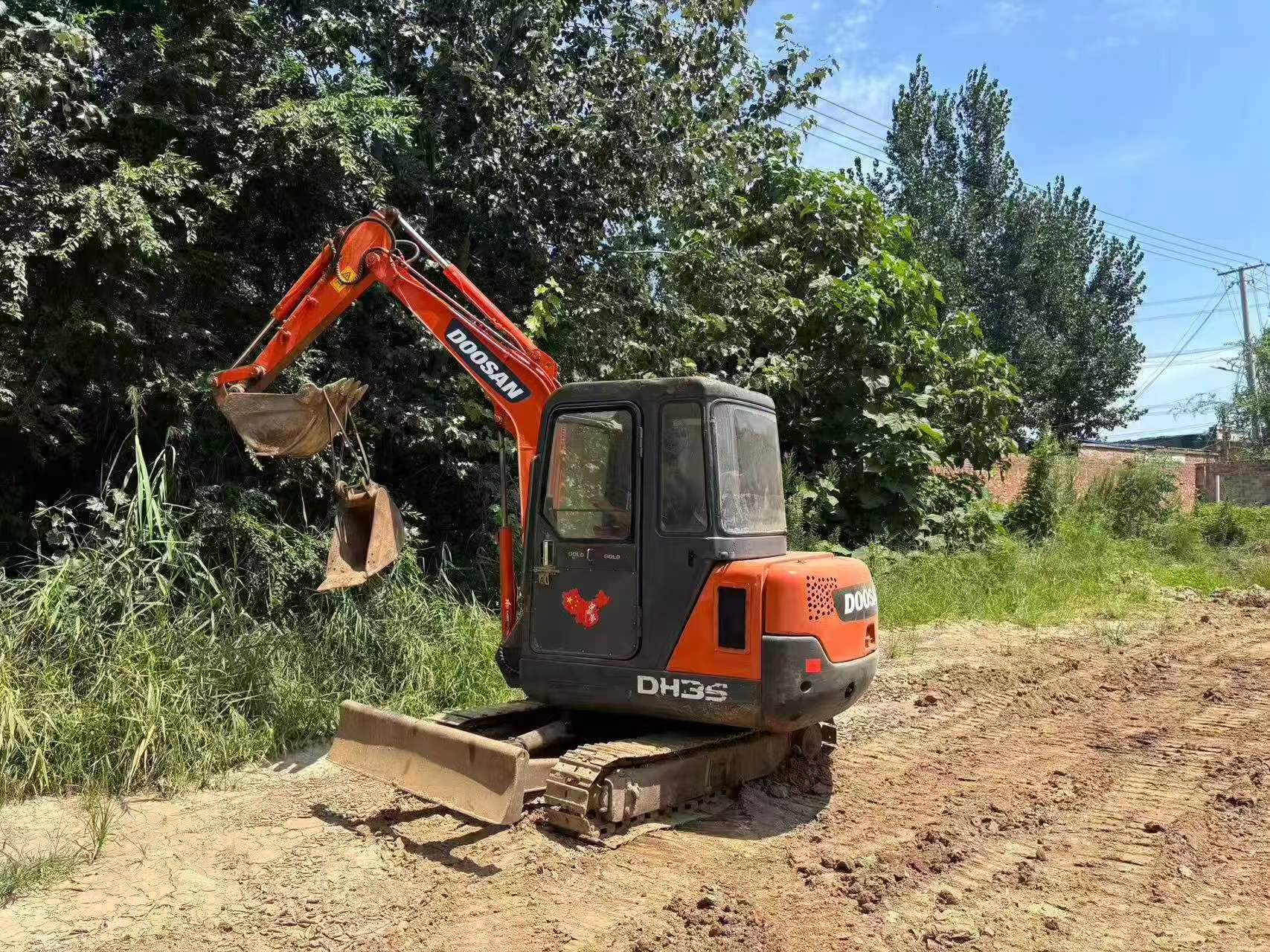

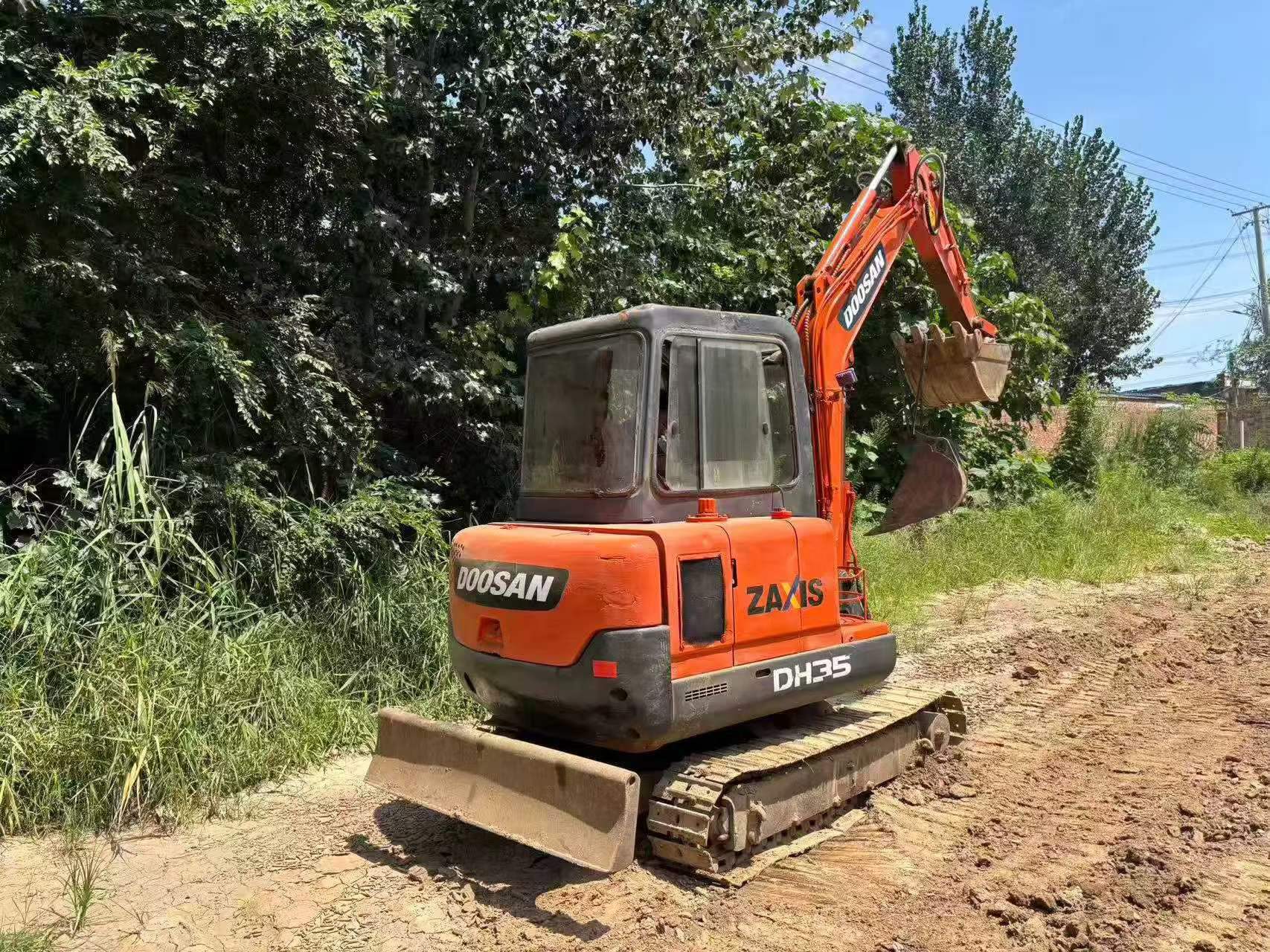

Discover the 2020 Doosan DH35, a high-performance excavator available in Peking, China. This machine is equipped with an original bucket and arm, featuring a robust Yanmar engine for reliable operation. The narrow undercarriage design allows for enhanced maneuverability in confined spaces. Known for its speed and efficiency, this excavator is ready to be put to work immediately upon delivery. With a competitive price of just over 30,000, it offers excellent value for businesses looking to enhance their fleet without compromising on quality.

  • Year: 2020
  • Brand: Doosan
  • Model: DH35
  • Location: Peking, China

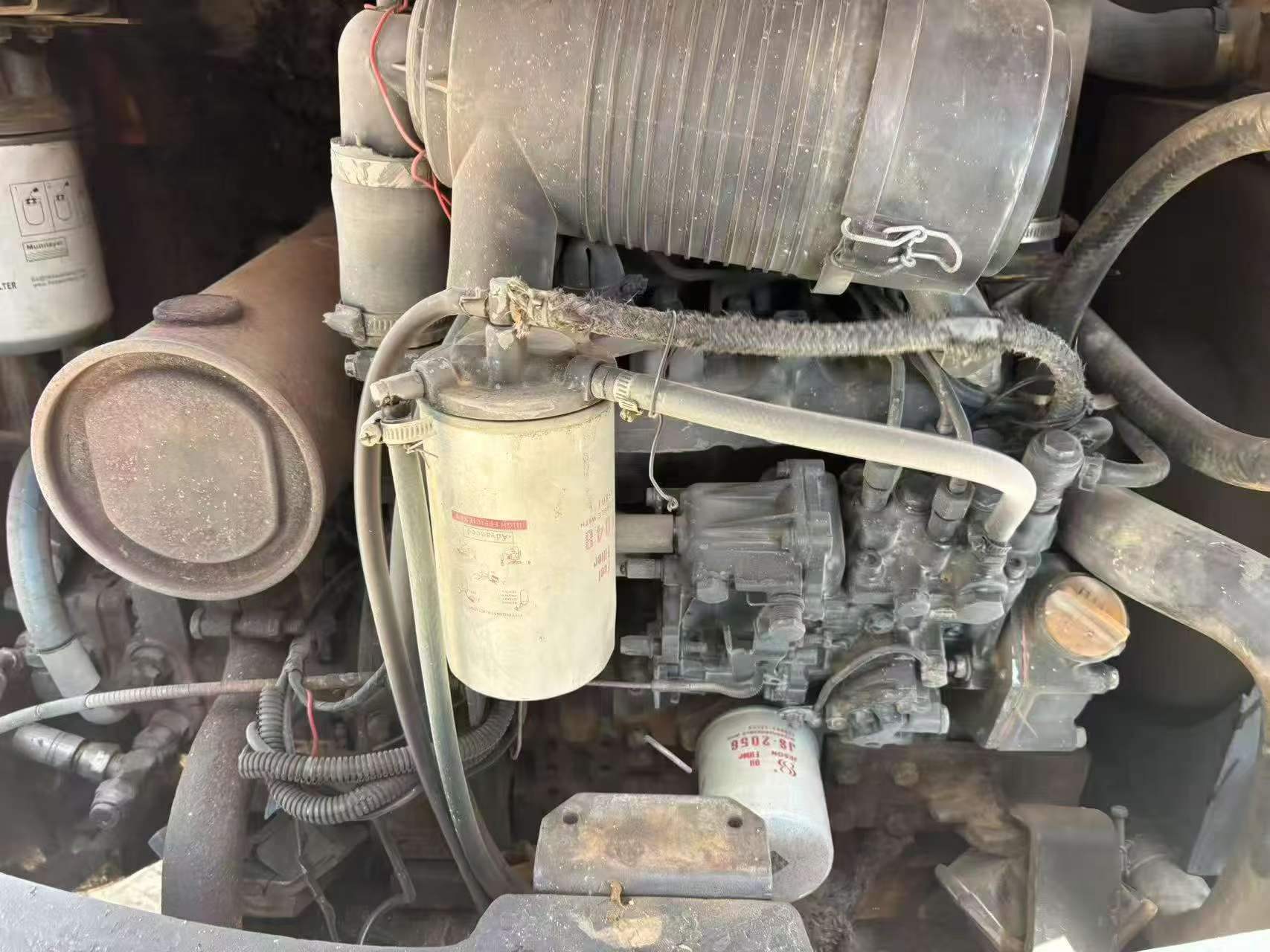

  • Engine: Yanmar

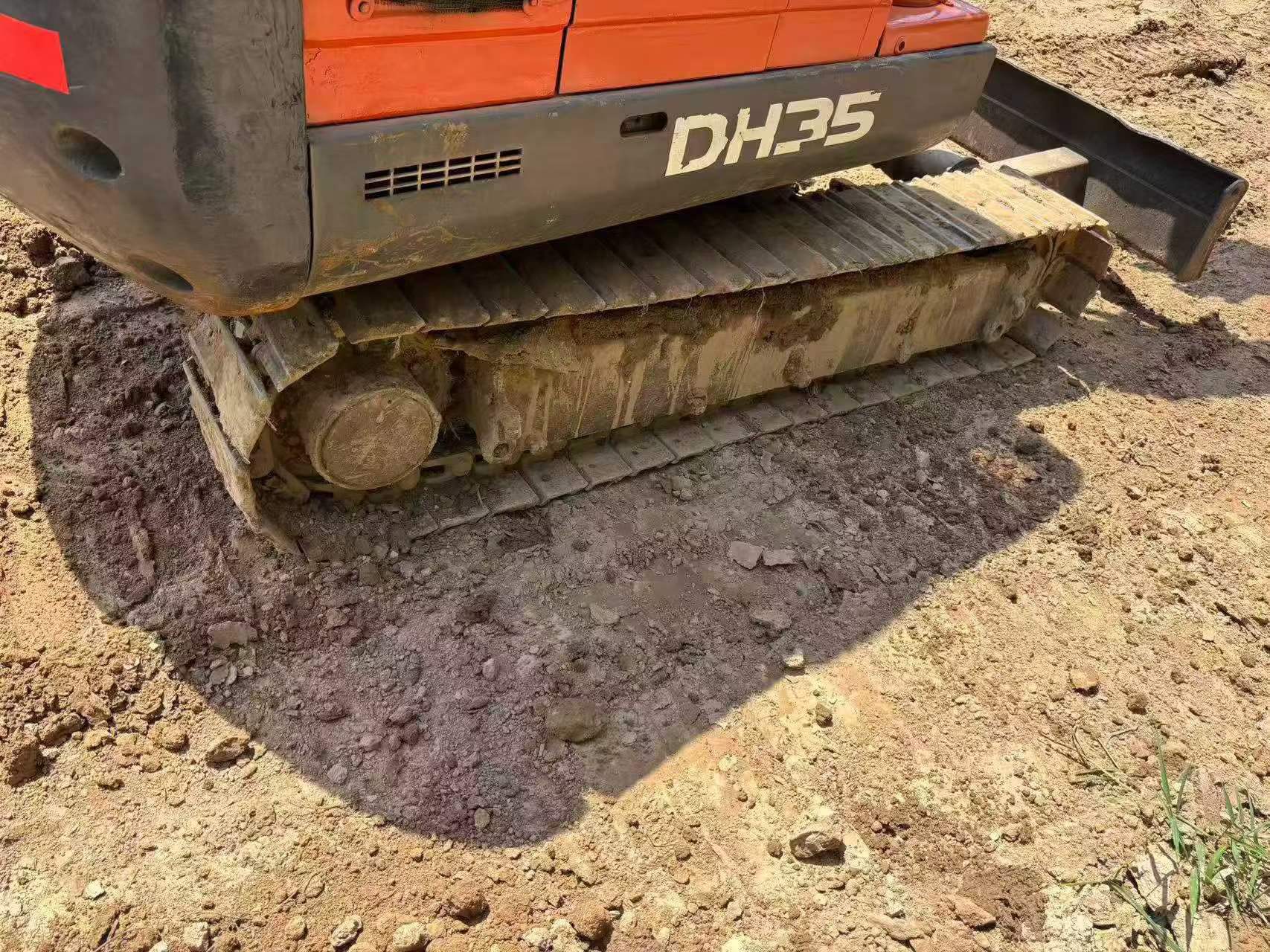

  • Features: Original bucket and arm, narrow chassis
  • Condition: Excellent, ready for immediate use
SpecificationsValue
No.1123890
Tonnage (tons)3
Working weight (kg)3260
Bucket capacity (m³)0.1
Boom length (mm)2500
Rod length (mm)1250
Country of originYantai, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar
Rated power (kw/rpm)18/1950
Bucket digging force (kN)22.6
Rod digging force (kN)14.9
Maximum flow of main pump (l/min)37 * 2
Traveling Hydraulic Circuit (Mpa)20
Rotary Hydraulic Circuit (Mpa)15.7
Control Hydraulic Circuit (Mpa)20

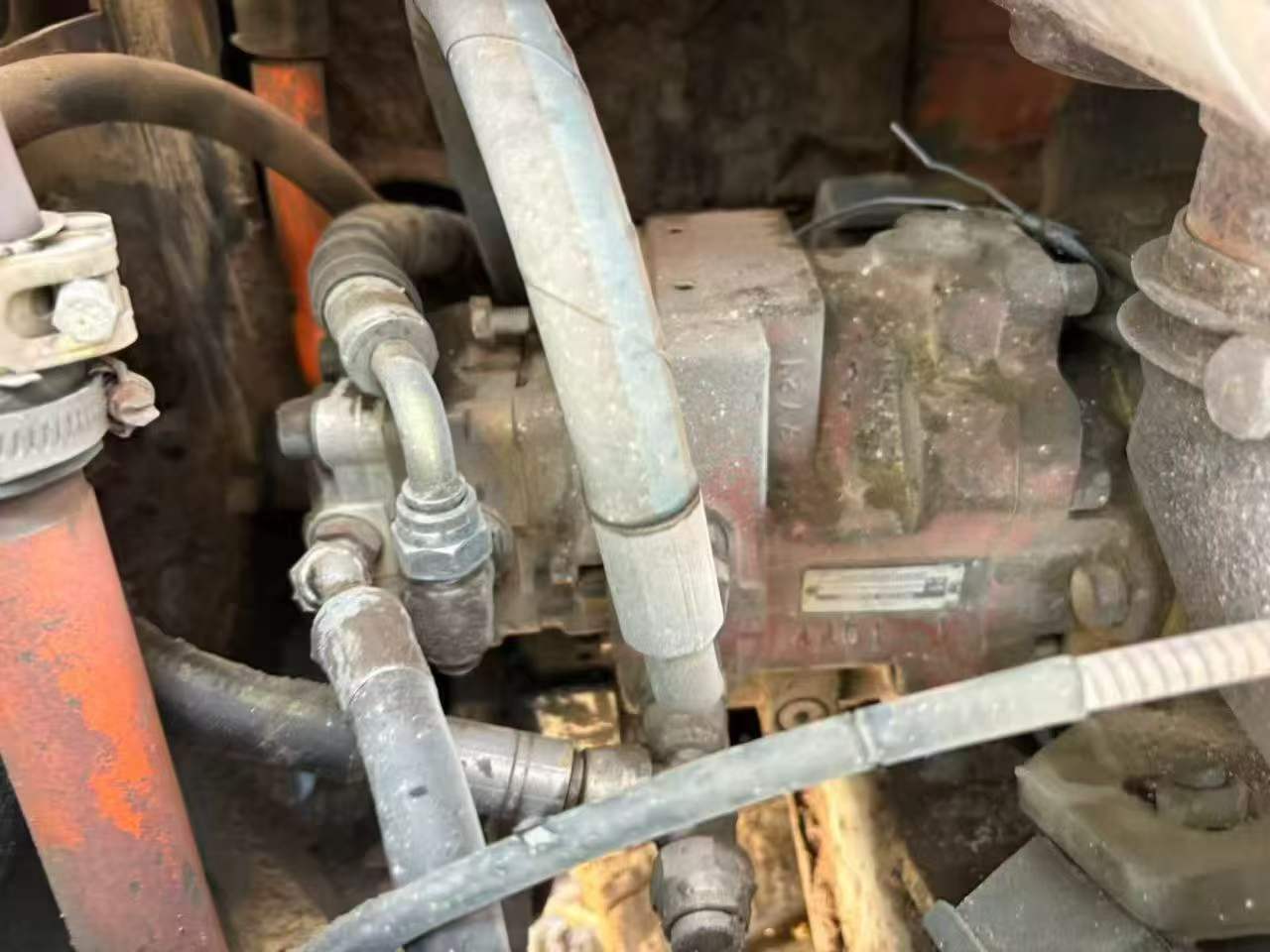

Main pump typeVariable axial plunger pump
Total transport length (mm)5010
Total transport width (mm)1410
Total transport height (mm)2375
Full cab height (mm)2340
Minimum ground clearance (mm)290
Back end turning radius (mm)1400
Track gauge (mm)1200
Track plate width (mm)300
Track ground length (mm)1650
Maximum digging radius (mm)5120
Maximum digging depth (mm)3125
Maximum excavation height (mm)4950
Maximum unloading height (mm)3465
Maximum vertical digging depth (mm)2298
Dodging plate width × height (mm)1525*340
Maximum excavation radius of stop surface (mm)4945
see more

Overview

No.1123890

Brand Name:

Doosan

Model Number:

DH35

Year:

2020

Location:

Peking China

Pub Date

Are you interested in this machine?

Please contact us
