Product Description

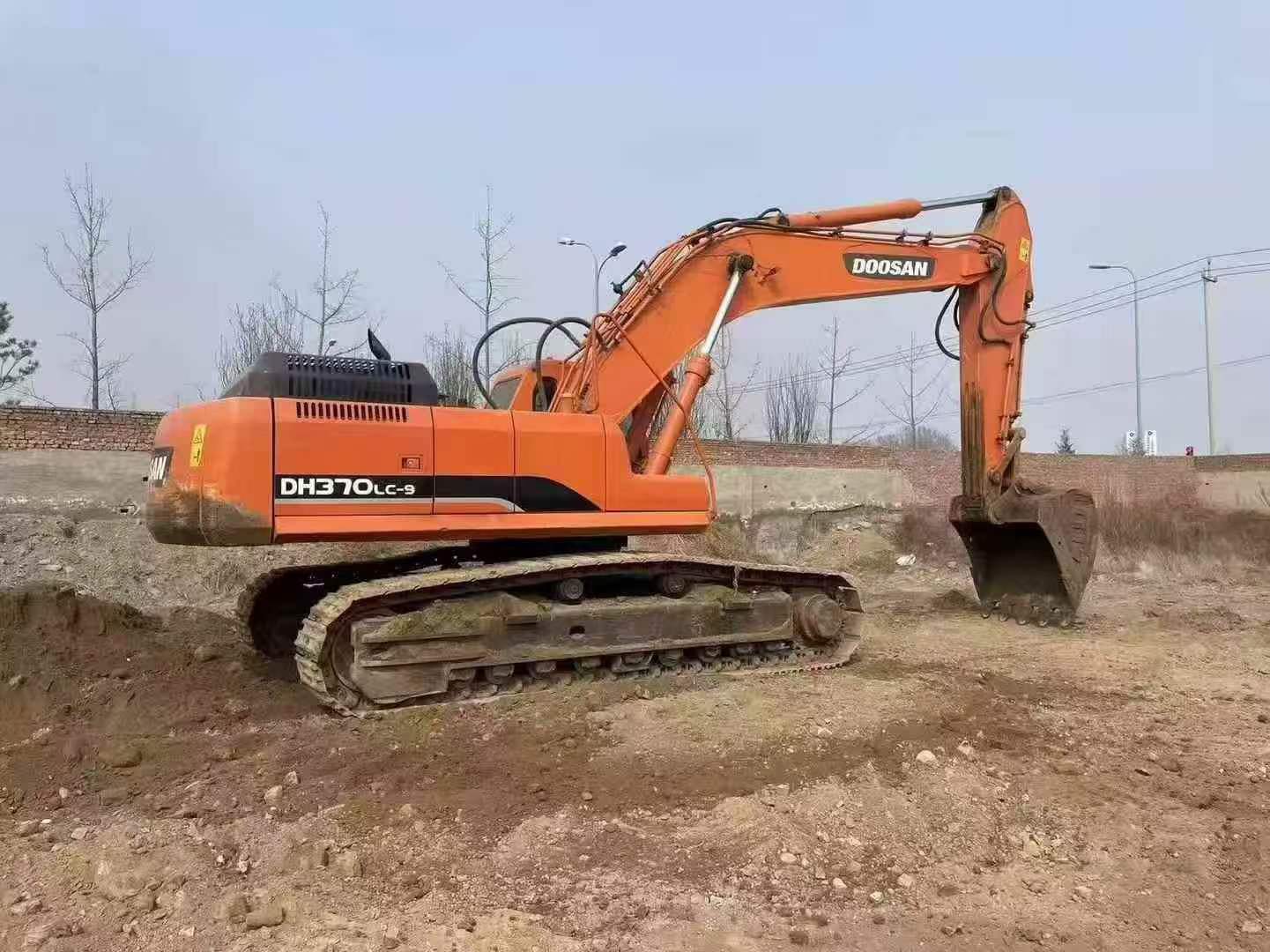

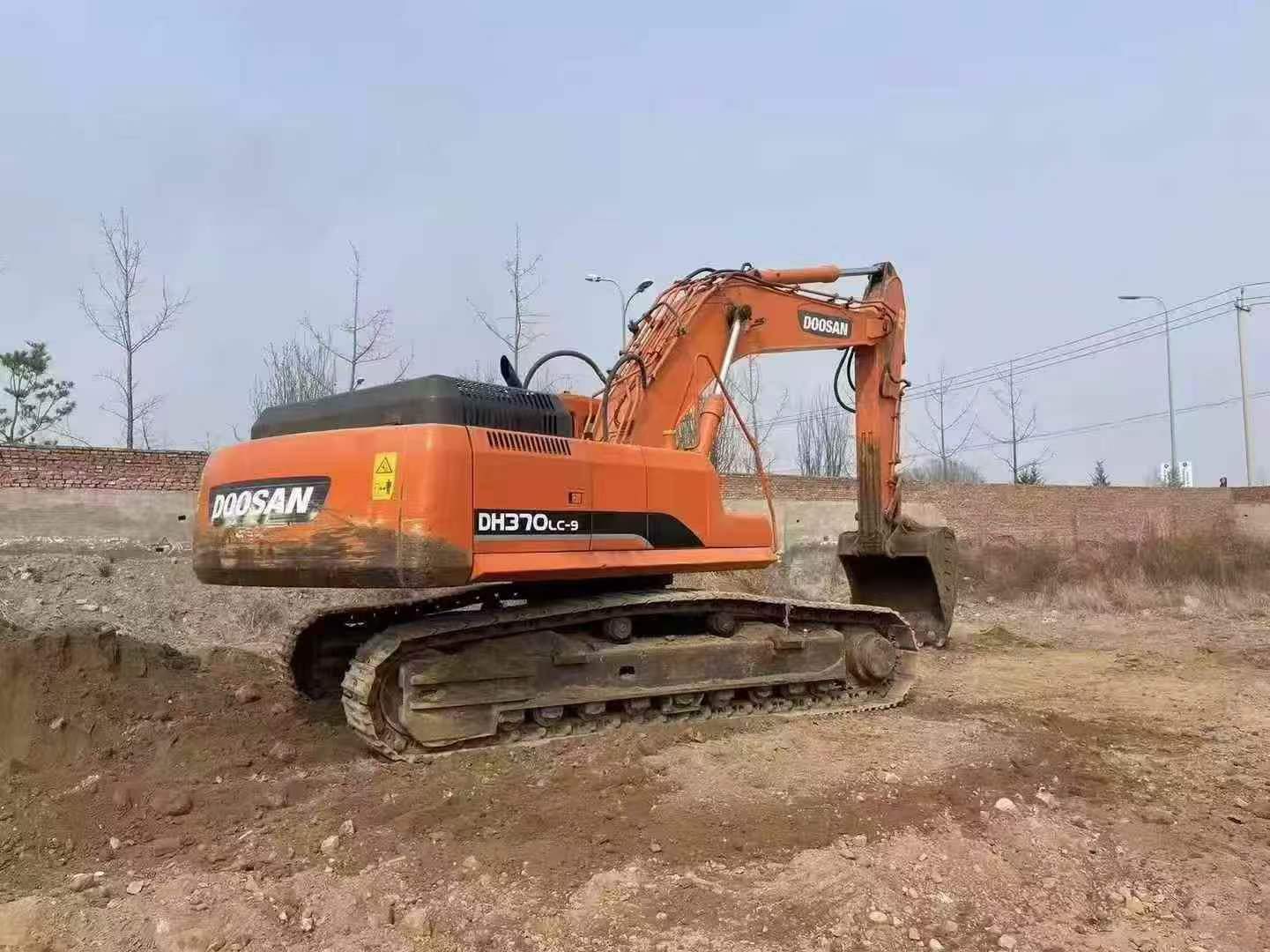

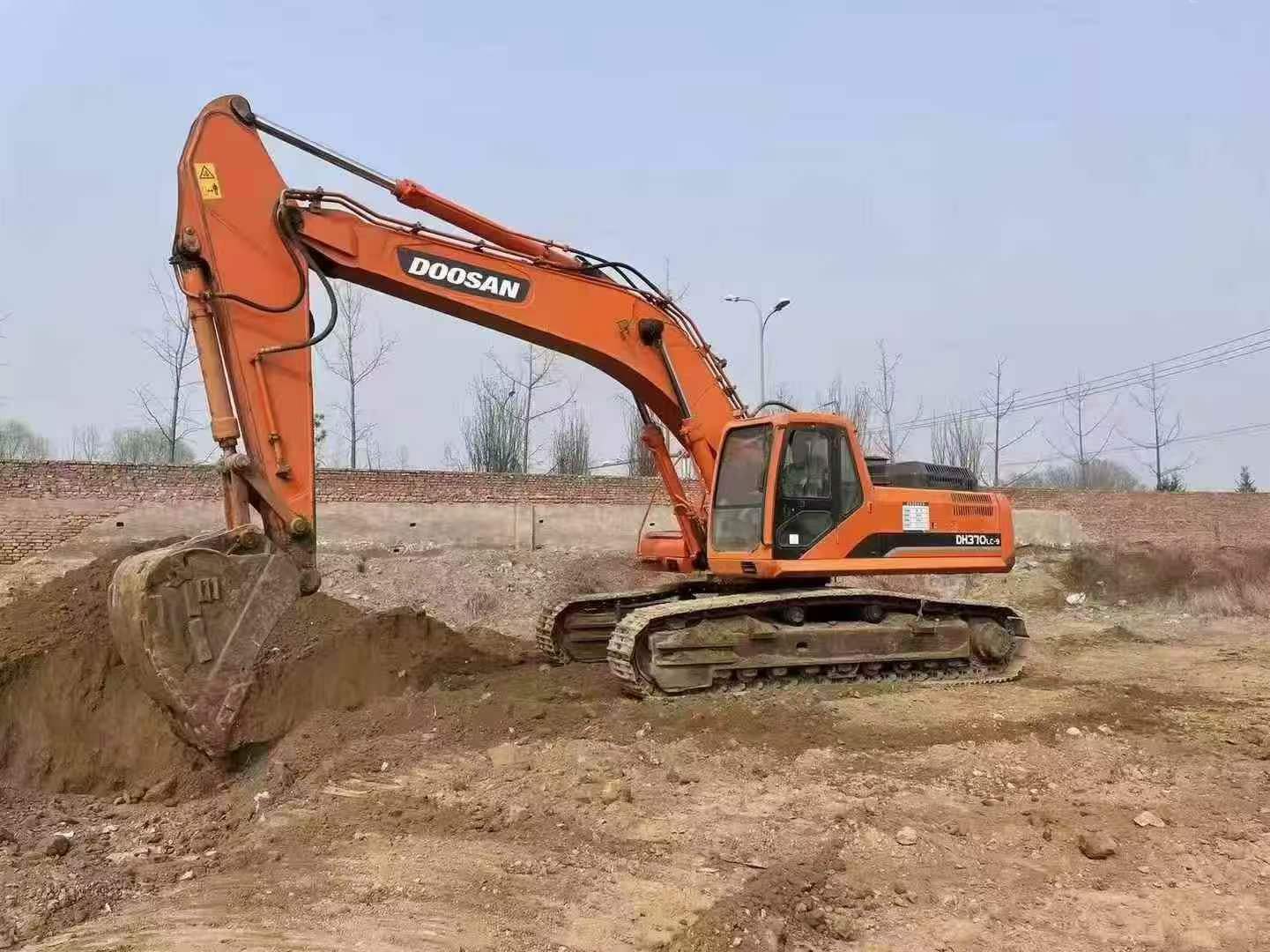

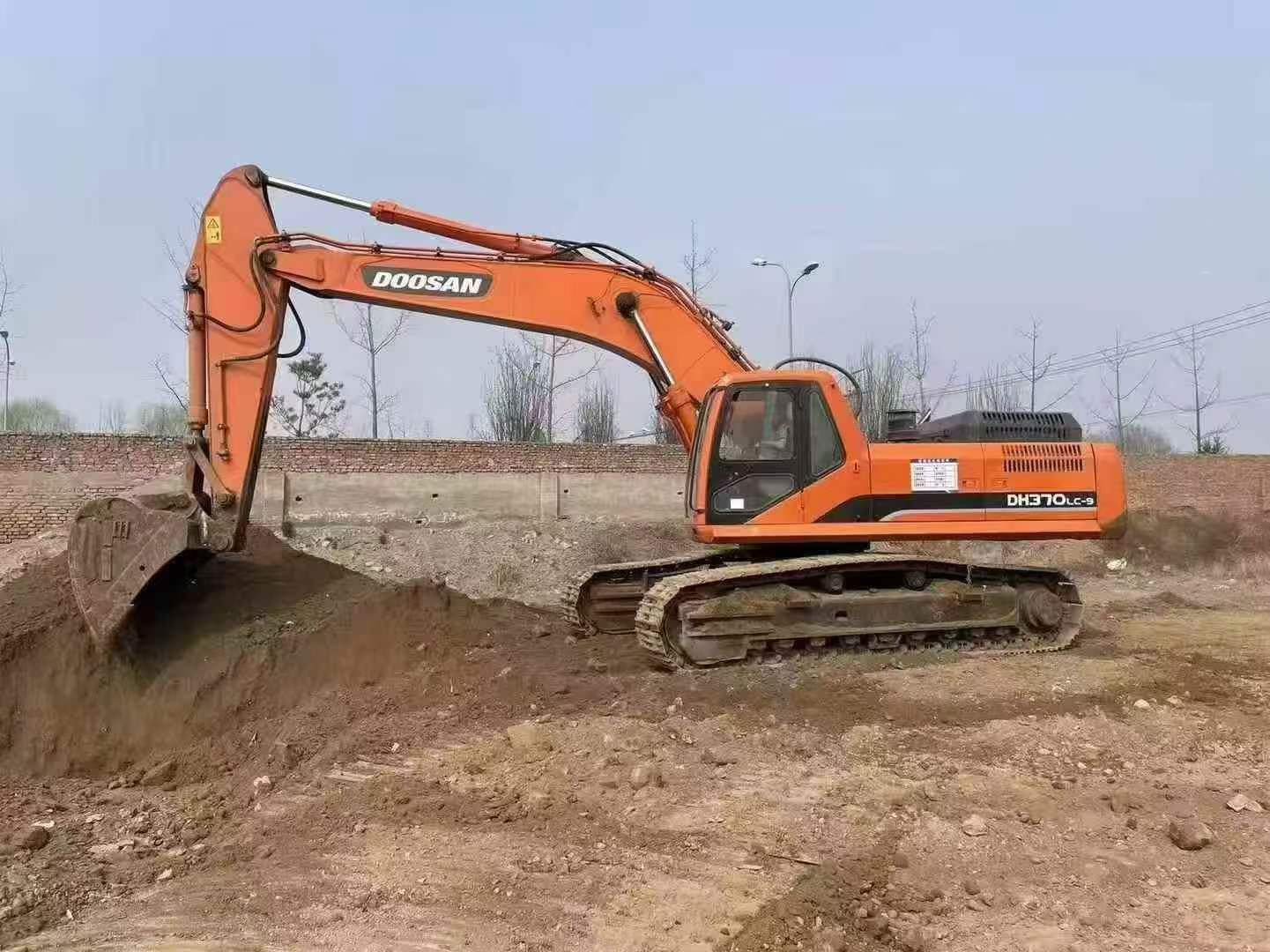

With a powerful 202 kW engine and a robust 37-ton capacity, the 2020 Doosan DH370LC-9 is ready for immediate deployment from Peking, China. Featuring a 1.62 m³ bucket and a travel speed of up to 4.7 km/h, this excavator ensures swift and efficient operations. Available now, it allows you to skip the factory lead times and get your project moving quickly. Equipped with a variable piston pump and a 550-liter fuel tank, this machine is designed for long hours of continuous work. Fast deployment to your site means you can start digging and loading without delay. The DH370LC-9, with its impressive 240 kN bucket digging force and 178 kN rod digging force, is the perfect choice for demanding construction and excavation tasks.
| Specifications | Value |
|---|---|
| No. | 1056935 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37,800 |
| Bucket capacity (m³) | 1.62 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

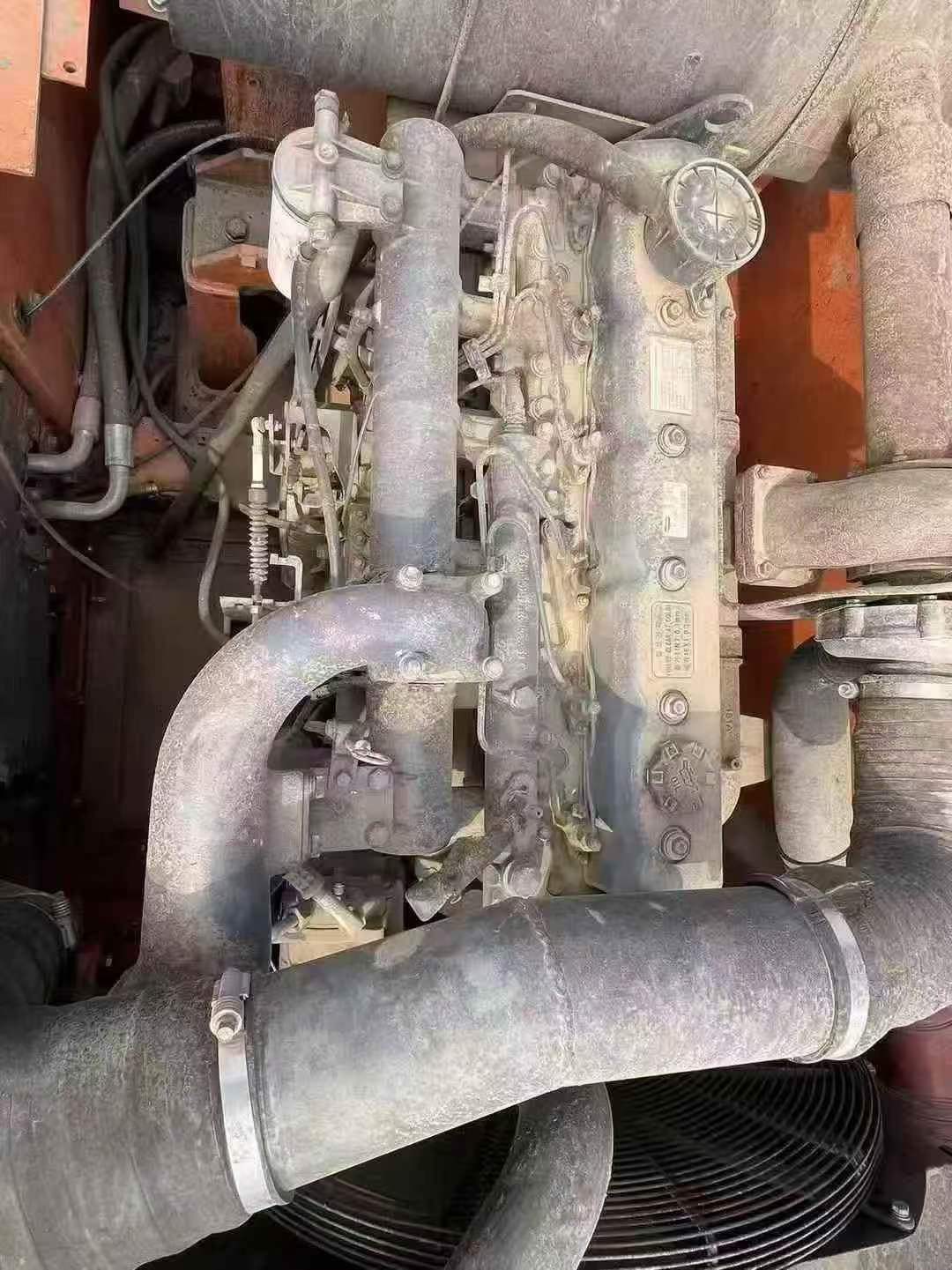

| Engine type | Doosan DE12TIA-C2 |
| Rated power (kw/rpm) | 202/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 123 x 155 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.05 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 9.3 |
| Bucket digging force (kN) | 240 |
| Rod digging force (kN) | 178 |
| Travel speed (km/h) | 4.7/2.7 |
| Maximum flow of main pump (l/min) | 2x275 |

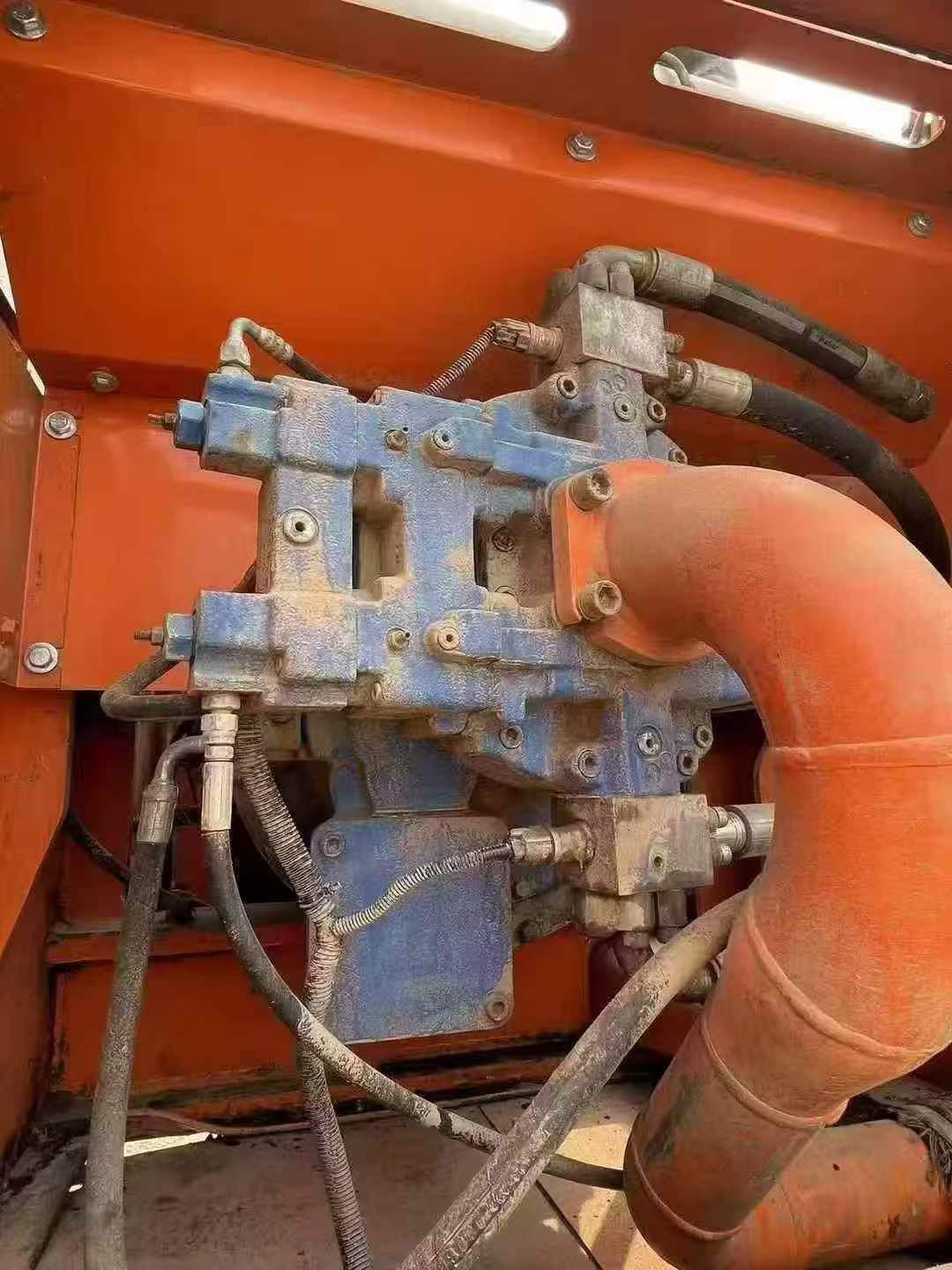

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 460 |
| Total transport length (mm) | 11315 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3460 (to the top of the boom) |
| Full cab height (mm) | 3170 |
| Counterweight ground clearance (mm) | 1275 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 4503 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5215 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11197 |
| Maximum digging depth (mm) | 7553 |
| Maximum excavation height (mm) | 10381 |
| Maximum unloading height (mm) | 7389 |
| Maximum vertical digging depth (mm) | 4621 |
| Maximum excavation radius of stop surface (mm) | 10992 |
| Maximum effective digging depth (mm) | 7385 |
