2020 Doosan DH370LC-9

1/9

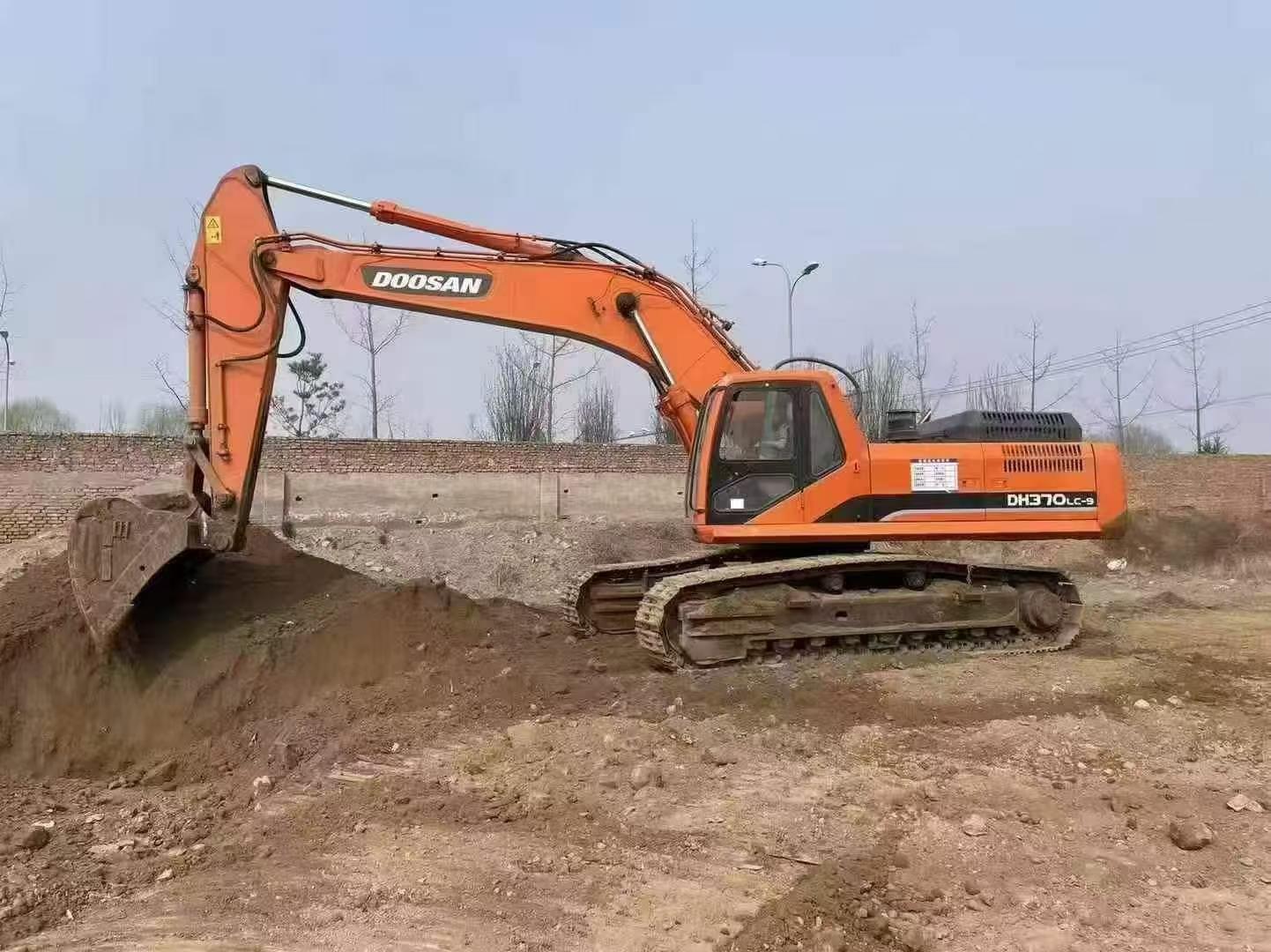

Buy Doosan DH370LC-9 Used Excavator / 1

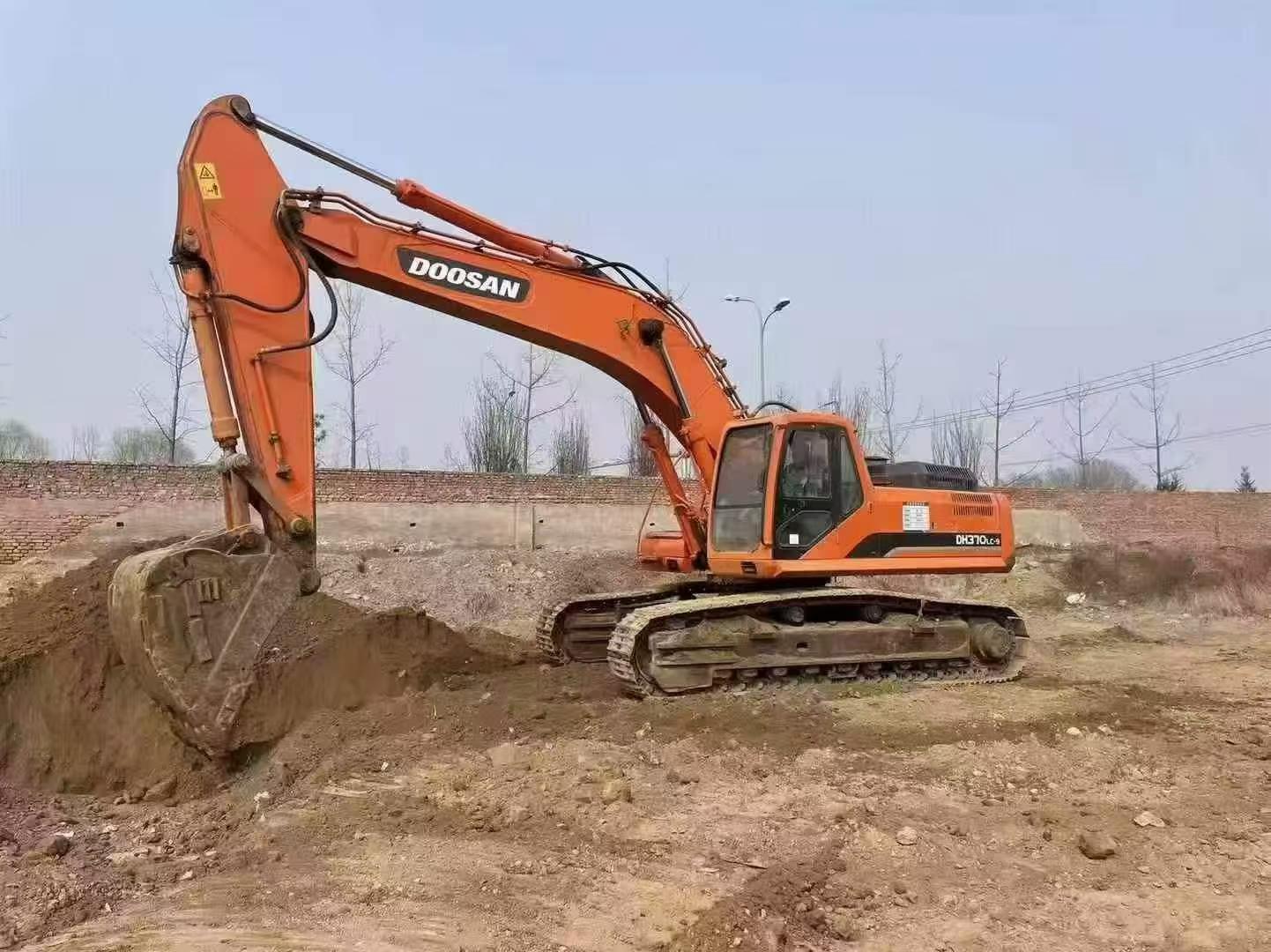

Buy Doosan DH370LC-9 Used Excavator / 2
Buy Doosan DH370LC-9 Used Excavator / 3

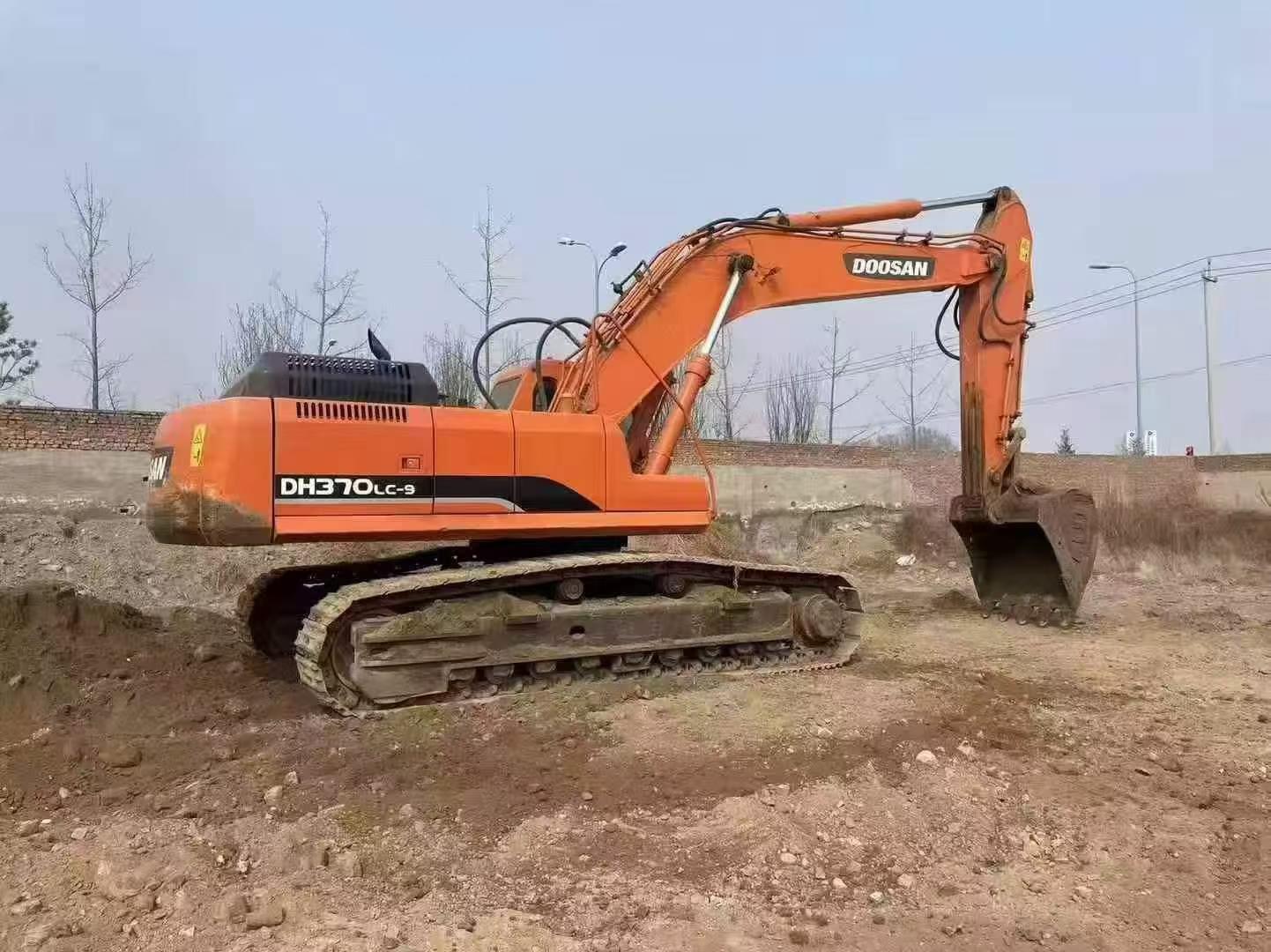

Buy Doosan DH370LC-9 Used Excavator / 4

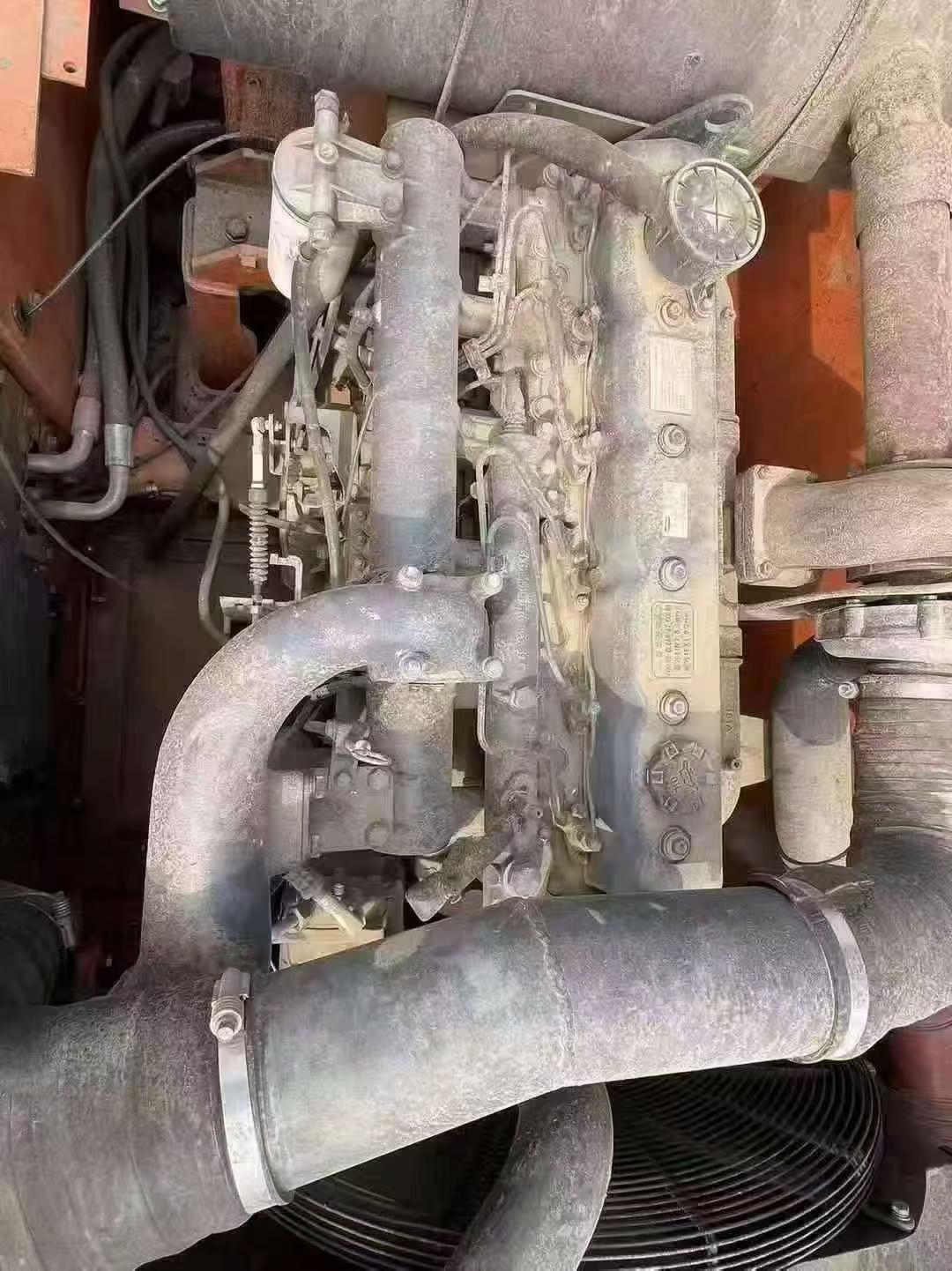

Buy Doosan DH370LC-9 Used Excavator / 5

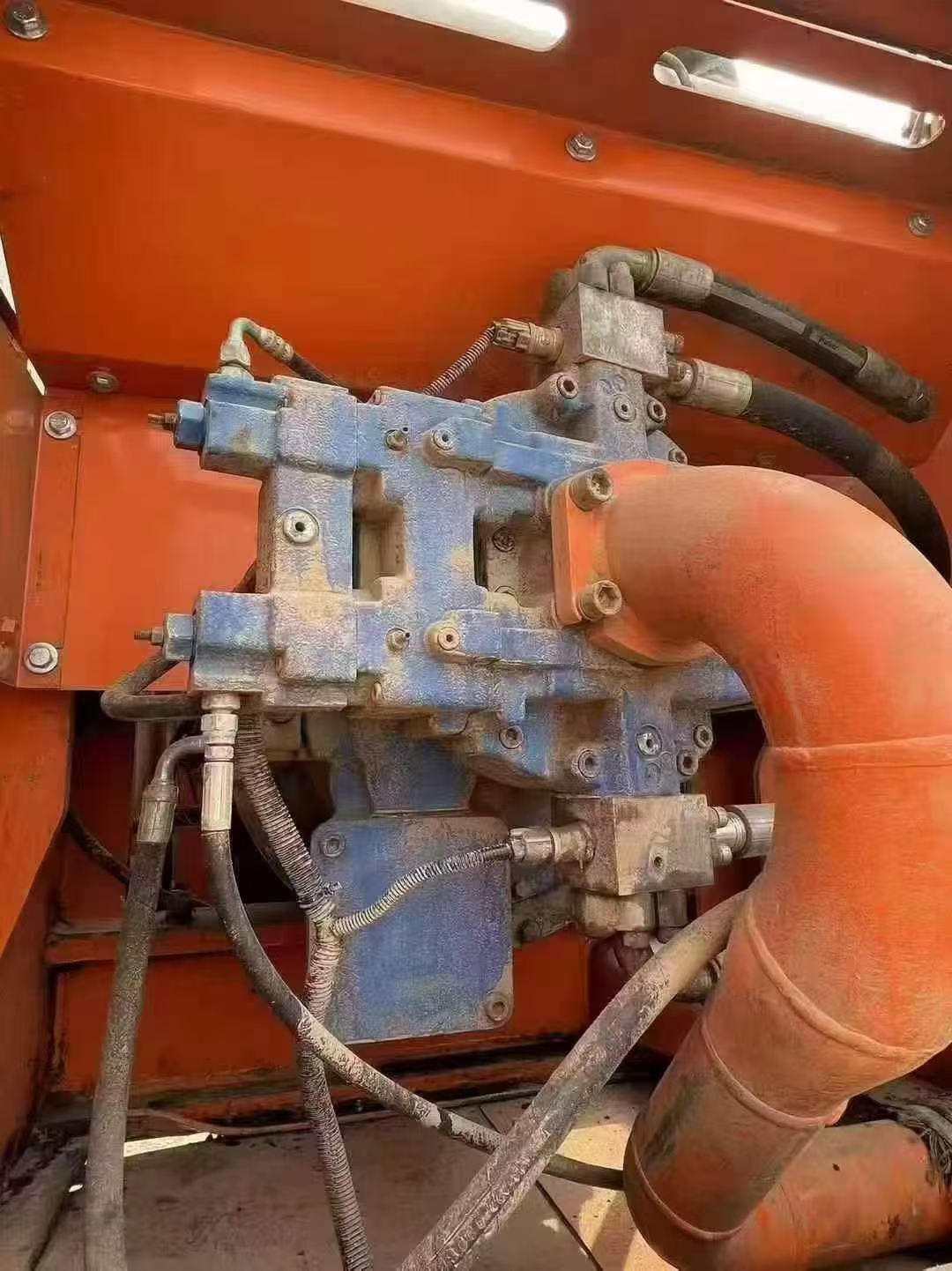

Buy Doosan DH370LC-9 Used Excavator / 6

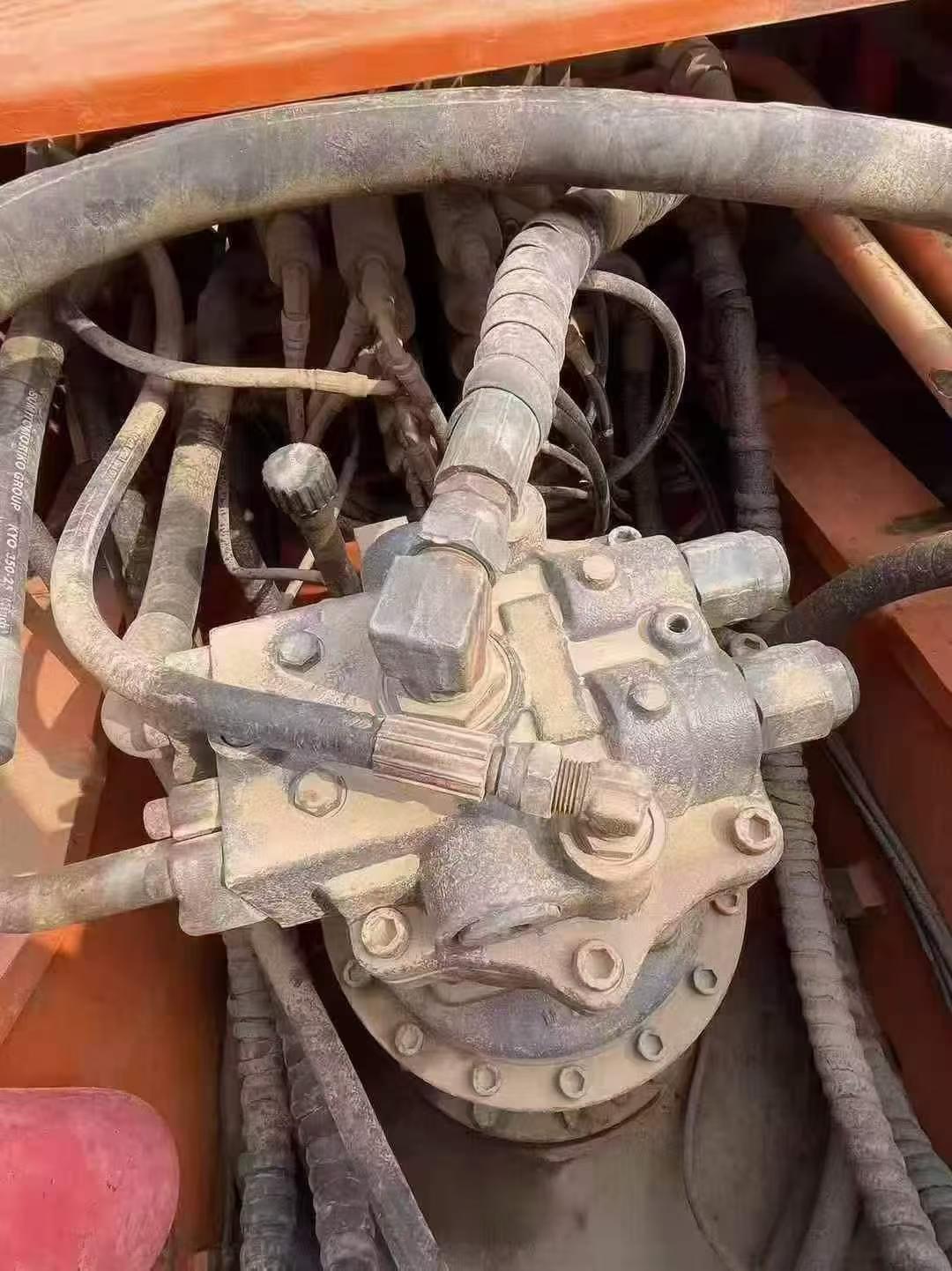

Buy Doosan DH370LC-9 Used Excavator / 7

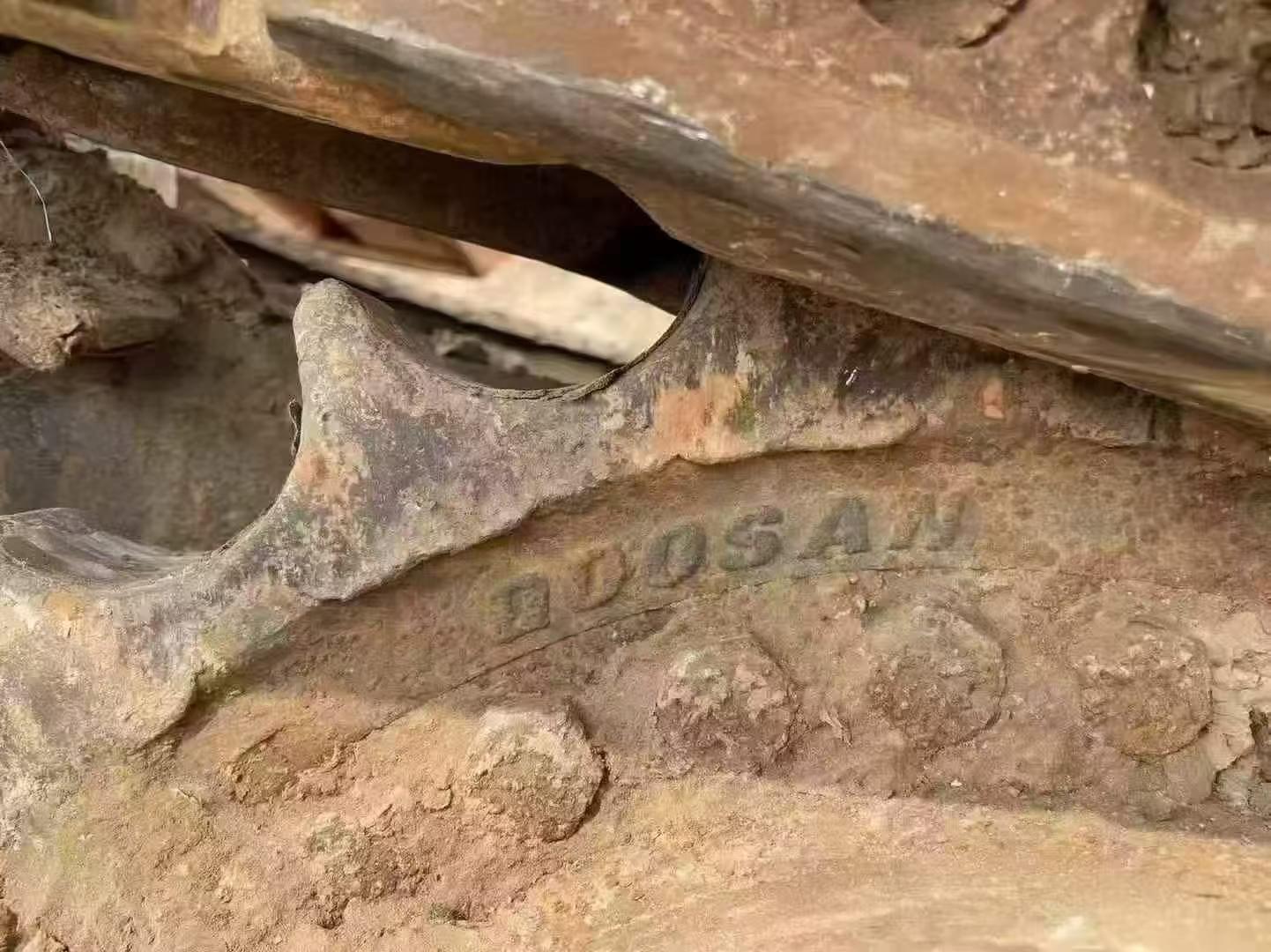

Buy Doosan DH370LC-9 Used Excavator / 8

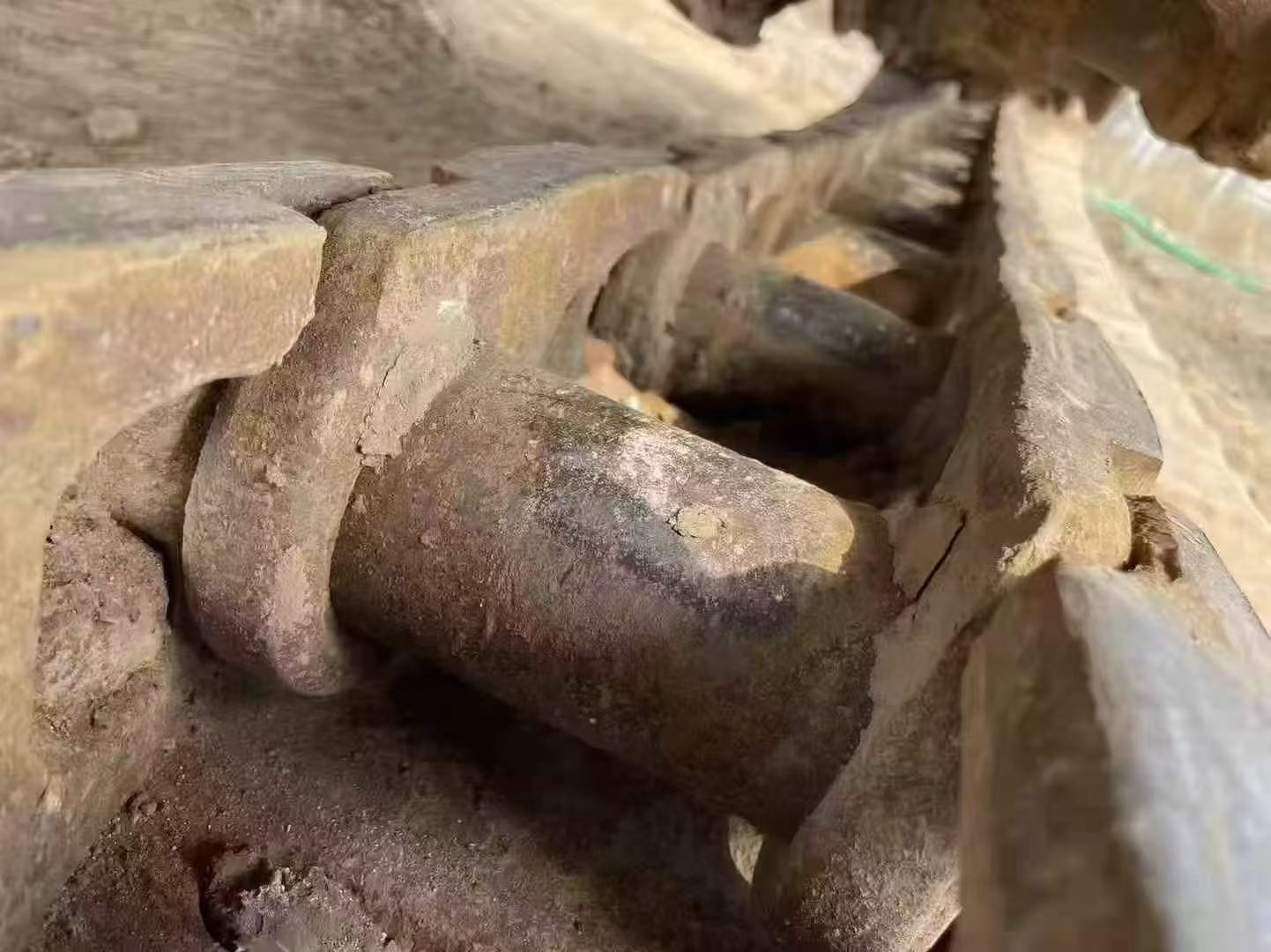

Buy Doosan DH370LC-9 Used Excavator / 9

Product Description

Discover the reliability and performance of the 2020 Doosan DH370LC-9, available now in Peking, China. This excavator is in excellent condition, both inside and out, ensuring that it's ready to meet the demands of your next project. The machine has been well-maintained, with all major components in top working order. Notably, the tracks and undercarriage are nearly new, showing minimal wear. Detailed photos and video documentation are available upon request, providing a comprehensive view of the machine's current state. Trust in the robust design and proven efficiency of Doosan for your heavy machinery needs.

  • Year: 2020
  • Brand: Doosan
  • Model: DH370LC-9
  • Location: Peking, China
  • Condition: Excellent, with nearly new tracks and undercarriage
SpecificationsValue
No.1134986
Tonnage (tons)37
Working weight (kg)37,800
Bucket capacity (m³)1.62
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DE12TIA-C2
Rated power (kw/rpm)202/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)123 x 155
Number of cylinders (PCS)6
Displacement (L)11.05
Working form4-stroke, water-cooled, direct spray
Rotation speed (rpm)9.3
Bucket digging force (kN)240
Rod digging force (kN)178
Travel speed (km/h)4.7/2.7
Maximum flow of main pump (l/min)2x275
Main pump typeVariable piston pump
Fuel Tank (L)550
Hydraulic Tank (L)460
Total transport length (mm)11315
Total transport width (mm)3350
Total transport height (mm)3460 (to the top of the boom)
Full cab height (mm)3170
Counterweight ground clearance (mm)1275
Minimum ground clearance (mm)540
Minimum turning radius of front working device (mm)4503
Back end turning radius (mm)3500
Onboard width (mm)2990
Total track length (mm)5215
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)11197
Maximum digging depth (mm)7553
Maximum excavation height (mm)10381
Maximum unloading height (mm)7389
Maximum vertical digging depth (mm)4621
Maximum excavation radius of stop surface (mm)10992
Maximum effective digging depth (mm)7385
see more

Overview

No.1134986

Brand Name:

Doosan

Model Number:

DH370LC-9

Year:

2020

Location:

Peking China

Pub Date
