Product Description

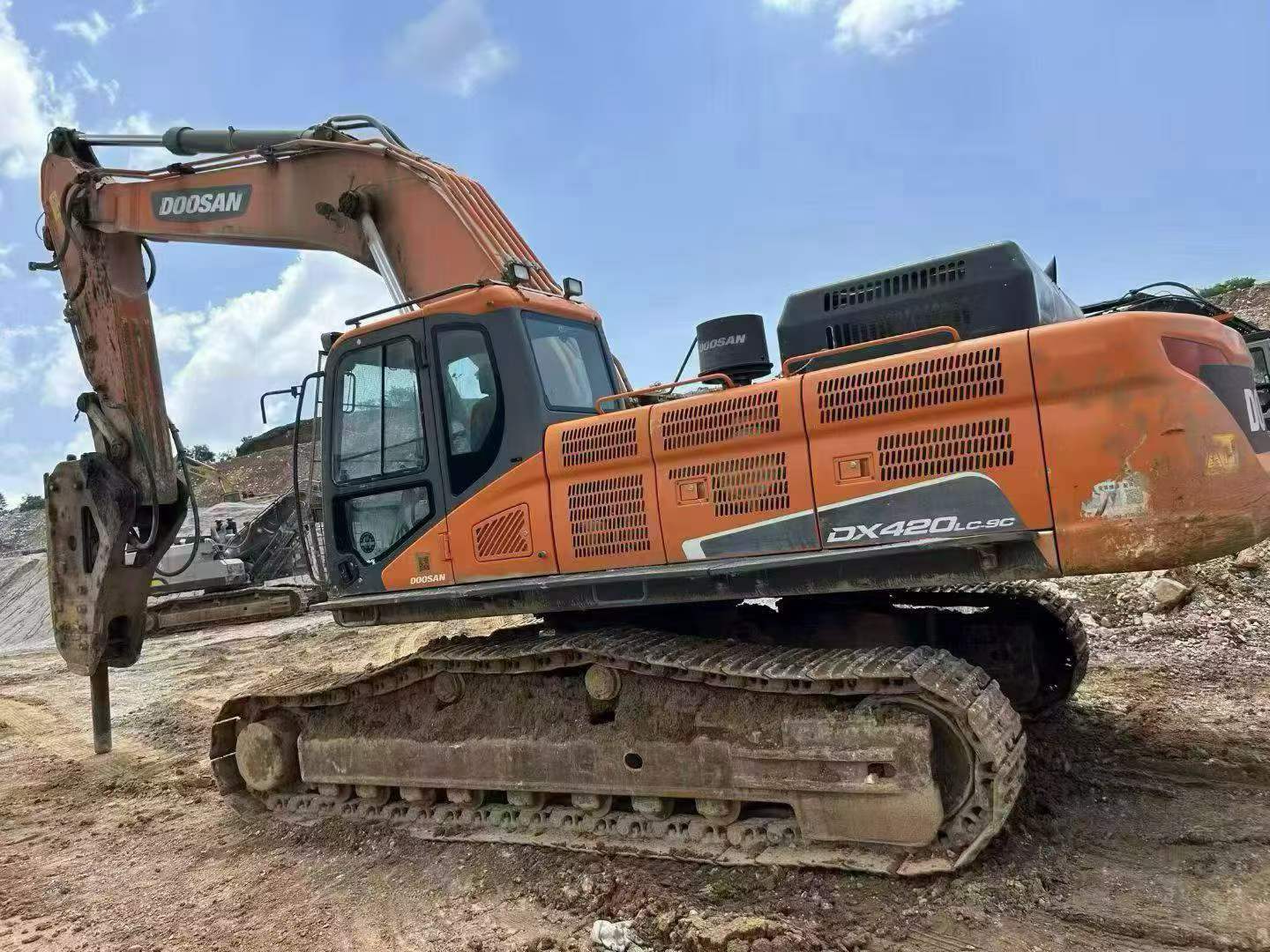

This 2018 Doosan DH420LC-7 excavator is currently available in Zhejiang, China, offering proven performance for demanding earthmoving and demolition applications. With approximately 7,000 hours on the meter, this machine represents solid value in the heavy excavator category.
The unit comes equipped with both bucket and hydraulic hammer attachments, providing operational versatility for contractors handling varied site conditions. The DH420LC-7 delivers reliable digging force and reach in its class, backed by Doosan's established hydraulic systems and undercarriage durability.
- Year: 2018
- Model: Doosan DH420LC-7
- Hours: ~7,000

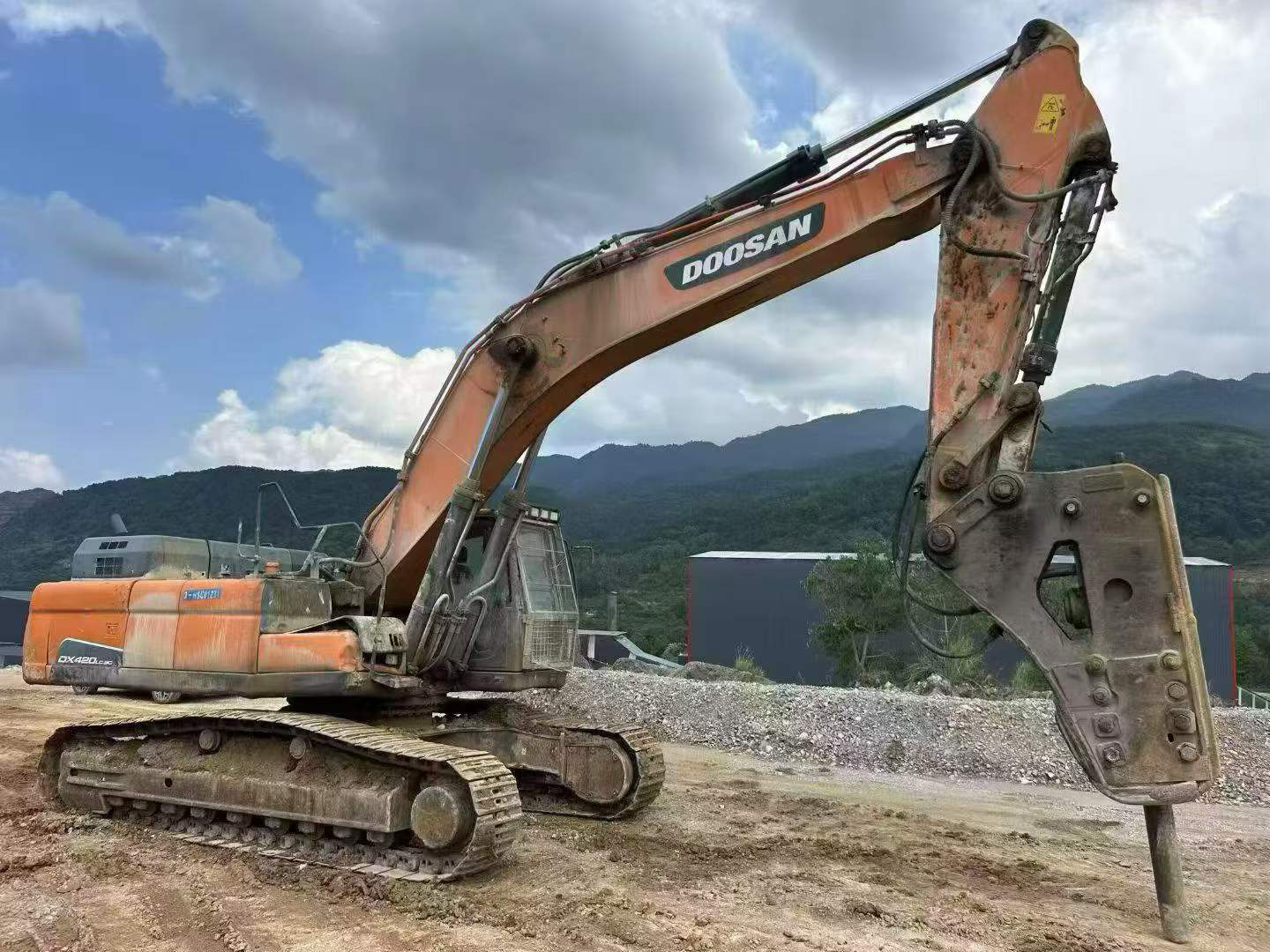

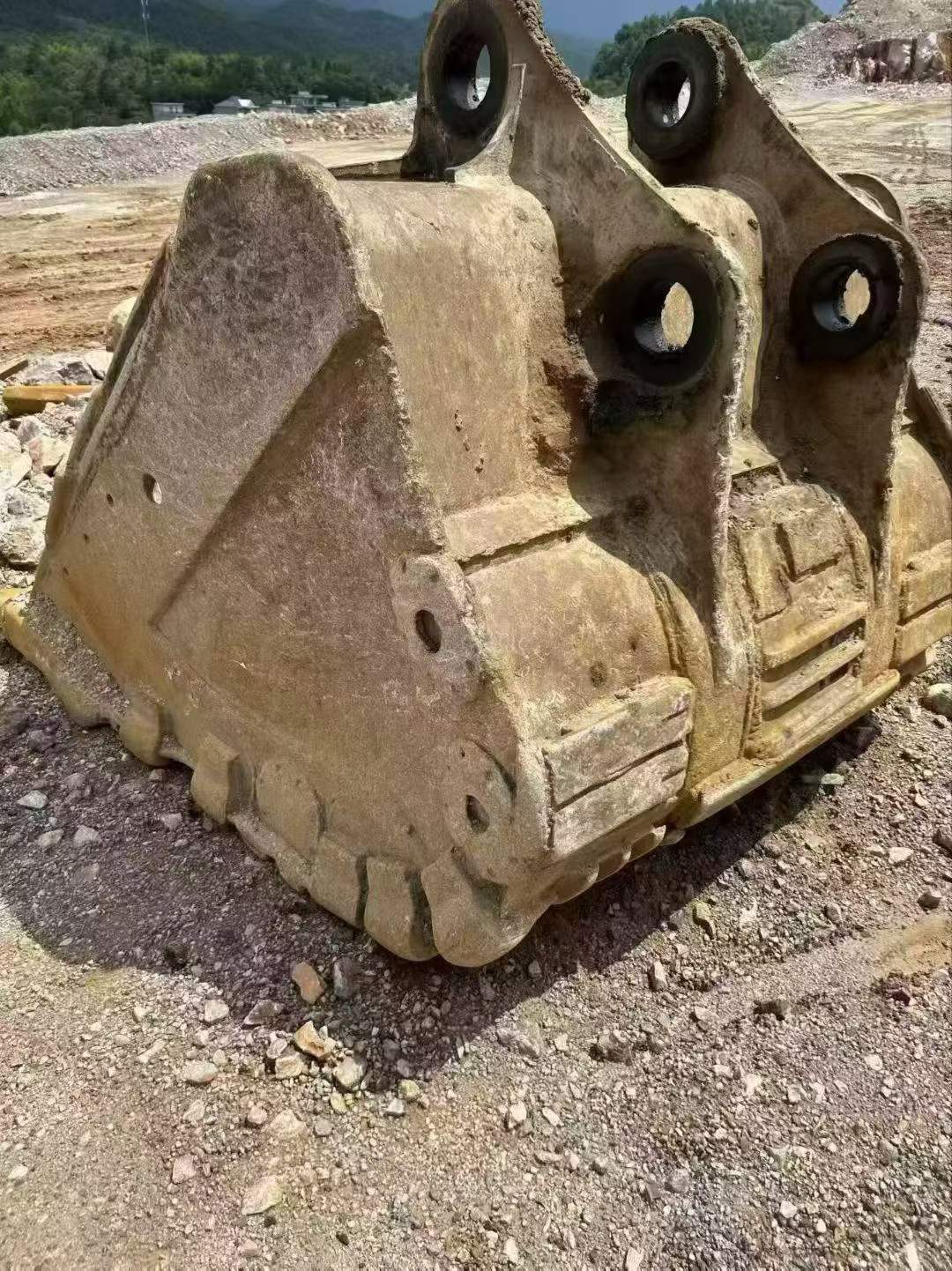

- Included: Bucket and hydraulic hammer
- Location: Zhejiang, China
- Condition: Ready for operation
Suitable for excavation, demolition, and heavy construction projects. Inspection welcome.
| Specifications | Value |
|---|---|
| No. | 1161814 |
| Tonnage (tons) | 42 |
| Working weight (kg) | 41200 |
| Bucket capacity (m³) | 1.44-2.18 |
| Boom length (mm) | 6700 |
| Rod length (mm) | 2600/3250/4000 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE12TIS |
| Rated power (kw/rpm) | 210/2000 |
| Cooling mode | water-cooling |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 242.1/264.6 |
| Rod digging force (kN) | 218.5/139.1; 176.4/193.1; 152.9/166.6 |
| Travel speed (km/h) | 3.3-5.5 |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Parallel inclined axial piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 31.4/ Supercharged 34.3 |
| Pilot pump flow (L/min) | 24 |
| Total transport length (mm) | 11690 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3575 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1277 |
| Minimum ground clearance (mm) | 540 |
| Back end turning radius (mm) | 3660 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5215 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4250 |
| Maximum digging radius (mm) | 11520 |
| Maximum digging depth (mm) | 7725 |
| Maximum excavation height (mm) | 11000 |
| Maximum unloading height (mm) | 7845 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 11310 |
| Maximum effective digging depth (mm) | 7570 |
