Product Description

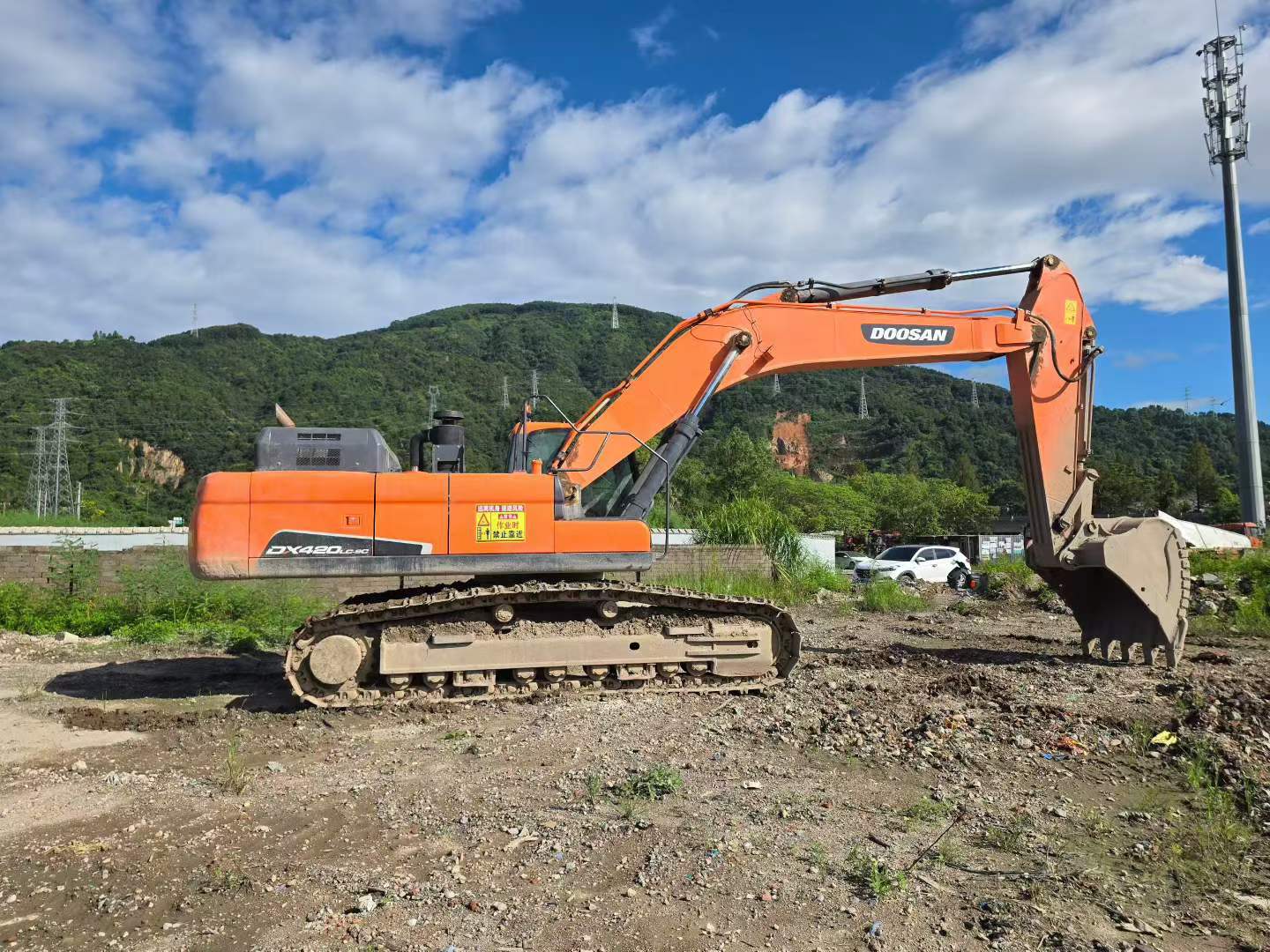

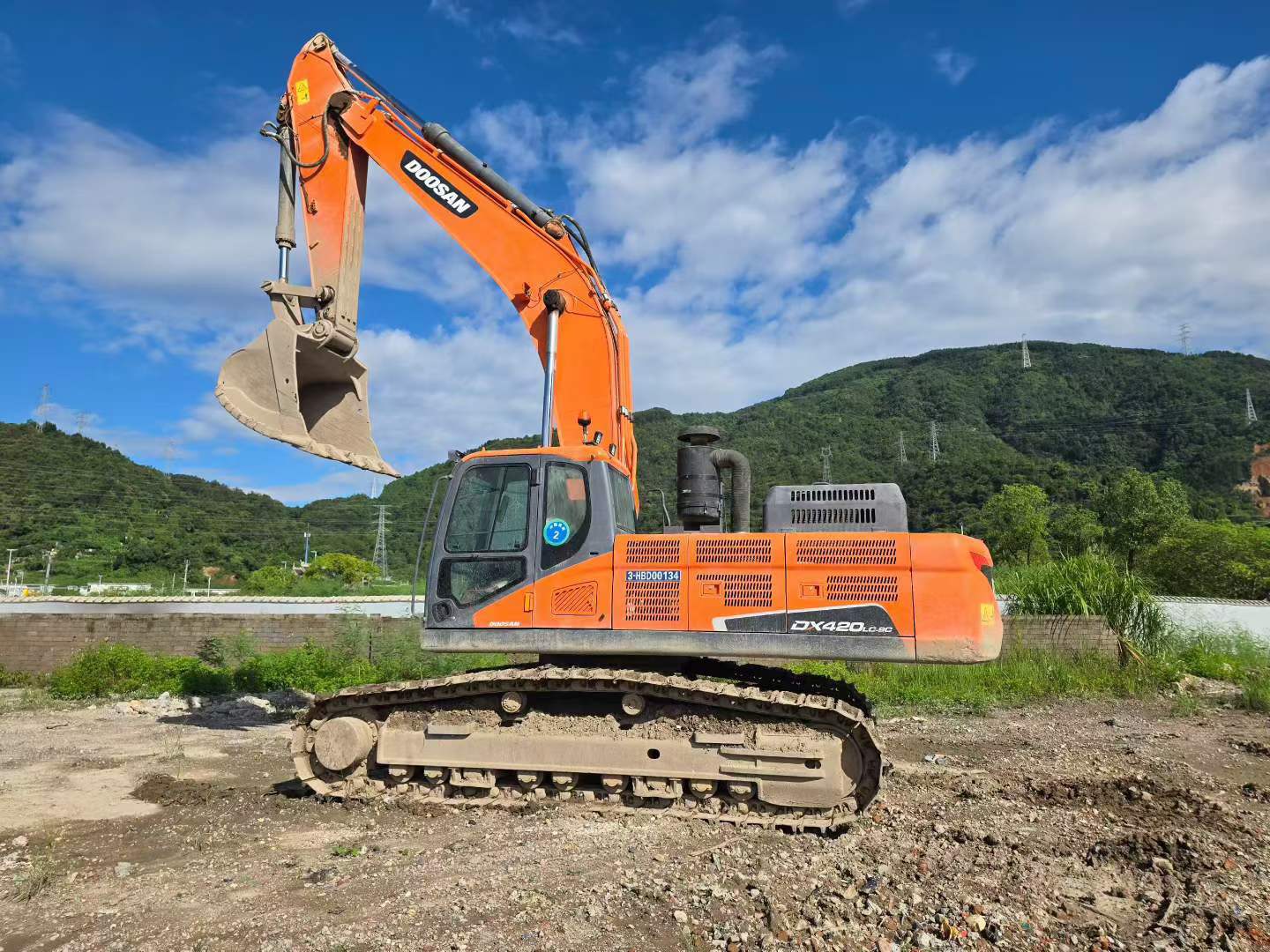

This 2021 Doosan DH420LC-7 excavator represents exceptional value in the used heavy equipment market. Sourced from Zhejiang, China, this machine demonstrates outstanding condition with minimal operational wear.
Key highlights include:
- Factory-installed air conditioning system for operator comfort
- Well-maintained undercarriage showing approximately 90% remaining life
- Major components in excellent working order

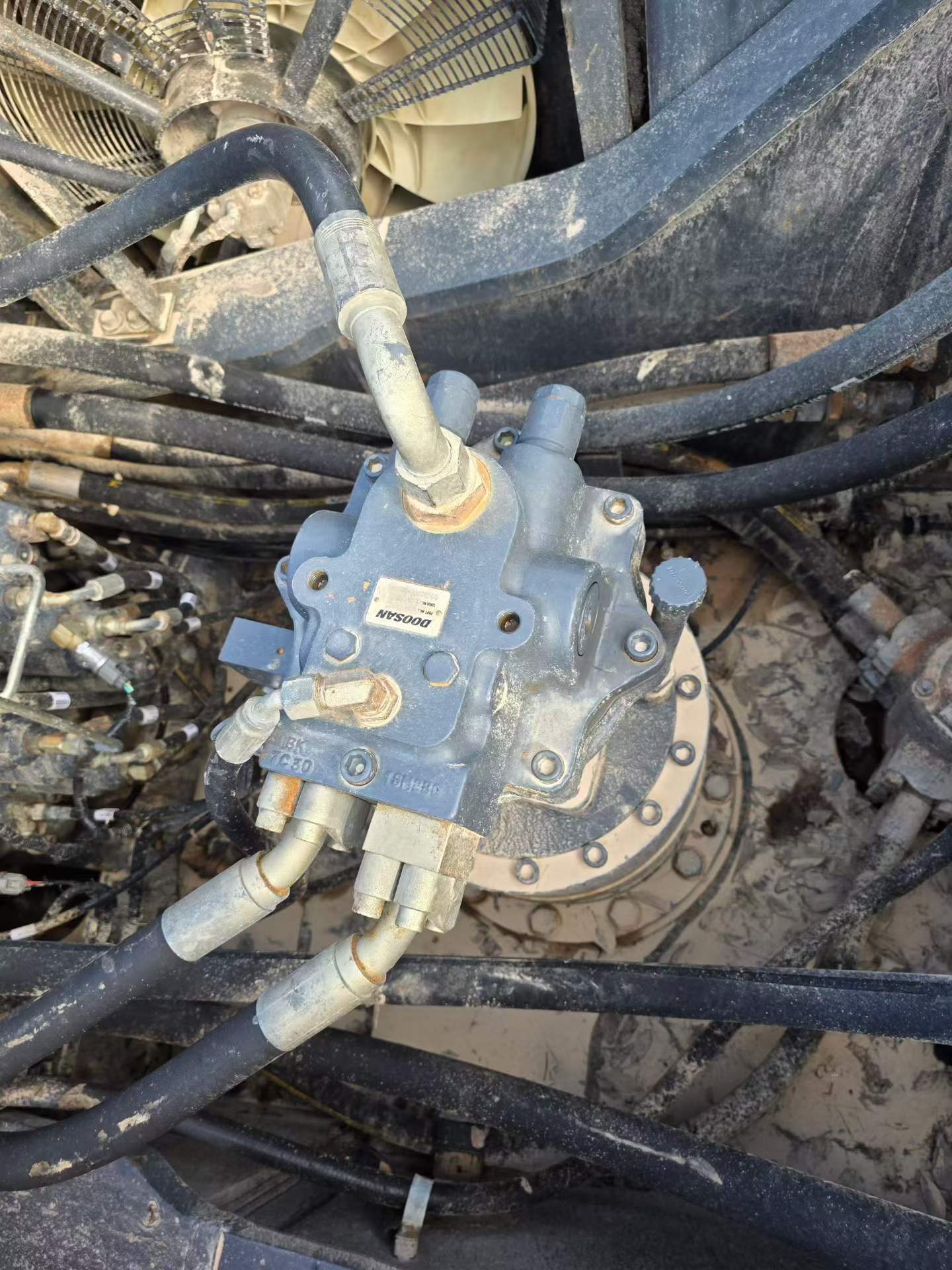

- No hydraulic leaks detected
- Low operating hours relative to model year
The DH420LC-7 is engineered for demanding excavation, earthmoving, and construction applications. This unit's documented maintenance history and superior mechanical condition make it ready for immediate deployment. Ideal for contractors seeking reliable performance without the premium of new equipment pricing.
Currently available for inspection in Zhejiang, China. Contact FairTradeMachinery for detailed specifications, additional imagery, and export assistance.
| Specifications | Value |
|---|---|
| No. | 1138799 |
| Tonnage (tons) | 42 |
| Working weight (kg) | 41200 |
| Bucket capacity (m³) | 1.44-2.18 |
| Boom length (mm) | 6700 |
| Rod length (mm) | 2600/3250/4000 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE12TIS |
| Rated power (kw/rpm) | 210/2000 |
| Cooling mode | water-cooling |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 242.1/264.6 |
| Rod digging force (kN) | 218.5/139.1; 176.4/193.1; 152.9/166.6 |
| Travel speed (km/h) | 3.3-5.5 |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |

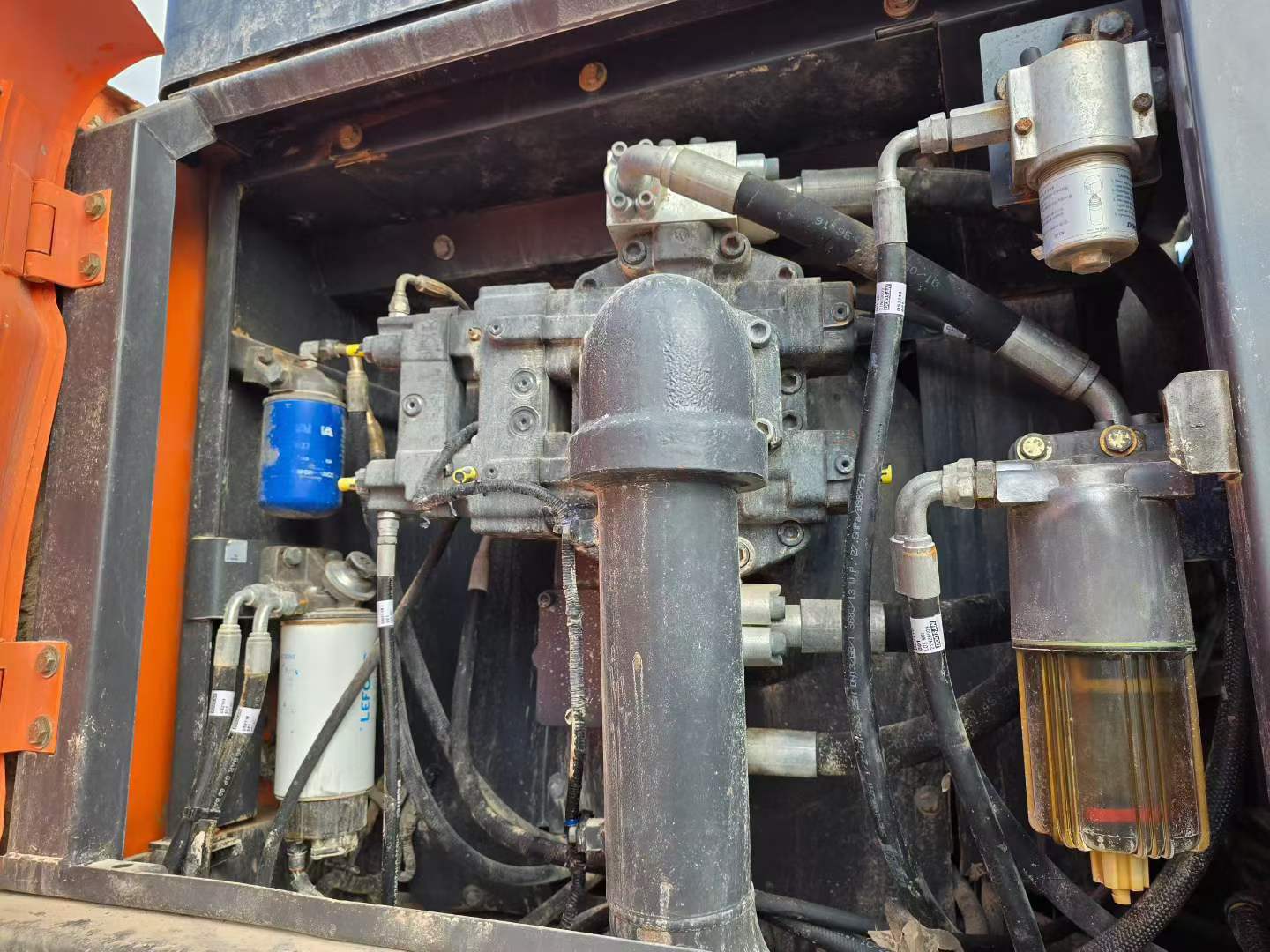

| Main pump type | Parallel inclined axial piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 31.4/ Supercharged 34.3 |
| Pilot pump flow (L/min) | 24 |
| Total transport length (mm) | 11690 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3575 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1277 |
| Minimum ground clearance (mm) | 540 |
| Back end turning radius (mm) | 3660 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5215 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4250 |
| Maximum digging radius (mm) | 11520 |
| Maximum digging depth (mm) | 7725 |
| Maximum excavation height (mm) | 11000 |
| Maximum unloading height (mm) | 7845 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 11310 |
| Maximum effective digging depth (mm) | 7570 |
