Product Description

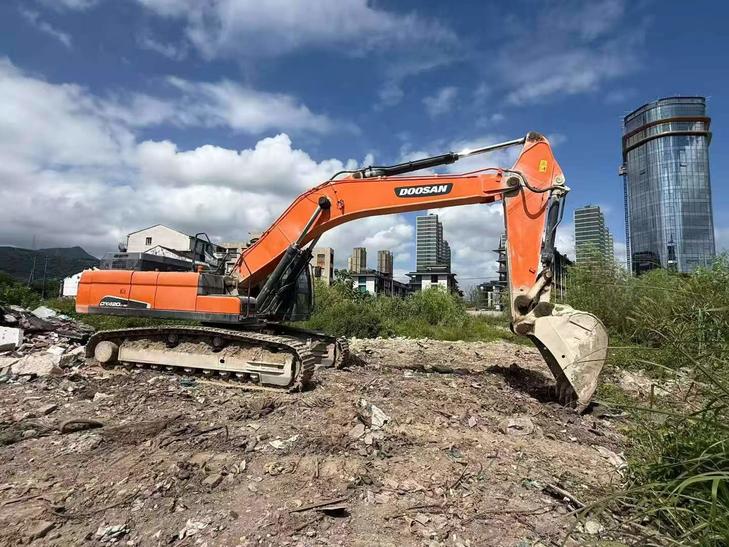

Well-maintained 2022 Doosan DH420LC-7 excavator available in Zhejiang, China. This single-owner machine has been carefully operated and presents in excellent condition with minimal wear. The seller is relocating internationally and is motivated to complete a quick transaction.
Key highlights:
- Year: 2022
- Model: Doosan DH420LC-7
- Condition: Excellent, minimal operational hours
- Ownership: Single owner, well-documented service history
- Location: Zhejiang Province, China
- Status: Ready for immediate inspection and deployment
This excavator has been maintained to high standards and is suitable for demanding excavation, earthmoving, and construction applications. The machine's performance characteristics remain strong, making it a reliable choice for contractors seeking proven equipment. Direct purchase opportunity from the original owner.
| Specifications | Value |
|---|---|
| No. | 1141819 |
| Tonnage (tons) | 42 |
| Working weight (kg) | 41200 |
| Bucket capacity (m³) | 1.44-2.18 |
| Boom length (mm) | 6700 |
| Rod length (mm) | 2600/3250/4000 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE12TIS |
| Rated power (kw/rpm) | 210/2000 |
| Cooling mode | water-cooling |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 242.1/264.6 |
| Rod digging force (kN) | 218.5/139.1; 176.4/193.1; 152.9/166.6 |
| Travel speed (km/h) | 3.3-5.5 |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Parallel inclined axial piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 31.4/ Supercharged 34.3 |
| Pilot pump flow (L/min) | 24 |
| Total transport length (mm) | 11690 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3575 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1277 |
| Minimum ground clearance (mm) | 540 |
| Back end turning radius (mm) | 3660 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5215 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4250 |
| Maximum digging radius (mm) | 11520 |
| Maximum digging depth (mm) | 7725 |
| Maximum excavation height (mm) | 11000 |
| Maximum unloading height (mm) | 7845 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 11310 |
| Maximum effective digging depth (mm) | 7570 |
