Product Description

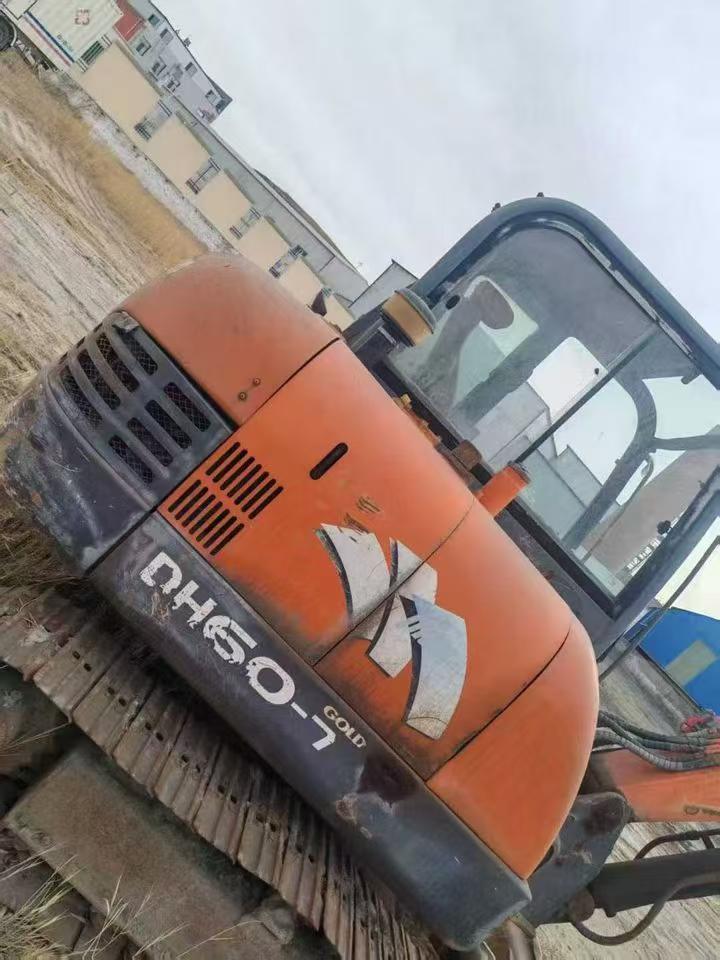

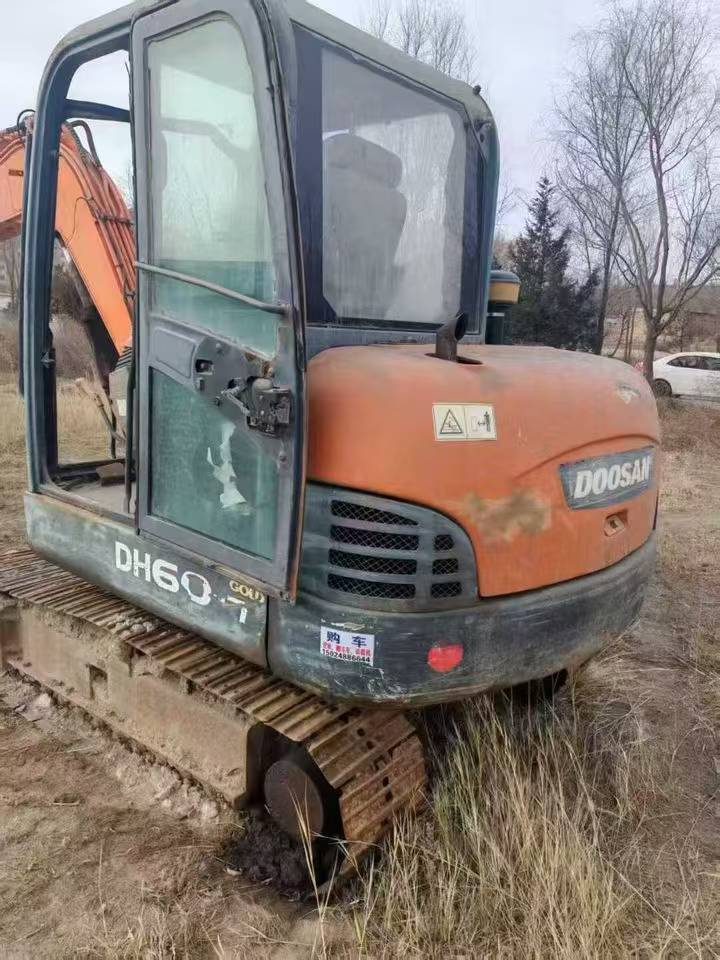

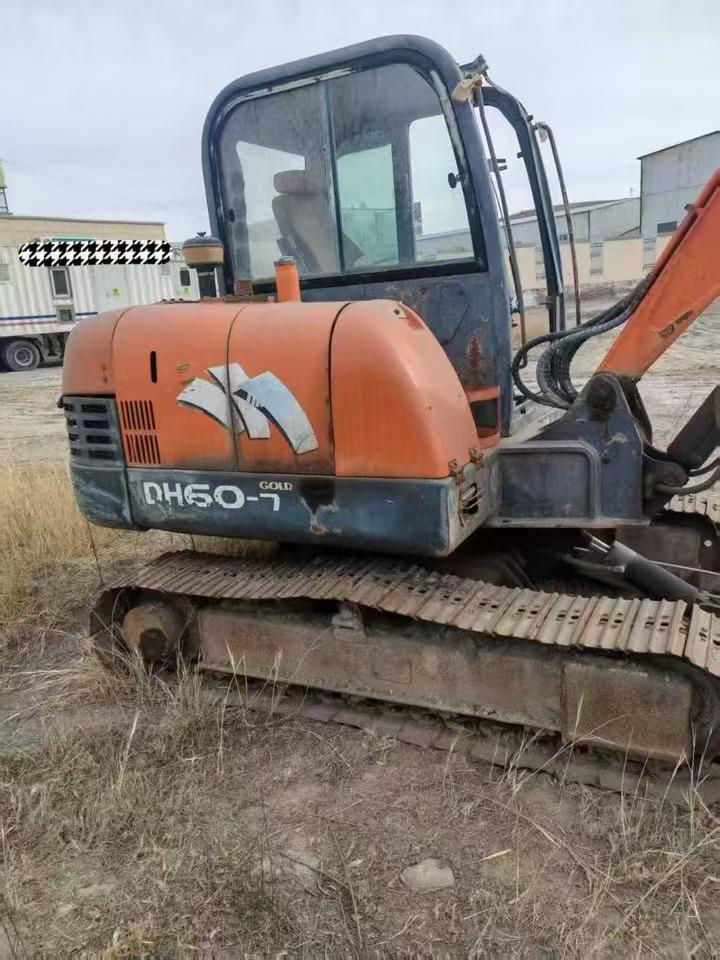

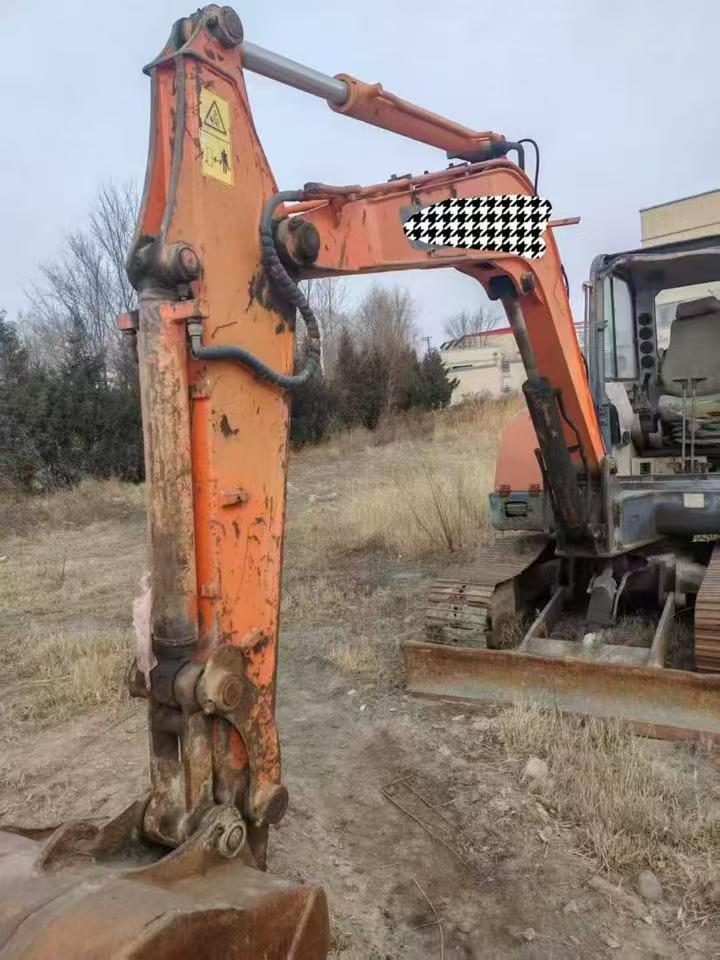

Ready to deploy from 浙江台州, this 2016 Doosan DH60-7 mini excavator eliminates factory wait times and gets your project moving immediately. Powered by a reliable Yanmar 4TNV94L engine delivering 38.1kW, this 6-ton machine combines compact dimensions (5850mm transport length, 1880mm width) with serious digging capability—3820mm maximum depth and 6150mm reach radius handle confined urban sites and utility work with precision.
Available now for fast deployment to your location. Dual variable axial piston pumps provide 55 L/min flow each, while robust hydraulic circuits (20.6 MPa working pressure) deliver 37.7kN bucket digging force and 28.4kN arm force. The 0.09-0.2m³ bucket capacity and 350mm ground clearance ensure productivity across diverse terrain. Factory-fresh performance without the lead time—this joint-venture manufactured unit from Yantai represents proven Doosan engineering backed by genuine Yanmar power.
- Working weight: 5,550kg | Engine: Yanmar 4TNV94L water-cooled 4-cylinder
- Maximum digging depth: 3,820mm | Reach: 6,150mm | Height: 5,760mm
- Hydraulic system: Dual variable piston pumps, 20.6 MPa circuits
- Compact footprint: 1,650mm tail swing radius, 1,480mm track gauge
| Specifications | Value |
|---|---|
| No. | 1024197 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.09-0.2 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 38.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Working form | Air-to-air cooling |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Maximum flow of main pump (l/min) | 55 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 20.6 |
| Pilot pump flow (L/min) | 9.9 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880 |
| Total transport height (mm) | 2575 |
| Full cab height (mm) | 2575 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1885 |
| Total track length (mm) | 2540 |
| Track gauge (mm) | 1480 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1880 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4030 |
