Product Description

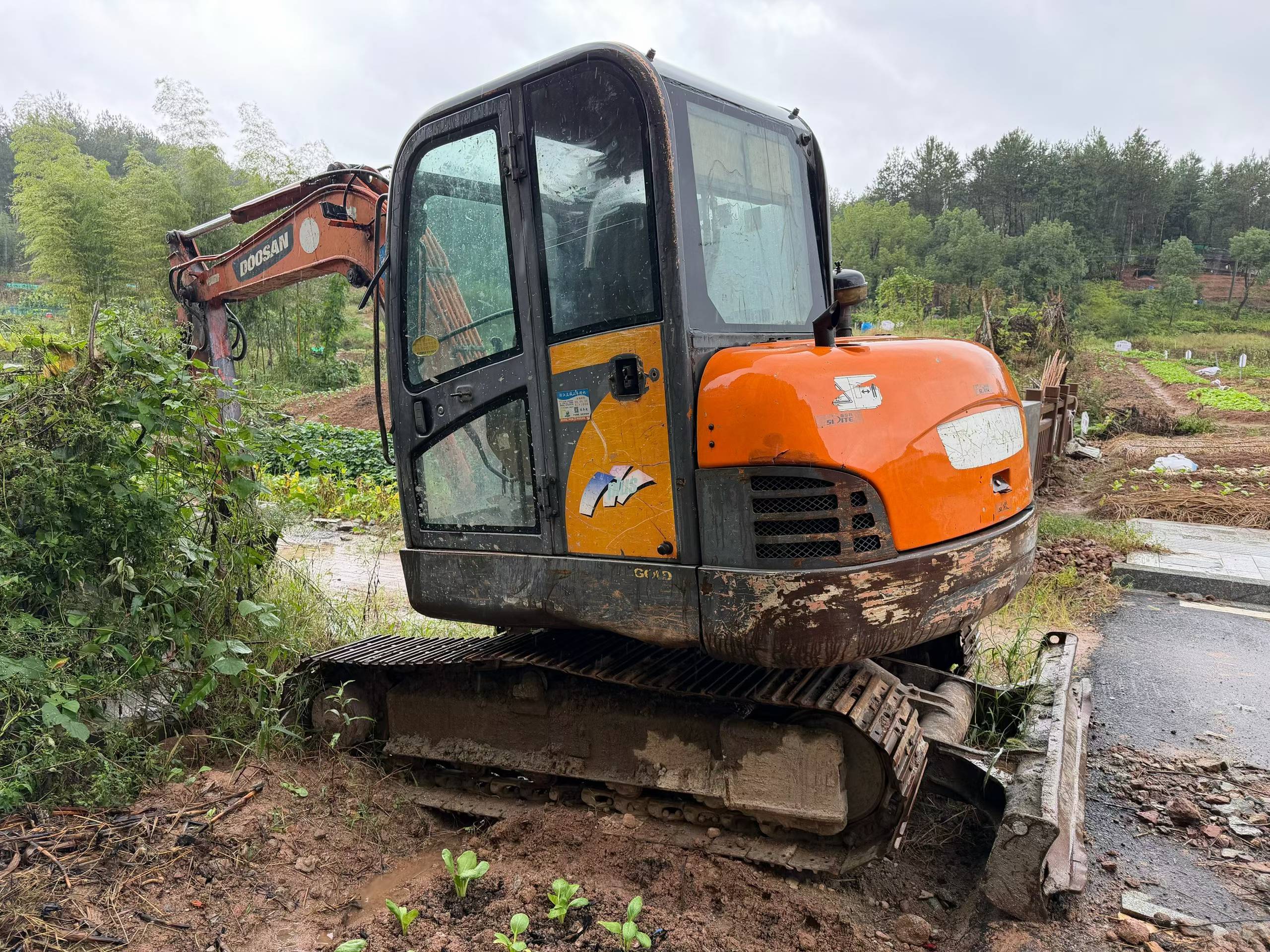

The 2020 Doosan DH60-7 is a compact hydraulic excavator in the 6-ton class, widely used for trenching, utility installation, site preparation and landscaping work. This particular unit is a local one-owner machine based in Zhejiang, China, and is listed with no reported mechanical problems in its current working condition.
- Year and model: 2020 Doosan DH60-7, 6-ton class compact excavator
- Location: Zhejiang, China; inspection available by appointment
- Provenance: single local owner, sourced directly from the original operator
- Working hours: reported in the 20,000+ range; hour meter to be verified by the buyer
- Condition: running and working normally, no reported faults or downtime issues
- Typical applications: trenching, utilities, landscaping, general earthmoving

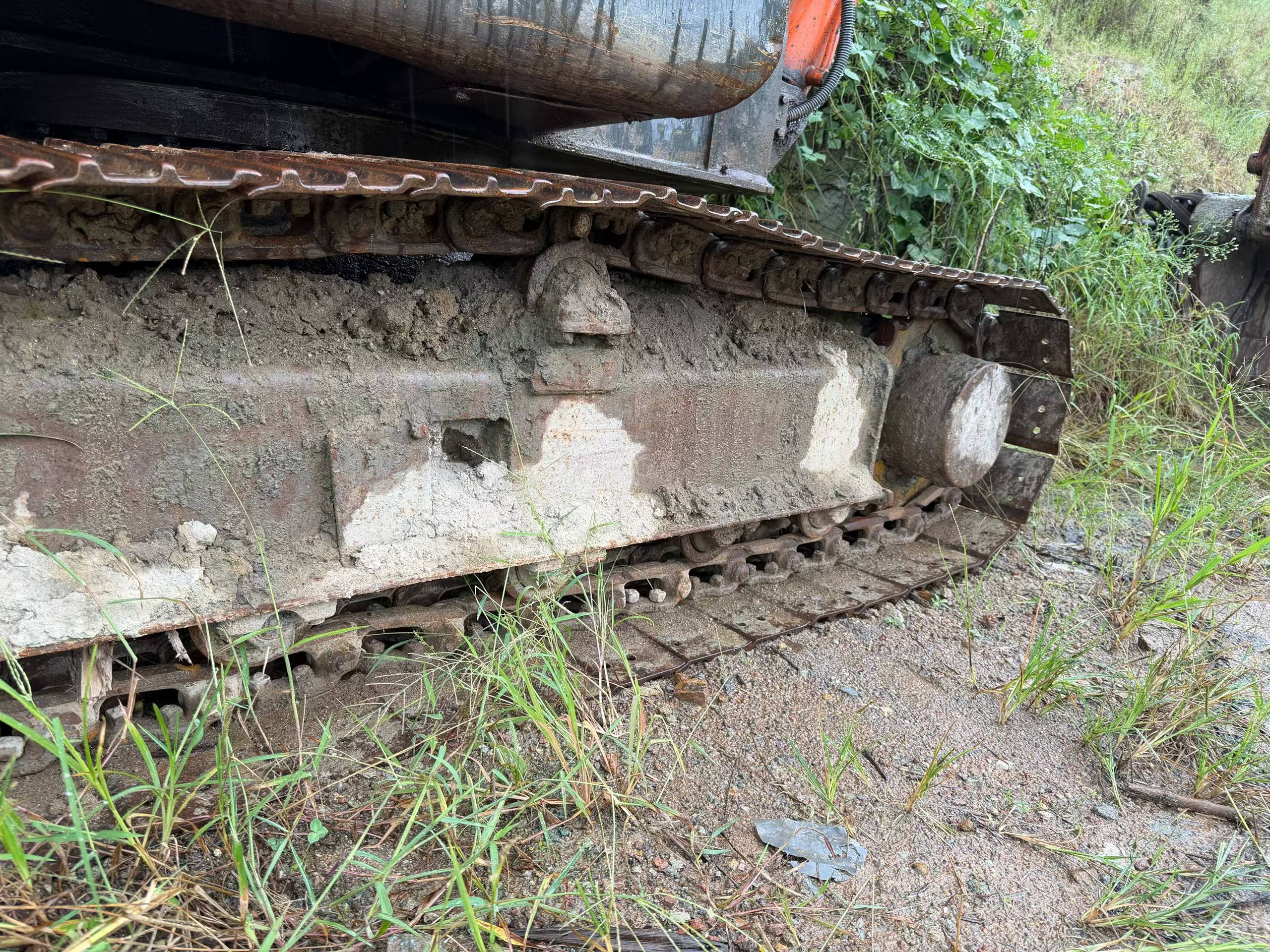

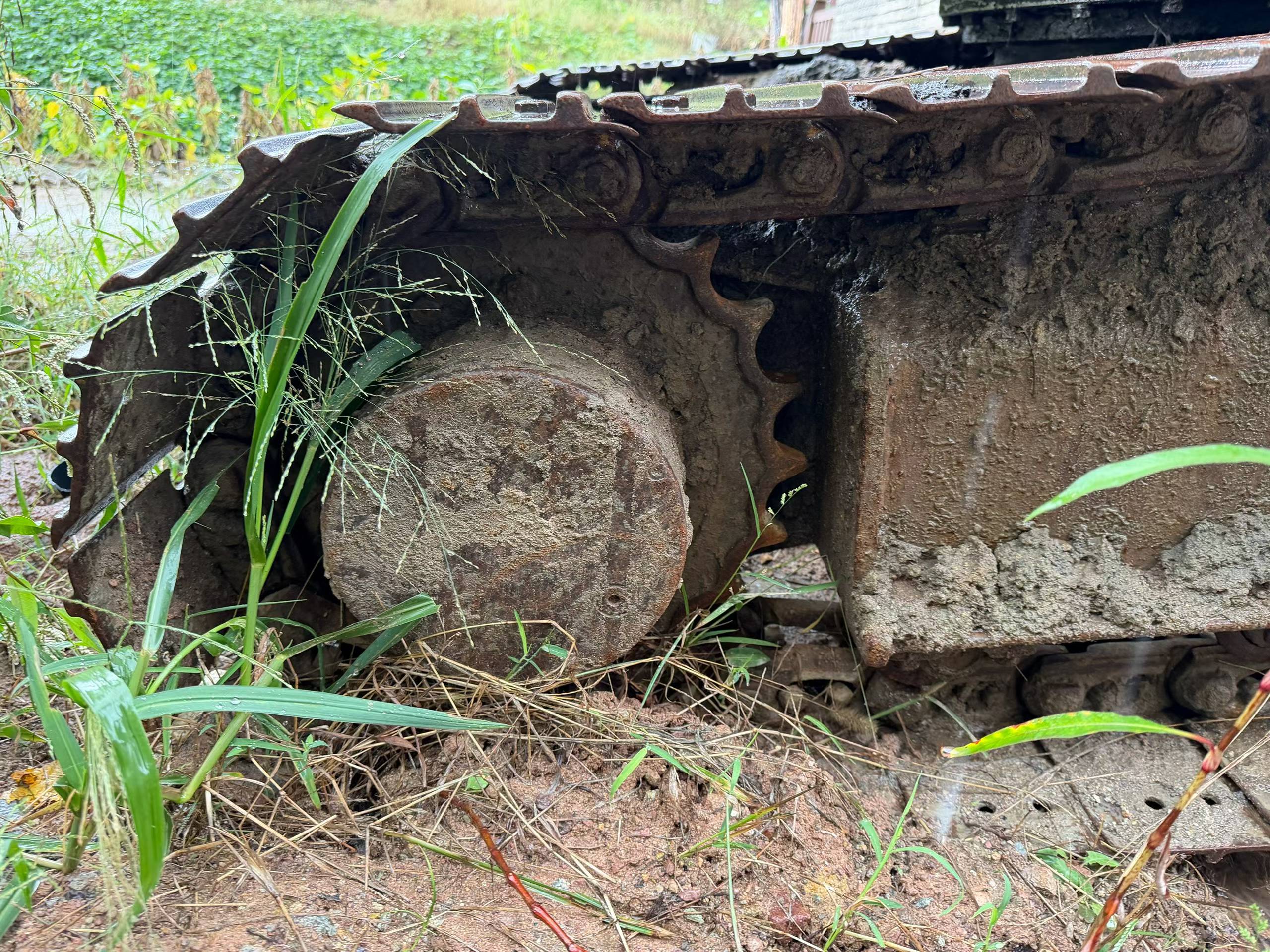

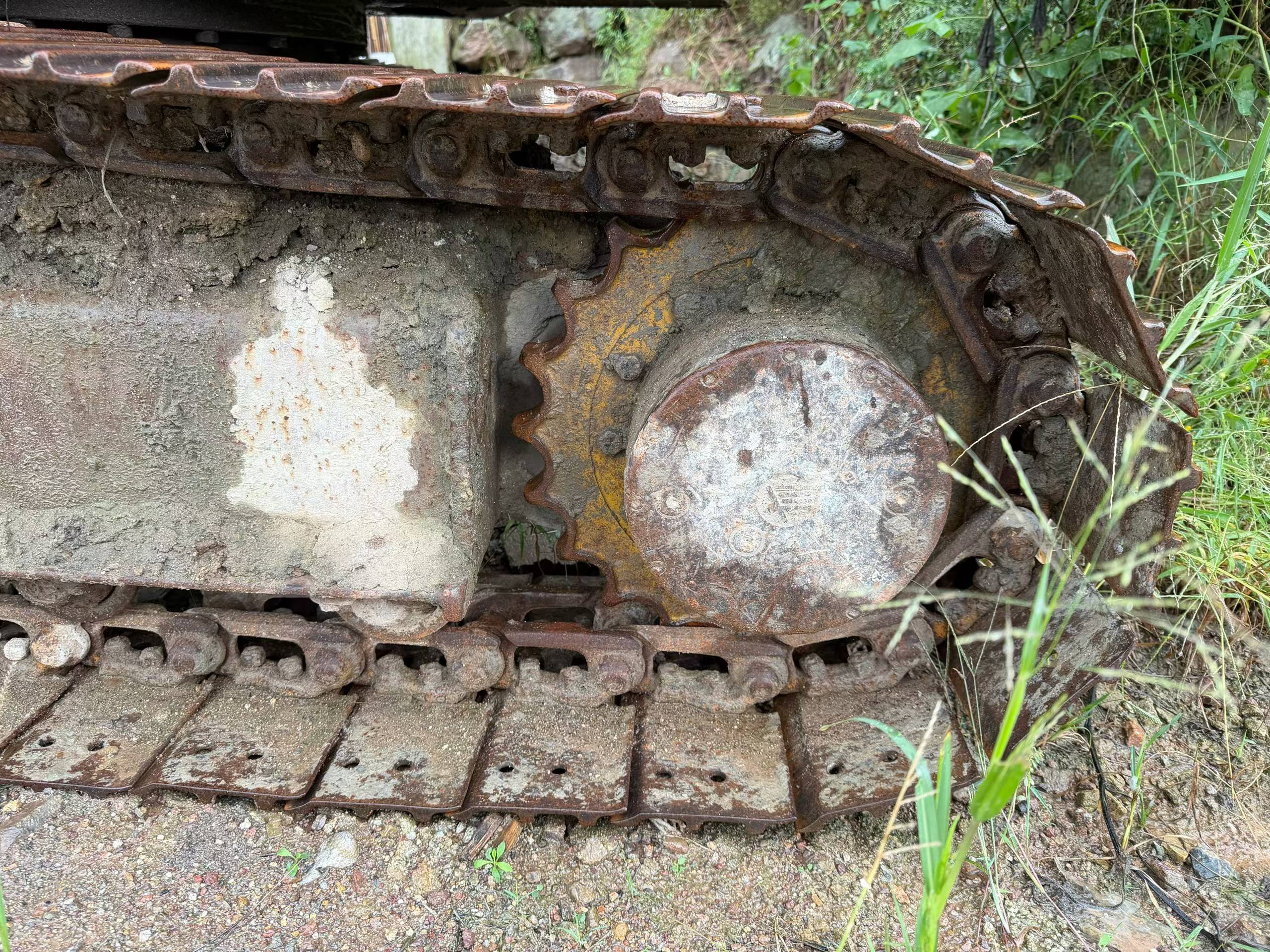

Undercarriage wear, hydraulic performance and service history should be confirmed during on-site inspection. FairTradeMachinery can assist with additional photos, video walkaround, third-party inspection and export documentation for overseas buyers. Serious B2B enquiries are welcome.
| Specifications | Value |
|---|---|
| No. | 1156424 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.09-0.2 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

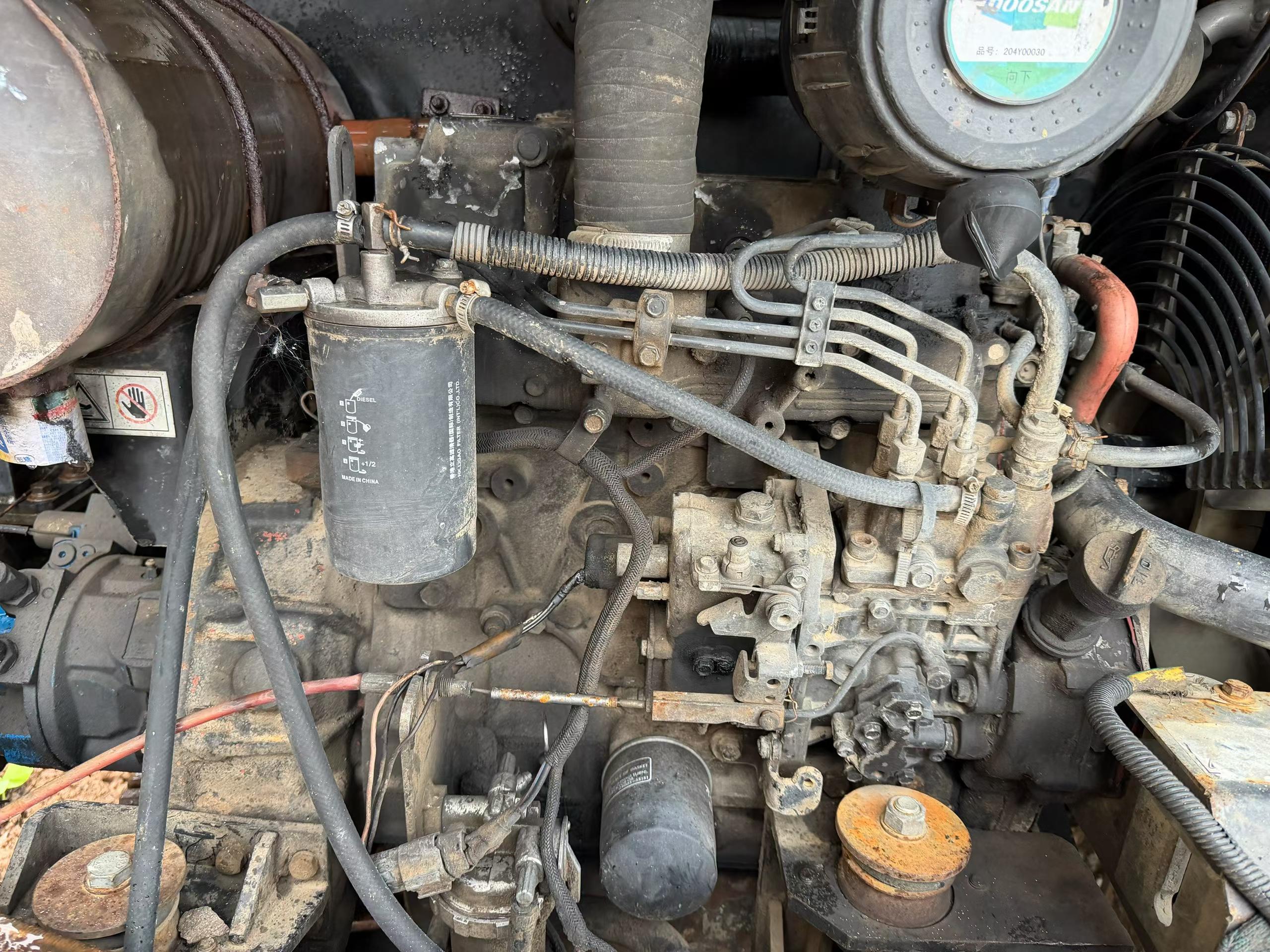

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 38.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Working form | Air-to-air cooling |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Maximum flow of main pump (l/min) | 55 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |

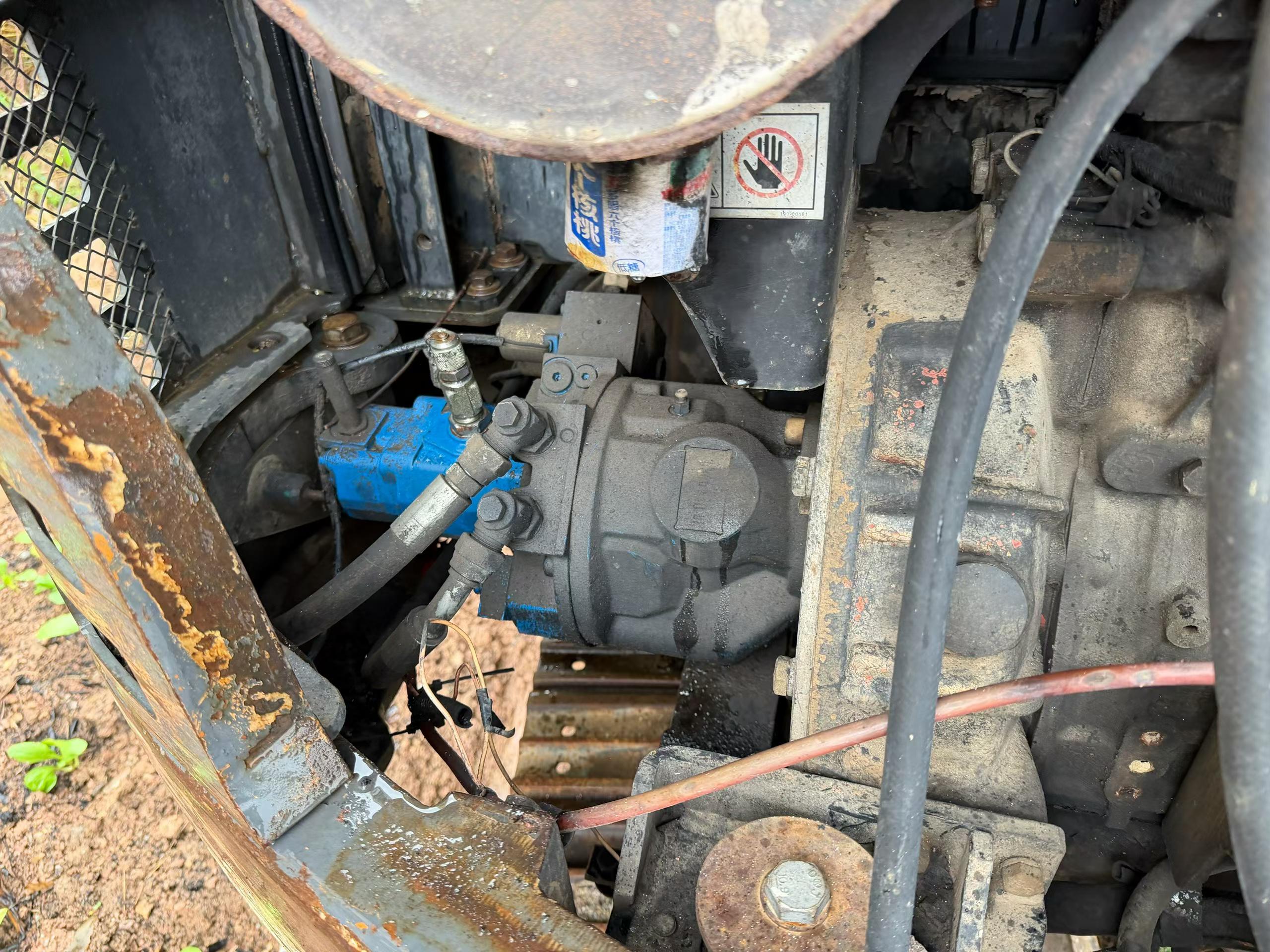

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 20.6 |
| Pilot pump flow (L/min) | 9.9 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880 |
| Total transport height (mm) | 2575 |
| Full cab height (mm) | 2575 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1885 |
| Total track length (mm) | 2540 |
| Track gauge (mm) | 1480 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1880 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4030 |
