Product Description

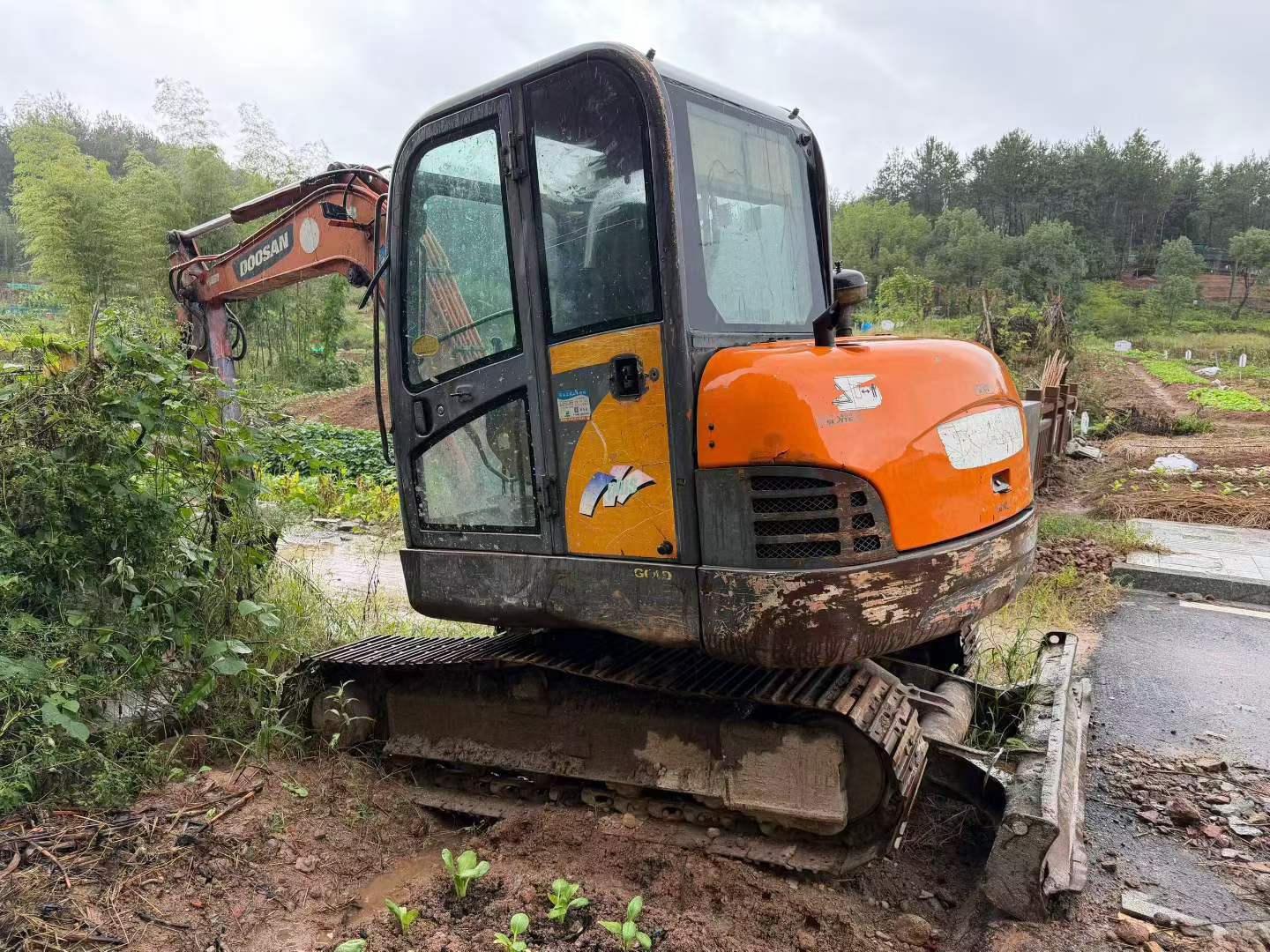

Offered from stock in Zhejiang, China, this 2020 Doosan DH60-7 is a used 6-tonne class crawler excavator, the size most commonly specified for trenching, utility installation, site clearance and landscaping where a compact footprint and low transport cost matter more than raw digging capacity. The seller reports that the machine's condition and working performance raise no issues, and that it is running and operating normally as listed.
- Year: 2020
- Make and model: Doosan DH60-7
- Class: 6-tonne crawler excavator
- Location: Zhejiang, China — inspection welcome

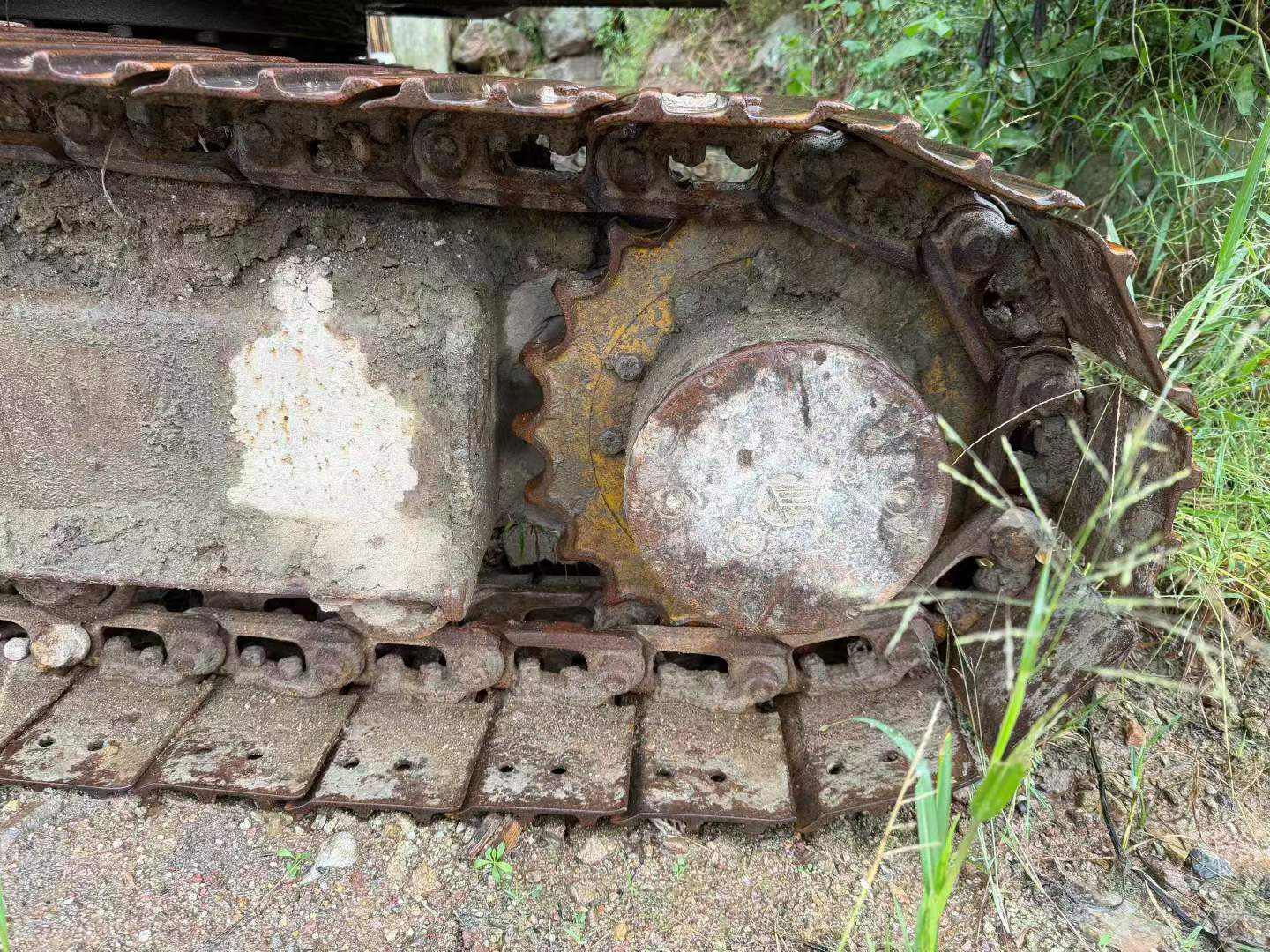

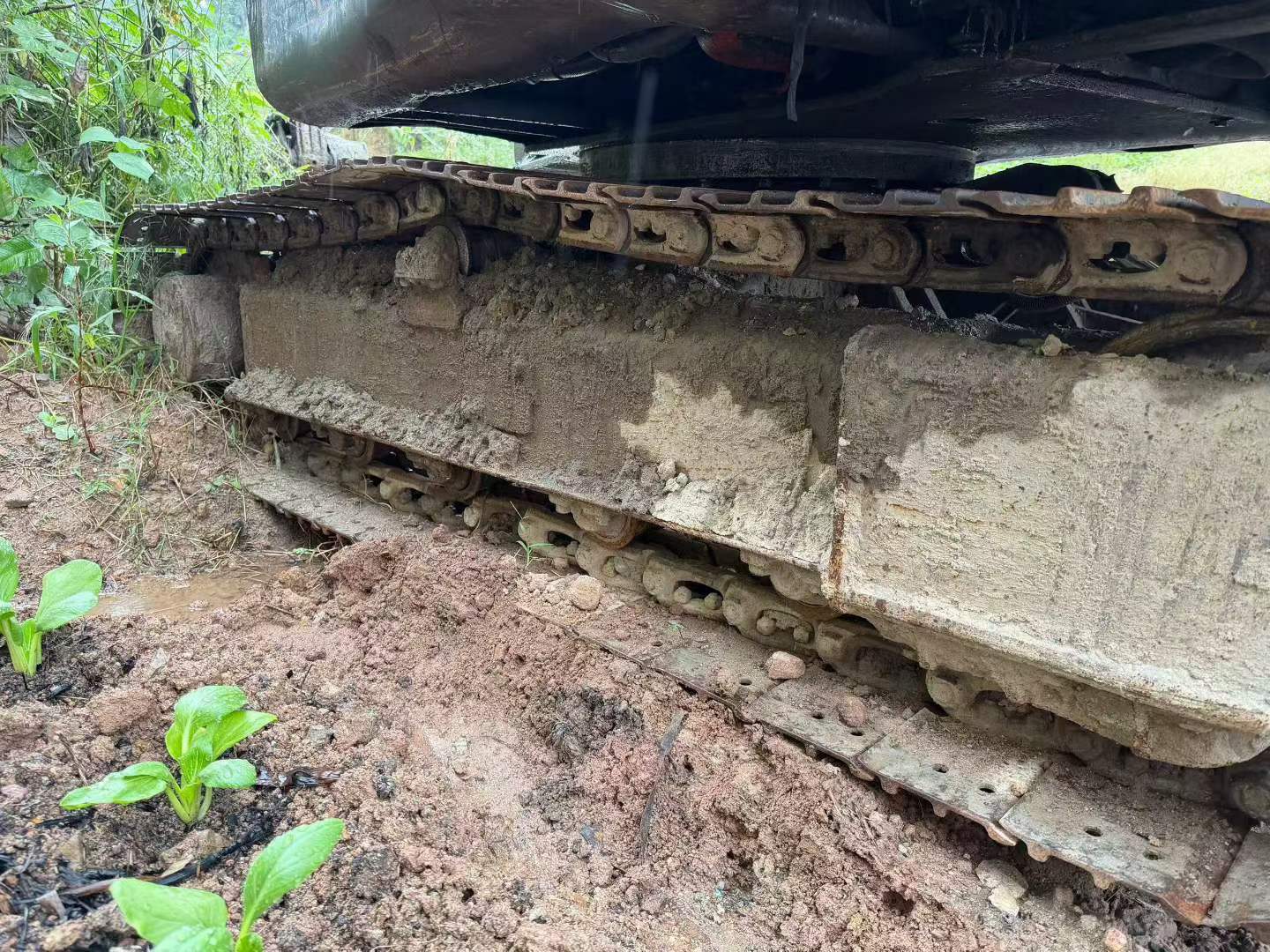

- Condition: reported in working order with no performance faults; meter hours, undercarriage wear and hydraulics to be verified on physical inspection
- Commercial note: the original listing quotes a figure just above 20,000 — confirm with our team whether this refers to price or meter hours before quoting your customer

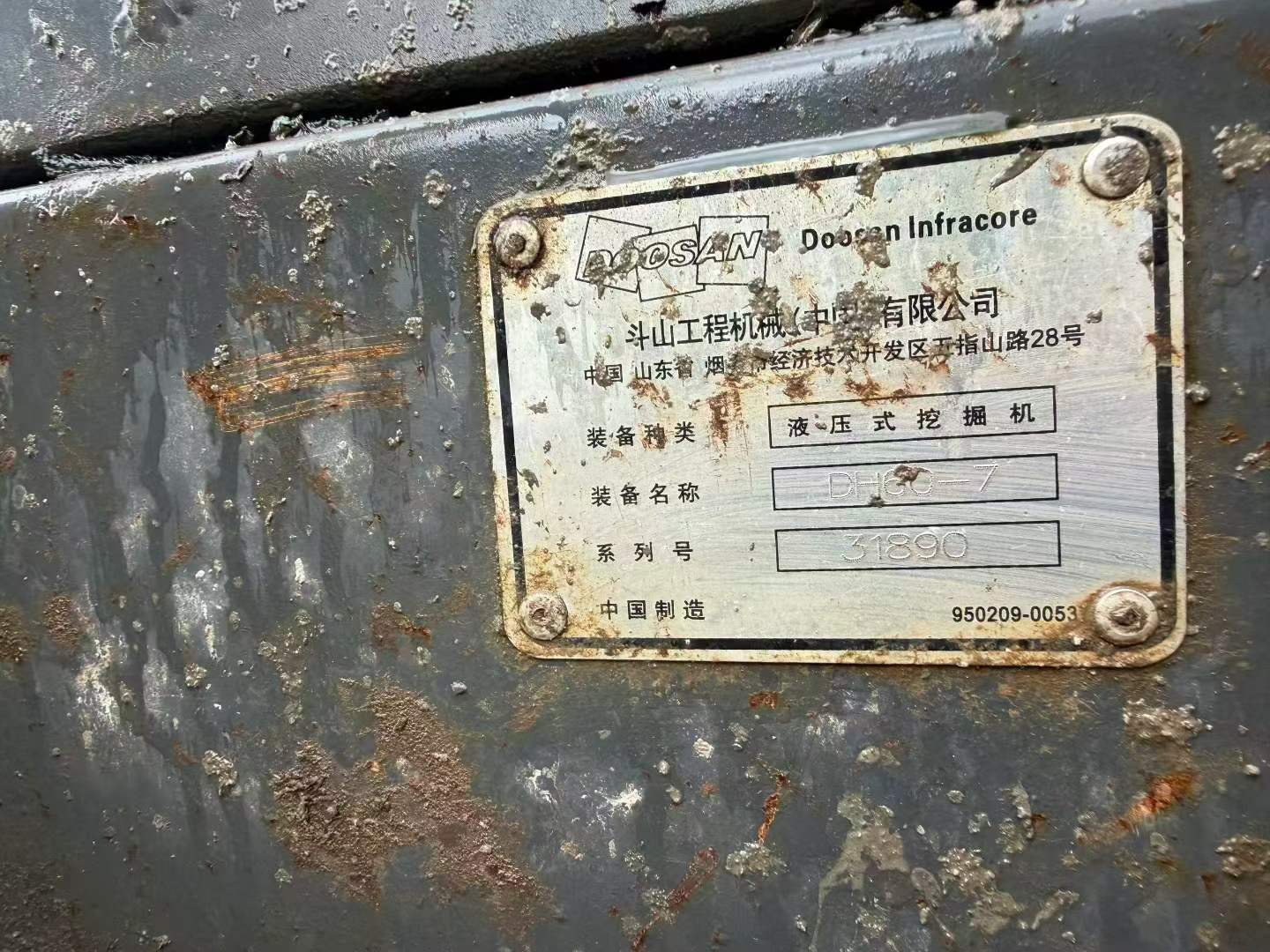

Serial plate details, service history where available, and a walkaround video can be arranged on request. Machine is offered as inspected, suitable for export or domestic re-deployment. Contact FairTradeMachinery to schedule a viewing or request additional photographs.
| Specifications | Value |
|---|---|
| No. | 1156937 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5550 |

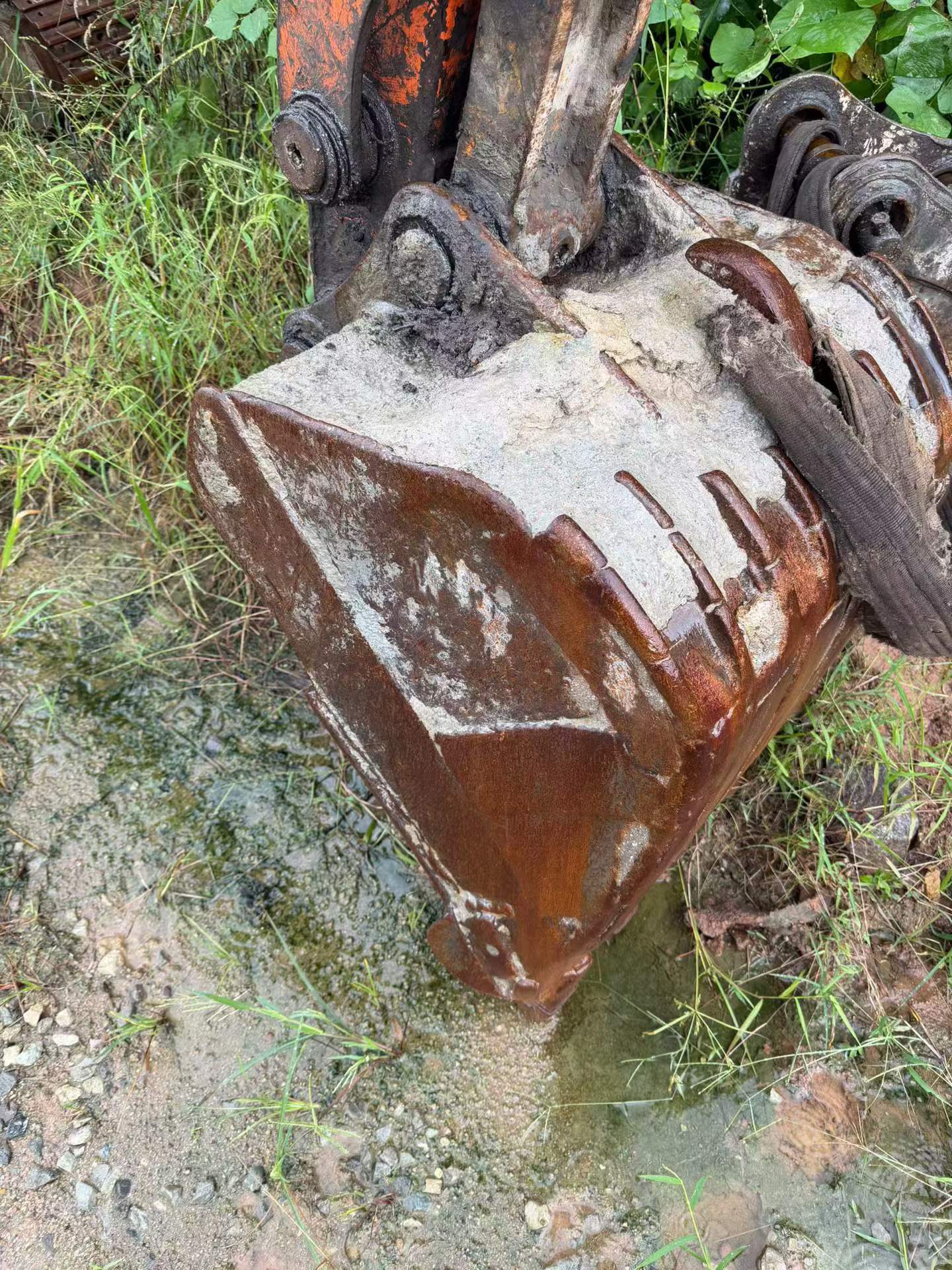

| Bucket capacity (m³) | 0.09-0.2 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

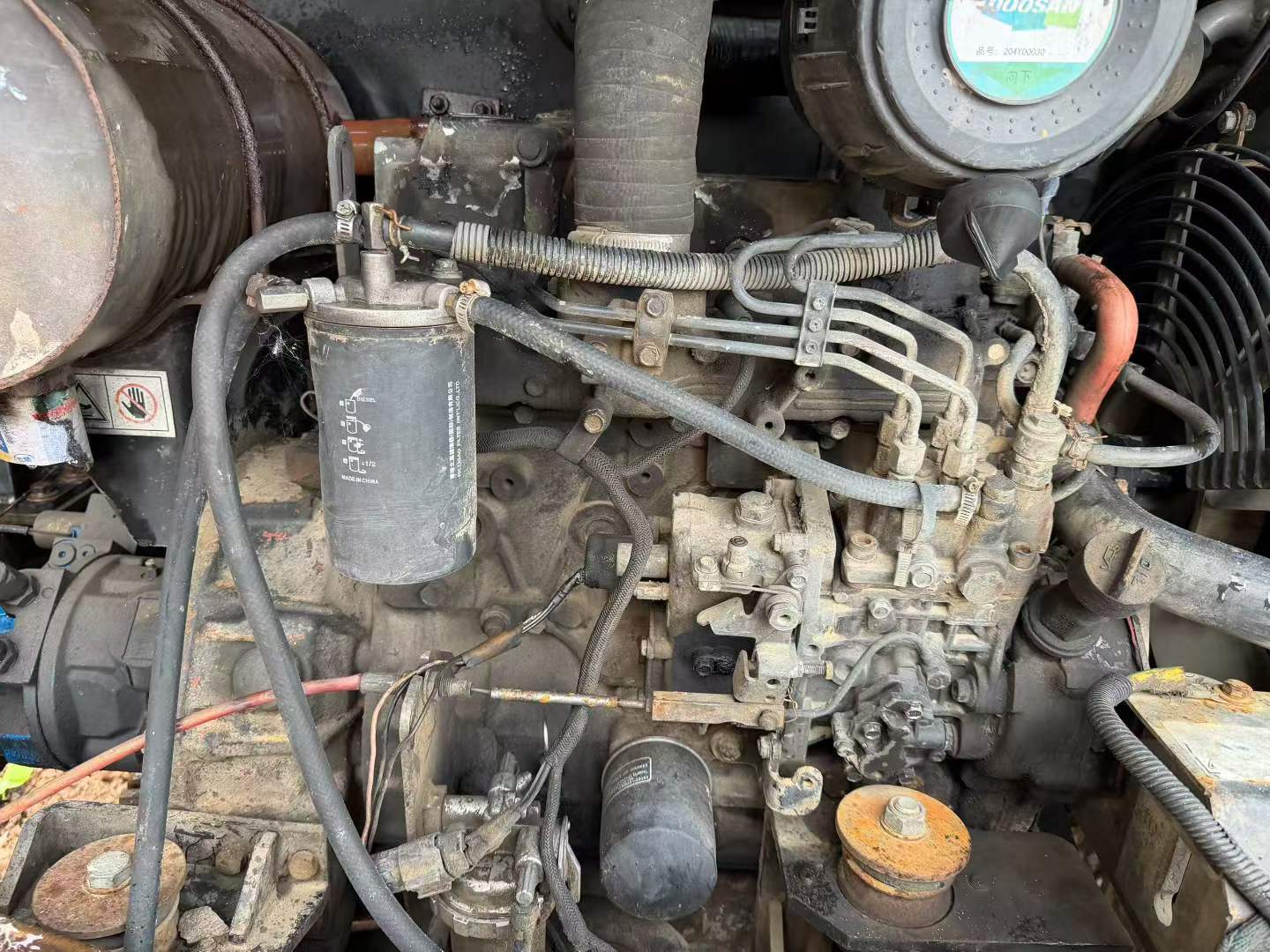

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 38.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Working form | Air-to-air cooling |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Maximum flow of main pump (l/min) | 55 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |

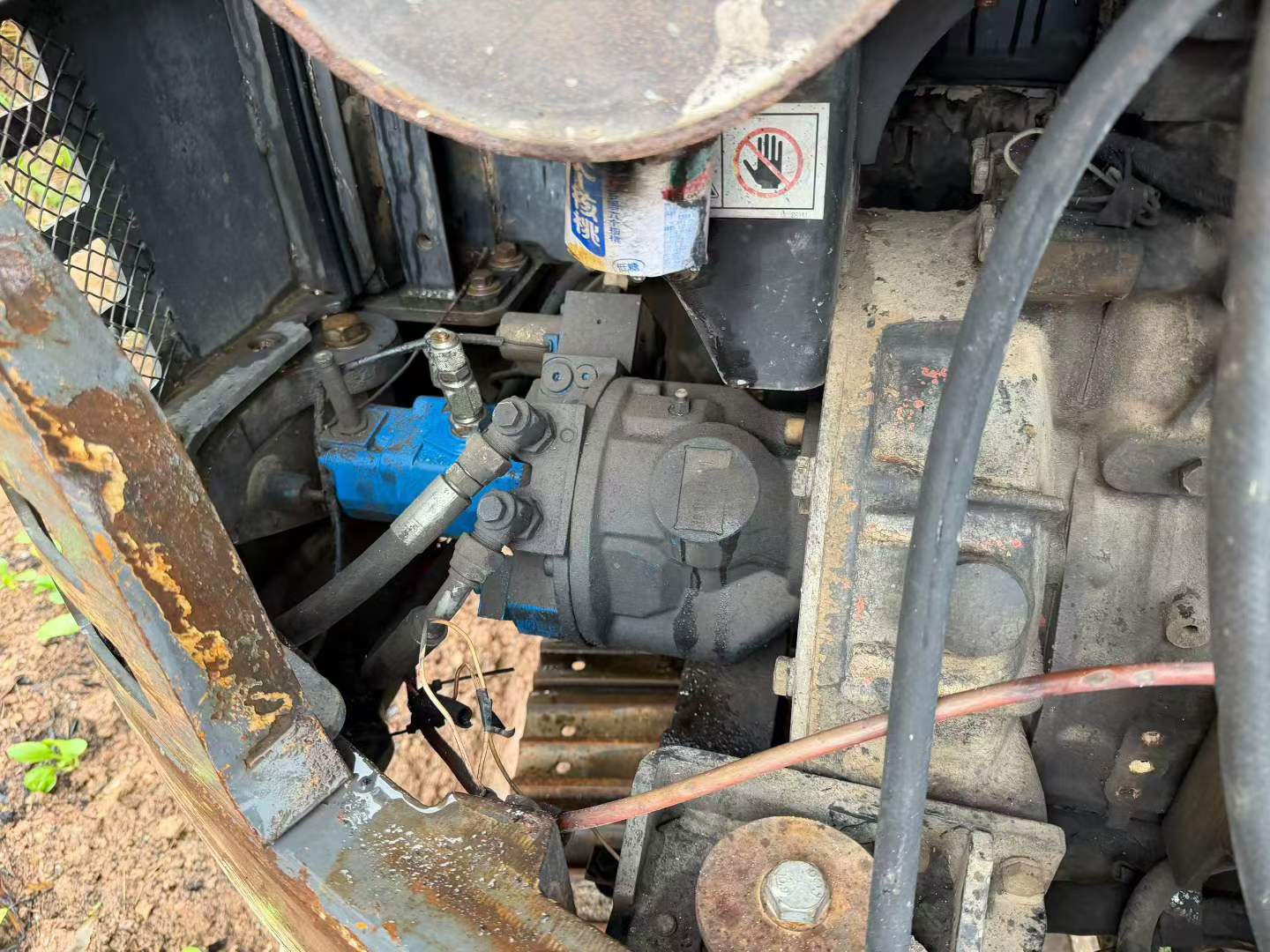

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 20.6 |
| Pilot pump flow (L/min) | 9.9 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880 |
| Total transport height (mm) | 2575 |
| Full cab height (mm) | 2575 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1885 |
| Total track length (mm) | 2540 |
| Track gauge (mm) | 1480 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1880 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4030 |
