Product Description

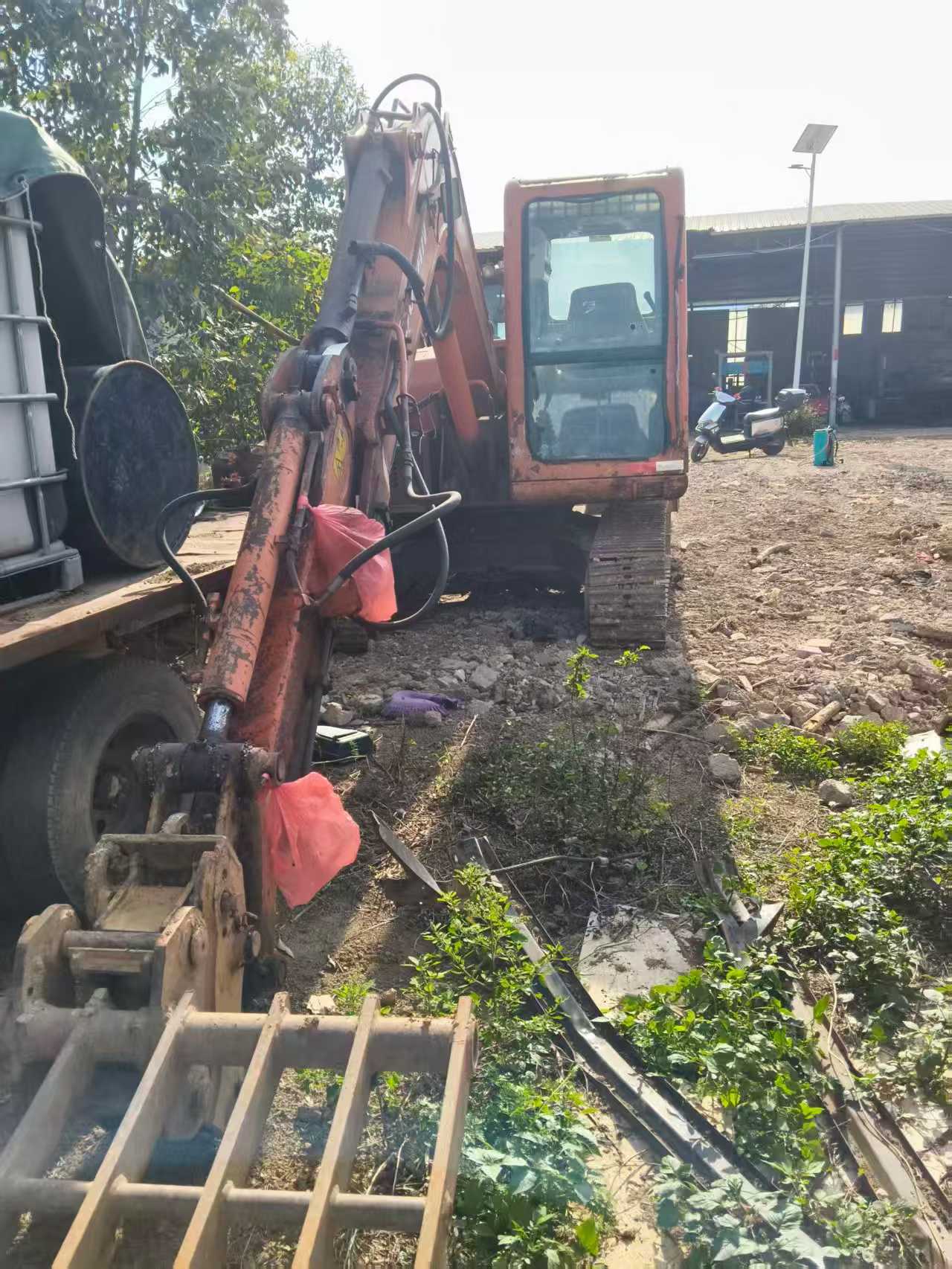

Looking for reliable excavation power without the premium price tag? This 2016 Doosan DH70 delivers proven performance at a fraction of new equipment costs. Operating at 7 tons with a Kubota V3300-DI engine producing 45.8kW, this compact excavator handles demanding jobsites with impressive efficiency. Built by a joint venture manufacturer in Yantai, it combines Japanese engineering standards with cost-effective operation.
- Maximum digging depth of 4,060mm and reach of 6,170mm for versatile applications
- Strong bucket digging force of 5.3 tons tackles tough materials efficiently
- Compact dimensions (5,920mm length, 2,200mm width) for confined workspace maneuverability
- Fuel-efficient operation at 163g/ps.hr reduces operating costs significantly
- Standard hydraulic crushing pipeline increases job versatility
- Water-cooled 3.318L displacement engine ensures reliable performance
Currently located in Guangxi and ready for immediate deployment. With solid specifications and proper maintenance history, this DH70 represents smart capital allocation for contractors seeking dependable excavation capacity without new equipment depreciation. Contact Fair Trade Machi
| Specifications | Value |
|---|---|
| No. | 1032469 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6980 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3620 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota KubotaV3300-DI |
| Rated power (kw/rpm) | 45.8/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.318 |
| Working form | Fuel consumption is 163g/ps.hr |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 5.3ton |
| Rod digging force (kN) | 3.7ton |
| Travel speed (km/h) | 2.8/4.5 |
| Maximum flow of main pump (l/min) | 162.8 |
| Traveling Hydraulic Circuit (Mpa) | 250 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Hydraulic crushing pipeline is standard | is |
| Bucket cylinders - Number × diameter × stroke (mm) | 85*55*715 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95*60*850 |
| Boom cylinders - Number × diameter × stroke (mm) | 110*65*865 |
| Total transport length (mm) | 5920 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2585 |
| Full cab height (mm) | 2585 |
| Counterweight ground clearance (mm) | 764 |
| Back end turning radius (mm) | 1710 |
| Total track length (mm) | 2568 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2050 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6170 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 6918 |
| Maximum unloading height (mm) | 5032 |
