Product Description

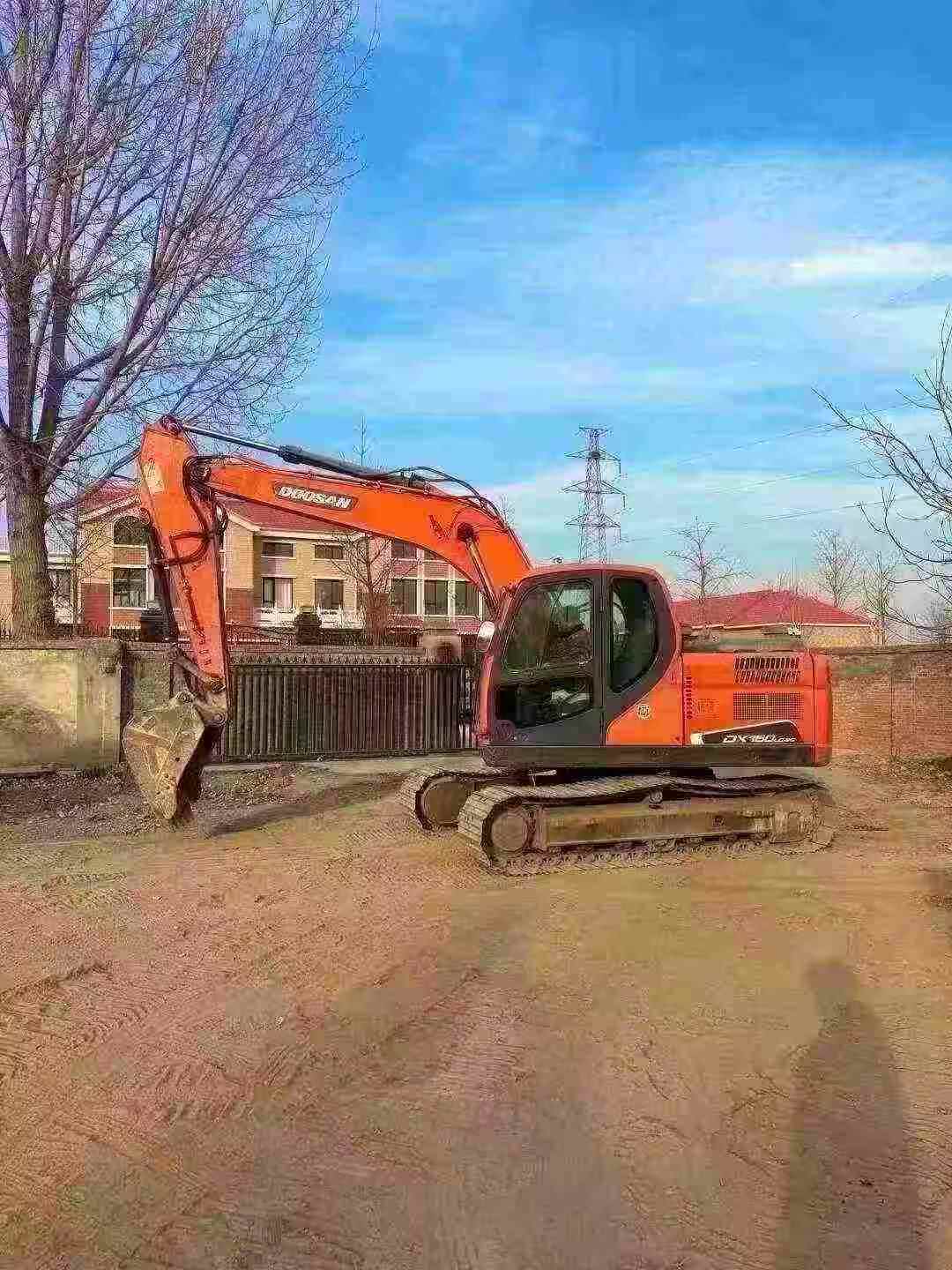

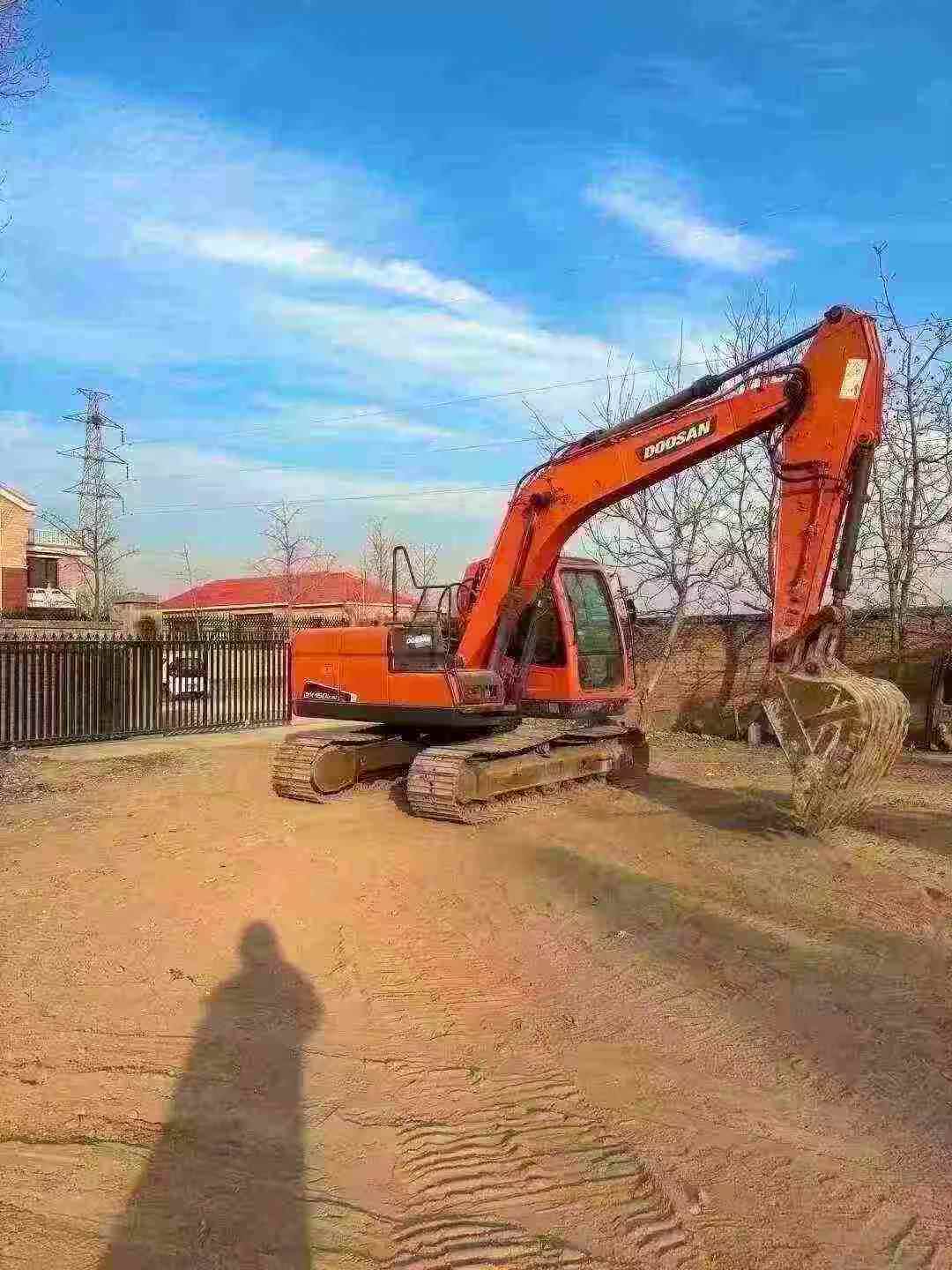

Available now in 河北, this 2018 Doosan DX150-9C excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Operating at 15 tons with a working weight of 13,850 kg, this mid-size machine combines proven reliability with the performance metrics contractors demand for demanding applications.

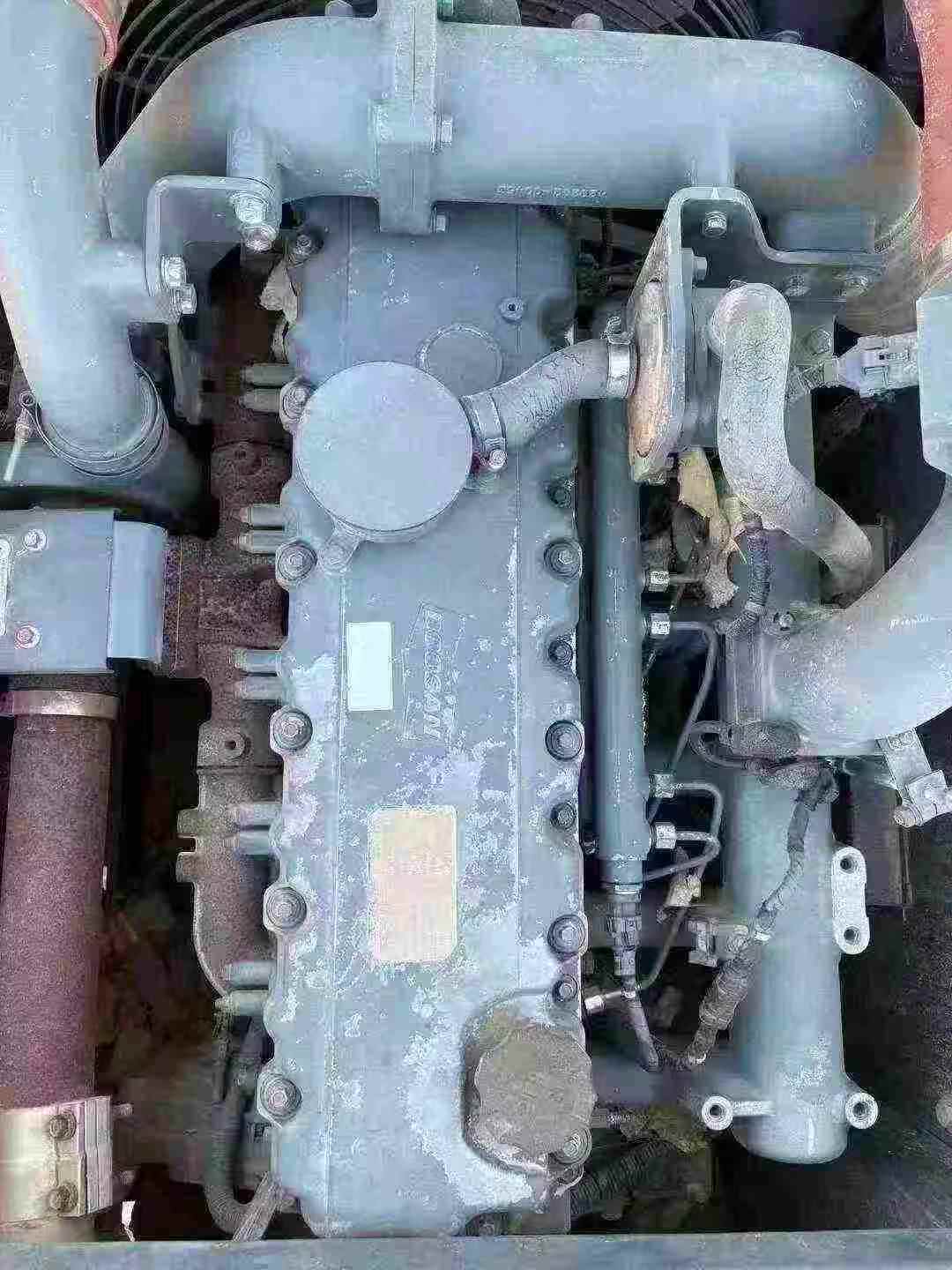

Powered by a DL06 in-line turbocharged engine delivering 74 kW at 1,900 rpm, this excavator provides consistent power across diverse working conditions. The 0.53 m³ backhoe bucket generates 103 kN digging force, while the maximum digging depth of 5,625 mm and reach of 8,305 mm ensure versatility across excavation tasks.
- Fast deployment: Ready for immediate site mobilization in 河北
- Dual travel speeds: 5.04/3.01 km/h for efficient repositioning
- Compact transport dimensions: 7,662 × 2,530 × 2,476 mm
- Maximum unloading height: 6,300 mm for truck loading efficiency
- Joint venture quality with proven DL06 engine technology
Skip extended lead times. Secure this field-ready DX150-9C and maintain project momentum with same-region logistics support.
| Specifications | Value |
|---|---|
| No. | 1009085 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13850 |
| Bucket capacity (m³) | 0.53 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 74/1,900 |
| Cylinder diameter × stroke (mm) | 100*125 |
| Number of cylinders (PCS) | 6 |
| Working form | In-line turbocharging |
| Rotation speed (rpm) | 10.1rpm |
| Bucket digging force (kN) | 103 |
| Rod digging force (kN) | 61 |
| Travel speed (km/h) | 5.04 / 3.01 |
| Turning torque (Nm) | 3655 |
| Total transport length (mm) | 7662 |
| Total transport width (mm) | 2530 |
| Total transport height (mm) | 2476 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5625 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4650 |
