Product Description

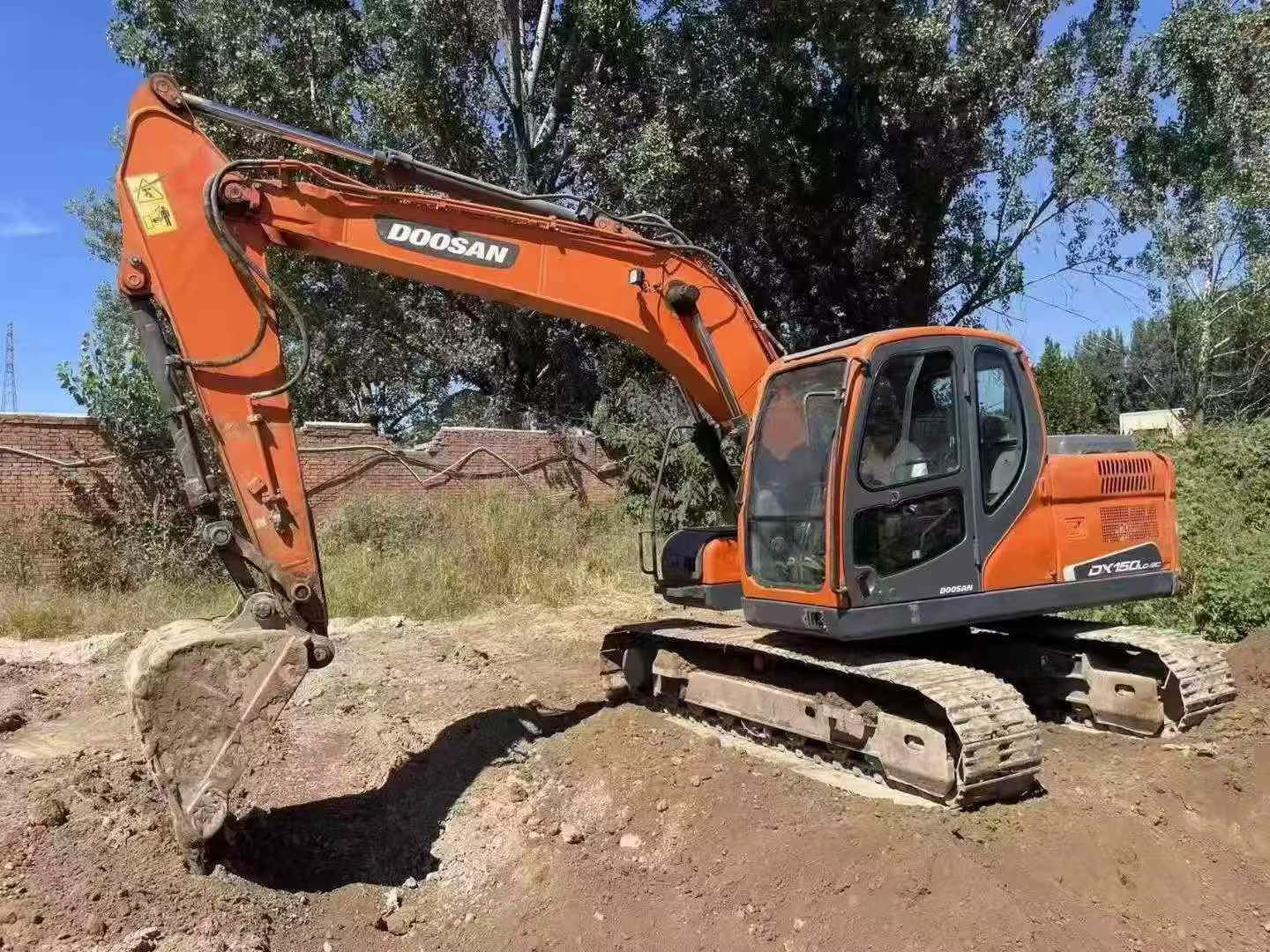

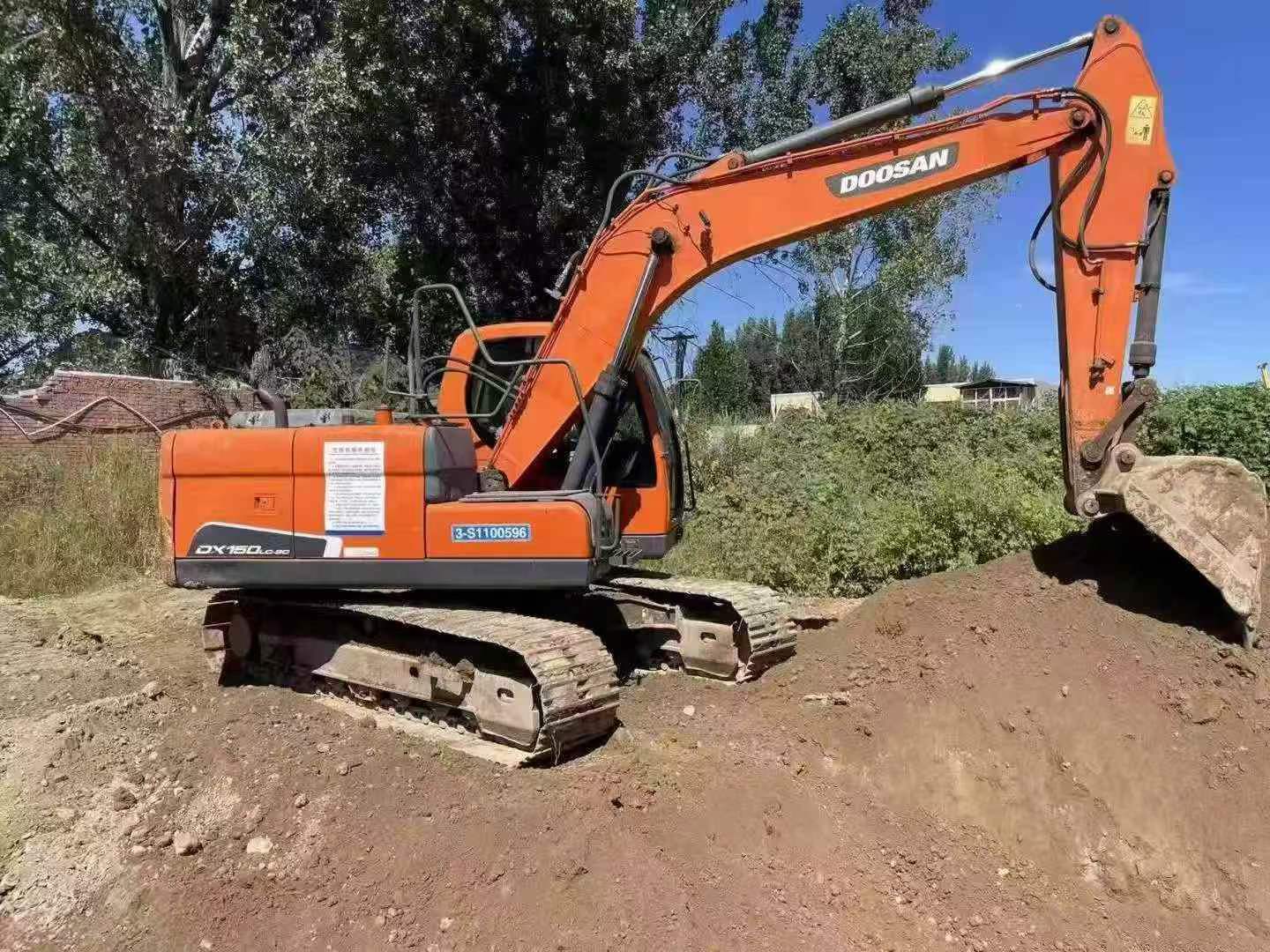

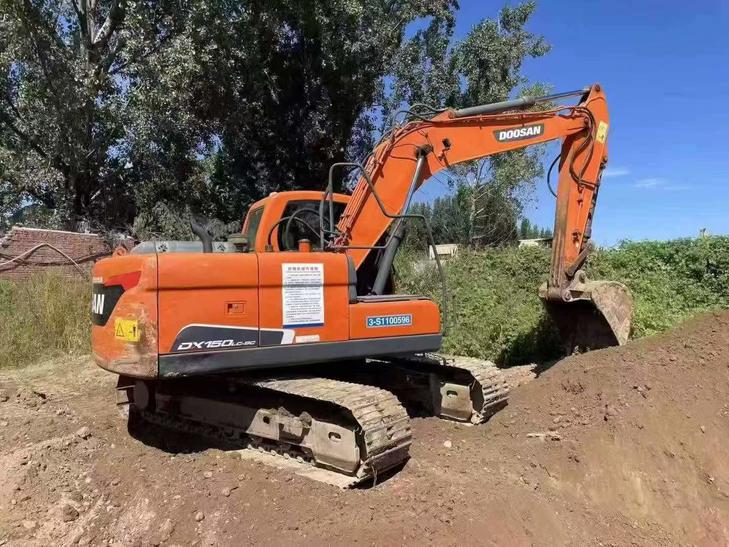

For sale: a 2020 Doosan DX150-9C crawler excavator, located in Beijing, China. This is a China Stage III unit that has kept its complete original configuration from the factory.
- Year: 2020
- Brand / Model: Doosan DX150-9C
- Location: Beijing, China
- Emission standard: China Stage III

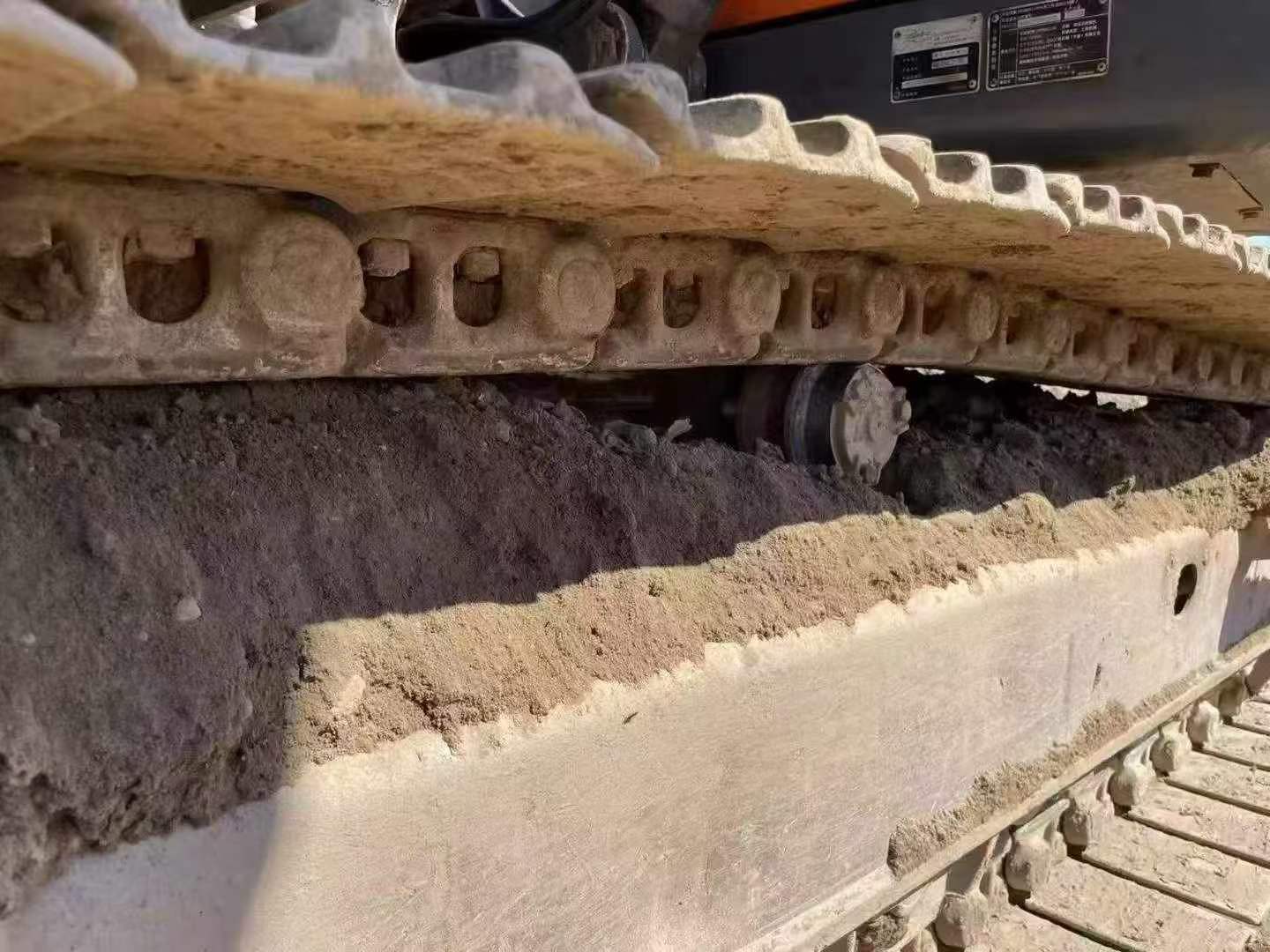

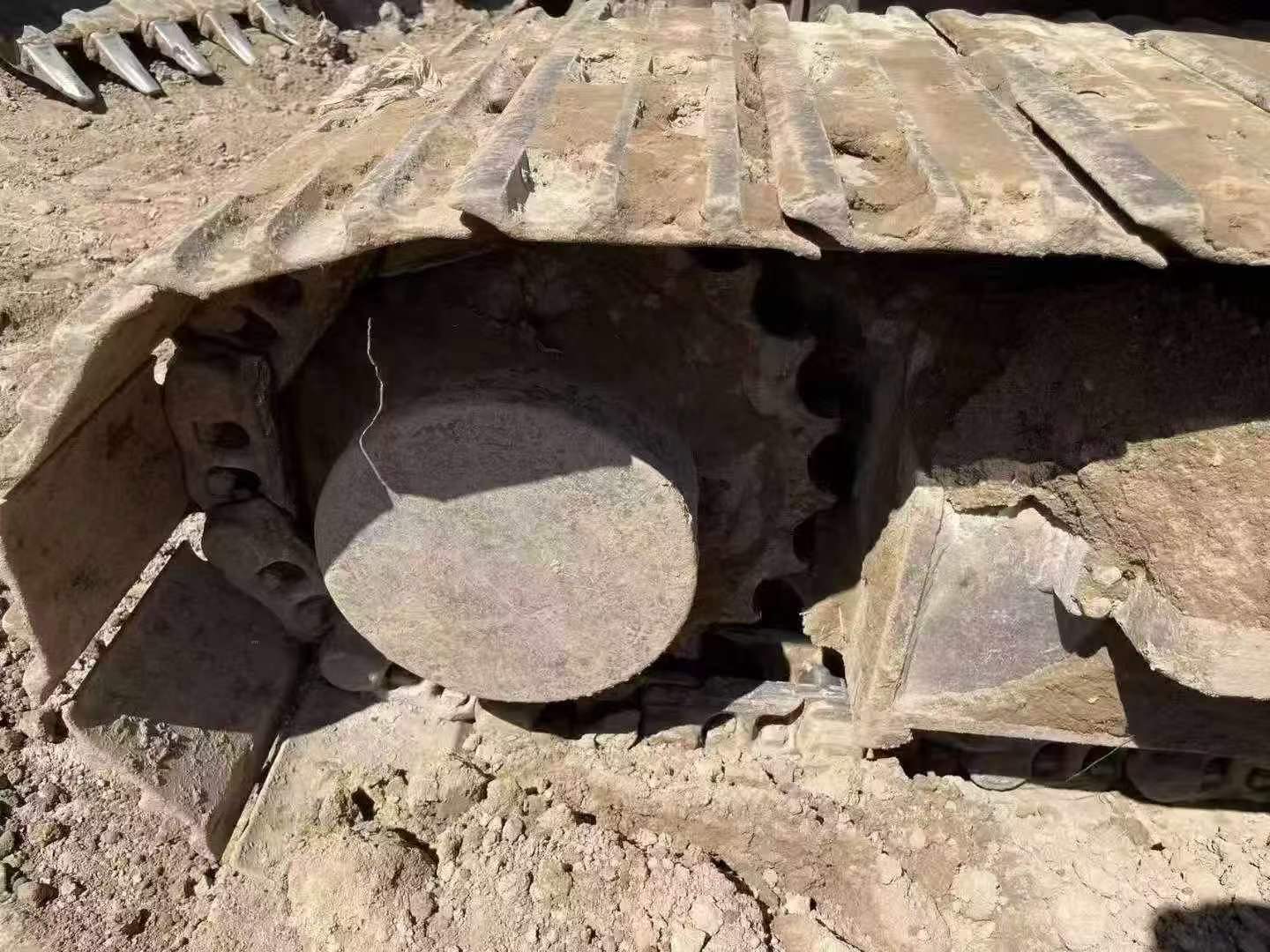

- Undercarriage: track pads approximately 90% remaining
- Condition: all-original bodywork; major components dry, untouched and never opened up
Performance gives nothing to complain about — the machine works as it should, with no faults reported by the current owner and no reconditioning history to account for. What you see is an honest, complete example rather than a rebuilt or pieced-together unit.
A large set of detailed photographs and walkaround video is available on request, so condition can be verified remotely before any commitment is made. On-site inspection in Beijing is welcome, and we can assist with loading and export paperwork. Enquiries from end users, contractors, dealers and exporters are all invited.
| Specifications | Value |
|---|---|
| No. | 1156688 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13850 |
| Bucket capacity (m³) | 0.53 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 74/1,900 |
| Cylinder diameter × stroke (mm) | 100*125 |
| Number of cylinders (PCS) | 6 |
| Working form | In-line turbocharging |
| Rotation speed (rpm) | 10.1rpm |
| Bucket digging force (kN) | 103 |
| Rod digging force (kN) | 61 |
| Travel speed (km/h) | 5.04 / 3.01 |
| Turning torque (Nm) | 3655 |
| Total transport length (mm) | 7662 |
| Total transport width (mm) | 2530 |
| Total transport height (mm) | 2476 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5625 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4650 |
