Product Description

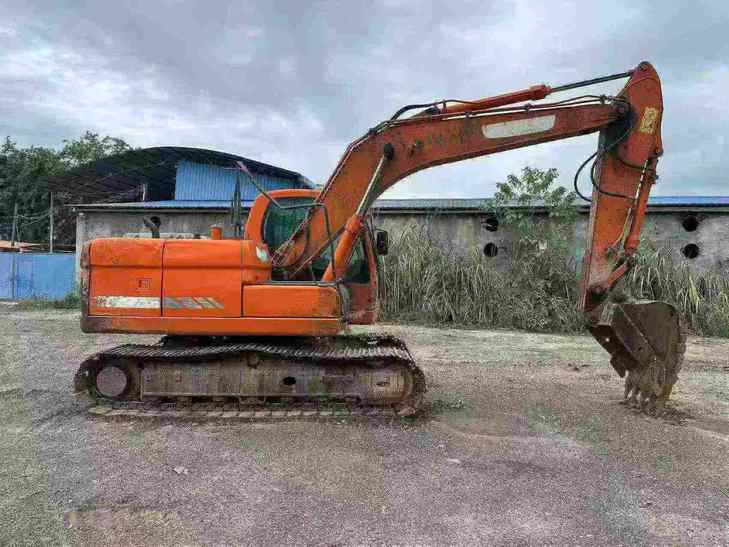

2016 Doosan DX150LC hydraulic excavator available from Hunan, China. This mid-size crawler excavator offers reliable performance for earthmoving, trenching, and general construction applications. The DX150LC features Doosan's proven hydraulic system and operating weight class suited for contractors seeking dependable equipment at competitive pricing.
- Year of Manufacture: 2016
- Model: Doosan DX150LC
- Configuration: Crawler excavator with long-reach boom
- Current Location: Hunan Province, China
- Asking Price: RMB 128,000
This used excavator represents an opportunity for buyers requiring proven Japanese-designed, Korean-built construction machinery. Inspection recommended prior to purchase. Suitable for domestic Chinese market or export to regional markets. Contact seller directly to arrange viewing and discuss delivery options.
| Specifications | Value |
|---|---|
| No. | 1083180 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14000 |
| Bucket capacity (m³) | 0.58 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 71 / 1850 |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.2 |
| Bucket digging force (kN) | 106 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 4.9 / 3.0 |
| Turning torque (Nm) | 40 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 114 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 900 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1180 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 75 x 1085 |
| Fuel Tank (L) | 267 |
| Hydraulic Tank (L) | 147 |
| Coolant (L) | 24 |
| Total transport length (mm) | 7680 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2755(to top of cab) |
| Full cab height (mm) | 2750 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2325 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2540 |
| Total track length (mm) | 3750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5655 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4450 |
| Maximum excavation radius of stop surface (mm) | 8160 |
| Maximum effective digging depth (mm) | 5430 |
