Name: Used Excavators 2016 Kato HD308R
Brand: Kato
SKU: USED-1046625
Availability: InStock
Rating: 4.2 (56 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Engineered with precision by Kato's joint venture manufacturing division, this 2016 HD308R delivers robust 8-ton performance through proven ISUZU 4JG1 technology. The 4-cylinder water-cooled engine generates 40.5 kW at 2100 rpm with 191 N.m maximum torque, providing reliable power for demanding excavation tasks. Dual main pumps supply 2×77.7 l/min at 29.4 MPa system pressure, driving hydraulic cylinders dimensioned for optimal force distribution: 105mm boom, 95mm arm, and 85mm bucket cylinders.

Performance specifications demonstrate superior capability across critical metrics:
<ul>
<li>Bucket digging force: 61.4 kN with 0.3 m³ capacity</li>
<li>Maximum digging reach: 6,470 mm with 4,120 mm depth</li>
<li>Operating weight: 7,300 kg with 34 kPa ground pressure</li>
<li>Travel speed: 5 km/h with 70% grading ability</li>
<li>Compact transport dimensions: 6,410×2,330×2,590 mm</li>
</ul>

Currently located in Zhuhai, Guangdong, this backhoe excavator combines Japanese engine reliability with efficient hydraulic architecture. The 140L fuel tank and 66L hydraulic reservoir support extended operational periods, while the 11 rpm rotation speed ensures productive cycle times on construction and earthmoving sites.

Built for demanding excavation work, this 2016 Kobelco SK200-8 delivers 20 tons of proven performance across construction, demolition, and earthmoving projects. Powered by a Hino J05E engine producing 114kW at 2000rpm with water-cooling and turbocharging, this machine handles continuous operation in challenging conditions. The 0.8m³ bucket and 2.94m rod configuration provide optimal reach and capacity for foundation work, trenching, and material handling tasks.

Operational specifications include:
<ul>
<li>Maximum digging depth of 6700mm and reach extending to 9900mm</li>
<li>Bucket digging force of 143kN with 102kN rod digging force for breaking tough ground</li>
<li>Dual variable displacement hydraulic pumps delivering 2×220 l/min flow</li>
<li>Travel speeds up to 6.0 km/h with 70% grading capability</li>
<li>Standard hydraulic crushing pipeline for attachment versatility</li>
<li>370L fuel capacity supporting extended work shifts</li>
</ul>

Currently located in Jiangsu, this SK200-8 arrives site-ready with complete hydraulic systems, reliable Japanese engineering, and the digging power your project demands. Contact Fair Trade Machinery for shipping arrangements and competitive pricing.

Kobelco SK200-8

Engineered with precision in Xuzhou, this 13-ton excavator delivers exceptional hydraulic performance through its dual plunger pump system, generating 2×123 L/min flow at 31.4/34.3 MPa main overflow pressure. The ISUZU BB-4BG1TRP turbocharged engine produces 69.6 kW at 2200 rpm, providing reliable power through a water-cooled, 4-cylinder configuration with 4.329L displacement. Hydraulic circuits are optimized for demanding operations: 34.3 MPa for travel, 25 MPa for rotation, and 3.9 MPa pilot control.

Built on XCMG's proven mid-size platform, the XE135B combines robust digging forces—85 kN bucket, 65 kN arm—with impressive reach capabilities: 8296mm maximum radius and 5538mm dig depth. The 0.4-0.52 m³ bucket capacity paired with a 4600mm boom and 2510mm arm ensures versatile performance across construction and earthmoving applications.

<ul>
<li>Operating weight: 13,800 kg with 42 KPa ground pressure</li>
<li>Travel speed: 5.16/3.03 km/h with 35° climbing ability</li>
<li>Compact transport dimensions: 7770×2512×2880mm</li>
<li>Fuel capacity: 250L; Hydraulic tank: 130L</li>
<li>Currently located in Anhui, China</li>
</ul>

XCMG XE135B

Engineered with Komatsu's proven SAA6D107E-1 engine delivering 110 kW at 2000 rpm, this 2014 PC210LC-8 represents a benchmark in 21-ton excavator performance. The 6.69-liter displacement unit drives a sophisticated hydraulic system generating 152 kN bucket digging force and 130 kN arm digging force, ensuring consistent power delivery across demanding earthmoving applications.

Built to joint venture/import standards, the PC210LC-8 features precision-engineered reach capabilities including a 9,380 mm maximum digging radius and 6,095 mm digging depth. Operating weight of 20,900 kg provides exceptional stability during full-extension operations, while the 1.0 m³ backhoe bucket optimizes material handling efficiency.

Key technical specifications:
<ul>
<li>Maximum digging height: 9,800 mm with 6,890 mm unloading clearance</li>
<li>Transport dimensions: 9,495 mm × 2,980 mm × 3,190 mm</li>
<li>Travel speed: 5.5 km/h for efficient site mobility</li>
<li>Vertical digging depth: 5,430 mm for trench work</li>
</ul>

Currently located in Jiangsu, this machine offers proven Komatsu durability backed by comprehensive component engineering. Immediate availability for international shipping.

Komatsu PC210LC-8

Built to endure the toughest jobsites, this 2016 Caterpillar 374D excavator represents proven engineering excellence with years of reliable performance already logged. Operating at 70 tons with traditional power systems, this joint venture/import machine delivers the durability and consistent output that Caterpillar is renowned for worldwide. Currently located in Jinhua, Zhejiang, this workhorse has demonstrated its capability to handle demanding excavation tasks day after day.

<ul>
<li>70-ton operating weight for heavy-duty applications</li>
<li>Backhoe configuration optimized for versatile digging operations</li>
<li>Traditional power system ensuring straightforward maintenance</li>
<li>Joint venture/import manufacturer quality standards</li>
<li>2016 model year with established track record</li>
<li>Available in Jinhua, Zhejiang for inspection</li>
</ul>

Proven on international projects, the 374D combines robust construction with field-tested reliability. This machine stands ready to deliver the productivity your operation demands without compromise.

Caterpillar 374D

Available now from our Jiangsu facility, this 2011 Hitachi EX200-3 delivers immediate deployment without factory wait times. Operating at 20 tons with proven traditional power, this joint venture-manufactured excavator is ready for fast mobilization to your project site. Skip months of lead time and secure a backhoe-equipped machine that's inspection-ready and prepared for immediate shipping across domestic and international routes.

<ul>
<li>20-ton operating capacity for medium-duty excavation</li>
<li>Traditional power system with reliable fuel efficiency</li>
<li>Factory backhoe configuration for trenching and foundation work</li>
<li>Joint venture manufacturing ensures quality component integration</li>
<li>Stationed in Jiangsu for rapid logistics throughout Asia-Pacific</li>
<li>2011 model year with documented service history</li>
</ul>

Bypass extended manufacturing queues and accelerate project timelines. This EX200-3 represents immediate equipment access from a strategic logistics hub, cutting weeks from your procurement cycle. Contact our team for current inspection reports, shipping quotes, and same-week departure scheduling from Jiangsu.

Hitachi EX200-3

Built for demanding excavation work, this 2021 Sany SY205C delivers 20-ton performance with operator-centered engineering. Powered by a robust 118kW engine at 2000 rpm, this Chinese-manufactured excavator combines proven hydraulic strength with enhanced jobsite control. The spacious cab sits at 3075mm, providing commanding visibility across a 10,280mm maximum digging radius and 6,600mm depth capability.

Operators benefit from precise handling through an 11 rpm rotation speed and responsive travel speeds of 5.4/3.3 km/h. Stability remains exceptional even on challenging terrain, supported by 47.3 kPa ground pressure distribution and a 70% (35°) climbing ability. The 600mm track plates and 3,360mm ground contact length ensure solid footing during heavy digging cycles.

<ul>
<li>Bucket digging force: 138 kN</li>
<li>Arm digging force: 109 kN</li>
<li>Bucket capacity: 0.9–1.1 m³</li>
<li>Operating weight: 21,500 kg</li>
<li>Compact turning radius: 2,900mm rear swing</li>
<li>Location: Zhejiang, China</li>
</ul>

Currently available in Zhejiang, this machine offers reliable performance for contractors requiring dependable mid-size excavation capacity.

Sany SY205C

Designed for mid-range excavation projects, this 2019 XCMG XE200 delivers reliable performance through its 20-ton operating capacity and traditional power system. Built by a joint venture manufacturer, this model combines proven hydraulic technology with operator-centered design principles that prioritize daily productivity and control precision.

Operators benefit from enhanced cabin visibility across all working angles, reducing blind spots during backhoe operations and material handling tasks. Stability remains consistent across varied terrain conditions, supported by the machine's balanced weight distribution and robust undercarriage design. Hydraulic responsiveness allows smooth transitions between digging, swinging, and lifting functions, minimizing operator fatigue during extended shifts.

<ul>
<li>20-ton operating class with backhoe configuration</li>
<li>Traditional power system for straightforward maintenance</li>
<li>Joint venture manufacturing standards</li>
<li>Currently located in Nanchang, Jiangxi Province</li>
<li>2019 production year with documented service history</li>
</ul>

Suitable for construction sites, infrastructure development, and material excavation projects requiring dependable mid-class pe

XCMG XE200

Expand your operational capacity with this 2012 Kobelco SK210 hydraulic excavator, currently positioned in Hubei and ready for immediate deployment. Built to joint venture/import standards, this 21-ton workhorse delivers consistent performance across demanding jobsites where downtime isn't an option.

Equipped with traditional power systems and a proven backhoe configuration, this SK210 integrates seamlessly into existing fleets without requiring specialized training or maintenance protocols. Contractors managing multiple projects simultaneously will appreciate the redundancy this unit provides—keeping crews productive when primary machines undergo scheduled service or unexpected repairs.

<ul>
<li>Operating weight: 21 tons—ideal for mid-range excavation and loading tasks</li>
<li>Traditional power plant ensures parts availability and service familiarity</li>
<li>Backhoe setup optimized for trenching, foundation work, and material handling</li>
<li>2012 production year offers mature technology with proven field reliability</li>
<li>Currently located in Hubei for efficient regional deployment</li>
</ul>

Strengthen your equipment roster with a machine engineered for versatility. This SK210 represents smart fleet plannin

Kobelco SK210

Secure immediate deployment with this 2019 Doosan DH220-3 excavator, positioned in Jiangsu and ready for rapid dispatch. Built as a joint venture/import model, this 22-ton workhorse delivers proven traditional power without the months-long factory queues that drain your project timeline. Skip extended lead times—this machine is available now for fast mobilization to your construction site, quarry, or infrastructure project.

<ul>
<li>Model Year: 2019</li>
<li>Operating Weight: 22 tons</li>
<li>Power System: Traditional diesel</li>
<li>Configuration: Backhoe bucket</li>
<li>Manufacturer Origin: Joint venture/Import quality standards</li>
<li>Current Location: Jiangsu, China</li>
</ul>

Operators benefit from Doosan's field-proven hydraulics and responsive controls, minimizing training time while maximizing productivity from day one. With immediate availability from our Jiangsu facility, you eliminate procurement delays and keep equipment budgets predictable. Arrange inspection and logistics coordination today—your project schedule won't wait, and neither should your equipment acquisition.

Doosan DH220-3

Available now in Fujian, this 2020 Kobelco SK495D eliminates factory wait times and delivers immediate productivity to your project. Operating at 49 tons with a robust 52,700 kg working weight, this crawler excavator combines Hino P11C power (257 kW at 1850 rpm) with exceptional reach capabilities—11,770 mm maximum digging radius and 7,360 mm digging depth. Dual variable displacement axial piston pumps deliver 2 × 370 l/min flow for responsive hydraulic performance across demanding applications.

<ul>
 <li>Engine: Hino P11C, 6-cylinder, 10.52L displacement, water-cooled with intercooling</li>
 <li>Digging Force: 266 kN bucket force, 223 kN arm force for tough material handling</li>
 <li>Capacity: 2.3 m³ backhoe bucket, 650L fuel tank for extended operation</li>
 <li>Performance: 7.8 rpm swing speed, 70% grading ability, 417 kN maximum tractive force</li>
 <li>Transport Dimensions: 12,080 × 3,570 × 3,800 mm</li>
</ul>

Fast deployment from Fujian ensures minimal downtime. Ready to ship directly to your site—contact Fair Trade Machinery today for immediate availability and competitive export pricing.

Kobelco SK495D

Cut weeks off your project timeline with this 2020 Volvo EC55 mini excavator, ready for immediate dispatch from 浙江金华. Rated at 5 tons with reliable traditional power, this joint venture/import machine delivers proven Volvo engineering without the 6–12 month factory wait. Perfect for urban construction, utility work, and tight-access sites where speed and maneuverability matter most.

<ul>
<li>Year: 2020</li>
<li>Model: Volvo EC55</li>
<li>Tonnage: 5 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Joint venture/Import</li>
<li>Location: 浙江金华, China</li>
</ul>

Available now for fast deployment to your site. Skip the lead times and secure this compact performer while inventory lasts. Ideal for contractors who need equipment on the ground this month, not next quarter. Contact Fair Trade Machinery today for shipping quotes and technical specifications.

Volvo EC55

Powered by the robust C6.4 ACERT engine delivering 92.3 kW at 2000 rpm, this 2016 Caterpillar 320DGC combines proven hydraulic architecture with field-tested durability. With a 20-ton operating weight and 0.9 m³ bucket capacity, this excavator handles demanding earthmoving applications with precision. The hydraulic system operates at 35 MPa working pressure, fed by a 205 L/min main pump that ensures responsive cycle times across all functions.

Engineering highlights include:
<ul>
<li>140.1 kN bucket digging force and 106.4 kN arm digging force for superior breakout performance</li>
<li>6.71-meter maximum dig depth with 9.85-meter reach at ground level</li>
<li>Water-cooled 6-cylinder engine with 6.37L displacement for sustained output</li>
<li>260-liter hydraulic system capacity ensuring thermal stability during extended operation</li>
<li>70% gradeability (35°) and 11.5 rpm swing speed for versatile job site mobility</li>
</ul>

Currently located in Jinhua, Zhejiang, this joint-venture manufactured unit represents Caterpillar's commitment to hydraulic efficiency and component longevity in the 20-ton class.

Caterpillar 320DGC

Maximize your equipment budget with this 2018 Doosan DX75 midi excavator, delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW, this 7-ton machine combines exceptional fuel efficiency with robust digging capabilities—53.4kN bucket force and 36.9kN arm force handle demanding excavation tasks with ease.

Currently located in Guangxi, this joint-venture manufactured unit offers impressive operational specs:

<ul>
<li>Maximum digging reach of 6,270mm and depth to 3,930mm</li>
<li>Compact 2,100mm transport width for easy site mobility</li>
<li>30° climbing ability and 370mm ground clearance for challenging terrain</li>
<li>111L fuel tank supporting extended work cycles</li>
<li>Variable piston pump hydraulics for precise control</li>
</ul>

Investing in quality used machinery means acquiring proven technology without the depreciation hit of new purchases. This DX75 represents smart capital allocation for contractors seeking reliable mid-size excavation capacity without compromising project budgets.

Doosan DX75

With immediate availability in 福建, the 2021 Caterpillar 新一代CAT352 液压 excavator is ready for rapid deployment to your site. Skip the factory lead times and enhance your project's logistics with this high-performance machine. Featuring advanced hydraulic systems, it ensures efficient operation and fast turnaround times, crucial for any demanding construction or excavation task.
<ul>
 <li>Available now in 福建</li>
 <li>Advanced hydraulic technology for superior performance</li>
 <li>Ideal for quick mobilization and high-speed operations</li>
</ul>

Caterpillar CAT352

Built for precision and control, this 2006 Komatsu PC200-7 hydraulic excavator delivers reliable performance across demanding job sites. Operating at 20 tons with a robust Komatsu SAA6D102E-2 engine producing 107 kW, this machine combines power with operational finesse. Operators benefit from enhanced cabin visibility and ergonomic controls that reduce fatigue during extended shifts, while the water-cooled system maintains consistent performance in varied conditions.

<ul>
<li>Spacious cab design with 2095mm height provides excellent sightlines to working zones</li>
<li>Smooth hydraulic response from dual variable piston pumps (2×214 L/min) ensures precise bucket and arm movements</li>
<li>Stable 3000mm track width and 20,253 kg working weight deliver solid grounding on uneven terrain</li>
<li>0.8 m³ bucket capacity with 149 kN digging force handles tough excavation tasks efficiently</li>
<li>Maximum digging depth of 5380mm and reach of 9380mm offers versatile working range</li>
<li>12.4 km/h travel speed enables quick repositioning between work areas</li>
</ul>

Currently located in Jiangsu, this joint venture/import model represents Komatsu's commitment to operator-focused engineering and proven Japanese manufacturing stand

Komatsu PC200-7

Available now from our 浙江 facility, this 2017 Caterpillar 305B mini excavator delivers immediate deployment without factory wait times. Powered by a reliable 34.1 kW engine, this compact 5-ton machine combines precision with productivity for urban construction, utility work, and confined-space applications. Skip months of lead times and mobilize your project today with fast logistics from one of China's most connected industrial hubs.

<ul>
 <li>Working Weight: 5,350 kg – ideal for transport and maneuverability</li>
 <li>Bucket Capacity: 0.22 m³ backhoe configuration for trenching and excavation</li>
 <li>Rated Power: 34.1 kW – proven traditional powertrain</li>
 <li>Joint Venture/Import Quality: Built to Caterpillar global standards</li>
 <li>Strategic 浙江 Location: Rapid shipping access to domestic and international ports</li>
</ul>

Reduce downtime with immediate equipment acquisition. This ready-to-work 305B has been maintained to operational standards and is positioned for quick delivery across Asia and beyond. Secure your machine today and keep your project timeline on track.

Specifications	Value
No.	1046625
Tonnage (tons)	8
Working weight (kg)	7300
Bucket capacity (m³)	0.3
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe

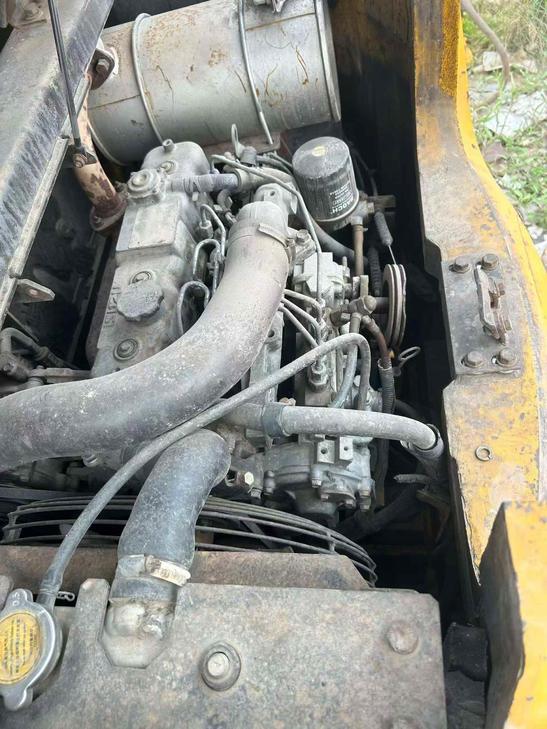

Engine type	ISUZU 4JG1, 4-cycle engine
Rated power (kw/rpm)	40.5/2100
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	95.4*107
Maximum torque (N.m)	191/1800
Number of cylinders (PCS)	4
Ground specific pressure (Kpa)	34
Rotation speed (rpm)	11
Climbing ability (%)	70
Bucket digging force (kN)	61.4
Rod digging force (kN)	42.2
Maximum tractive force (kN)	66.8
Travel speed (km/h)	5
Main overflow set pressure (Mpa)	29.4
Maximum flow of main pump (l/min)	2*77.7
Bucket cylinders - Number × diameter × stroke (mm)	185745
Bucket rod cylinders - Number × diameter × stroke (mm)	195920
Boom cylinders - Number × diameter × stroke (mm)	1105960
Fuel Tank (L)	140
Hydraulic Tank (L)	66
Engine Oil changes (L)	9.6
Coolant (L)	11
Hydraulic System (L)	105
Total transport length (mm)	6410
Total transport width (mm)	2330
Total transport height (mm)	2590
Counterweight ground clearance (mm)	740
Minimum ground clearance (mm)	360
Minimum turning radius of front working device (mm)	1630
Back end turning radius (mm)	1770
Total track length (mm)	2850
Track ground length (mm)	2260
Maximum digging radius (mm)	6470
Maximum digging depth (mm)	4120
Maximum excavation height (mm)	7440
Maximum unloading height (mm)	5320
Maximum vertical digging depth (mm)	3620

2016 Kato HD308R
