With a robust 8-ton capacity and a working weight of 7300 kg, the 2016 Kato HD308R is an ideal addition to any contractor's fleet. Equipped with a reliable ISUZU 4JG1, 4-cycle water-cooled engine, this excavator delivers 40.5 kW at 2100 rpm, ensuring consistent performance on demanding job sites. Its 0.3 m³ backhoe bucket, combined with a maximum digging depth of 4120 mm and a digging force of 61.4 kN, makes it versatile for various excavation tasks.
<ul>
 <li>Maximum travel speed: 5 km/h</li>
 <li>Bucket digging force: 61.4 kN</li>
 <li>Maximum tractive force: 66.8 kN</li>
 <li>Fuel tank capacity: 140 L</li>
 <li>Total transport dimensions: 6410 mm (length) x 2330 mm (width) x 2590 mm (height)</li>
</ul>
Integrate the Kato HD308R into your fleet for enhanced productivity and reliability, making it a valuable asset for busy contractors. Located in 四川泸州, this machine is ready to support your operations seamlessly.

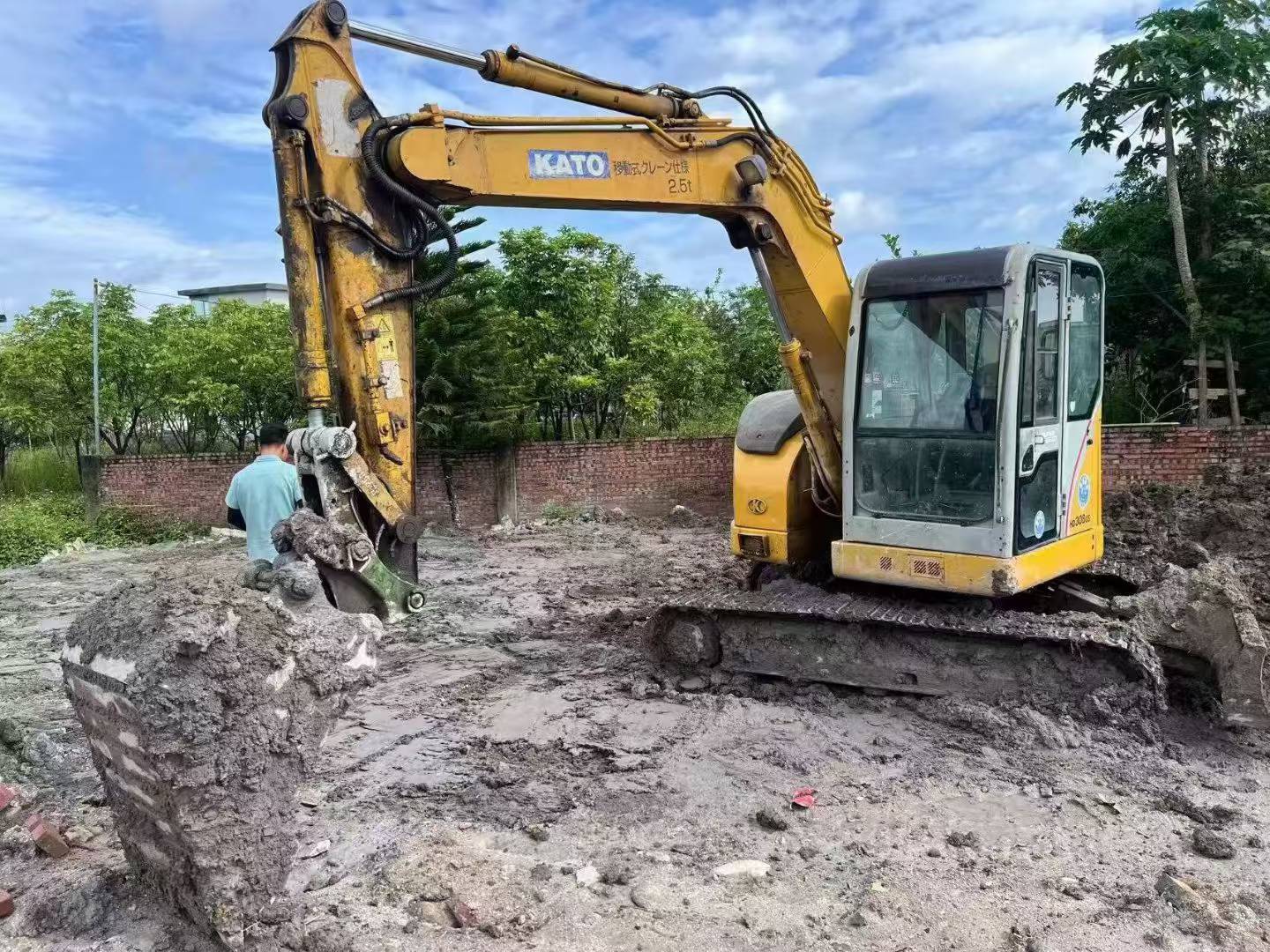

Kato HD308R

Expand your operational capacity with this 2016 Kato HD308R mini excavator, purpose-built for contractors managing multiple jobsites simultaneously. Powered by a reliable ISUZU 4JG1 four-cycle engine delivering 40.5kW at 2100rpm, this 8-ton machine offers the performance consistency required for fleet integration. With a maximum digging depth of 4,120mm and digging radius of 6,470mm, it handles trenching, utility work, and site preparation with proven efficiency.

<ul>
<li>Fleet-Ready Performance: 7,300kg operating weight with 0.3m³ bucket capacity for versatile daily operations</li>
<li>Hydraulic Efficiency: Dual main pumps (2×77.7 L/min) at 29.4MPa system pressure ensure responsive cycle times</li>
<li>Operational Range: 140L fuel tank and water-cooled engine minimize downtime during extended shifts</li>
<li>Proven Reliability: Joint venture/import manufacturing with ISUZU powertrain delivers 191N.m torque at 1800rpm</li>
<li>Compact Mobility: 2,330mm transport width and 1,770mm rear turning radius enable confined-space maneuverability</li>
</ul>

Currently located in Yulin, Guangxi, this HD308R represents a practical addition to contractor

Engineered with precision by Kato's joint venture manufacturing division, this 2016 HD308R delivers robust 8-ton performance through proven ISUZU 4JG1 technology. The 4-cylinder water-cooled engine generates 40.5 kW at 2100 rpm with 191 N.m maximum torque, providing reliable power for demanding excavation tasks. Dual main pumps supply 2×77.7 l/min at 29.4 MPa system pressure, driving hydraulic cylinders dimensioned for optimal force distribution: 105mm boom, 95mm arm, and 85mm bucket cylinders.

Performance specifications demonstrate superior capability across critical metrics:
<ul>
<li>Bucket digging force: 61.4 kN with 0.3 m³ capacity</li>
<li>Maximum digging reach: 6,470 mm with 4,120 mm depth</li>
<li>Operating weight: 7,300 kg with 34 kPa ground pressure</li>
<li>Travel speed: 5 km/h with 70% grading ability</li>
<li>Compact transport dimensions: 6,410×2,330×2,590 mm</li>
</ul>

Currently located in Zhuhai, Guangdong, this backhoe excavator combines Japanese engine reliability with efficient hydraulic architecture. The 140L fuel tank and 66L hydraulic reservoir support extended operational periods, while the 11 rpm rotation speed ensures productive cycle times on construction and earthmoving sites.

With a working weight of 7,300 kg and an 8-ton capacity, the 2020 Kato HD308R excavator is ready for immediate deployment from Guangxi, China. Featuring a powerful ISUZU 4JG1, 4-cycle engine, this machine delivers a rated power of 40.5 kW at 2100 rpm, ensuring robust performance on any job site. Equipped with a 0.3 m³ backhoe bucket, it provides a maximum digging force of 61.4 kN, making it ideal for demanding excavation tasks.
<ul>
 <li>Available now, skip the factory lead times and get your project moving quickly.</li>
 <li>Fast deployment to your site, ensuring minimal downtime and quick integration into your operations.</li>
 <li>Located in Guangxi, China, facilitating efficient logistics and rapid delivery across the region.</li>
</ul>

This 2013 Kato HD308R excavator is available from Jiangxi, China. Powered by a reliable Isuzu engine, this imported Japanese machine delivers consistent performance for medium-duty excavation work. The HD308R is known for stable idle operation and dependable hydraulics, making it suitable for construction sites, utility work, and general earthmoving applications.

<ul>
<li>Year: 2013</li>
<li>Make: Kato</li>
<li>Model: HD308R</li>
<li>Engine: Isuzu diesel</li>
<li>Location: Jiangxi Province, China</li>
<li>Condition: Used, operational</li>
</ul>

Kato excavators are valued for their build quality and longevity in demanding environments. This unit offers an opportunity to acquire proven Japanese engineering at a competitive price point. Inspection and export assistance available upon request.
