<p>Engineered with precision by Kato's Japanese-led joint venture, this 2016 HD1023-LC delivers 23-ton class performance through proven mechanical architecture. Powered by a Mitsubishi 6D16-TE1 water-cooled diesel engine producing 125 kW at 2200 rpm, the machine combines a 7.545L displacement with direct injection efficiency for consistent output across demanding jobsites. Dual variable axial piston pumps supply 249 L/min each, driving a robust hydraulic system operating at 29.4 MPa working pressure—engineered to maximize digging forces of 174.6 kN (bucket) and 125.5 kN (arm) in Extra mode.</p>

<p>Heavy-duty construction is evident throughout: a 23,600 kg working weight distributed across 600mm triple-grouser tracks maintains 47.1 kPa ground pressure, while the 5,870mm boom and 2,960mm arm configuration achieves a 10,350mm maximum reach radius and 7,010mm dig depth. Variable bucket capacity from 0.55–1.5 m³ adapts to material density requirements. With 70% gradeability, 11 rpm slew speed, and triple travel speeds up to 5.5 km/h, this Shenzhen-based excavator represents Kato's commitment to hydraulic precision and structural integrity for large-scale earthmoving operations.</p>

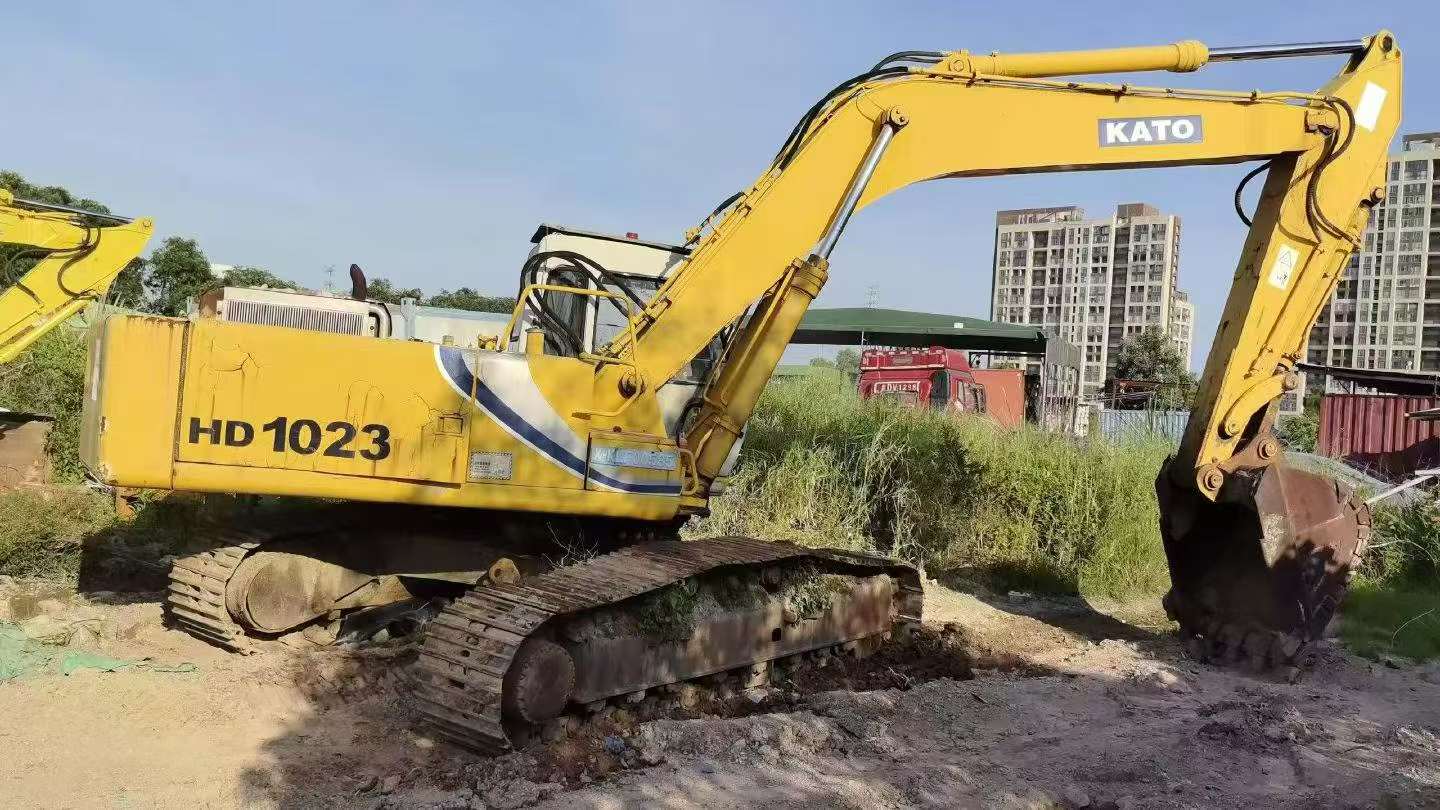

Kato HD1023-LC
