Product Description

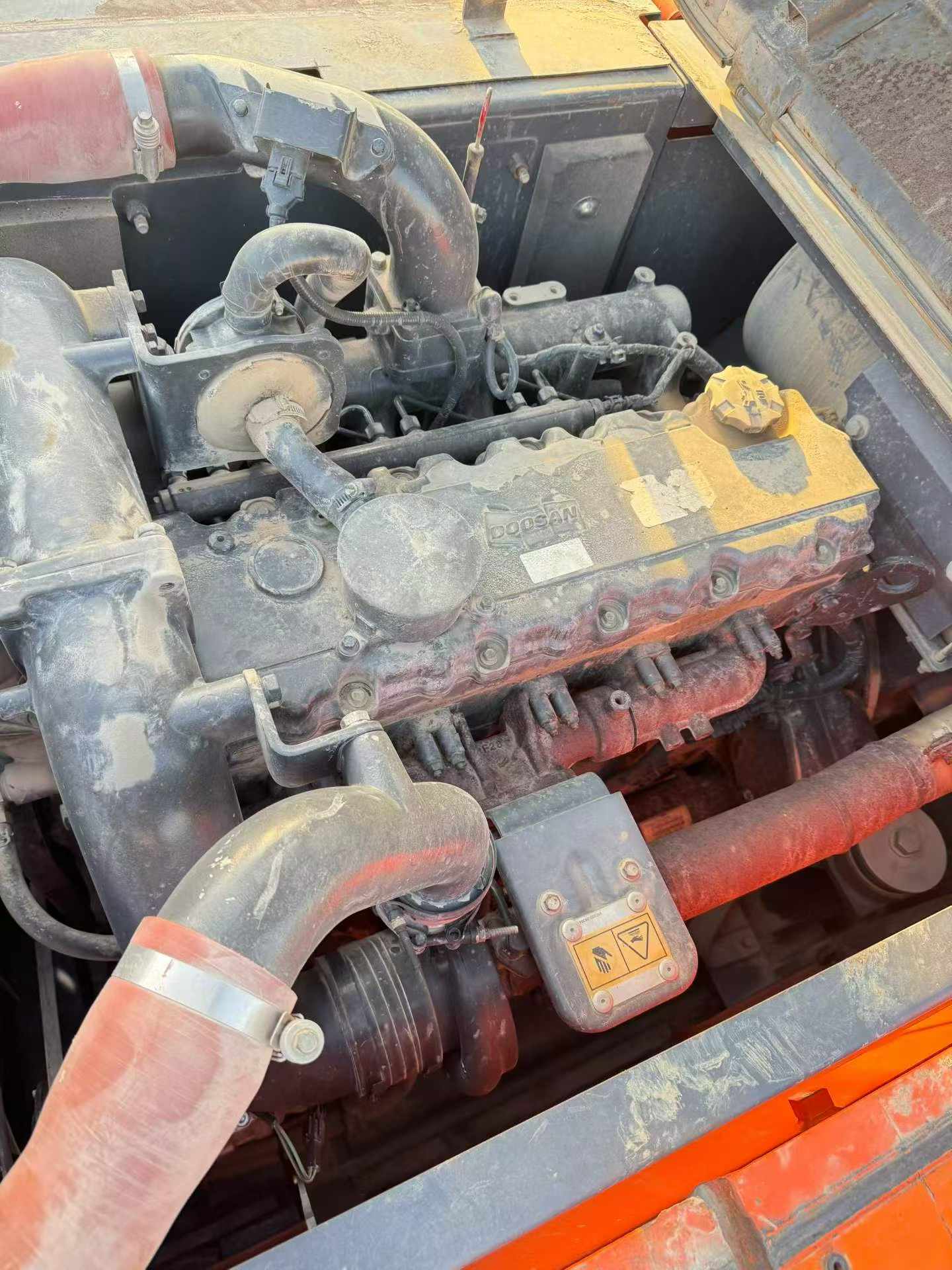

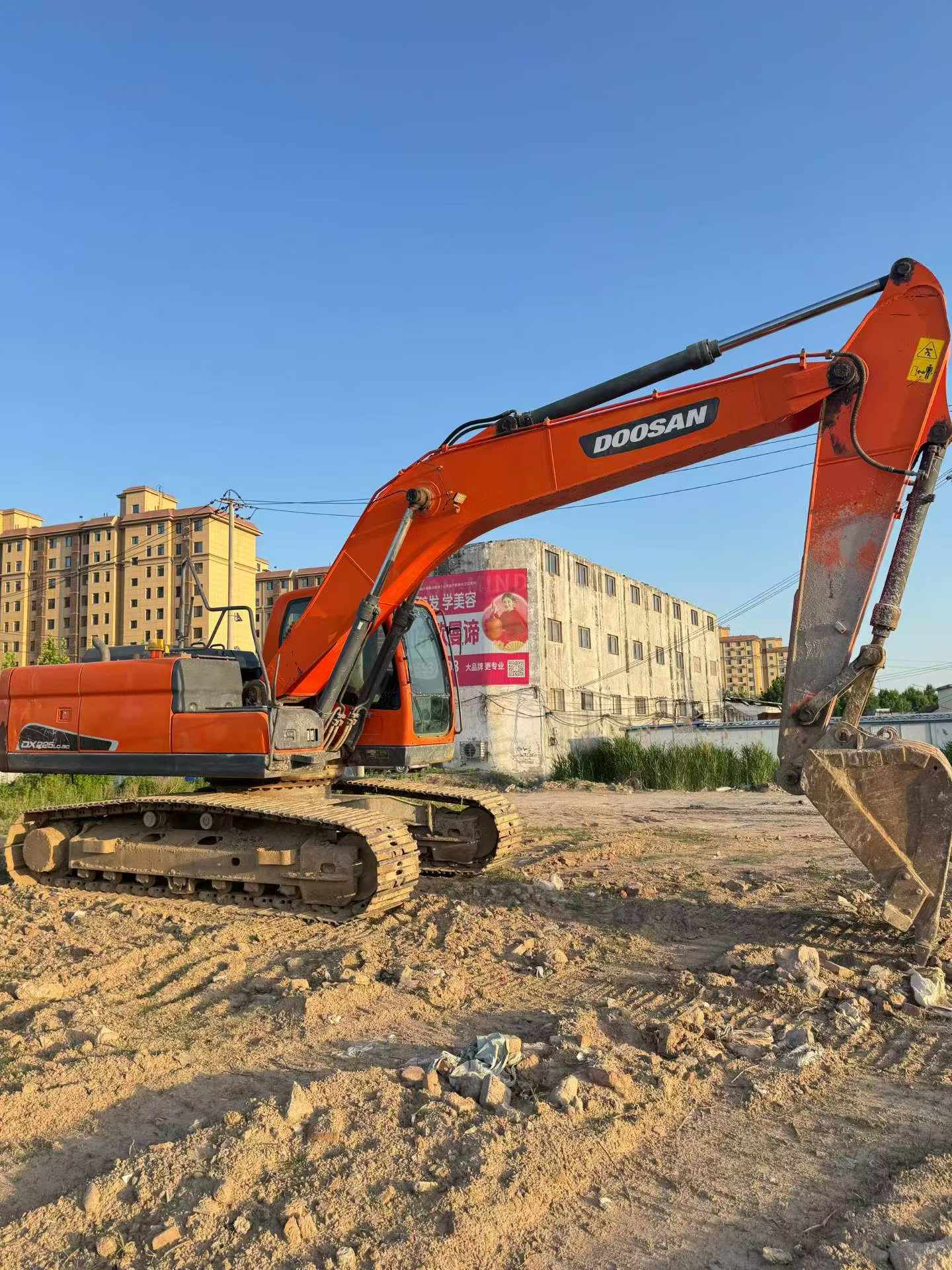

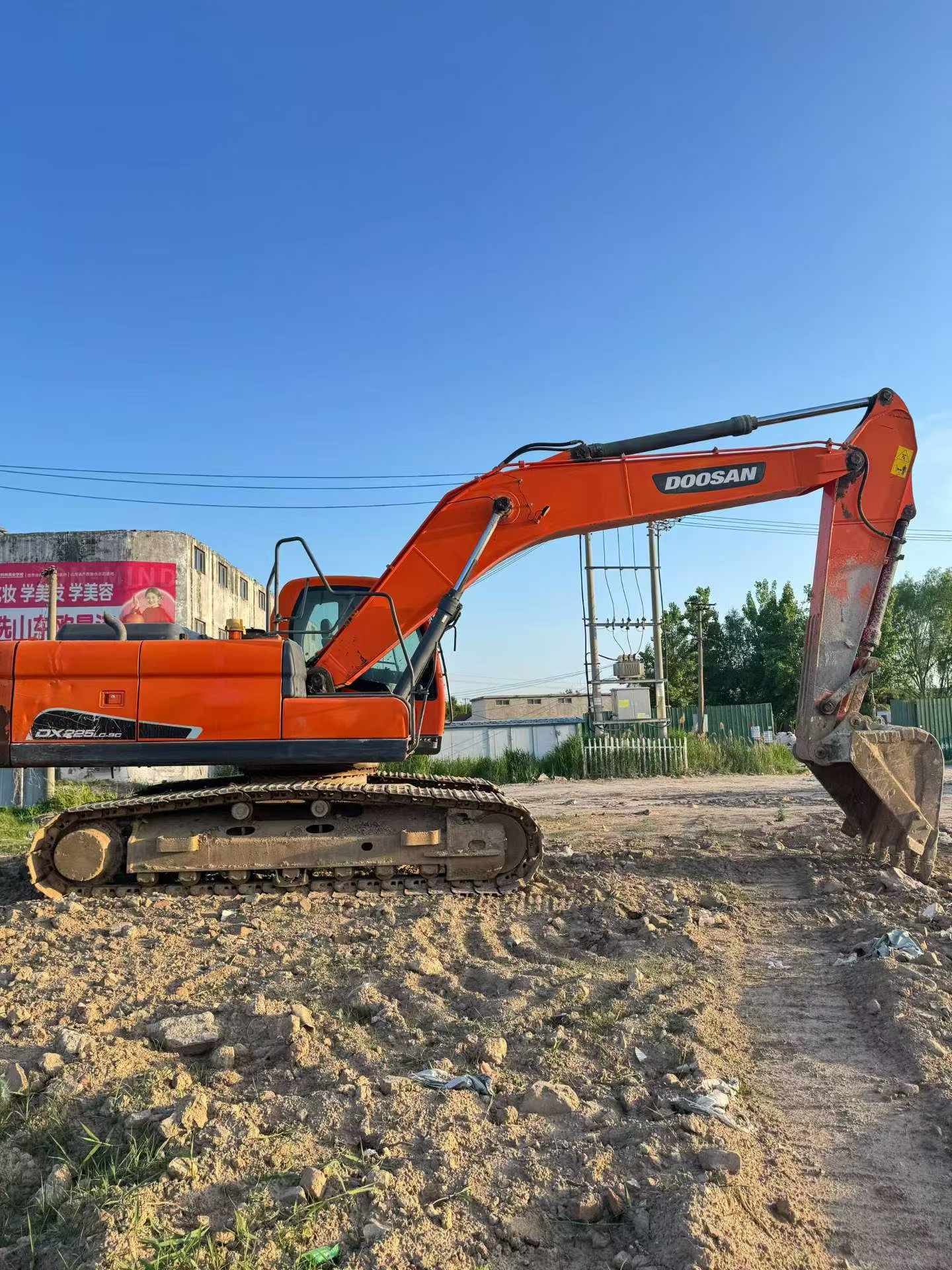

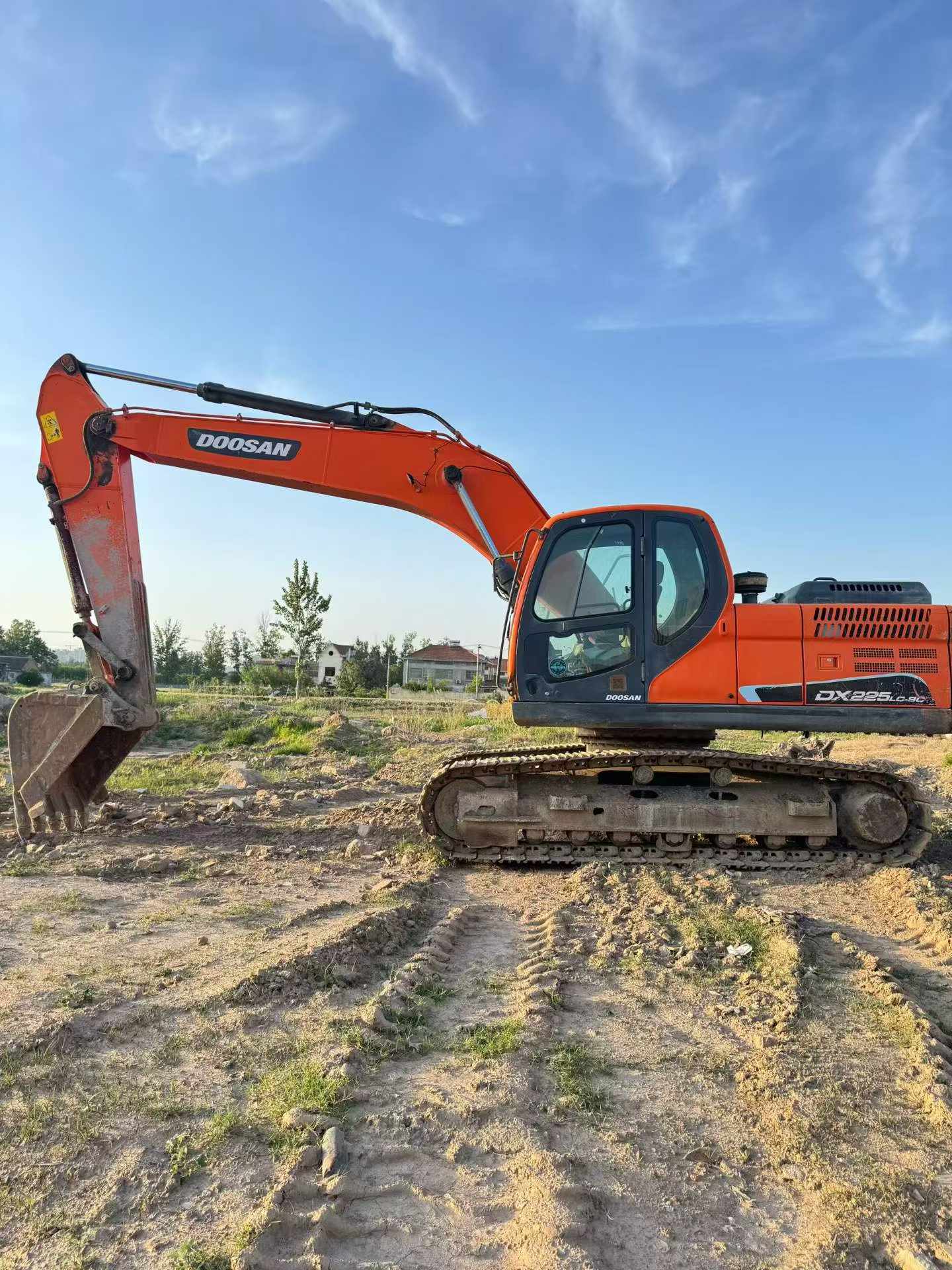

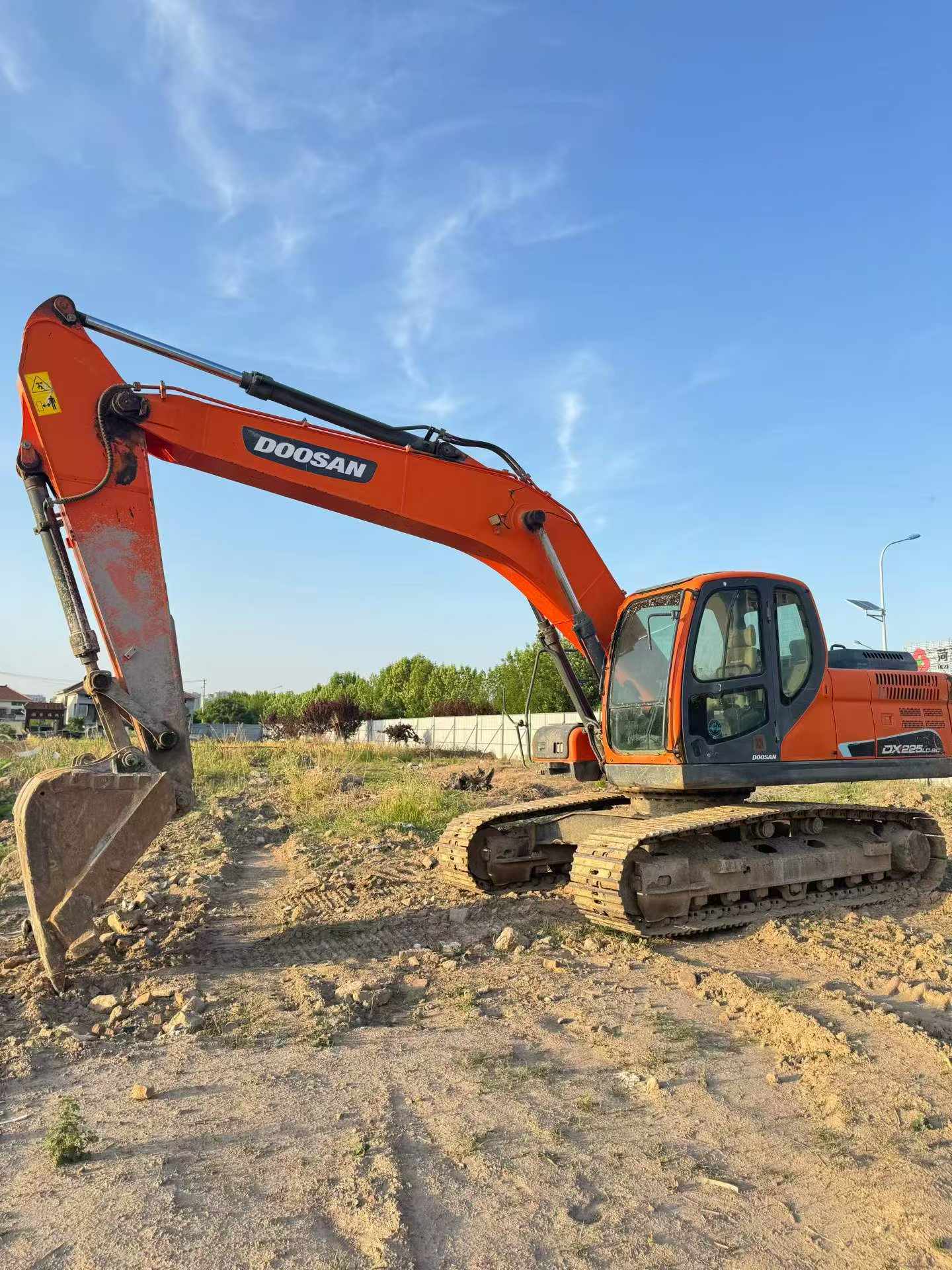

Built for serious earthmoving, the Doosan DX215-9C is a 21-ton excavator that holds its value precisely because Doosan's global parts network makes downtime a manageable risk, not a project-killer. This 2018 machine, currently located in Shandong, China, runs on the proven DL06 six-cylinder engine producing 115 kW at 1,900 rpm — a powertrain with a long service history and readily available components across Asia and beyond.
Backed by joint-venture manufacturing standards, Doosan excavators consistently rank among the easier used machines to source parts for, which directly supports resale value when it's time to move the asset on. The DX215-9C's variable piston pump system and 34.3 MPa working hydraulic circuit deliver reliable digging performance without exotic components that complicate maintenance.
- Bucket digging force: 136.2 kN / Rod digging force: 98 kN
- Maximum digging depth: 6,592 mm / Maximum digging radius: 9,873 mm
- Boom length: 5,700 mm / Rod length: 2,900 mm / Bucket capacity: 0.92 m³
- Travel speed: 5.3 / 2.9 km/h / Ground pressure: 45.8 kPa
- Fuel tank: 400 L / Hydraulic tank: 195 L
- Transport dimensions: 9,506 × 2,800 × 2,891 mm
| Specifications | Value |
|---|---|
| No. | 1058180 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |

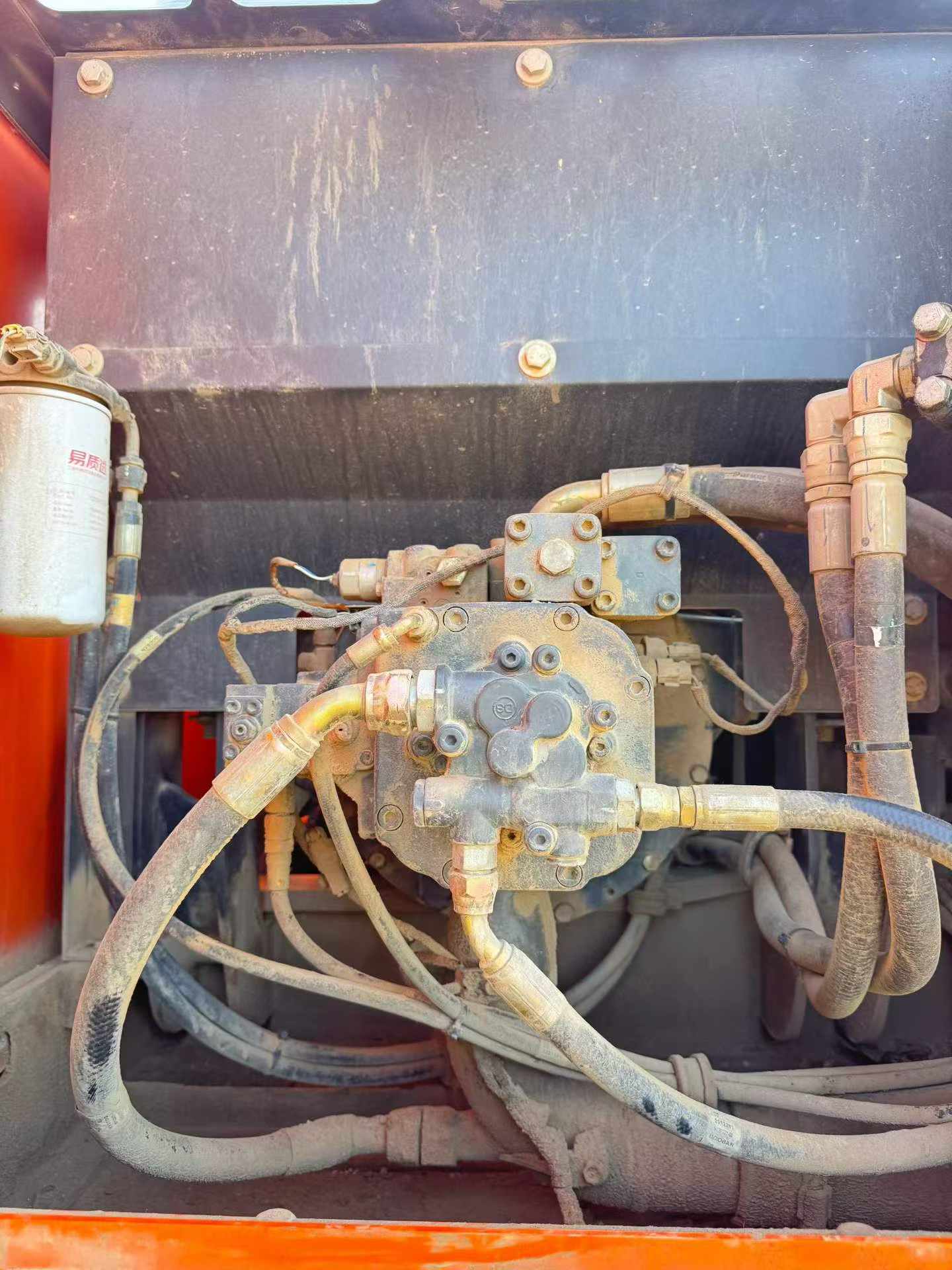

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |

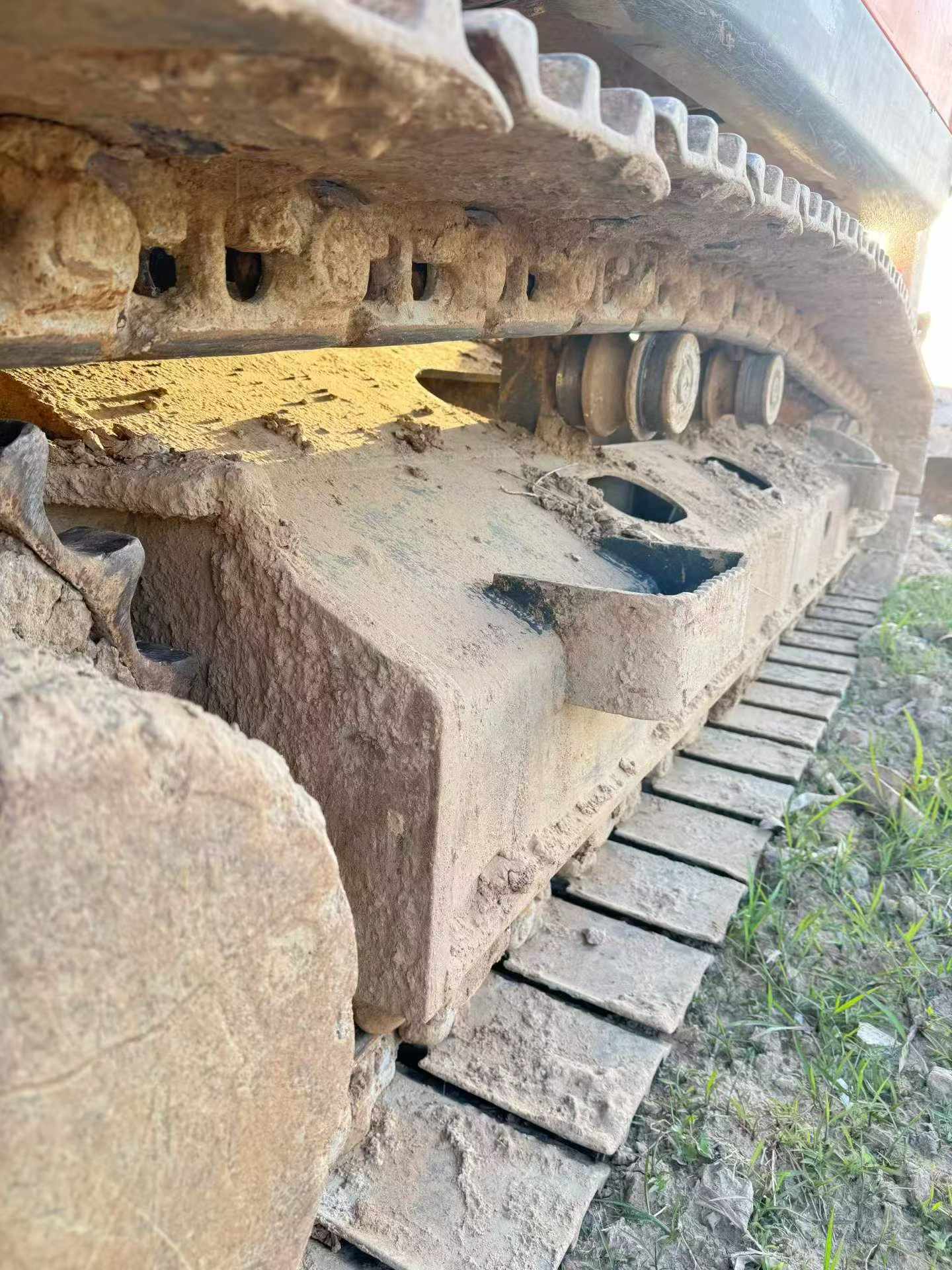

| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
