Product Description

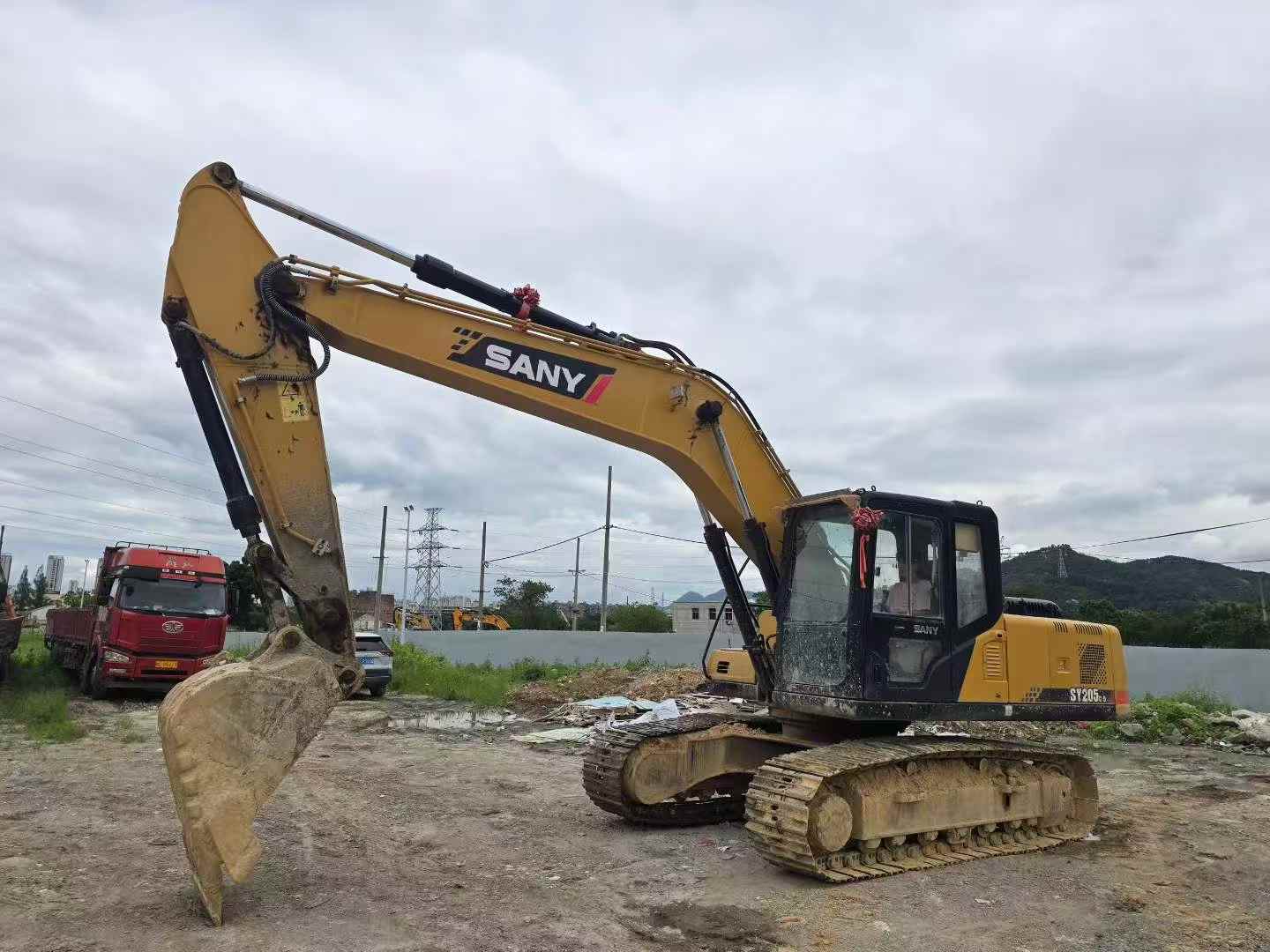

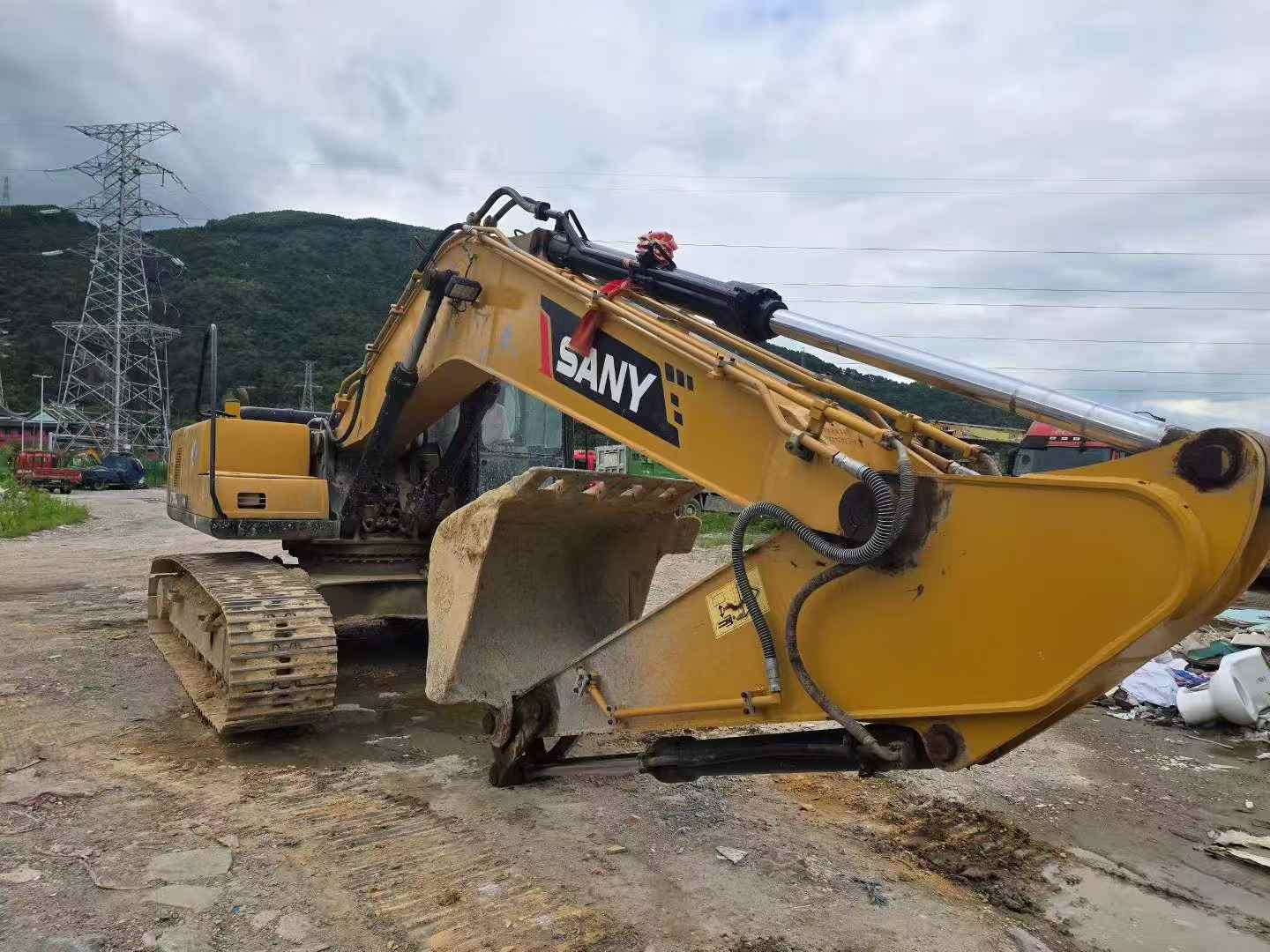

Discover the 2015 Sany SY205C-8, a robust and reliable excavator currently available in Zhejiang, China. This machine is equipped with one of the last batches of the direct injection Mitsubishi engine, known for its durability and efficiency. Designed primarily for earthmoving tasks, it offers performance that speaks for itself. All electrical components are in excellent working condition, ensuring seamless operation. The undercarriage is in near-mint condition, rated at 99 new, making this a highly desirable choice for any construction or excavation project. Don't miss out on this well-maintained and efficient piece of equipment.
- Year: 2015
- Brand: Sany
- Model: SY205C-8
- Location: Zhejiang, China

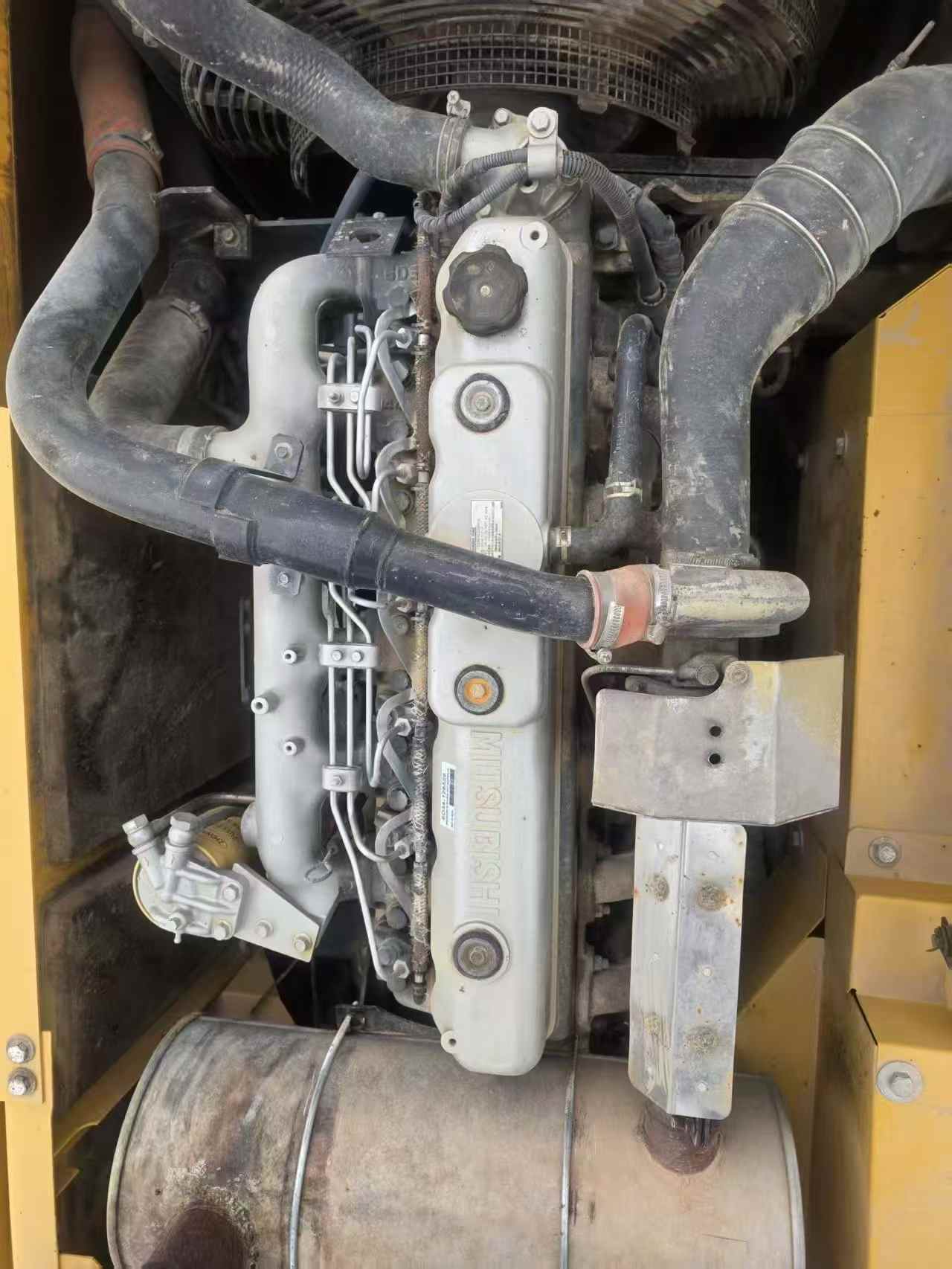

- Engine: Direct injection Mitsubishi
- Condition: Excellent, all electricals functional, undercarriage 99 new
| Specifications | Value |
|---|---|
| No. | 1130319 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
