2014 Doosan DX260LC

1/6

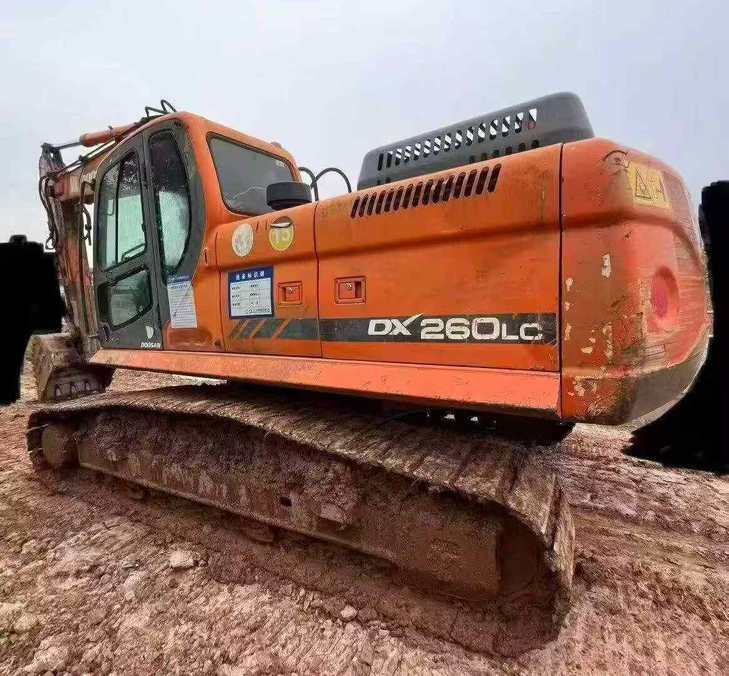

Buy Doosan DX260LC Used Excavator / 1
Buy Doosan DX260LC Used Excavator / 2
Buy Doosan DX260LC Used Excavator / 3
Buy Doosan DX260LC Used Excavator / 4
Buy Doosan DX260LC Used Excavator / 5
Buy Doosan DX260LC Used Excavator / 6

Product Description

This 2014 Doosan DX260LC hydraulic excavator is currently available from Sichuan, China. The DX260LC is a reliable 26-ton class crawler excavator designed for general earthmoving, excavation, and construction applications. Doosan's DX-LC series is known for its extended reach capability and fuel efficiency in medium to heavy-duty operations.

Key features of the DX260LC include:

  • 26-ton operating weight class suitable for medium-scale projects
  • Hydraulic system optimized for combined operations
  • Spacious cab with ergonomic controls
  • Durable undercarriage designed for extended service life
  • Low fuel consumption relative to output

This unit has been operating in the Chinese market and shows typical wear consistent with its age and usage. Prospective buyers should arrange inspection to verify current mechanical condition and serviceability. Competitive pricing reflects its status as a used machine ready for continued productive work.

SpecificationsValue
No.1145543
Tonnage (tons)25
Working weight (kg)24800
Bucket capacity (m³)1.2
Boom length (mm)5900
Rod length (mm)3000/2500/3500
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DE08TIS
Rated power (kw/rpm)180 / 1900
Maximum torque (N.m)78/1400
Number of cylinders (PCS)6
Working form4-stroke, water-cooled, direct spray
Ground specific pressure (Kpa)46.1
Rotation speed (rpm)10
Climbing ability (%)35
Bucket digging force (kN)172.6 / 182.4
Rod digging force (kN)114.7 / 121.6
Travel speed (km/h)5.2 / 3.1
Turning torque (Nm)78
Maximum flow of main pump (l/min)2 x 219
Traveling Hydraulic Circuit (Mpa)32.4
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)32.4
Fuel Tank (L)450
Hydraulic Tank (L)240
Total transport length (mm)10055
Total transport width (mm)3200
Total transport height (mm)3100
Full cab height (mm)2970(to top of cab)
Counterweight ground clearance (mm)1110
Minimum ground clearance (mm)450
Back end turning radius (mm)2995
Total track length (mm)4625
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Track ground length (mm)3835
Maximum digging radius (mm)10207
Maximum digging depth (mm)6826
Maximum excavation height (mm)9820
Maximum unloading height (mm)6925
Maximum vertical digging depth (mm)6258
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1145543

Brand Name:

Doosan

Model Number:

DX260LC

Year:

2014

Location:

Sichuan China

Pub Date
