2020 Doosan DX260LC

1/8
Buy Doosan DX260LC Used Excavator / 1
Buy Doosan DX260LC Used Excavator / 2
Buy Doosan DX260LC Used Excavator / 3
Buy Doosan DX260LC Used Excavator / 4

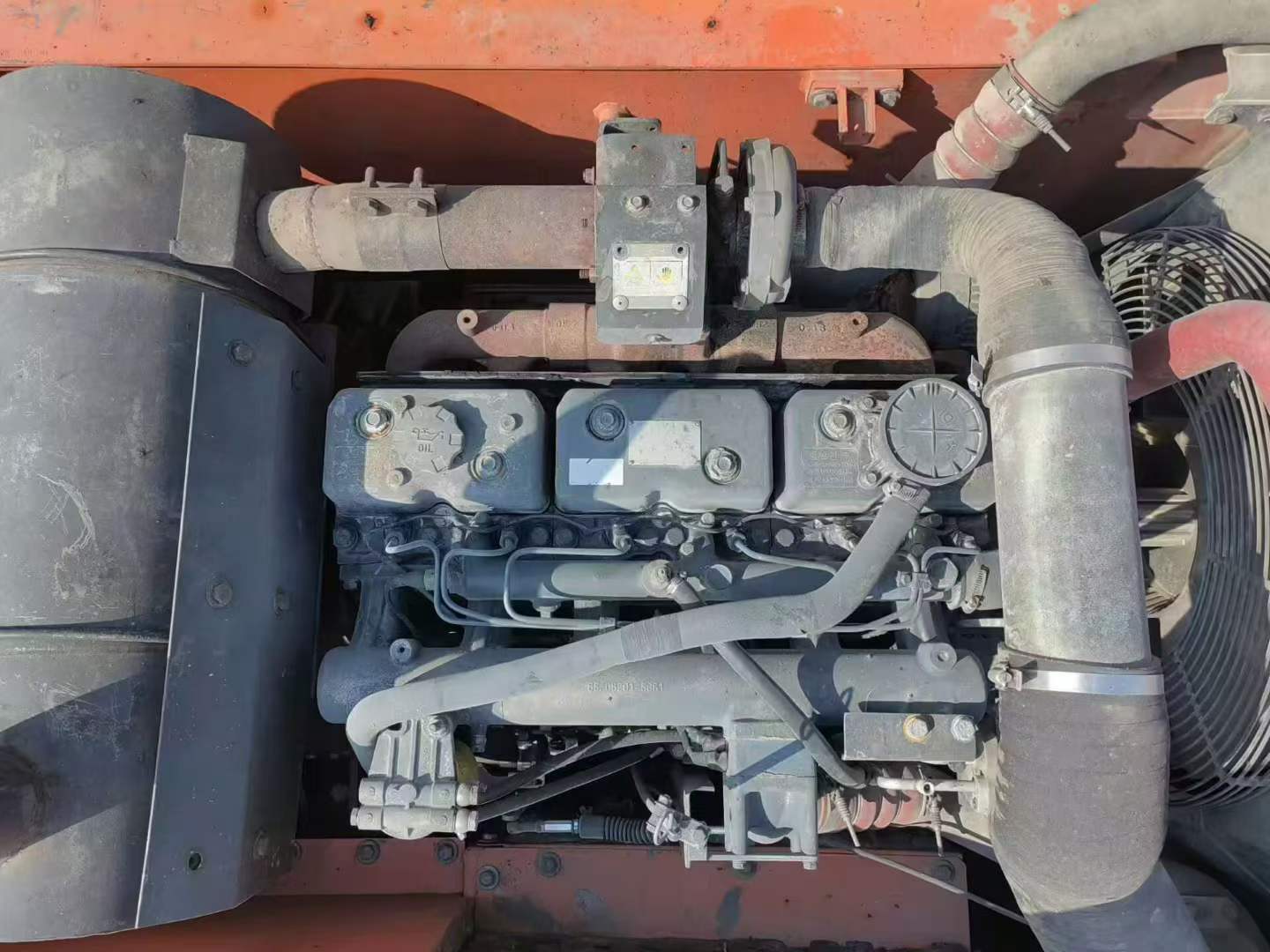

Buy Doosan DX260LC Used Excavator / 5

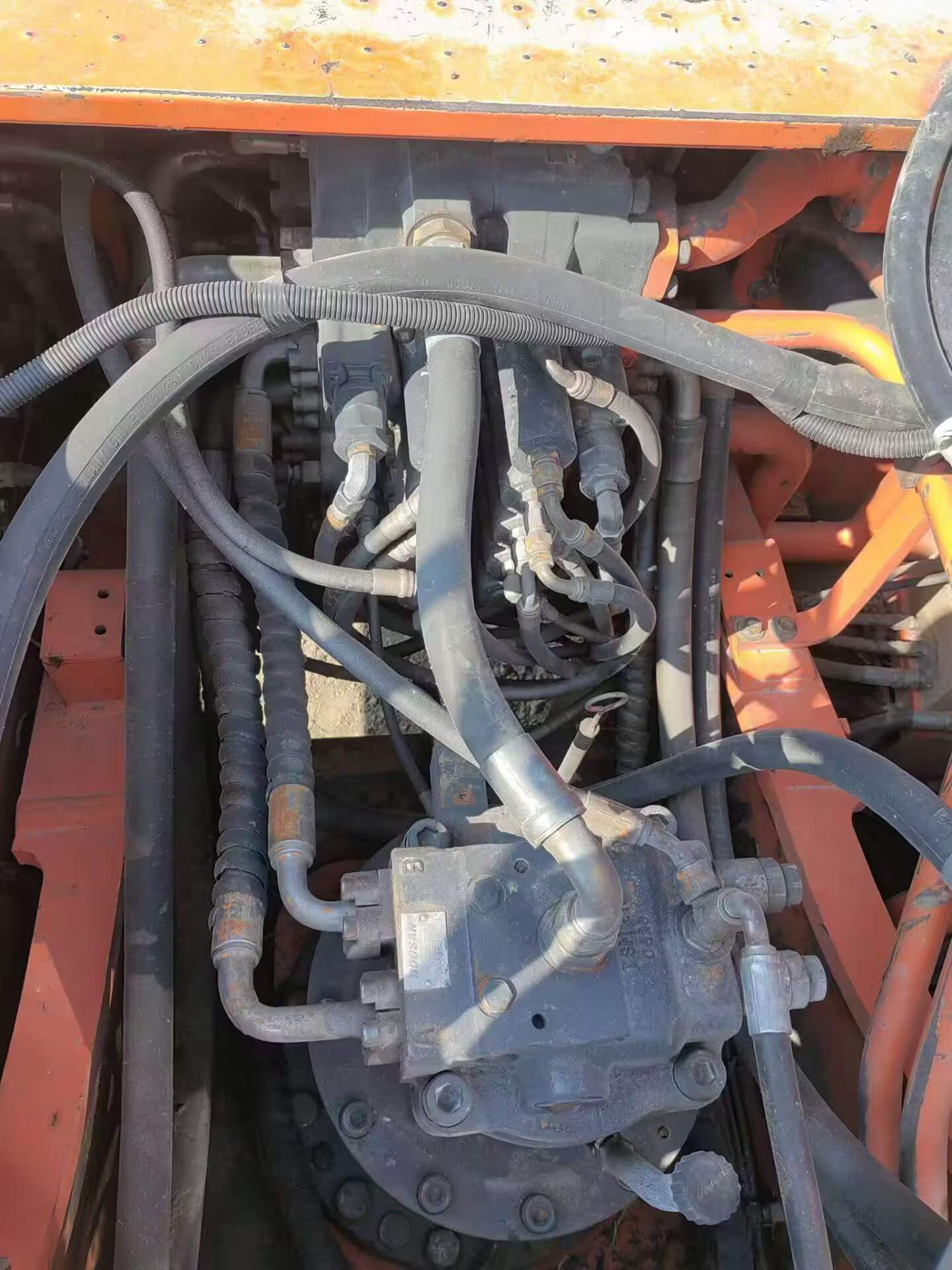

Buy Doosan DX260LC Used Excavator / 6

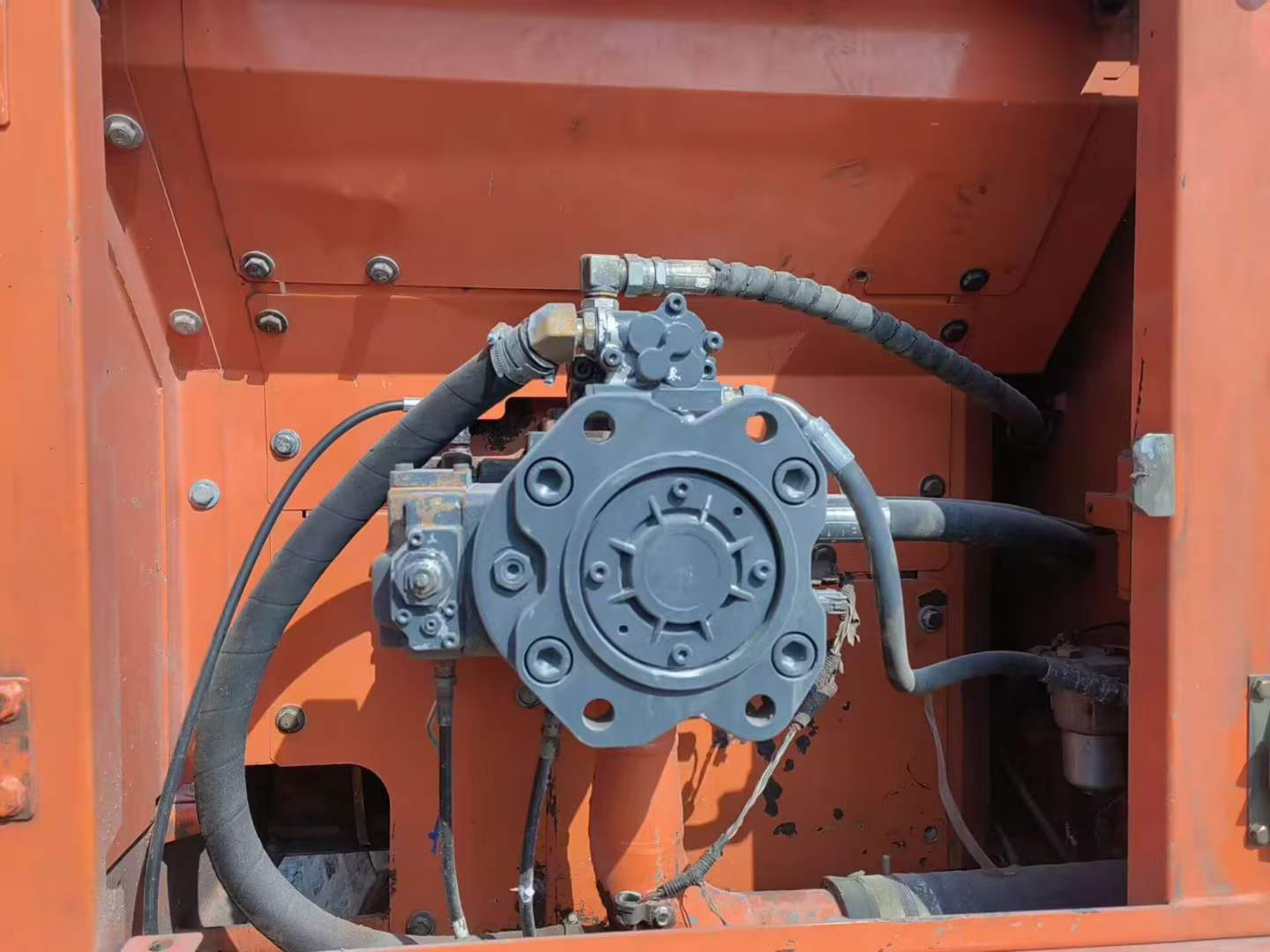

Buy Doosan DX260LC Used Excavator / 7

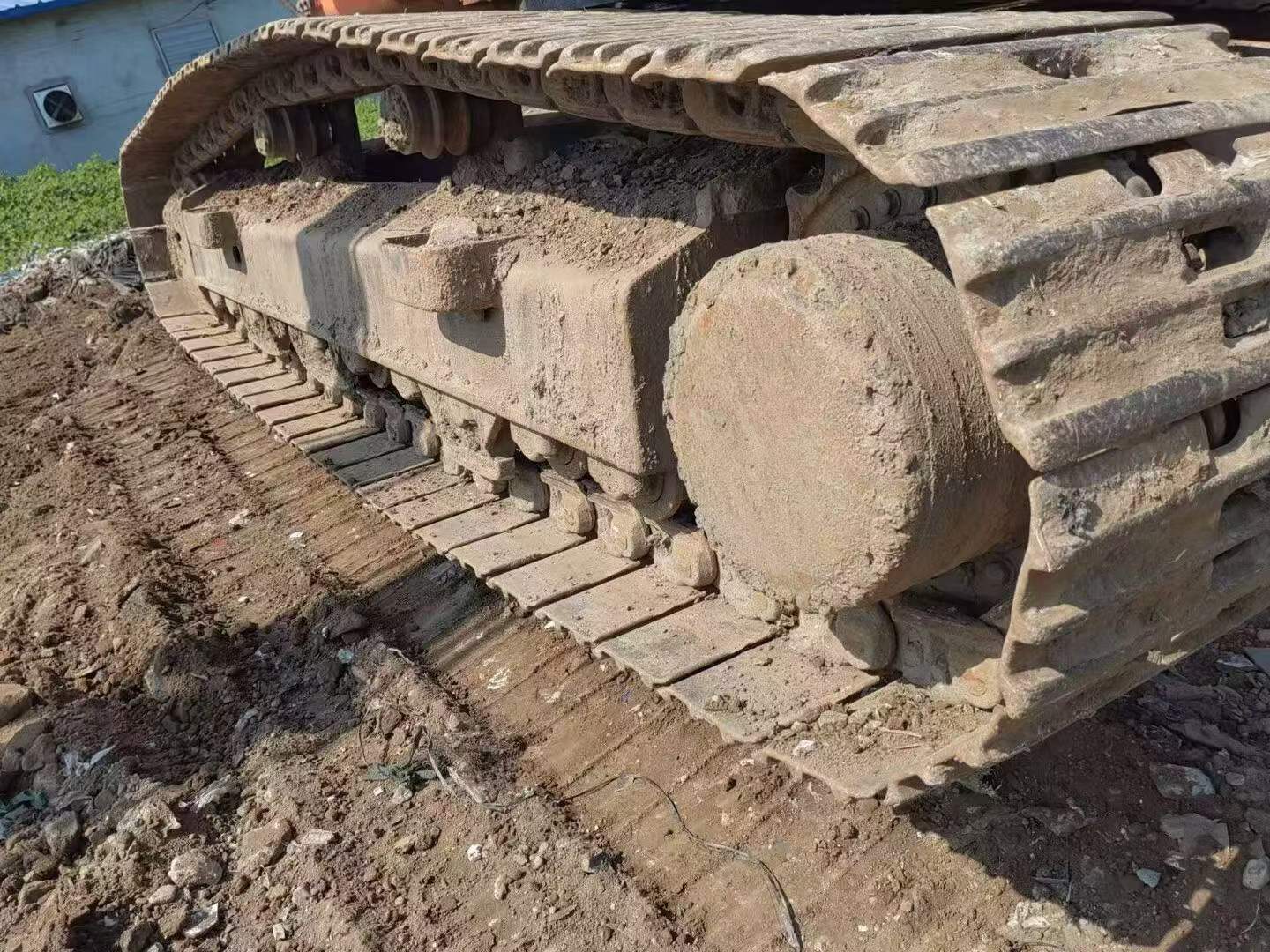

Buy Doosan DX260LC Used Excavator / 8

Product Description

This 2020 Doosan DX260LC excavator, currently located in Hebei, China, represents a well-maintained addition to any earthmoving fleet. With approximately 3-4 years of operational history, this 26-ton class hydraulic excavator demonstrates excellent working condition throughout its critical systems.

Notable highlights include:

  • Original boom cylinder seals remain intact and unserviced, indicating minimal wear
  • Clean maintenance history with proper care evident across major components
  • Doosan's proven DL06 engine platform delivering reliable performance
  • Standard long-carriage configuration for enhanced stability
  • Competitive pricing at $122,000 USD for immediate deployment

The DX260LC is well-suited for general excavation, trenching, and material handling applications. This unit's condition suggests conscientious operation and routine servicing, making it an attractive option for contractors seeking dependable used equipment without the premium of new machinery.

SpecificationsValue
No.1095691
Tonnage (tons)25
Working weight (kg)24800
Bucket capacity (m³)1.2
Boom length (mm)5900
Rod length (mm)3000/2500/3500
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DE08TIS
Rated power (kw/rpm)180 / 1900
Maximum torque (N.m)78/1400
Number of cylinders (PCS)6
Working form4-stroke, water-cooled, direct spray
Ground specific pressure (Kpa)46.1
Rotation speed (rpm)10
Climbing ability (%)35
Bucket digging force (kN)172.6 / 182.4
Rod digging force (kN)114.7 / 121.6
Travel speed (km/h)5.2 / 3.1
Turning torque (Nm)78
Maximum flow of main pump (l/min)2 x 219
Traveling Hydraulic Circuit (Mpa)32.4
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)32.4
Fuel Tank (L)450
Hydraulic Tank (L)240
Total transport length (mm)10055
Total transport width (mm)3200
Total transport height (mm)3100
Full cab height (mm)2970(to top of cab)
Counterweight ground clearance (mm)1110
Minimum ground clearance (mm)450
Back end turning radius (mm)2995
Total track length (mm)4625
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Track ground length (mm)3835
Maximum digging radius (mm)10207
Maximum digging depth (mm)6826
Maximum excavation height (mm)9820
Maximum unloading height (mm)6925
Maximum vertical digging depth (mm)6258
Bulldozer lift or depth (mm)There is no
