Product Description

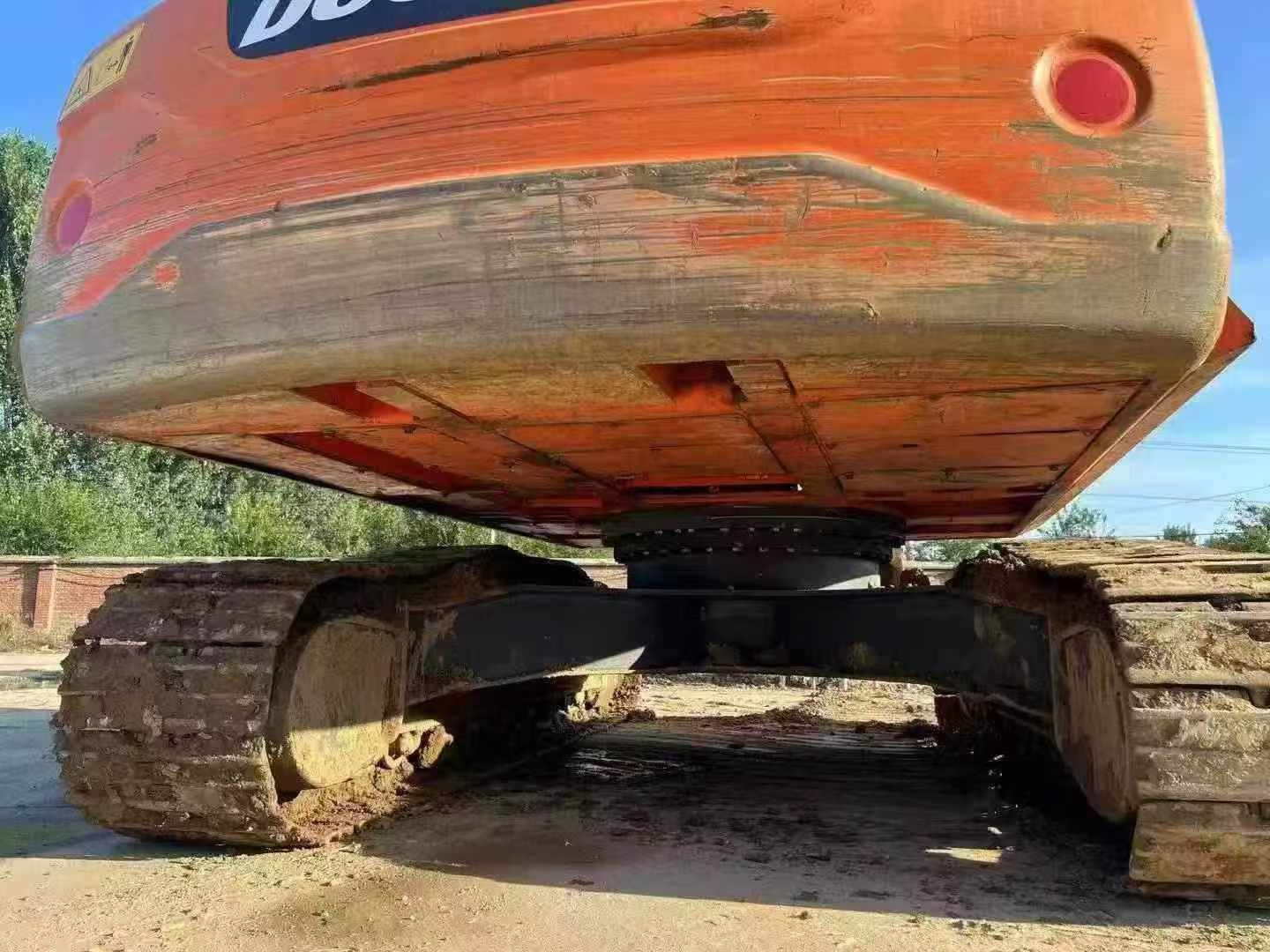

Discover the reliability and robust performance of the 2020 Doosan DX260LC, now available in Hebei, China. This used excavator is in excellent condition, with a solid, stable undercarriage designed for demanding work environments. The machine's key components are in top-notch condition, ensuring no leaks and smooth operation. Simplified electrical systems minimize downtime and make maintenance straightforward, enhancing overall productivity. Ideal for construction, mining, and infrastructure projects, the DX260LC delivers powerful digging and lifting capabilities, making it a valuable addition to any fleet.
- Year: 2020
- Brand: Doosan
- Model: DX260LC
- Location: Hebei, China
- Key features: Leak-free components, sturdy undercarriage, easy maintenance
| Specifications | Value |
|---|---|
| No. | 1165720 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |

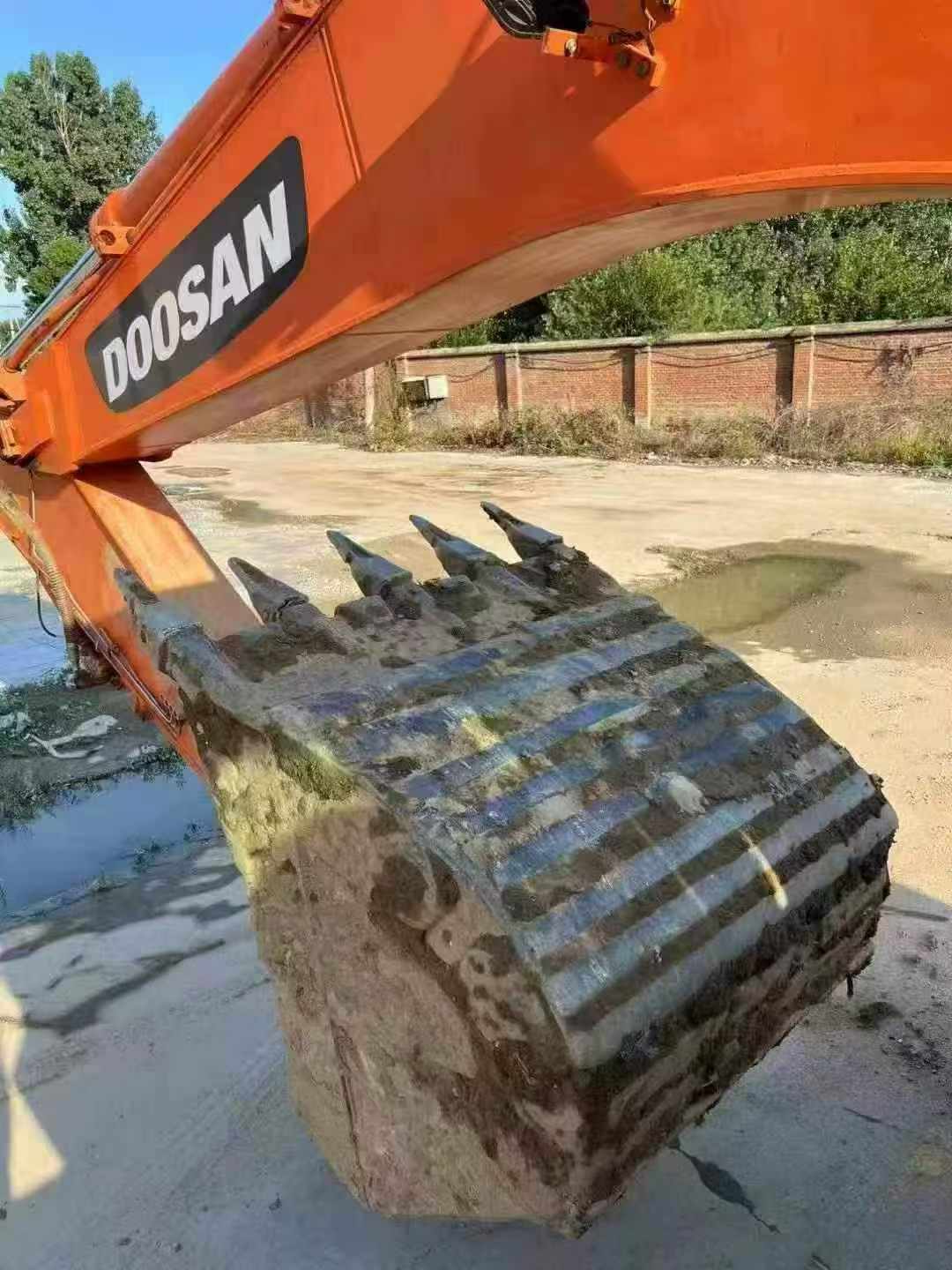

| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

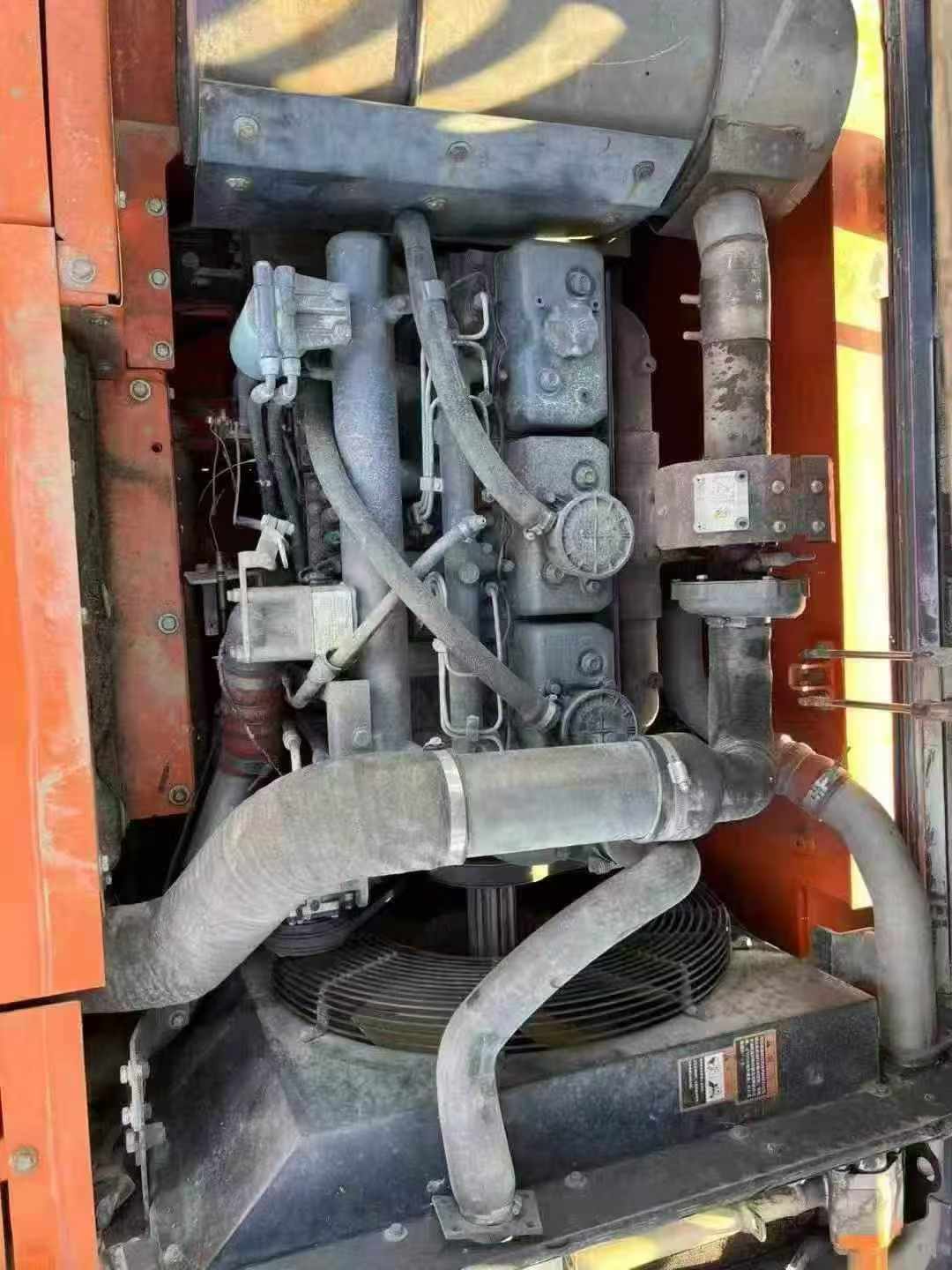

| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

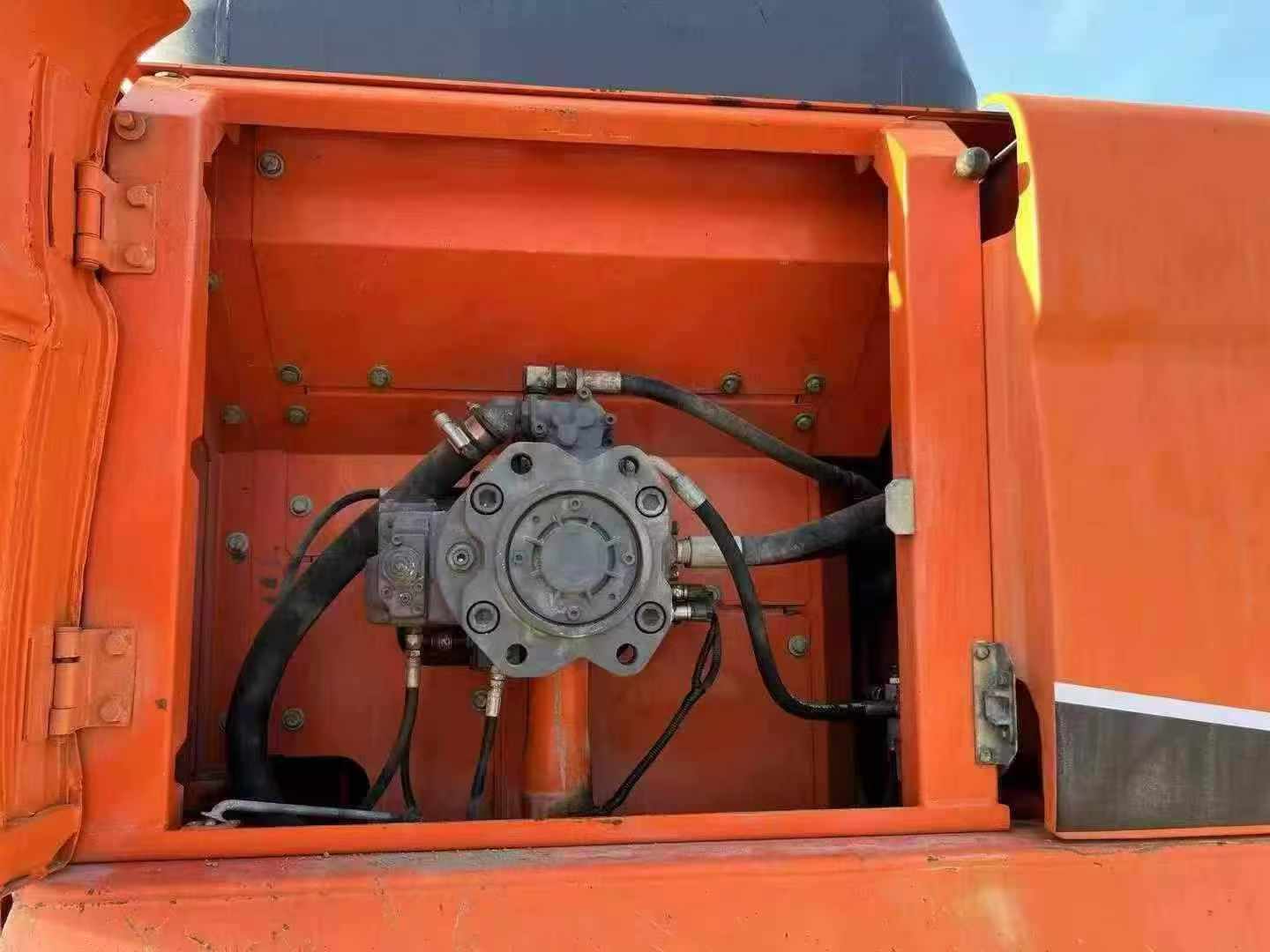

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
