Product Description

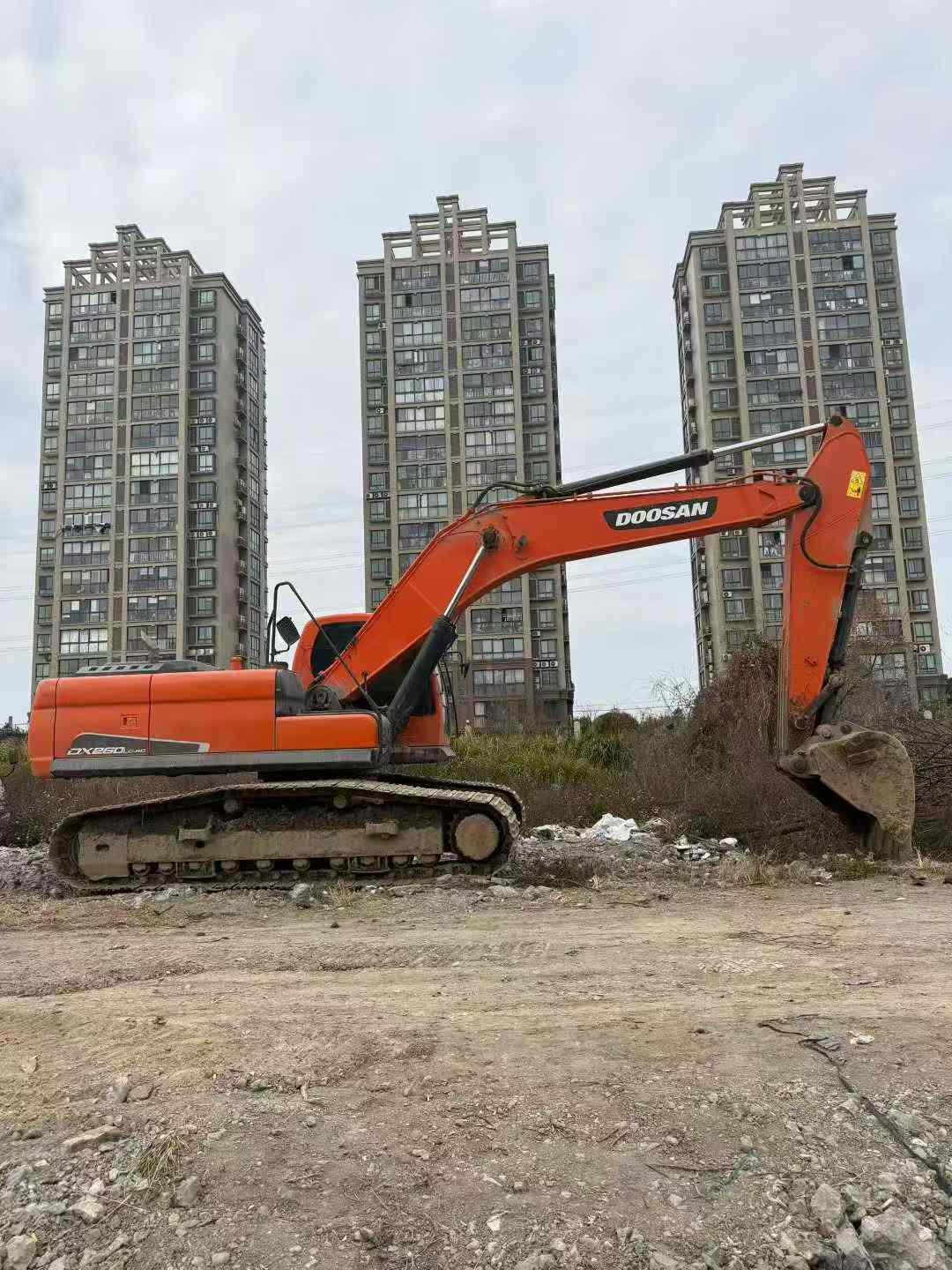

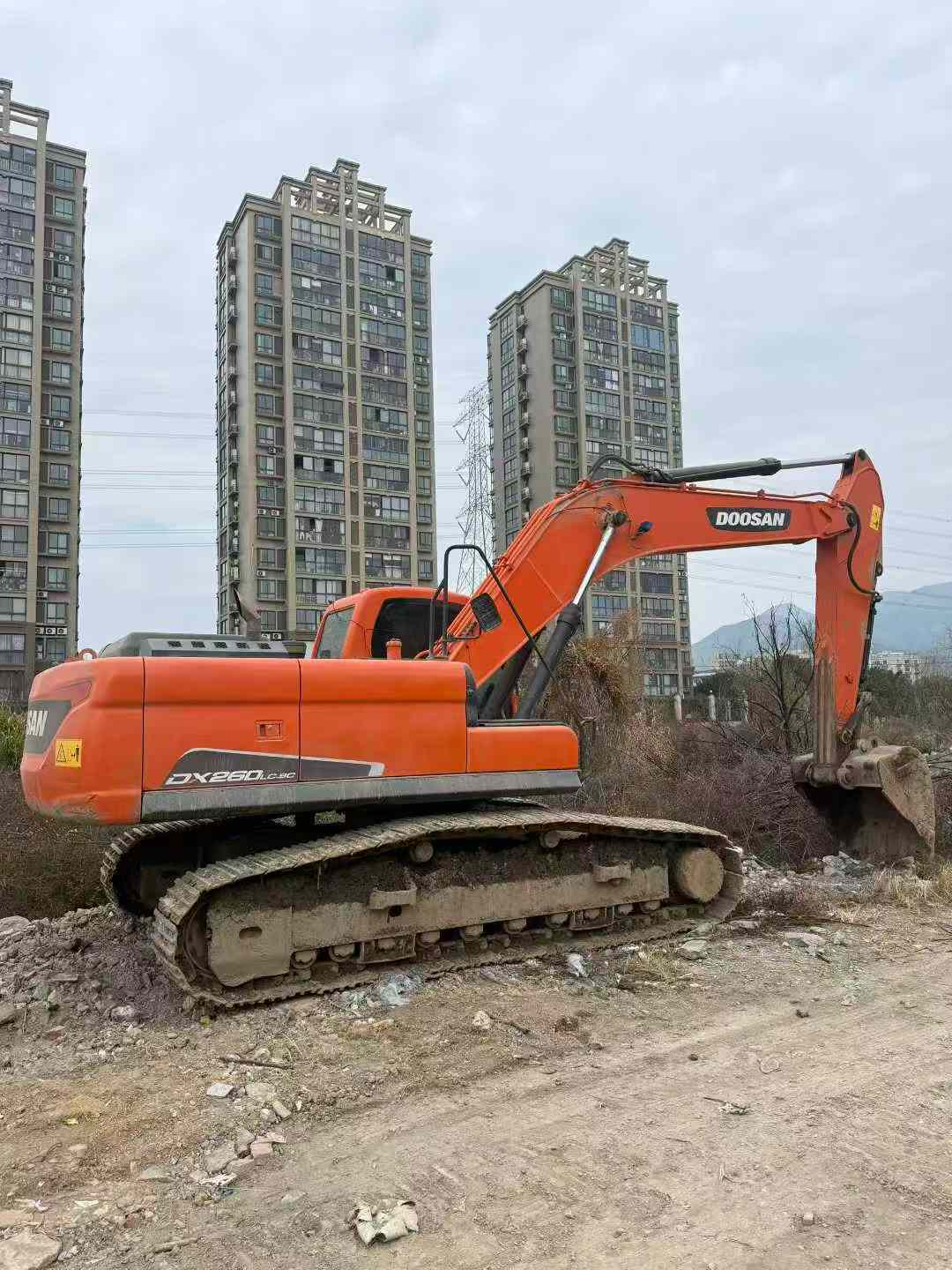

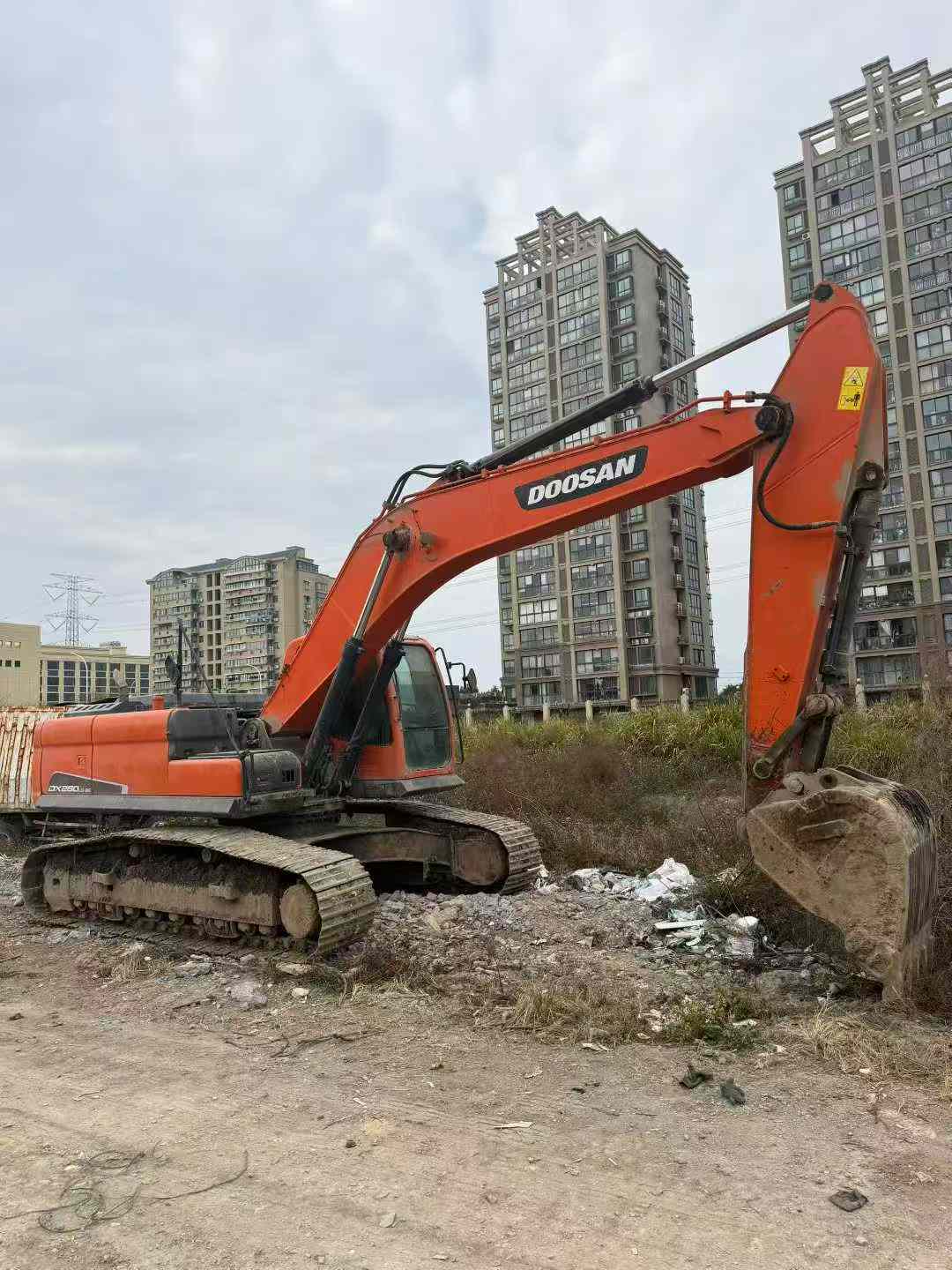

Built for precision and productivity, this 2018 Doosan DX260LC-9C delivers commanding performance across demanding job sites. Operating at 26 tons with a powerful 140 kW engine, this crawler excavator combines impressive reach with exceptional operator control. Currently located in Zhejiang, this machine features a 1.4 m³ backhoe bucket, 5,900 mm boom, and 3,000 mm arm configuration for versatile digging applications.
Operator-focused engineering ensures superior handling throughout extended shifts. Enhanced cabin visibility from the 845 mm cab height provides clear sightlines to all working zones, while the orthostitial working form delivers stable operation during high-precision tasks. Smooth 10.0 rpm rotation speed and responsive hydraulic flow of 2×219 l/min enable confident maneuvering in confined spaces.
- Maximum digging reach: 10,175 mm with 6,810 mm depth capability
- Robust digging forces: 166.6 kN bucket, 114.7 kN stick
- Stable platform: 3,200 mm track width, 2,995 mm rear swing radius
- Efficient fuel capacity: 410 L tank supports extended operation
- Joint venture/import quality with proven DL06A-C3 engine reliability
| Specifications | Value |
|---|---|
| No. | 1023811 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25060 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

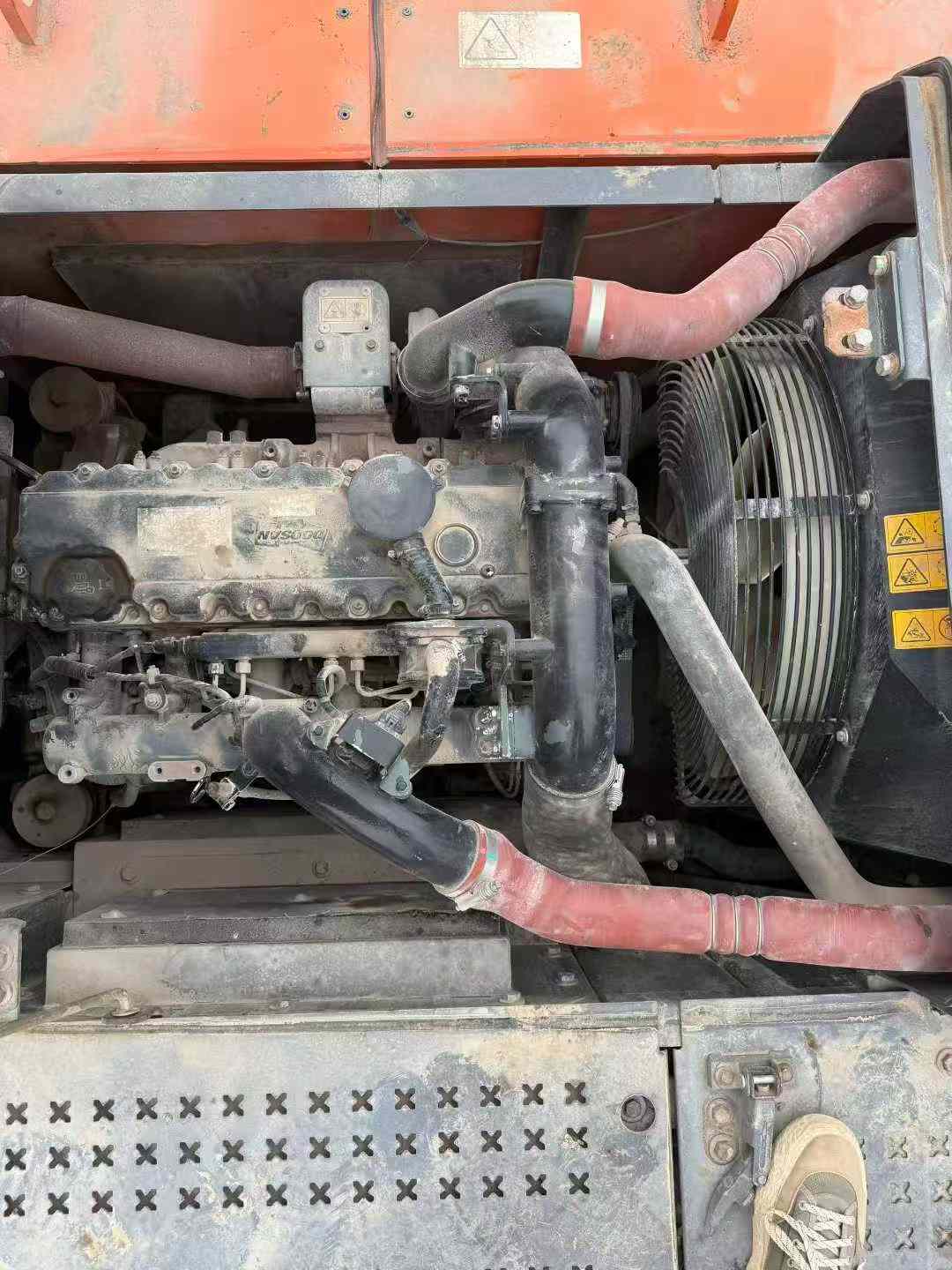

| Engine type | DL06A-C3 |
| Rated power (kw/rpm) | 140 / 2200 |
| Cylinder diameter × stroke (mm) | 100 *125 |
| Number of cylinders (PCS) | 6 |
| Working form | orthostitial |
| Rotation speed (rpm) | 10.0 |
| Bucket digging force (kN) | 166.6 |
| Rod digging force (kN) | 114.7 |
| Travel speed (km/h) | 5.8 / 3.4 |
| Turning torque (Nm) | 8140 |

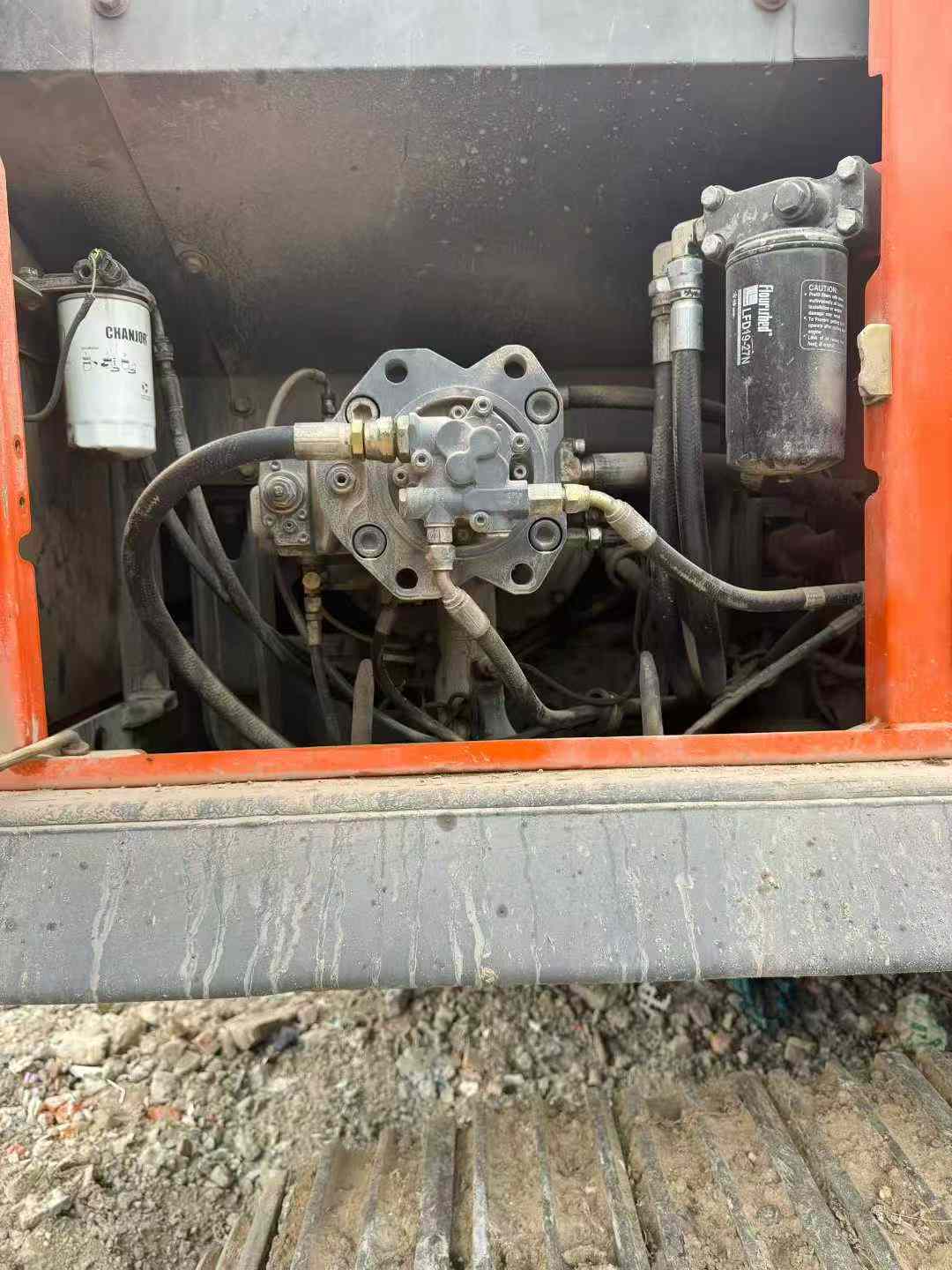

| Maximum flow of main pump (l/min) | 2 x 219 |
| Fuel Tank (L) | 410 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 10,055 |
| Total transport width (mm) | 3,200 |
| Total transport height (mm) | 2,960 |
| Full cab height (mm) | 845 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2,995 |
| Onboard width (mm) | 1,010 |

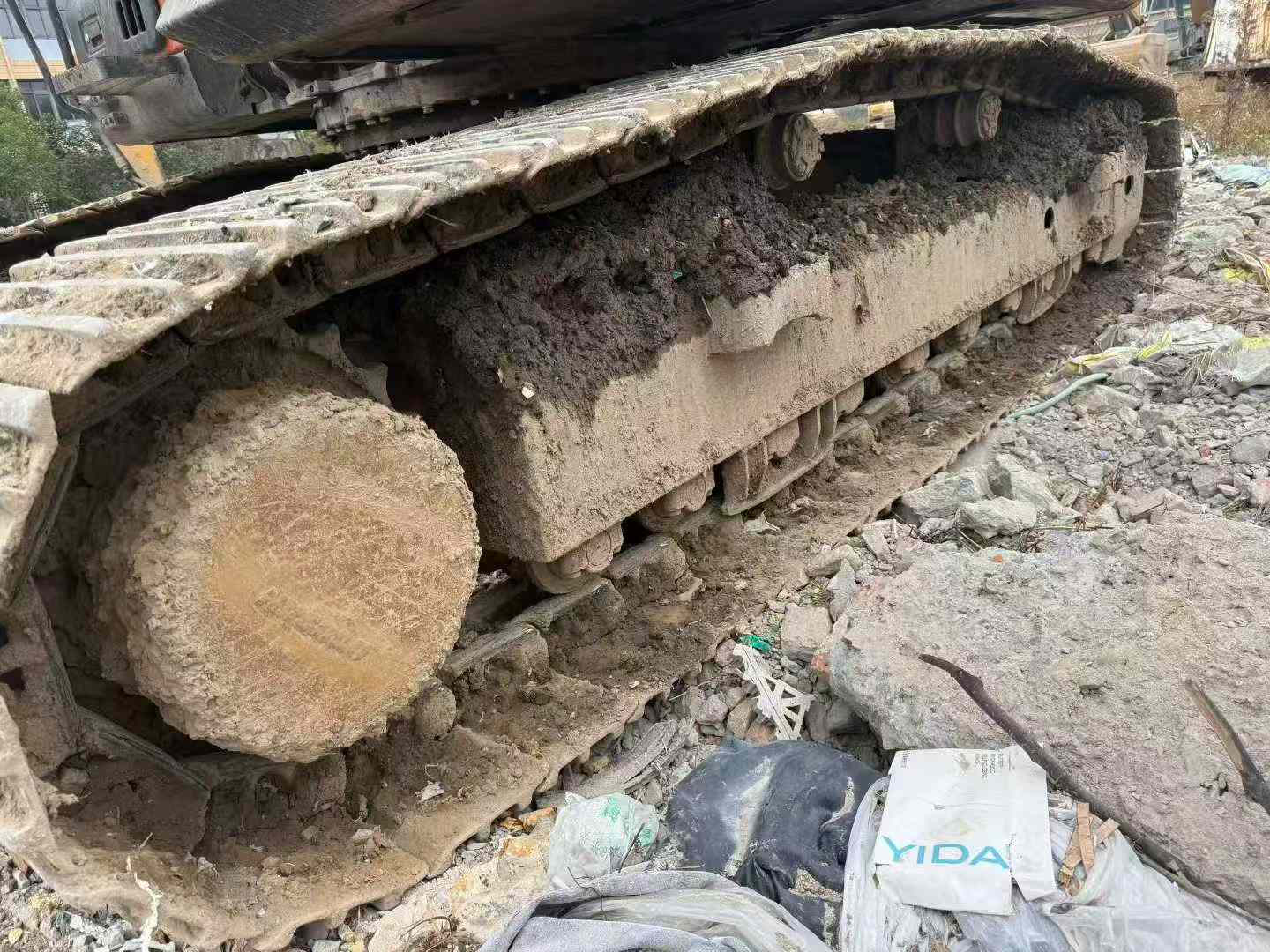

| Total track length (mm) | 4,625 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10175 |
| Maximum digging depth (mm) | 6810 |
| Maximum excavation height (mm) | 9,705 |
| Maximum unloading height (mm) | 7024 |
| Maximum vertical digging depth (mm) | 4742 |
| Maximum excavation radius of stop surface (mm) | 10,004 |
| Maximum effective digging depth (mm) | 6810 |
Overview
No.1023811
Brand Name：
DoosanModel Number：
DX260LC-9CYear：
2018
Location：
Zhejiang China
Pub Date：
