Product Description

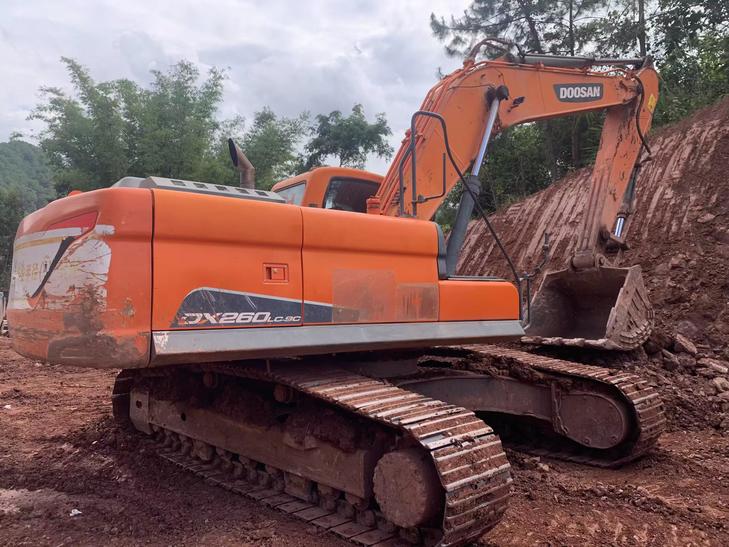

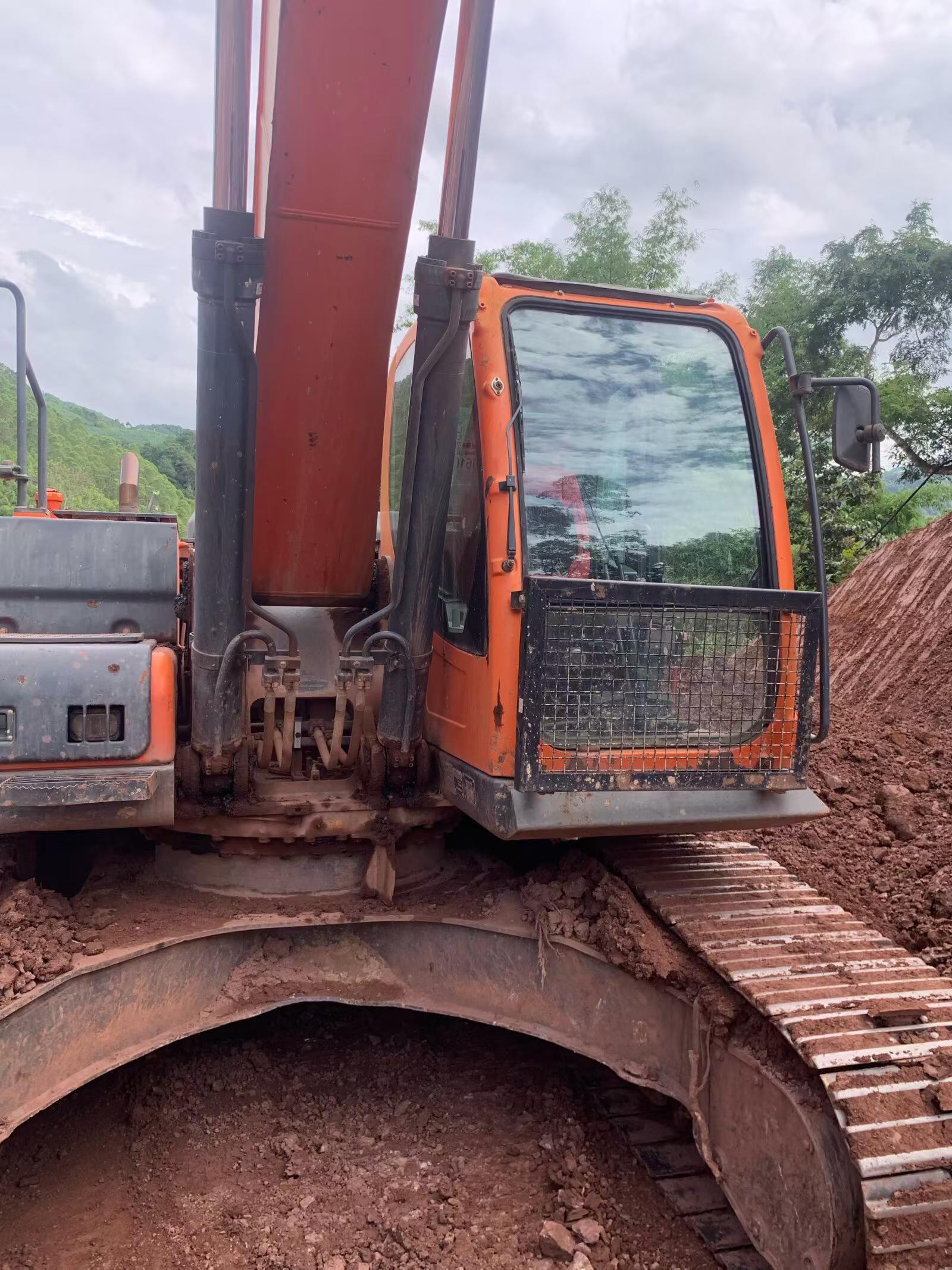

This 2020 Doosan DX260LC-9C crawler excavator represents exceptional value in the 26-ton class. Currently located in Yunnan, China, this machine comes equipped with an 18-meter long reach configuration, making it ideal for deep excavation, slope work, and river dredging applications. The owner confirms on-site availability for inspection.
The DX260LC-9C features Doosan's proven fuel-efficient engine technology, reinforced undercarriage components, and an advanced hydraulic system designed for demanding jobsite conditions. The extended boom assembly provides superior reach and digging depth compared to standard configurations.
- Operating Weight: Approximately 26 tons (long reach configuration)
- Boom Length: 18 meters
- Engine: Doosan DL06P diesel engine
- Hydraulic System: Load-sensing hydraulic pump
- Cab: Pressurized ROPS/FOPS certified operator station
- Undercarriage: Heavy-duty track frame with sealed and lubricated track chains
Machine is available for immediate inspection in Yunnan Province. Suitable for contractors specializing in foundation work, waterway maintenance, and large-scale earthmoving projects.
| Specifications | Value |
|---|---|
| No. | 1166578 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25060 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06A-C3 |
| Rated power (kw/rpm) | 140 / 2200 |
| Cylinder diameter × stroke (mm) | 100 *125 |
| Number of cylinders (PCS) | 6 |
| Working form | orthostitial |
| Rotation speed (rpm) | 10.0 |
| Bucket digging force (kN) | 166.6 |
| Rod digging force (kN) | 114.7 |
| Travel speed (km/h) | 5.8 / 3.4 |
| Turning torque (Nm) | 8140 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Fuel Tank (L) | 410 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 10,055 |
| Total transport width (mm) | 3,200 |
| Total transport height (mm) | 2,960 |
| Full cab height (mm) | 845 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2,995 |
| Onboard width (mm) | 1,010 |
| Total track length (mm) | 4,625 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10175 |
| Maximum digging depth (mm) | 6810 |
| Maximum excavation height (mm) | 9,705 |
| Maximum unloading height (mm) | 7024 |
| Maximum vertical digging depth (mm) | 4742 |
| Maximum excavation radius of stop surface (mm) | 10,004 |
| Maximum effective digging depth (mm) | 6810 |
Overview
No.1166578
Brand Name：
DoosanModel Number：
DX260LC-9CYear：
2020
Location：
Yunnan China
