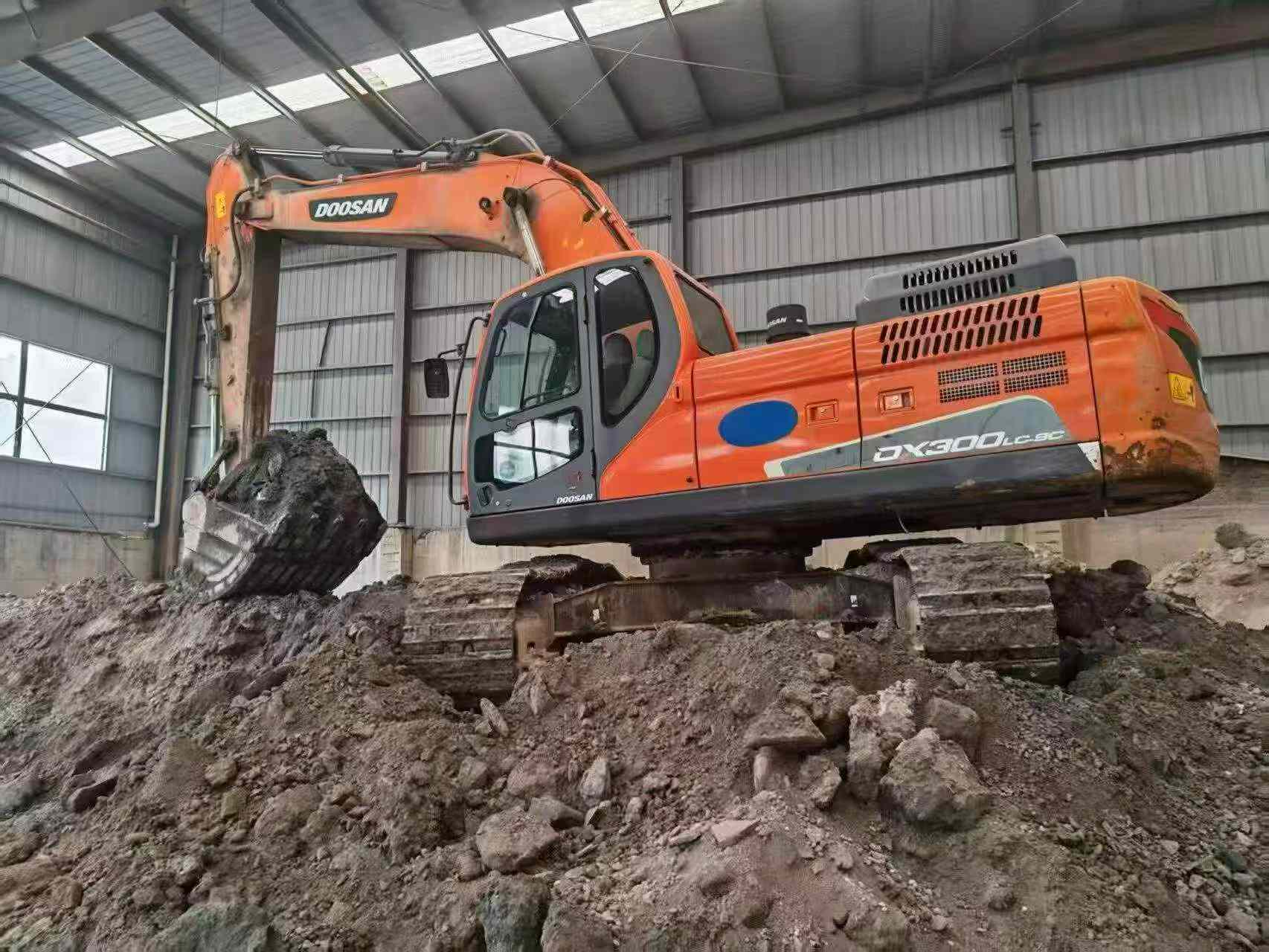

Buying a used 30-ton excavator is a judgment call on the machine's future, not just its past. The 2019 Doosan DX300LC-9C answers that call with brand reliability built into every component. Doosan's joint-venture manufacturing ensures genuine DL08 engine parts are stocked across global distributor networks, keeping downtime short and parts sourcing simple—a decisive advantage when your machine is working on a distant site.
Resale value is where this model earns its keep. The DX300LC-9C holds its price better than most comparably aged excavators, because buyers recognize the platform's proven track record and the ease of finding replacement filters, hydraulic seals, and undercarriage components years down the line. With a 500L fuel tank, 2×248 L/min variable piston pumps, and a 9.4 rpm swing speed, this is a workhorse built for continuous duty.
Key figures that matter on paper:
- Working weight: 30,215 kg
- Bucket capacity: 1.45/1.6 m³
- Max digging depth: 7,275 mm
- Bucket digging force: 183.3 kN
- Engine: Doosan DL08, 159 kW @ 1,900 rpm
Located in Zhejiang, China, ready for inspection and global export. A safe bet that pays off on the job and at resale.
| Specifications | Value |
|---|---|
| No. | 1132121 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30215 |
| Bucket capacity (m³) | 1.45/1.6 |
| Boom length (mm) | 6245 |
| Rod length (mm) | 3100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

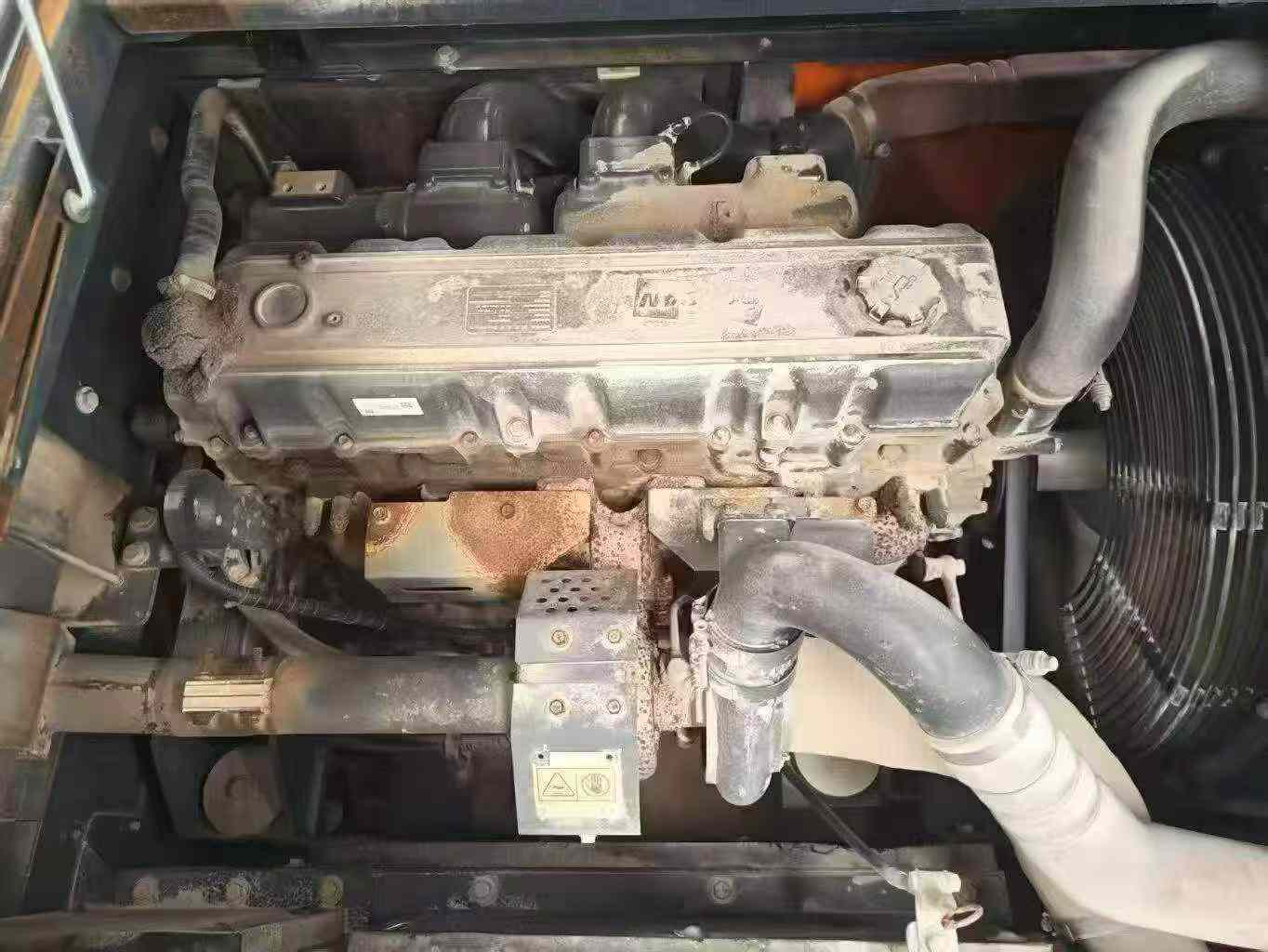

| Engine type | DL08 |
| Rated power (kw/rpm) | 159 / 1,900 |
| Cylinder diameter × stroke (mm) | 108 *309 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 0.57 kg/cm2 |
| Rotation speed (rpm) | 9.4 |
| Bucket digging force (kN) | 183.3 |
| Rod digging force (kN) | 128.4 |
| Travel speed (km/h) | 5.7 / 3.2 |
| Turning torque (Nm) | 11760 |
| Maximum flow of main pump (l/min) | 2*248 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 280 |
| Total transport length (mm) | 10615 |
| Total transport width (mm) | 3199 |
| Total transport height (mm) | 3,515 |
| Counterweight ground clearance (mm) | 1,150 |
| Minimum ground clearance (mm) | 506 |
| Back end turning radius (mm) | 3,188 |
| Total track length (mm) | 4,940 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10702 |
| Maximum digging depth (mm) | 7275 |
| Maximum excavation height (mm) | 10315 |
| Maximum unloading height (mm) | 7303 |
| Maximum vertical digging depth (mm) | 4907 |
| Maximum excavation radius of stop surface (mm) | 10506 |
| Maximum effective digging depth (mm) | 6,455 |
Overview
No.1132121
Brand Name：
DoosanModel Number：
DX300LC-9CYear：
2019
Location：
Zhejiang China
