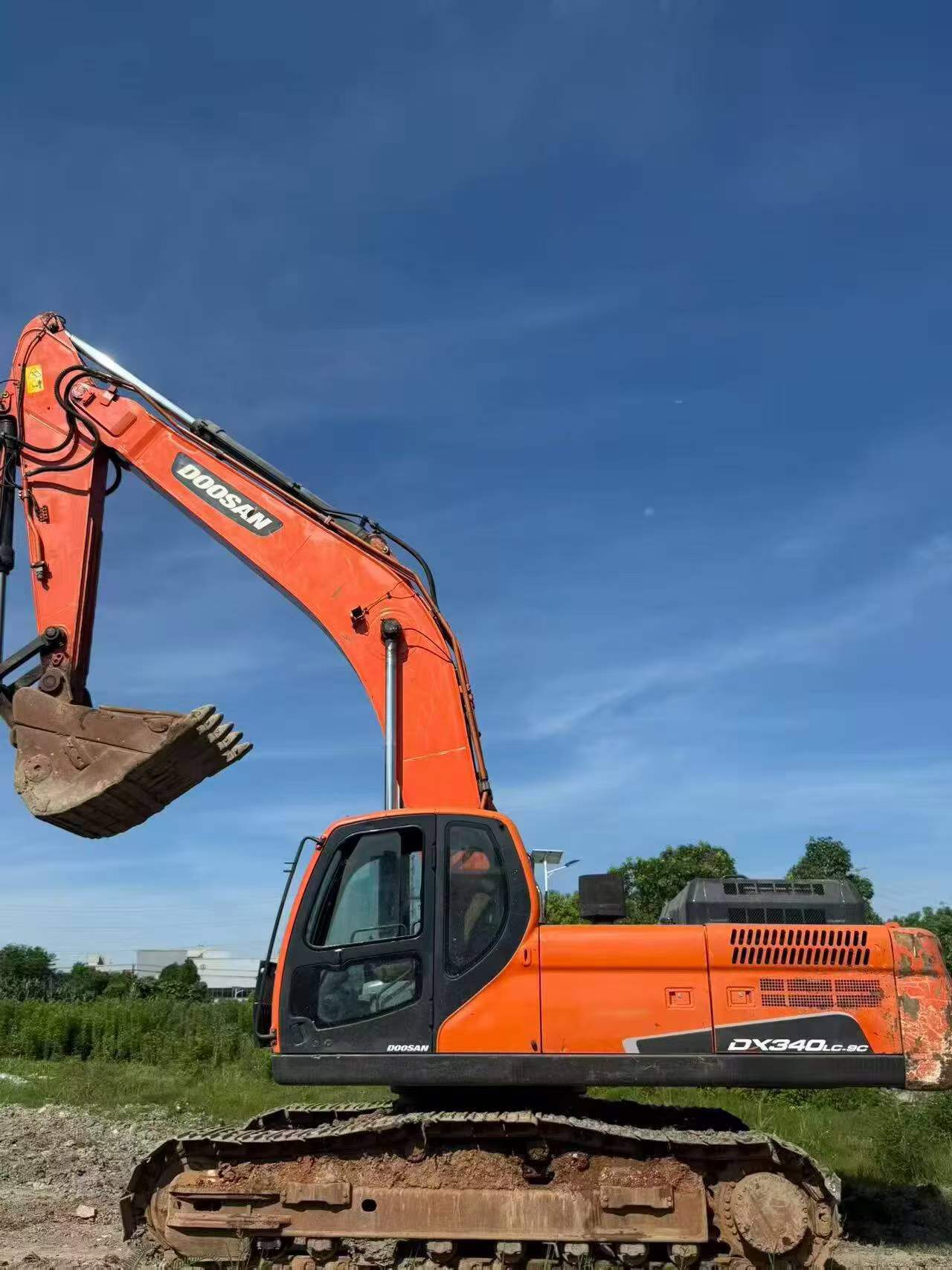

2021 Doosan DX340LC-9C

1/9
Buy Doosan DX340LC-9C Used Excavator / 1
Buy Doosan DX340LC-9C Used Excavator / 2
Buy Doosan DX340LC-9C Used Excavator / 3
Buy Doosan DX340LC-9C Used Excavator / 4
Buy Doosan DX340LC-9C Used Excavator / 5
Buy Doosan DX340LC-9C Used Excavator / 6
Buy Doosan DX340LC-9C Used Excavator / 7
Buy Doosan DX340LC-9C Used Excavator / 8
Buy Doosan DX340LC-9C Used Excavator / 9

Product Description

Built for serious earthmoving, this 2021 Doosan DX340LC-9C delivers 34-ton class performance at a fraction of new-unit cost. Powered by the proven DL08 engine producing 191 kW at 1,800 rpm, it combines raw digging force with hydraulic efficiency — making it a high-return acquisition for contractors who demand productivity without the new-iron price tag.

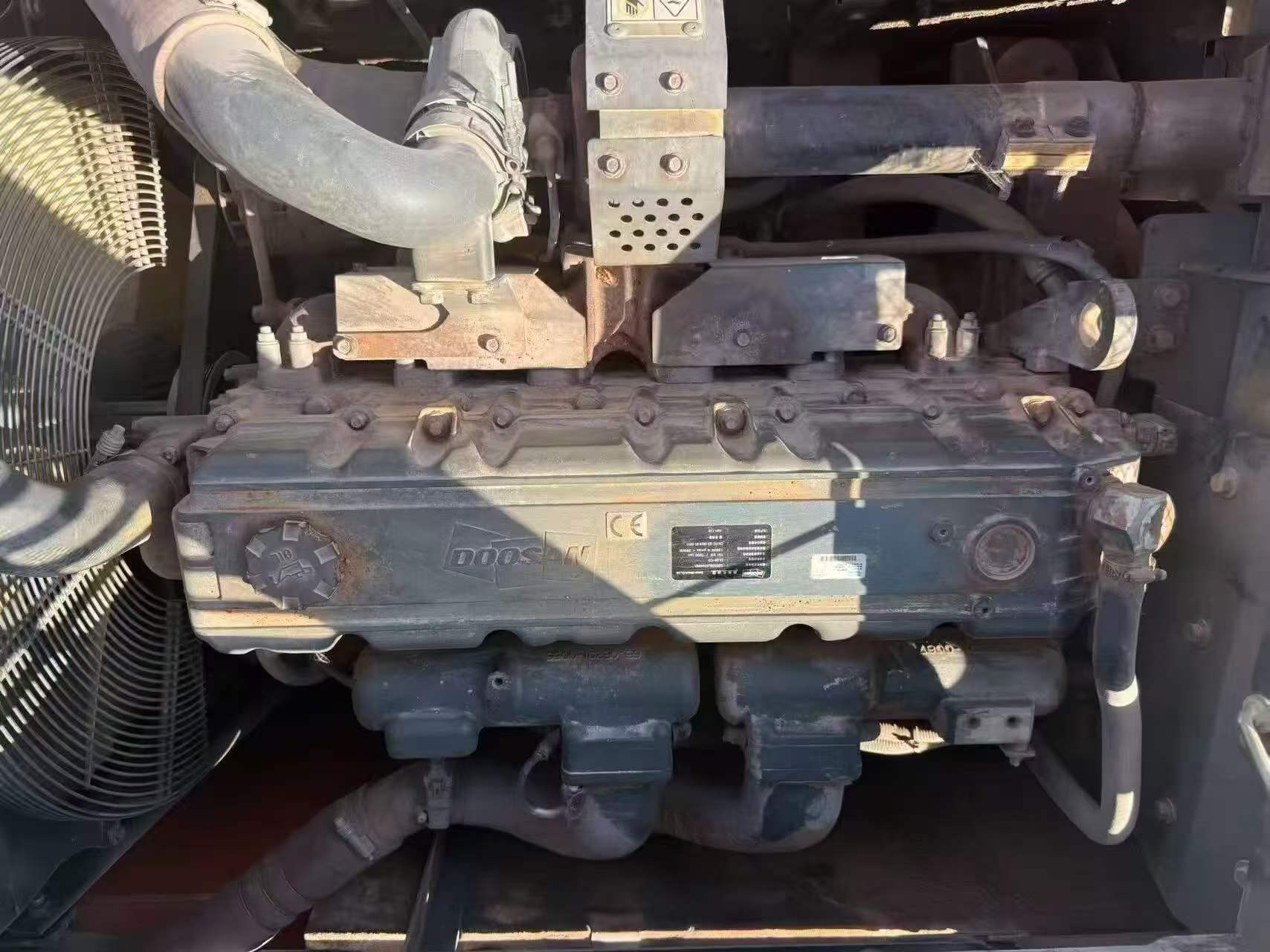

  • Engine: Doosan DL08, 6-cylinder, 191 kW / 1,800 rpm
  • Operating Weight: 34,100 kg
  • Bucket Capacity: 1.4–1.6 m³ (backhoe configuration)
  • Bucket Digging Force: 246 kN | Rod Digging Force: 181 kN
  • Max Digging Depth: 7,060 mm | Max Digging Radius: 11,320 mm
  • Max Excavation Height: 10,345 mm | Max Unloading Height: 11,168 mm
  • Travel Speed: 5.0 / 3.1 km/h | Swing Torque: 13,500 Nm
  • Main Pump Flow: 2 × 266 L/min
  • Fuel Tank: 324 L
  • Track Shoe Width: 600 mm | Ground Pressure: 66 kPa
  • Location: Zhejiang, China — available for global export

With a 6,500 mm boom, 2,900 mm arm, and a robust hydraulic system, this machine is ready to perform on large-scale civil, mining, or demolition sites. Sourced from China and export-ready, it represents a smart capital investment for buyers seeking proven Doosan reliability at used-equipment value.

SpecificationsValue
No.1100456
Tonnage (tons)34
Working weight (kg)34100
Bucket capacity (m³)1.4~1.6
Boom length (mm)6500
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDL08
Rated power (kw/rpm)191/1800
Cylinder diameter × stroke (mm)108 x 139
Number of cylinders (PCS)6
Ground specific pressure (Kpa)66
Rotation speed (rpm)8.6
Bucket digging force (kN)246
Rod digging force (kN)181
Travel speed (km/h)5.0/3.1
Turning torque (Nm)13500
Maximum flow of main pump (l/min)2 x 266
Bucket cylinders - Number × diameter × stroke (mm)1-145 x 95 x 1300
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 120 x 1805
Boom cylinders - Number × diameter × stroke (mm)2-150 x 100 x 1430
Fuel Tank (L)324
Total transport length (mm)11405
Total transport width (mm)3280
Total transport height (mm)3590
Full cab height (mm)3125
Counterweight ground clearance (mm)1195
Minimum ground clearance (mm)510
Back end turning radius (mm)3530
Onboard width (mm)2990
Total track length (mm)4640
Track plate width (mm)600
Maximum digging radius (mm)11320
Maximum digging depth (mm)7060
Maximum excavation height (mm)10345
Maximum unloading height (mm)11168
Maximum vertical digging depth (mm)3970
Maximum excavation radius of stop surface (mm)10690
see more

Overview

No.1100456

Brand Name:

Doosan

Model Number:

DX340LC-9C

Year:

2021

Location:

Zhejiang China

Pub Date
