2020 Doosan DX380LC

1/9

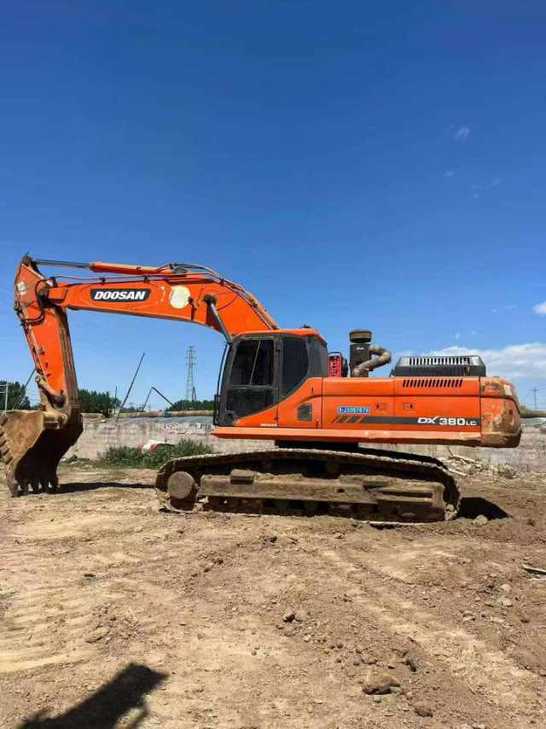

Buy Doosan DX380LC Used Excavator / 1
Buy Doosan DX380LC Used Excavator / 2
Buy Doosan DX380LC Used Excavator / 3
Buy Doosan DX380LC Used Excavator / 4
Buy Doosan DX380LC Used Excavator / 5
Buy Doosan DX380LC Used Excavator / 6
Buy Doosan DX380LC Used Excavator / 7
Buy Doosan DX380LC Used Excavator / 8
Buy Doosan DX380LC Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Doosan DX380LC, currently available in Peking, China. This used excavator is in excellent condition, boasting a nearly new undercarriage at 90% condition, ensuring robust performance on any job site. The machine's key components are in top shape, with no signs of oil leaks, promising a trouble-free operation. Ready for immediate deployment, this DX380LC can be put to work right away without additional investment, making it an ideal choice for construction projects. Contact us for more details or to arrange a viewing.

  • Year: 2020
  • Brand: Doosan
  • Model: DX380LC
  • Location: Peking, China
SpecificationsValue
No.1122215
Tonnage (tons)38
Working weight (kg)38100
Bucket capacity (m³)1.4 ~ 1.9
Boom length (mm)6500
Rod length (mm)2900
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDE12TIA C2A
Rated power (kw/rpm)202(274) / 1800
Cylinder diameter × stroke (mm)123 x 155
Number of cylinders (PCS)6
Displacement (L)11.05
Working formDirect injection; Turbocharged, air-cooled
Ground specific pressure (Kpa)71.59
Bucket digging force (kN)249
Rod digging force (kN)199
Travel speed (km/h)5.1 / 3.0
Turning torque (Nm)120
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)2 x 279
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1290
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 170 x 1812
Boom cylinders - Number × diameter × stroke (mm)2 x 150 x 1430
Fuel Tank (L)610
Hydraulic Tank (L)206
Engine Oil changes (L)28
Total transport length (mm)11380
Total transport width (mm)3350
Total transport height (mm)3740(to top of arm)
Full cab height (mm)3150
Counterweight ground clearance (mm)1265
Minimum ground clearance (mm)545
Minimum turning radius of front working device (mm)4485
Back end turning radius (mm)3530
Total track length (mm)4975
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10850
Maximum digging depth (mm)7120
Maximum excavation height (mm)10150
Maximum unloading height (mm)7195
Maximum vertical digging depth (mm)3755
Maximum excavation radius of stop surface (mm)10635
Maximum effective digging depth (mm)6925
see more

Overview

No.1122215

Brand Name:

Doosan

Model Number:

DX380LC

Year:

2020

Location:

Peking China

Pub Date
