Product Description

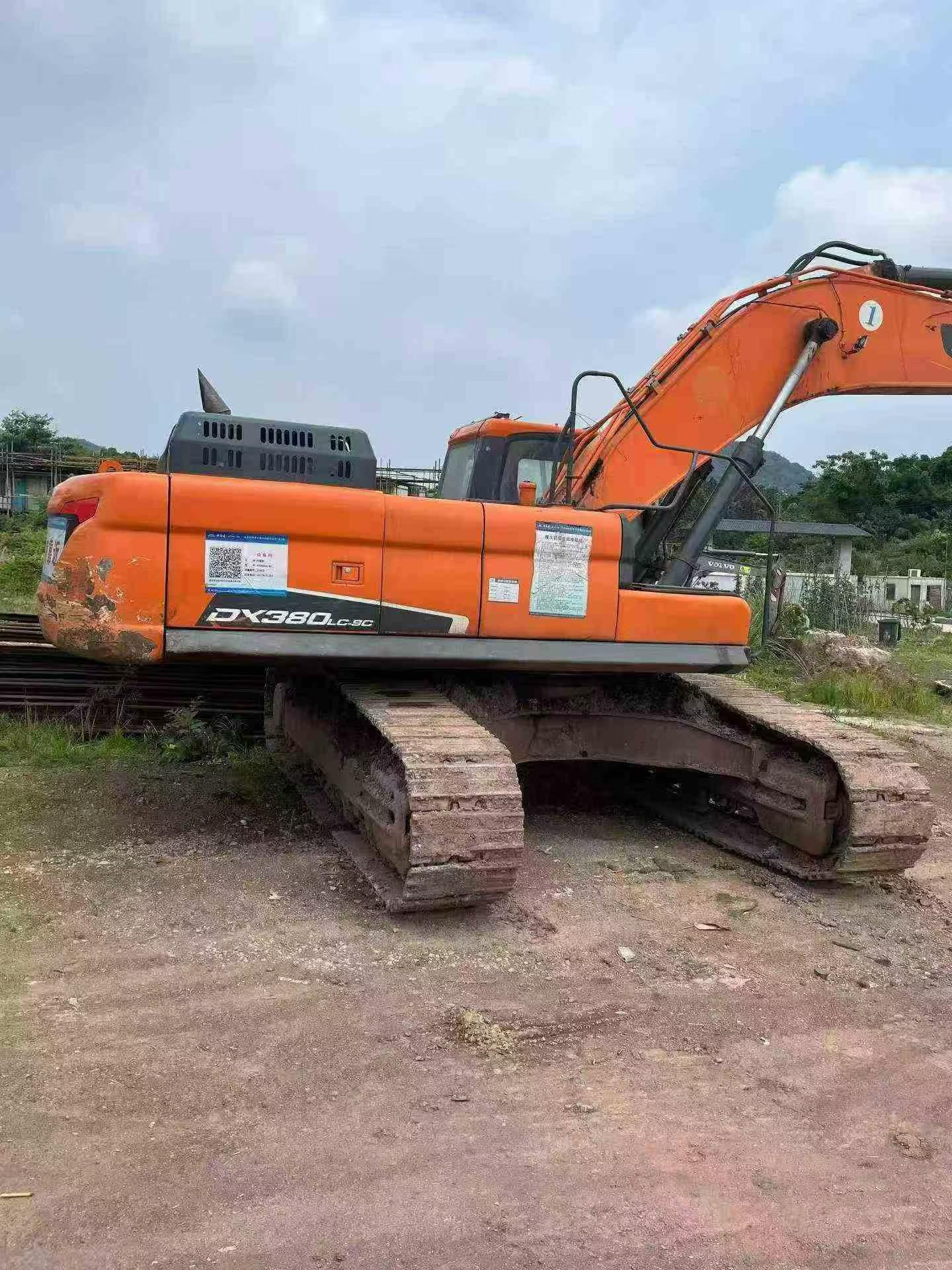

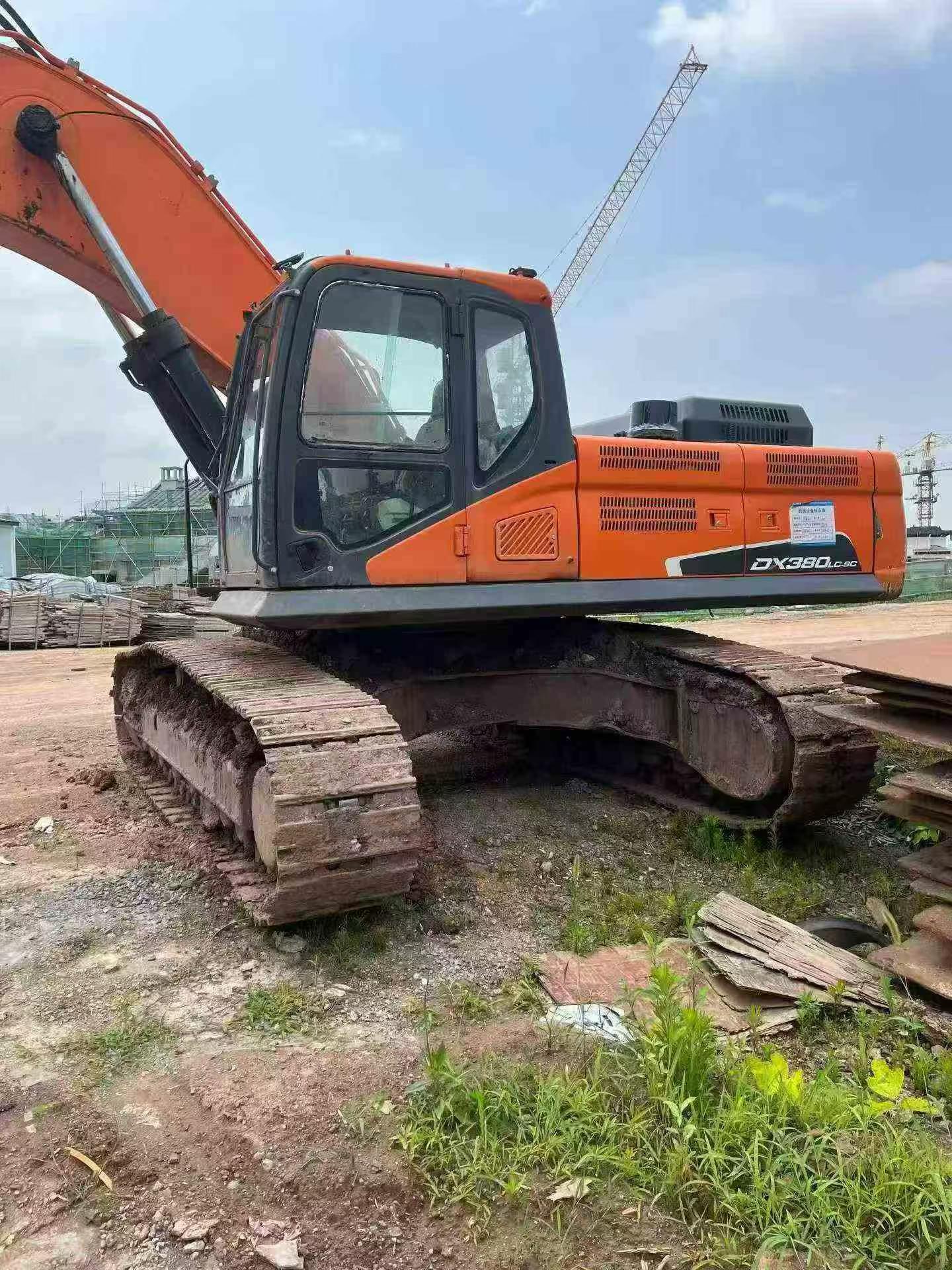

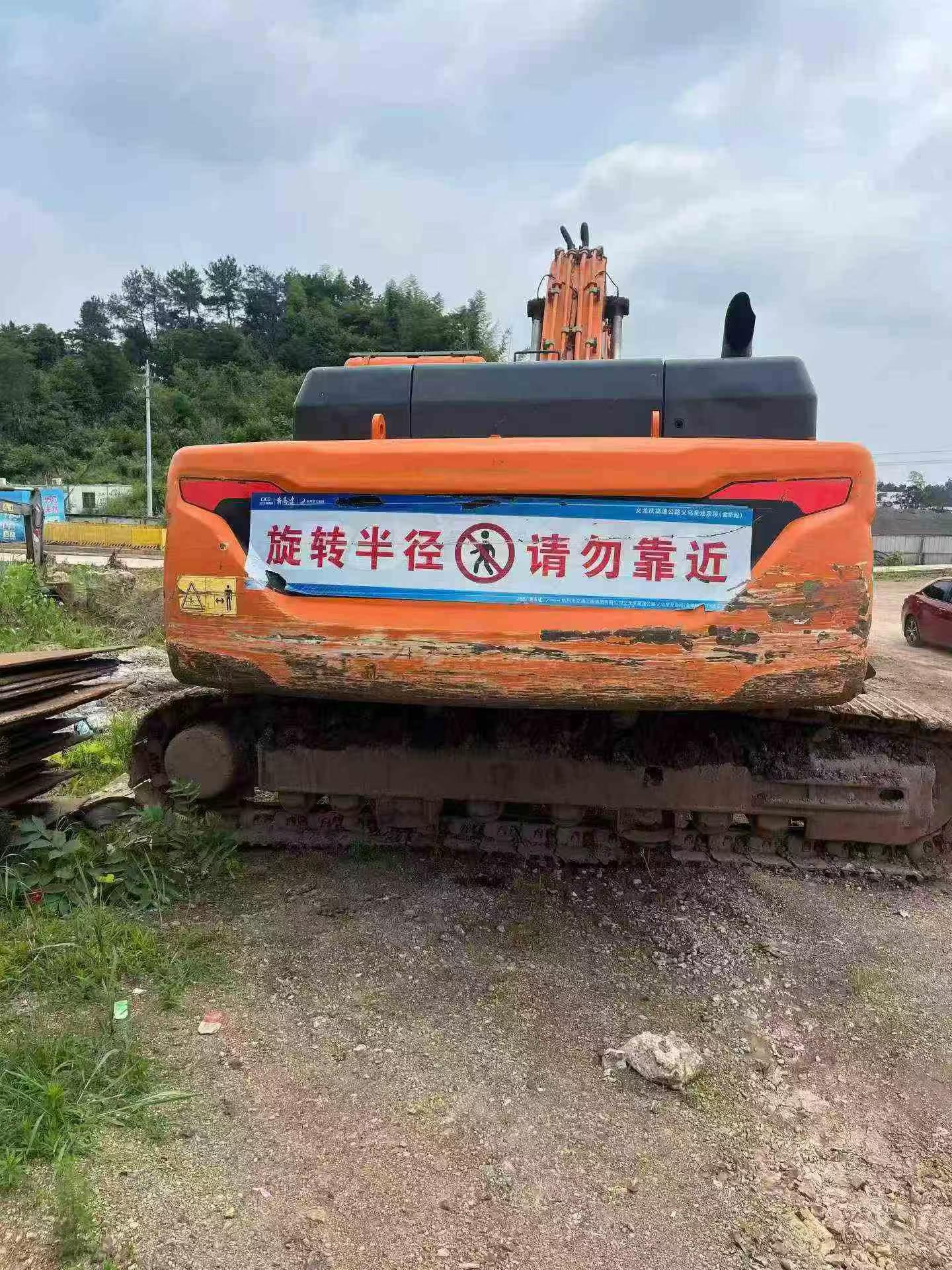

At 38 tonnes and powered by a Scania DC09 five-cylinder engine, this 2018 Doosan DX380LC-5 is built to carry a full workload from day one. With a bucket digging force of 259 kN, a maximum digging depth of 7,460 mm, and a reach of 11,170 mm, it handles the heavy cycles that push lighter machines to their limits — making it a reliable second unit when your primary excavator is committed elsewhere.
Currently located in Chongqing, China, this machine is available for international export and ready to slot into an active fleet with minimal downtime.
- Working weight: 40,200 kg

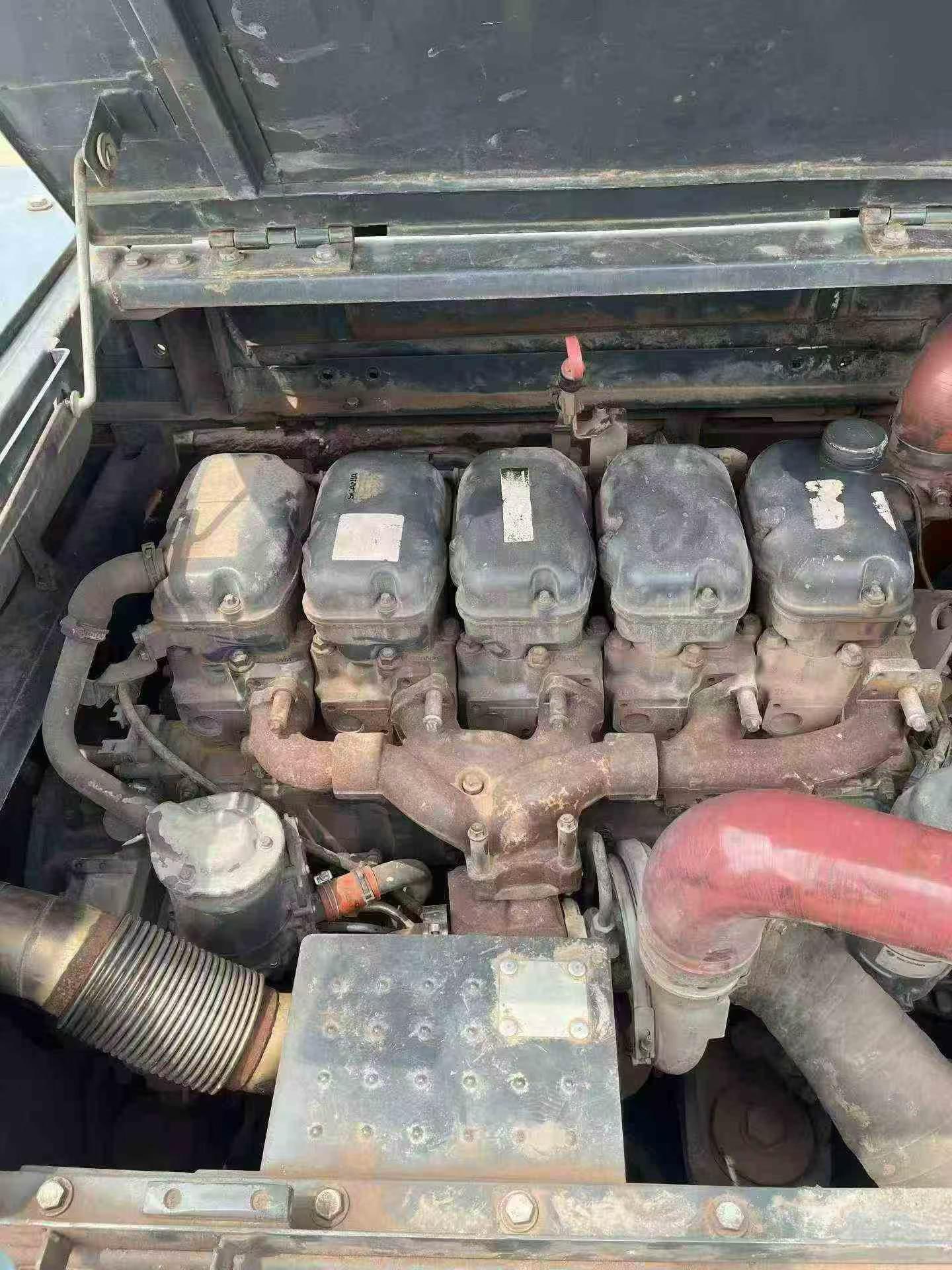

- Engine: Scania DC09, 5-cylinder
- Bucket digging force: 259 kN | Rod digging force: 189 kN
- Max tractive force: 397 kN
- Main pump flow: 2 × 350 l/min
- Max digging depth: 7,460 mm | Max digging radius: 11,170 mm
- Max excavation height: 10,390 mm
- Transport dimensions: 11,280 × 3,350 × 3,390 mm
| Specifications | Value |
|---|---|
| No. | 1115967 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 40200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Scania DC09 |
| Number of cylinders (PCS) | 5 |
| Bucket digging force (kN) | 259 |
| Rod digging force (kN) | 189 |
| Maximum tractive force (kN) | 397 |
| Maximum flow of main pump (l/min) | 2 x 350 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3350/3000 |
| Total transport height (mm) | 3390 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7460 |
| Maximum excavation height (mm) | 10390 |
